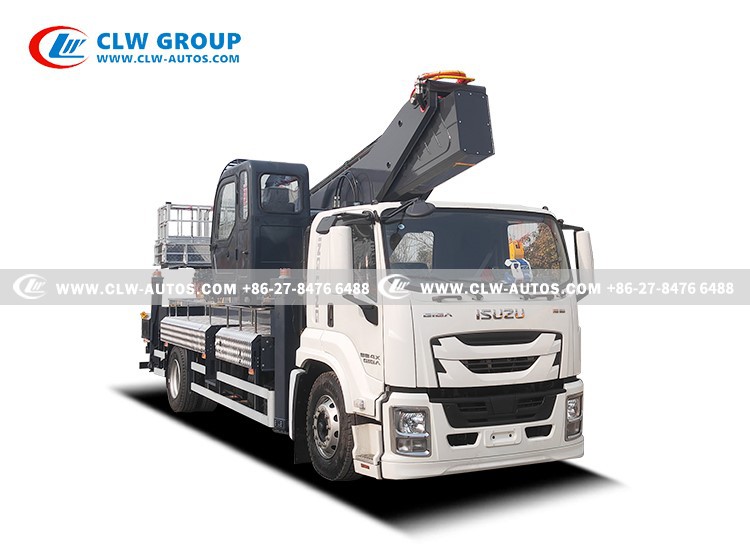

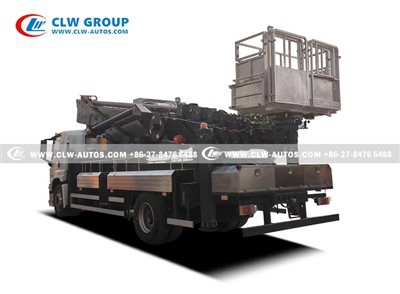

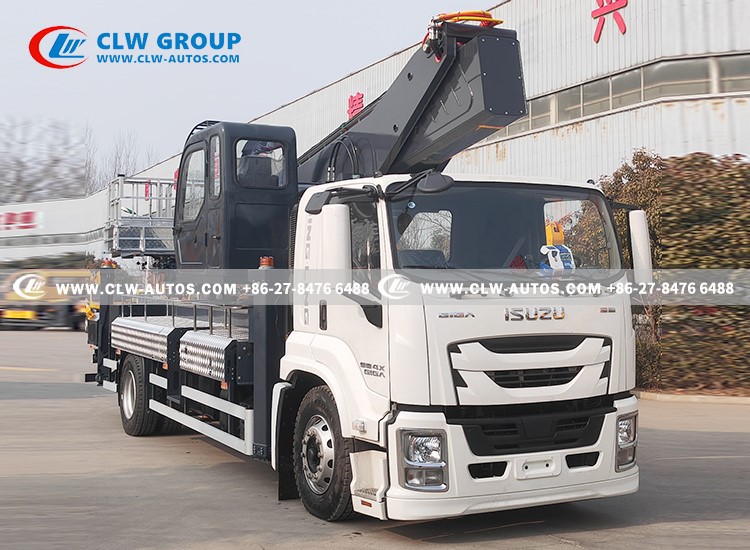

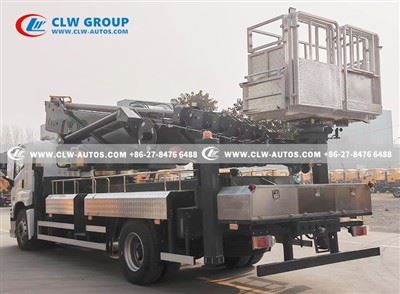

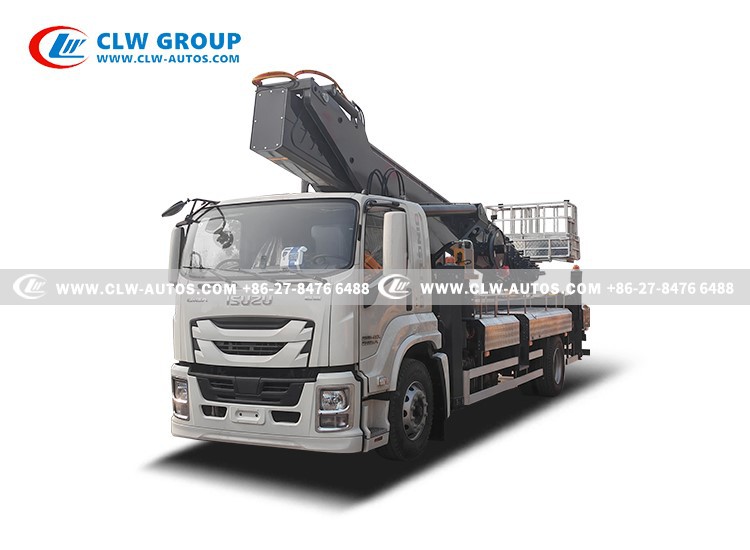

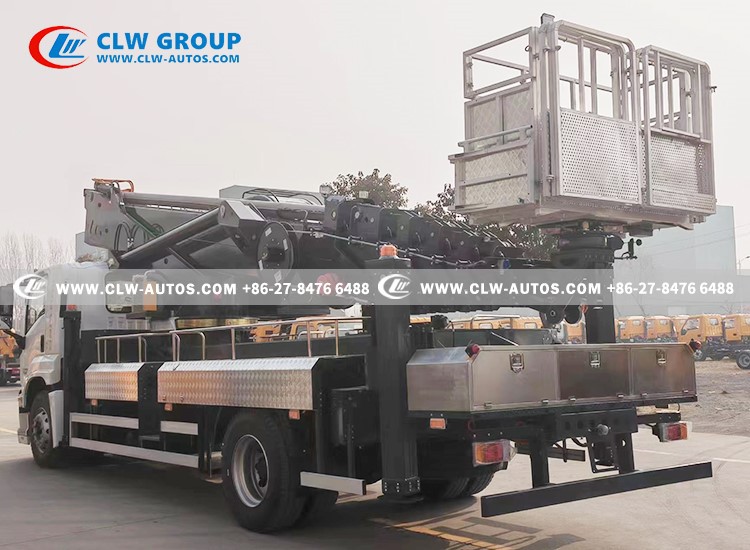

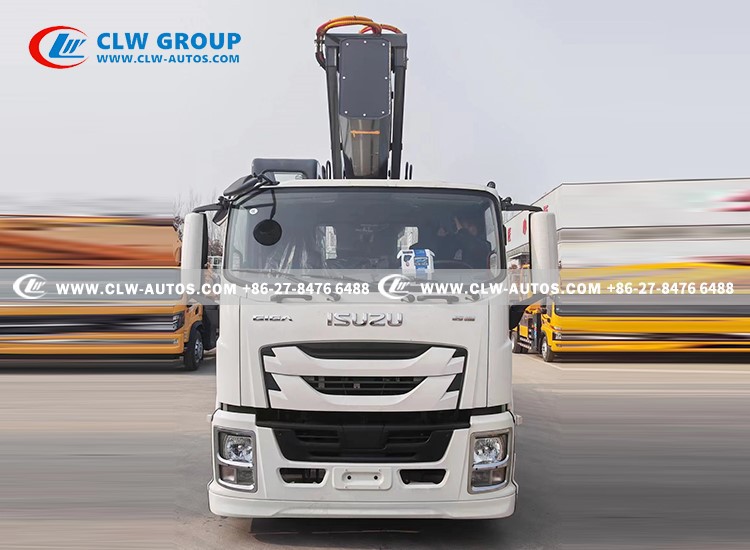

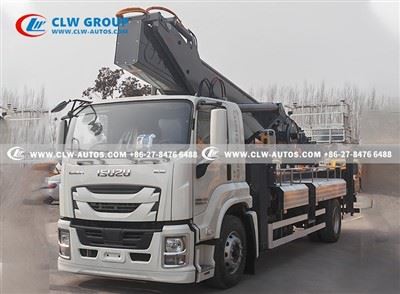

Isuzu 45m Manlift Aerial Working Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 45m manlift aerial working truck in China. If you're going to buy high quality isuzu 45m manlift aerial working truck, welcome to get more information from our factory. For price consultation, contact us.





Isuzu 45m Manlift Aerial Working Truck for Sale



We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance





Aerial working truck (also known as cherry picker truck, elevated work platform truck, boom lift truck, man lift truck, basket crane truck or hydraladder truck, bucket truck) is a type of commercial truck that is characterized by a long arm carrying a platform for a worker to stand on. A cherry picker truck can hold a boom lift or basket, which is wildly used in industries such as Electricity power, Road Lamp, Municipal, Gardening, Advertising, Photography, Airport, Shipbuilding, etc.

Aerial platform truck superstructure:

1. Aerial working height 14m,16m,18m,20m,20m,22m,24m,26m,28m,30m,32m,45m

2. The rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure

3. Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket

4. Truck equipped with two rotating amber lights

5. Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working.



Superstructure Features:


• Control device: CAN, Remote, Manual.
• The crane with working platform can be Lifted, Extended horizontally and Rotated, easy to reach the working scene.
• The aerial working platform has a large loading capacity, which can load two or more staffs and carry equipment within a certain weight.
• The landing leg is adjustable so the vehicle can be leveled on uneven roads.





Overall Dimension	8300 x 2540 x 3870 mm
Gross Vehicle Weight	18000 kg
Curb weight	6370 kg
Loading Weight	2855 kg
Wheel Base	4500mm
Approach/Departure Angle	24 / 15 degree
Cabin	2 or 3 Passenger Allowed, with A/C
Engine	Diesel Engine 4KH1-TC60, with ABS. Watering Cooling, Four Stroke, 6 Cylinder in Line, Direct Injection
Horse Power	205 HP, Euro VI
Gearbox	ISUZU MLD, Manual, 6 Forward & 1 Reverse Gear
Axle	6.3 Ton Front Axle, 13 Ton Rear Axle
Max Driving Speed	89 km/h
Tire	295/80R22.5 18PR, 6 pieces with 1 spare tire
Oil Box	200 Liters
Bucket Loading Capacity	200kgs-400kgs
Bucket Size	1600*700*1000mm





​
