Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of SITRAK Reefer Truck 30Tons in China. If you're going to buy high quality SITRAK Reefer Truck 30Tons, welcome to get more information from our factory. For price consultation, contact us.

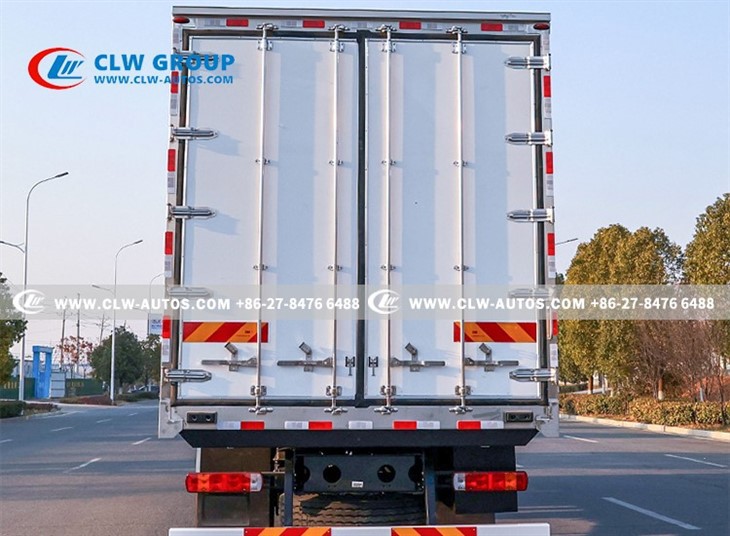

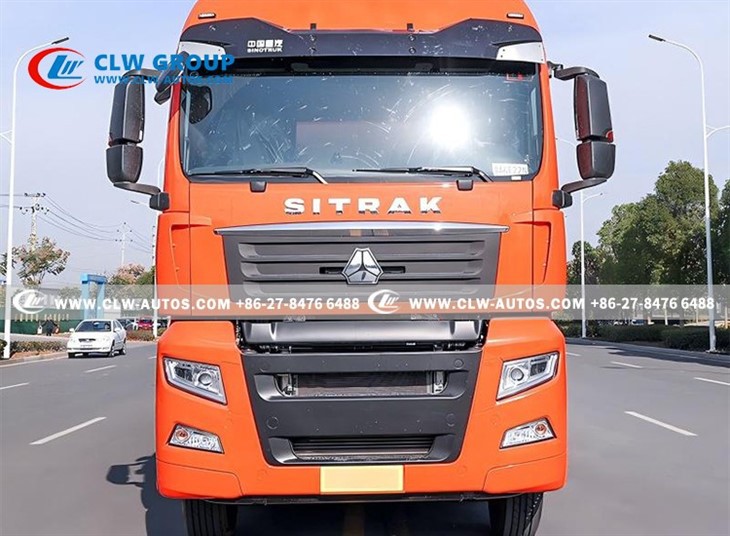

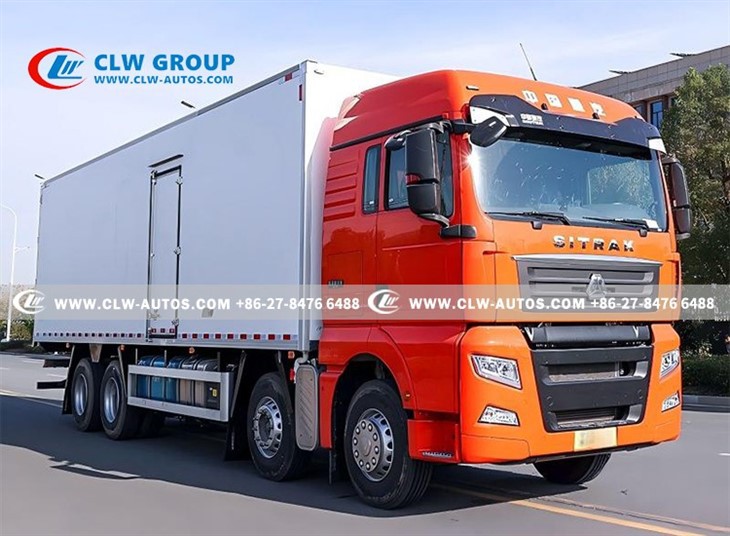

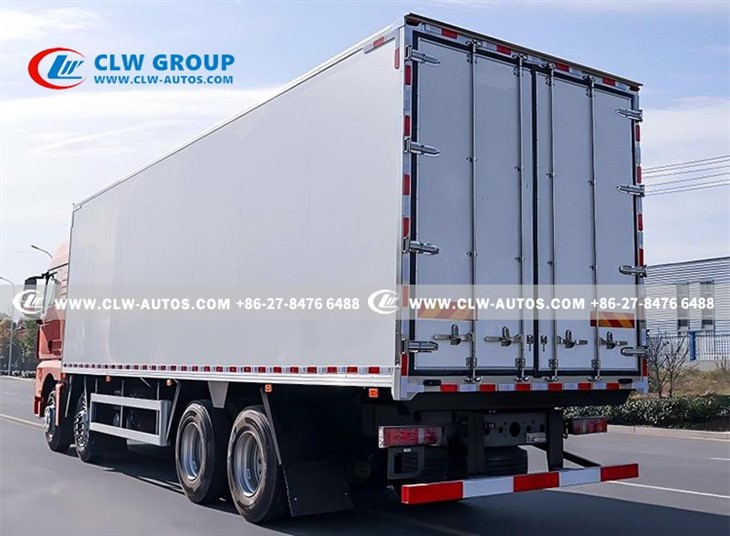

Sinotruk 8×4 Refrigerated Truck for Cold Chain Logistics
This Sinotruk 8×4 refrigerated truck is a high-performance cold chain transport solution designed for long-distance and heavy-load refrigerated and frozen cargo delivery. Equipped with a powerful engine, large-capacity insulated box, and internationally renowned refrigeration units, it ensures stable temperature control and reliable operation under demanding conditions.
The vehicle is powered by a 324 kW (440 HP) diesel engine with 6 cylinders and 10.518 L displacement, delivering a maximum torque of 2100 N·m. Combined with a 12-speed manual transmission and 8×4 drive mode, it offers strong traction, excellent climbing ability, and fuel-efficient performance, making it ideal for long-haul cold chain transportation.
The refrigerated box features a 58 m³ cargo volume, constructed with high-density polyurethane foam insulation and an 80 mm insulation thickness, ensuring superior thermal performance. The box is designed to maintain internal temperatures ranging from +30°C to -30°C, suitable for transporting frozen food, fresh produce, dairy products, pharmaceuticals, and vaccines.
Equipped with internationally trusted Carrier or Thermo King refrigeration units, the system provides a cooling capacity of 8700 W and a blowing rate of 3200 m³/h, ensuring fast cooling and uniform air circulation throughout the cargo compartment.
4 axles with a reinforced chassis for heavy loads
12 tires (12.00R20) for stability and durability
Automatic air-cut braking system for enhanced safety
Optimized axle load distribution for reliable long-term operation
Vehicle Dimensions: 12000 × 2600 × 4000 mm
Container Dimensions: 9200 × 2430 × 2450 mm
Box Size: 10000 × 2500 × 3000 mm
Emission Standard: Euro V
Refrigeration Temperature Range: +30°C ~ -30°C
Basic Info :
Payload : 18tons
Emission Standard : Euro 5, Euro 6 Optional
Transmission Type : Manual
Horsepower : 440hp
Fuel : Diesel
Condition : New
Box Volume(Cbm) : 58
Material of The Insulation : Polyurethane Foam
Insulation Thickness(mm) : 80
Refrigeration Unit Brand : Carrier/Thermo King
Package Size : 1000.00cm * 250.00cm * 300.00cm
Package Gross Weight : 8900kg
Get more informations or photos quickly
Laura LIU +86 15037170872
|
Vehicle Parameters |
||
|
Vehicle Brand |
Sinotruk |
|
|
Drive mode |
8×4 |
|
|
Curb Weight(kg) |
13800 |
|
|
Engine |
Engine Power(kw) |
324kw |
|
Engine Power(hp) |
440hp |
|
|
Number of cylinders |
6 |
|
|
Displacement |
10.518L |
|
|
Emission standard |
Euro V |
|
|
Maximum torque |
2100N·m |
|
|
Gearbox |
12 Speed Manual Transmission |
|
|
Vehicle Size (mm) |
12000x2600x4000 |
|
|
Container Size (mm) |
9200x2430x2450 |
|
|
Number of Axles |
4 |
|
|
Wheelbase (mm) |
1800+4575+1400 |
|
|
Number of Tires |
12 |
|
|
Tire Size |
12.00R20 |
|
|
Front/Rear Axle |
5Tons /5Tons /10Tons/10Tons |
|
|
Brake System |
Automatically Air-Cut Brake |
|
|
Technical parameter |
||
|
Box Volume(m³) |
58 |
|
|
Box size |
10000*2500*3000mm |
|
|
Gross weight |
8900kg |
|
|
Refrigeration Temperature Range |
+30ºC ~-30ºC |
|
|
Material of The Insulation Layer of the Box |
Polyurethane Foam |
|
|
Insulation Thickness(mm) |
80 |
|
|
Refrigeration Unit Brand |
Carrier/Thermo King |
|
|
Refrigeration Capacity (w) |
8700 |
|
|
Blowing Rate(m³/h) |
3200 |
|
This refrigerated truck is widely used for:
Frozen and fresh food transportation
Meat and seafood logistics
Pharmaceutical and medical cold chain transport
Long-distance and cross-regional refrigerated delivery
blueberry transportation, durian transportation, and flower transportation, highlighting its suitability for fresh produce, tropical fruits, and floral products that require strict temperature control during delivery.
vaccine transport
Used for certain medical reagents, diagnostic kits, and supplies that must be kept at constant, cool temperatures.
