Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of ford small refrigerated van 2t in China. If you're going to buy high quality ford small refrigerated van 2t, welcome to get more information from our factory. For price consultation, contact us.
Professional Refrigerated Van for H-Class Vaccine Logistics

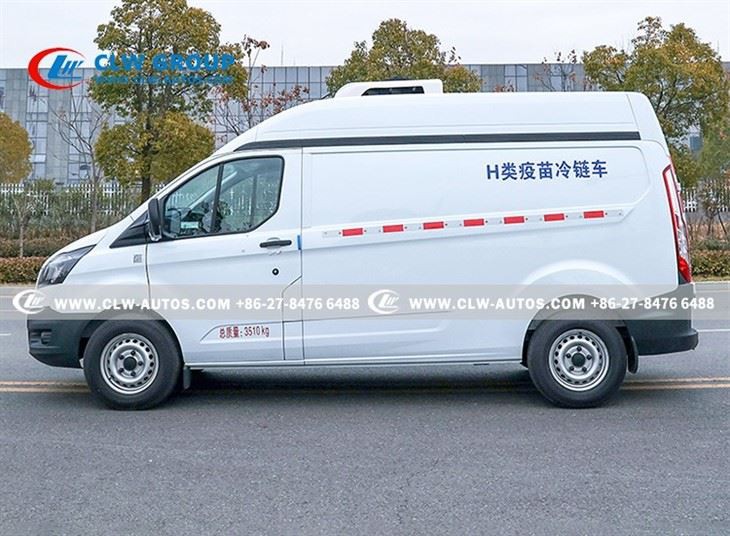

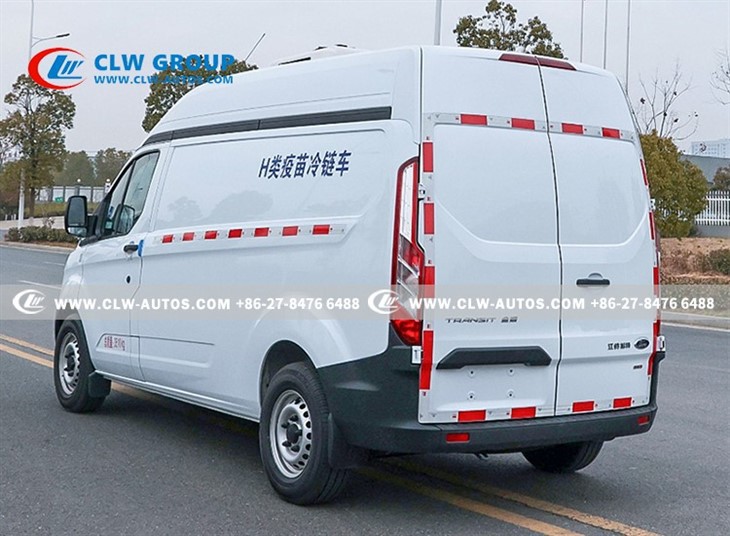

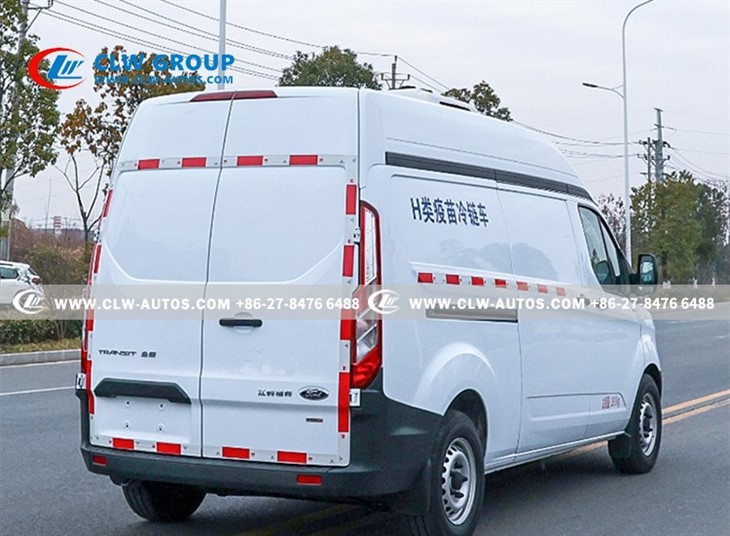

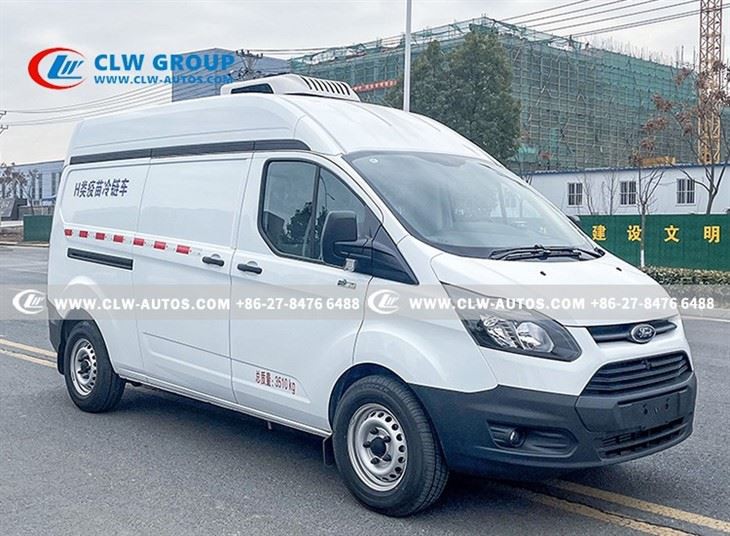

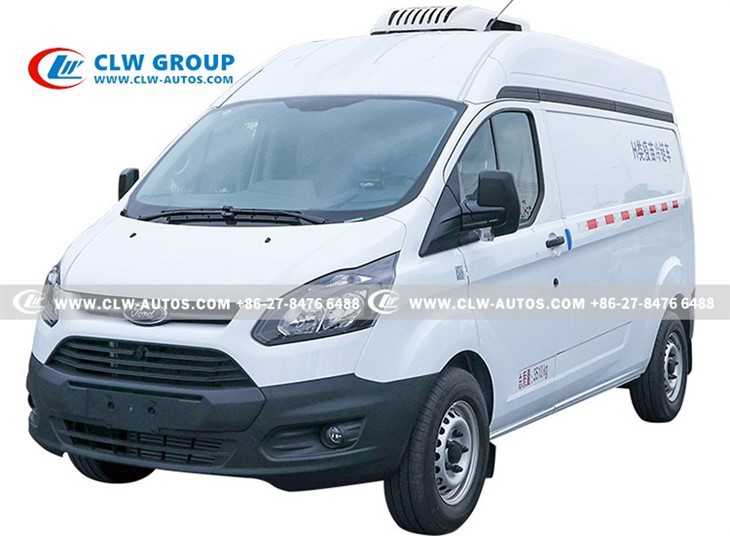

This Ford small refrigerated van is specially designed for high-standard cold chain transportation and is fully capable of meeting the strict temperature requirements for H-class vaccine logistics. Equipped with a high-performance refrigeration system and a well-insulated cargo box, it provides precise and stable temperature control from +30°C to –30°C, ensuring the safety and efficacy of vaccines throughout the entire transportation process. With reliable vehicle performance, efficient cooling capacity, and excellent thermal insulation, this refrigerated van is an ideal solution for pharmaceutical distribution, vaccine delivery, and other temperature-sensitive medical applications.
Key Features & Performance:
Brand: Ford
Engine Power: 90 kW
Gearbox: 5-speed manual transmission
Curb Weight: 2,100 kg
Vehicle Dimensions: 5341 × 2032 × 2412 mm
Wheelbase: 3300 mm
Number of Axles: 2
Number of Tires: 6
Tire Size: 185R14LT
Box Volume: 5 m³
Inner Container Size: 2290 × 1450 × 1550 mm
Insulation Material: High-density polyurethane foam
Insulation Thickness: 80 mm
Temperature Range: +30°C to –30°C
Refrigeration Unit Brand: Carrier or Thermo King
Refrigeration Capacity: 3200 W
Air Circulation Rate: 1200 m³/h
Front / Rear Axle Capacity: 1.5 tons / 2.5 tons
Brake System: Automatic air-cut brake system
Stable performance and safe braking ensure dependable operation under various road conditions.
Basic Info :
Payload : 2tons
Emission Standard : Euro 2, Euro 3, Euro 4, Euro 5, Euro 6 Optional
Transmission Type : Manual
Horsepower : 150-250hp
Fuel : Diesel
Condition : New
Box Volume(Cbm) : 2
Material of The Insulation : Polyurethane Foam
Insulation Thickness(mm) : 80
Refrigeration Unit Brand : Carrier/Thermo King
Package Size : 599.00cm * 230.00cm * 290.00cm
Package Gross Weight : 5000.000kg
Get more informations or photos quickly
Laura LIU +86 15037170872
|
Vehicle Parameters |
|
|
Vehicle Brand |
Ford |
|
Curb Weight(kg) |
2100 |
|
Engine Power(kw) |
90 |
|
Gearbox |
5 Speed Manual Transmission |
|
Vehicle Size (mm) |
5341x2032x2412 |
|
Container Size (mm) |
2290x1450x1550 |
|
Number of Axles |
2 |
|
Wheelbase (mm) |
3300 |
|
Number of Tires |
6 |
|
Tire Size |
185R14LT |
|
Front/Rear Axle |
1.5 Tons /2.5Tons |
|
Brake System |
Automatically Air-Cut Brake |
|
Technical parameter |
|
|
Box Volume(m³) |
5 |
|
Refrigeration Temperature Range |
+30ºC ~-30ºC |
|
Material of The Insulation Layer of the Box |
Polyurethane Foam |
|
Insulation Thickness(mm) |
80 |
|
Refrigeration Unit Brand |
Carrier/Thermo King |
|
Refrigeration Capacity (w) |
3200 |
|
Blowing Rate(m³/h) |
1200 |
The refrigerated truck is a core asset in cold chain logistics, specifically designed to transport goods that require a strictly controlled temperature environment. Its primary applications serve the following critical sectors:
Food Distribution & Logistics:
Frozen Foods: Safely transports ice cream, frozen meat, seafood, frozen prepared meals, and other goods requiring a deep-freeze environment, typically at or below -18°C.
Chilled/Perishable Foods: Ideal for fresh fruits and vegetables, dairy products (milk, yogurt), eggs, chocolate, and cut flowers, which need a stable chilled range between 0°C and +10°C to preserve freshness and extend shelf life.
Foodservice & Retail Supply: Delivers ingredients, pre-processed foods, and fresh produce from central kitchens and distributors to supermarkets, restaurants, hotels, and catering services.
Pharmaceutical & Healthcare Logistics:
Pharmaceuticals: Essential for transporting temperature-sensitive medicines such as vaccines, insulin, biologics, and clinical trial samples, often requiring a precise 2°C to 8°C cold chain.
Medical Supplies: Used for certain medical reagents, diagnostic kits, and supplies that must be kept at constant, cool temperatures.
Specialty Cargo & Other Uses:
High-Value Goods: Can transport certain temperature-sensitive high-precision electronic components or specialty chemicals that require a stable climate during transit.
Floral Industry: Used for the long-distance transport of premium cut flowers to maintain their freshness.
Pharmaceutical & Healthcare Logistics
Pharmaceuticals: Essential for transporting temperature-sensitive medicines such as vaccines, insulin, biologics, and clinical trial samples, often requiring a precise 2°C to 8°C cold chain.
vaccine transport
Used for certain medical reagents, diagnostic kits, and supplies that must be kept at constant, cool temperatures.
Compact Size, High Maneuverability
The small vehicle design allows easy operation in urban areas, hospitals, and distribution centers, ideal for last-mile vaccine delivery.
Cost-Effective Cold Chain Solution
Lower operating and maintenance costs compared to larger refrigerated trucks, while still meeting professional medical transport standards.
