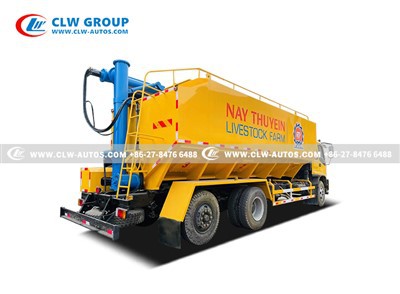

ISUZU 20m3 Bulk Feed Truck

Truck brand: ISUZU Bulk Feed Truck
Wheelbase:5550mm
Volume Capacity:20,000litrs
Tank Dimension:5300*2500*2550mm
3 Partition
3 Augers:Horizontal, vertical and lifting auger
Electric driven or hydraulic driven

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 20m3 bulk feed truck in China. If you're going to buy high quality isuzu 20m3 bulk feed truck, welcome to get more information from our factory. For price consultation, contact us.

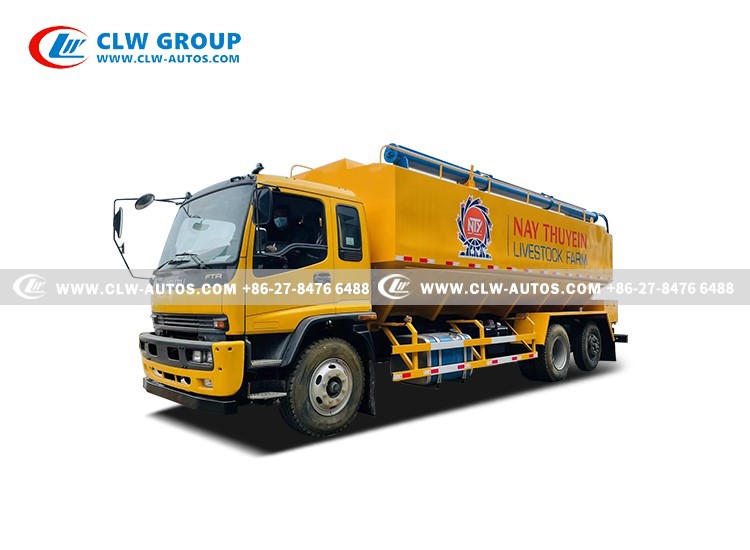

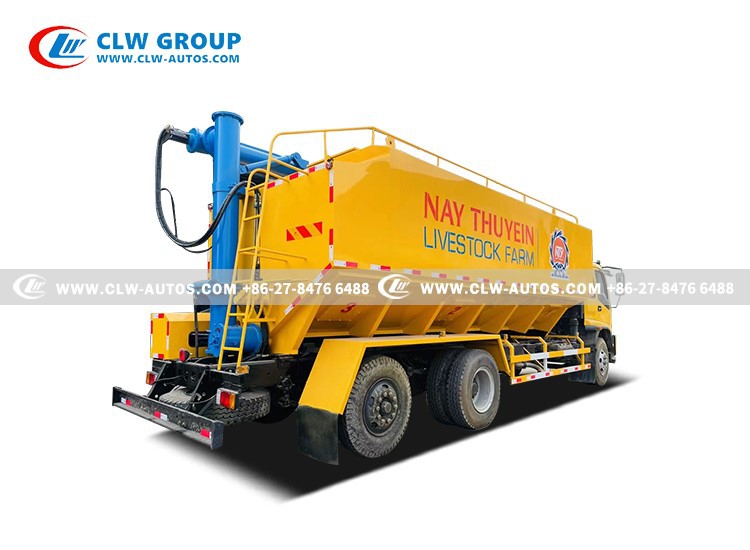

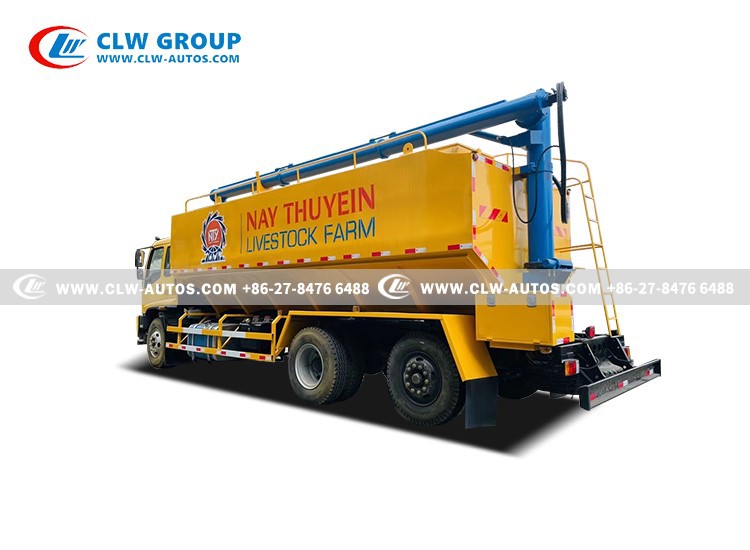

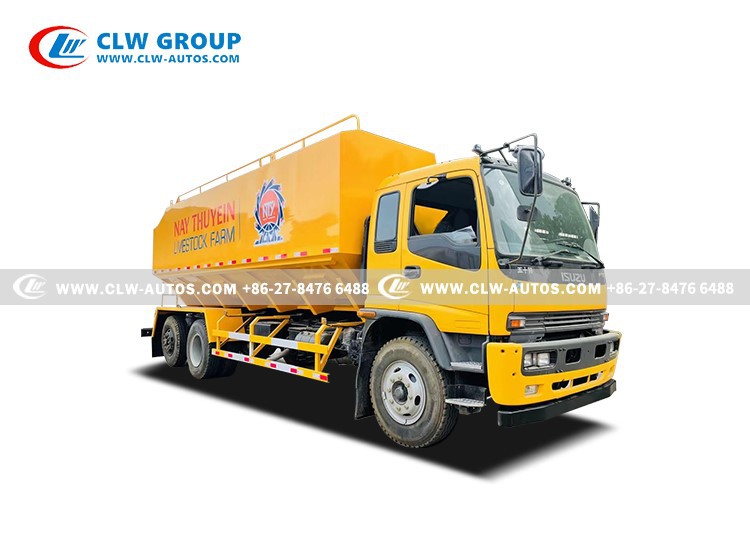

ISUZU 6X4 Bulk Feed Delivery Truck for Livestock Farm Industry

Products Description

Bulk feed trucks/semi-trailers are mainly used to transport feedstuff finished products or feed raw materials like soy bean meal from feed mills to livestock farms, poultry farms and feed processing users, and at the same time it is also available to transport some of the non-corrosive powder and granular materials, such as liquor-making materials, pharmaceutical raw material powsers as well as grain.
A bulk feed truck (also called a bulk feed transport vehicle) is a specialized commercial vehicle designed to haul loose, unpackaged animal feed and raw materials. It primarily transports finished feed from mills or processing grains to livestock/poultry farms, and can also handle other non-corrosive powdered or granular materials.
The ISUZU FTR 4X2 Bulk Feed Truck is a high-performance feed transport vehicle designed for efficient, hygienic, and automated delivery of bulk animal feed to farms, poultry houses, and feed mills. Equipped with a durable screw conveyor (auger) system, this truck ensures fast, clean, and precise feed distribution, reducing labor costs and waste.

Core components and Advantages

Core Components

Sealed Tank: Stainless steel or coated carbon steel construction

Auger System:

Horizontal conveyor (in-tank feed movement)

Vertical discharge auger (material elevation)

Swing/sliding auger (positioning flexibility)

Hydraulic Power Unit: Drives augers and lifting mechanisms

Pneumatic Gates: Enables compartment segregation during transport

Control System: Operator-managed discharge process

key Advantages

High Efficiency: Automated systems enable rapid transfer

Cost Reduction: Saves labor and packaging expenses

Minimized Waste: Prevents spillage and contamination

Quality Preservation: Avoids secondary contamination

Versatility: Handles multiple material types

Primary Applications

Bulk Feed

Unpackaged feed transported in loose form

Compared to traditional bagged feed:

Maximizes cargo space utilization
Eliminates packaging waste
Streamlines loading/unloading processes

Integrated Truck Design:

Purpose-built vehicle combining truck chassis with sealed tank

Equipped with integrated conveying/discharge systems

Transporting bulk feed from production facilities to

Livestock/poultry farms
Feed processing operations
Secondary use for non-corrosive granular/powdered materials (e.g., pharmaceutical ingredients)
Large-Scale Poultry & Livestock Farms – Delivers feed directly to chicken houses, pig farms, or cattle feedlots.
Feed Mills & Distributors – Efficient bulk transport to customers.
Aquaculture Farms – Safe, contamination-free feed delivery for fish/shrimp farming.
Cooperative Farming Hubs – Reduces manual handling and ensures consistent supply.

Industry Significance
Bulk feed trucks are essential infrastructure in modern agriculture, enabling cost-effective, hygienic, and efficient material transport from production facilities to end-users.

Products Specification

Chassis technical specification
Chassis brand	ISUZU 4X series
Driving mode	4X2
Cab	Original ISUZU 4X cabin Flat top one row and a half With air conditioning Power steering Electrical doors and windows Central lock
Wheelbase	5550mm
External dimension	840025003800mm
Engine	Engine brand	4HK1-TC60
	Fuel type	Diesel
	Horsepower	205hp
	Displacement	5193ml
	Emission standard	Euro Ⅵ
Transmission	Manuel type, 6 forward gears and 1 reverse
Front axle loading	6,300kg
Rear axle loading	13,000kg
Max. Driving speed	89km/h
Clutch	Reinforced diaphragm clutch
Tyre	295/80R22.5, 6 pieces with one spare
Superstructure parameters
Volume capacity	20m3; 10tons
Tank material	Q235
Tank thickness	4mm
Tank dimension	530025002550mm
Partition	3
Loading medium	Bulk feed, grain, powder, bran, plastic particle, etc
Power supply	Power socket with 20 meters wire cable
Discharging parts	3 augers including 1 unit horizontal auger, 1 unit vertical auger, 1unit lifting auger
Driving form	Electric driven or hydraulic driven
Discharging rate	600kg/min
Discharging pipe	7.2m
Rotary angle of discharing system	±180°
Maximum vertical angle	60°
Residual rate	≤0.10
Main parts	Mobile conveyor
	Vertical conveyor
	Wire cabinets
	Conveyor maintenance port
	Horizontal conveyor
	Discharging operation handle
	ladder
	Electric motor
	Wireless remote control
Painting and logo	As customer's request

Factory Real Shot Video for You

Automatic animal feed transporter

Farm feed conveyor truck

Best bulk feed truck for poultry

Hydraulic auger feed truck

Large-capacity feed transport vehicle

ISUZU 6X4 feed delivery truck

Bulk feed truck for sale

✅ Robust ISUZU FTR 4X2 Chassis – Reliable engine, excellent fuel efficiency, and low maintenance costs.

✅ High-Capacity Feed Tank – Available in 10-20 ton configurations, made from anti-corrosion, food-grade materials.

✅ Fully Automated Auger System – Includes vertical auger, horizontal auger, and lifting mechanism for flexible feed discharge.

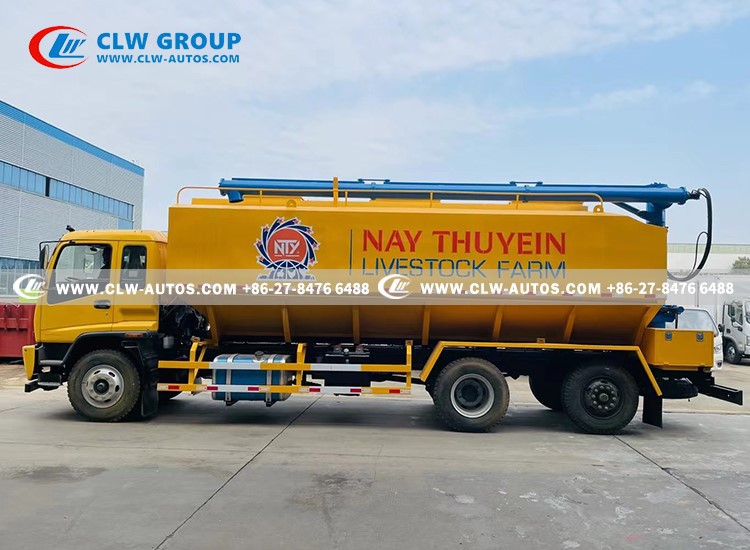

Different compartments ISUZU 6X4 Bulk feed truck

✅ Adjustable Conveyor Reach – Horizontal auger extends up to 12m, allowing feed delivery directly into silos or troughs.

✅ Dust-Free & Weatherproof – Sealed system prevents contamination and moisture damage.

✅ Easy Operation & Low Maintenance – Hydraulic controls, quick-clean access ports, and wear-resistant screw flights.

Loading – Bulk feed is loaded into the tank from a feed mill or storage facility.

Transportation – The ISUZU FTR drives to the farm or livestock facility.

Discharge – The vertical auger lifts feed, while the horizontal auger delivers it precisely to bins, silos, or feeding systems.

Adjustment – The lifting mechanism allows height adaptation for different storage setups.
