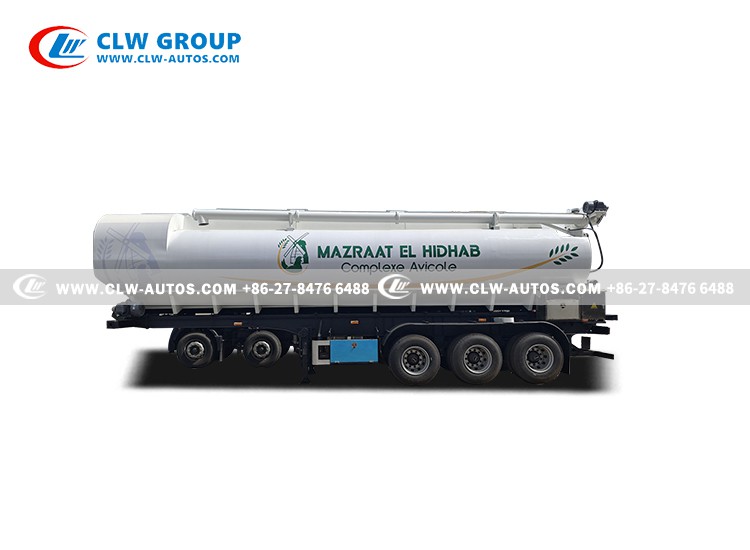

60,000litres Bulk Feed Transportation Semi-trailer
Volume Capacity:60,000litrs
Tank Dimension:13750*2550*4000mm
6 Partition
Gross weight:40,000kg
Tyre:11R22.5 14PR
3 axles:13 tons FUWA brand
Suspension:16 tons FUWA air suspension
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60,000litres bulk feed transportation semi-trailer in China. If you're going to buy high quality 60,000litres bulk feed transportation semi-trailer, welcome to get more information from our factory. For price consultation, contact us.

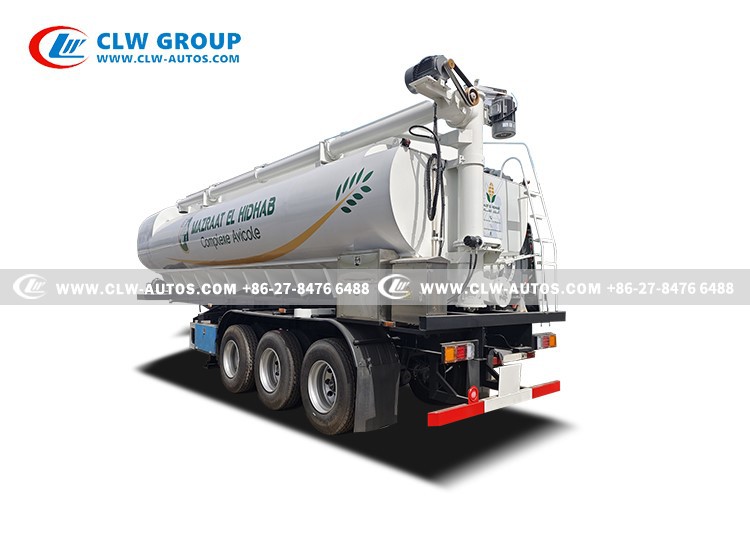

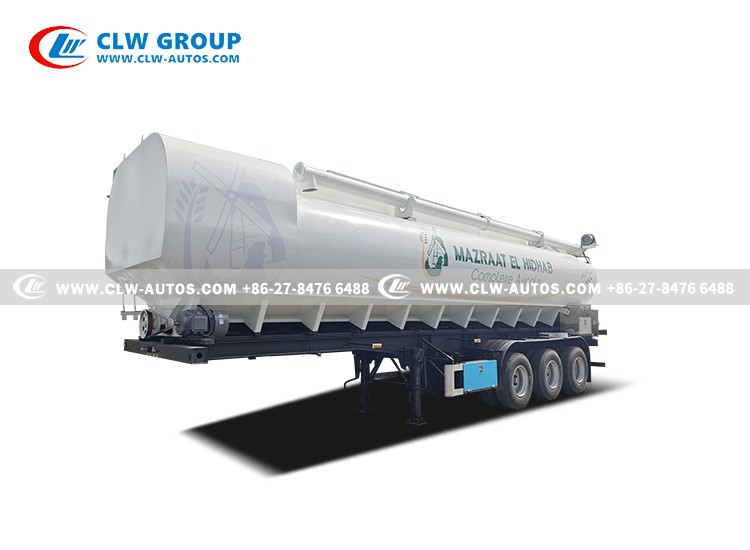

3 axles 60,000litres Bulk Feed Transportation Truck Semi-trailer with 6 Partitions to Saudi Arabia
Products Description
- Introducing the Ultimate Solution for Modern Farm Feed Logistics: Our 60-Cubic-Meter, 6-Compartment Bulk Feed Semi-Trailer is engineered for maximum efficiency, flexibility, and reliability in delivering vital nutrition to livestock operations.
- Bulk feed trucks/semi-trailers are mainly used to transport feedstuff finished products or feed raw materials like soy bean meal from feed mills to livestock farms, poultry farms and feed processing users, and at the same time it is also available to transport some of the non-corrosive powder and granular materials, such as liquor-making materials, pharmaceutical raw material powsers as well as grain.
- This heavy-duty tri-axle bulk feed semi-trailer boasts a significant 60 cubic meter capacity, intelligently divided into six independent compartments. Constructed from high-strength, corrosion-resistant steel, it features a robust pneumatic conveying system powered by an onboard air compressor and blower. Designed for smooth over-the-road travel and precise on-farm discharge, it ensures feed arrives fresh, uncontaminated, and ready for consumption.
Core components and Advantages
How it works
Filling: The trailer is positioned under a feed mill's bulk load-out spout. Each compartment is filled sequentially with the designated feed type via gravity or pressure.
Discharge:
The driver selects the desired compartment using internal valves.
Compressed air is introduced into the compartment's discharge cone/auger system, fluidizing the feed.
The fluidized feed is conveyed pneumatically through the discharge hose into the farm's storage bin.
The process repeats for each compartment as needed.
Completion and Clean-Out: Once discharged, residual air clears the hose. Compartments can be inspected and cleaned as necessary before the next load.
key Advantages
Unmatched Capacity and Efficiency: Move 60 cubic meters of feed in a single trip, drastically reducing the number of deliveries required compared to smaller trailers or bagged feed. Maximize payload within legal weight limits.
Deliver Multiple Formulas: Transport different feed types (e.g., starter, grower, finisher, lactating cow, dry cow) simultaneously.
Eliminate Cross-Contamination: Sealed compartments prevent feed types from mixing.
Reduce Waste: Deliver exactly what's needed for specific animal groups.
Primary Applications
Commercial Feed Mills: Delivering bulk feed (pellets, mash, crumbles) directly to large-scale farms.
Integrated Livestock Producers: Transporting feed between company-owned facilities or production sites.
Large-Scale Farms: (Dairy, Poultry, Swine, Beef) Receiving and storing significant quantities of specialized feed rations.
Feed Distribution Companies: Serving diverse livestock customers efficiently.
Transporting bulk feed from production facilities to
- Livestock/poultry farms
- Feed processing operations
- Secondary use for non-corrosive granular/powdered materials (e.g., pharmaceutical ingredients)
- Large-Scale Poultry & Livestock Farms – Delivers feed directly to chicken houses, pig farms, or cattle feedlots.
- Feed Mills & Distributors – Efficient bulk transport to customers.
- Aquaculture Farms – Safe, contamination-free feed delivery for fish/shrimp farming.
- Cooperative Farming Hubs – Reduces manual handling and ensures consistent supply.
Industry Significance
Bulk feed trucks are essential infrastructure in modern agriculture, enabling cost-effective, hygienic, and efficient material transport from production facilities to end-users.
Products Specification
|
Technical specification |
|
|
Product |
60,000liters bulk feed transportation semi-trailer |
|
Capacity |
60cbm/ 60,000litres |
|
Loading medium |
Bulk feed, grain,powder,bran, plastic particle,etc |
|
Dimensions |
13750*2550*4000mm |
|
Wheelbase |
7080+1310+1310mm |
|
Gross vehicle weight |
40,000kg |
|
Rated loading weight |
27,290kg |
|
Curb weight |
12,710kg |
|
Tyre |
11R22.5 14PR |
|
Axle number |
Three axle |
|
Axel loading weight |
13tons FUWA axle per one, 16ton brake pad |
|
Suspension |
16 ton FUWA air |
|
Lifting leg |
28tons JOST lifting leg |
|
Tractor |
50# JOST traction pin |
|
Tool box |
2 pcs |
|
Tank body thickness |
4mm, high-quality titanium steel plate |
|
Partition |
Optional 6 compartments for different kinds of feed |
|
Average discahrge rate |
400~500kg/m |
|
Discharge system rotation angle |
±180 degree |
|
system elevation angle |
60° |
|
Discahrge type |
electric screw; optional for hydraulic screw |
|
Discharging parts |
3 augers, 1 unit horizontal auger, 1 unit vertical auger, 1 unit lifting auger |
|
Transmission distance |
maximum horizontal distance: 6.1m; vertical distance:8m |
|
Residual rate |
≤0.10 |
|
Painting and logo |
As customer's request |
Factory Real Shot Video for You
Gentle and Efficient Discharge: The pneumatic system uses air pressure to fluidize and gently convey feed directly into farm storage bins at controlled rates, minimizing dust and feed degradation.
Durability and Low Maintenance: Heavy-duty construction, quality components (axles, suspension, steel), and corrosion protection ensure a long operational lifespan and reduced downtime.
✅Access Ladders and Walkways: Secure access for inspection and maintenance.
✅Dust Control: Minimizes airborne particles during discharge.
✅ Fully Automated Auger System – Includes vertical auger, horizontal auger, and lifting mechanism for flexible feed discharge.
✅ Adjustable Conveyor Reach – Horizontal auger extends up to 12m, allowing feed delivery directly into silos or troughs.
✅ Dust-Free & Weatherproof – Sealed system prevents contamination and moisture damage.
✅ Easy Operation & Low Maintenance – Hydraulic controls, quick-clean access ports, and wear-resistant screw flights.
Loading – The trailer is positioned under a feed mill's bulk load-out spout. Each compartment is filled sequentially with the designated feed type via gravity or pressure.
Completion and Clean-Out: Once discharged, residual air clears the hose. Compartments can be inspected and cleaned as necessary before the next load.
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
