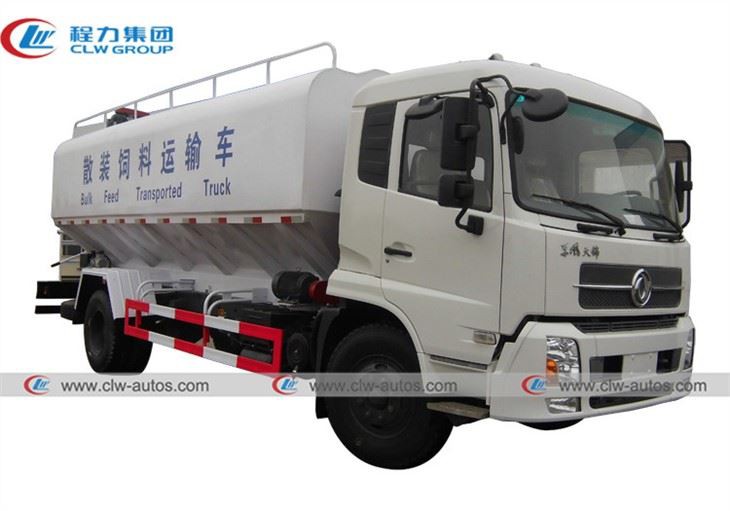

Dongfeng 20CBM Bulk Feed Transport Truck
Chassis brand: Dongfeng Wheel base:5000mm Function: bulk feed transport Tank volume: 20cbm/20M3
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 20cbm bulk feed transport truck in China. If you're going to buy high quality dongfeng 20cbm bulk feed transport truck, welcome to get more information from our factory. For price consultation, contact us.
Product description
Bulk Feed Delivery Tanker Truck (bulk feed truck), called bulk animal chicken feed transport tank truck, bulk feed delivery truck, bulk feed pellet truck, bulk-grain carrier, bulk forage truck etc. It is mainly used in the feed factory to livestock poultry farm and feed processing user or transport bulk raw grain feed finished feed production, at the same time it also can be used to transport some no corrosive powder and granular materials, such as pharmaceutical powder and grain circulation.
1. Bulk feed transport truck than packaged into bags of transport not only save labor, and the cost is lower, but requires livestock and poultry farms have a storage tank containing feed.
2. Bulk feed in the tank sealed conveying, reduce loss, ensure quality, avoid pollution. Automatic loading and unloading, continuous operation, greatly improve production efficiency.
3. Automatic hydraulic system, easy to operate and easy to use. Chassis adopts truck chassis, other parts, hydraulic pump, hydraulic motor and so on are standardized, imported hydraulic parts, to provide convenient conditions for maintenance.
4. The tank can be equipped with sub-bin, can transport a variety of different kinds of feed or puffing medium.
The effective volume of the tank is 20 square meters, which can hold 12-15 tons. The standard configuration is divided into 3 compartments.
Transport medium: puffed and pellet feed, powder, corn, density is generally 0.5/ cubic. Customers can also choose electric hoist driven discharge or hydraulic hoist discharge according to the actual situation.
Unloading tube unloading 60 degrees, vertical unloading 8.5 meters, the vehicle unloading time is 20 minutes.
Working principle: electric twisted-dragon (vehicle 3 twisted-dragon, driven by 3 5.5KW electric, the top twisted-dragon lifted by hydraulic control, can rotate 180 degrees, twisted-dragon maximum elevation Angle of 60 degrees, maximum unloading height of 8.5 meters), the top of the tank is welded with cold rolled steel plate, the tank is divided into 3 compartments, can independently control the material sequence and speed of each warehouse.
Product specifications
| Truck name | Dongfeng Tianjin 20cbm bulk feed transport truck |
| Model of Cab | Flat Top, Row and a half |
| Driving Type | 4*2 |
| Wheel Base | 5000mm |
| Model of GearBox/Manufacturer | DF6S900/Dongfeng Automobile Gearbox Co., Ltd |
| Model of Engine/Manufacturer | ISB180 50/Dongfeng Cummins Engine Limited |
| Engine Capacity | 5900ML |
| Rated Power | 132(kW)/2500(r/min)/180hp |
| Max Maximum Torque | 700(N.m)/1500(r/min) |
| Tyre Size | 10.00R20 18PR |
| External Dimensions | 9000*2450*3800mm |
| Bulk Capacity | 20m³ |
| Number of Compartments | 3 |
| Engine Power/voltage | 22kW/380V |
| Max Transport Height | 7.9M |
| Max Transport Length | 4.6M |
| Rated Discharge Capacity | 450~600(kg/min) |
| Residual Rate | ≤0.22 |
| Turning Type | Electric |
| Others | ABB Motor, it could connect external electric power |

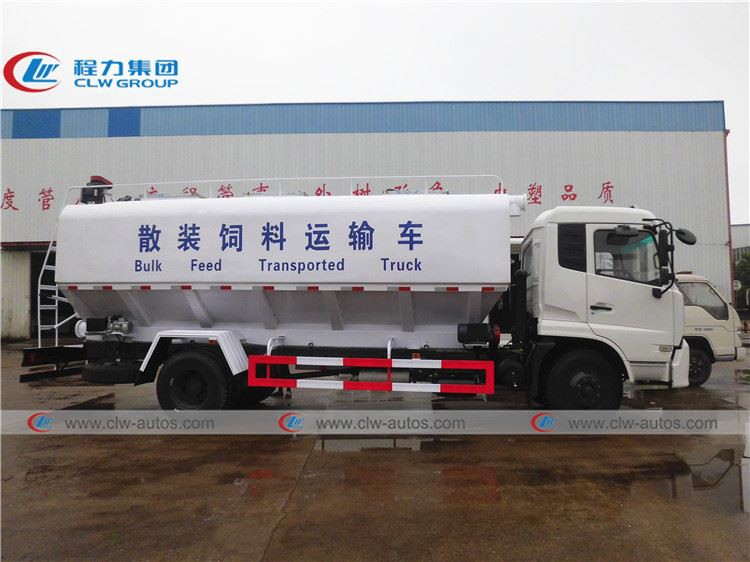

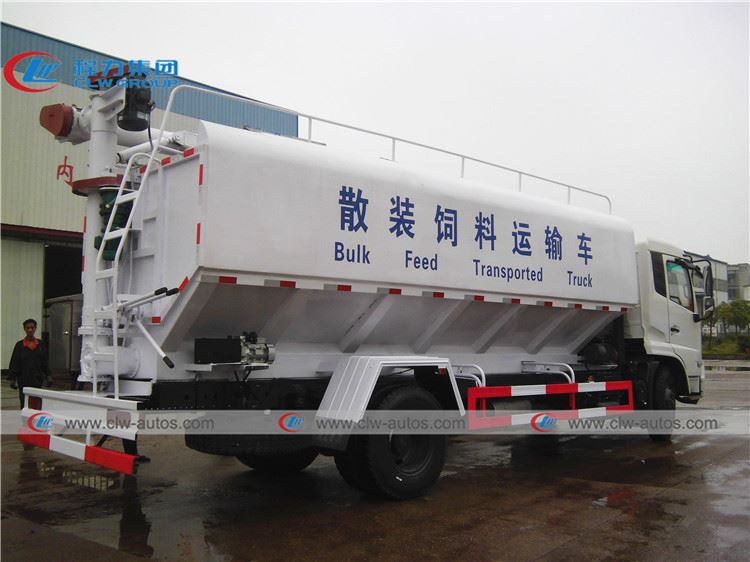

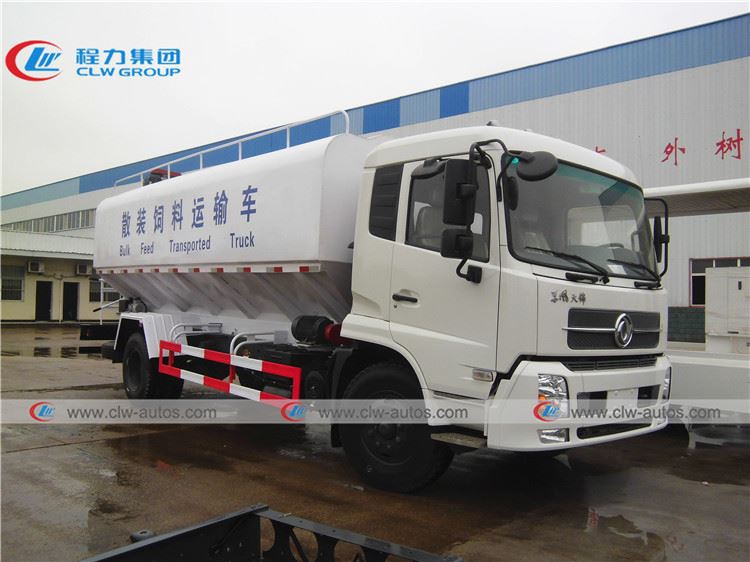

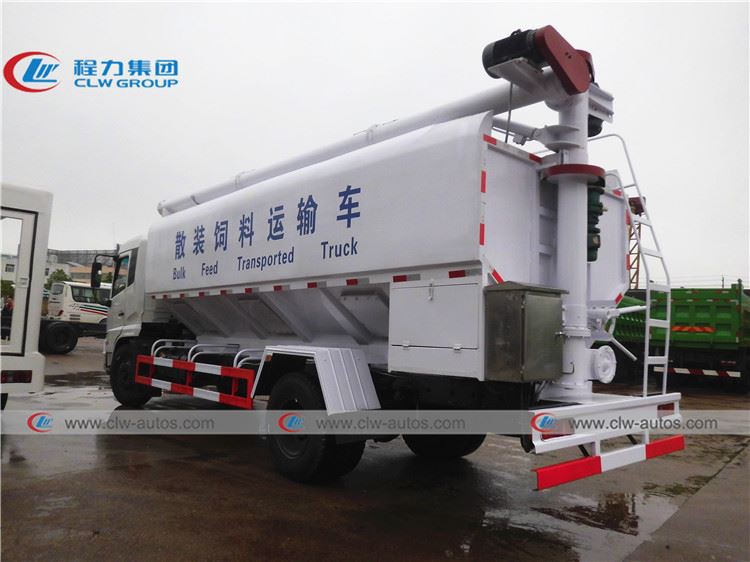

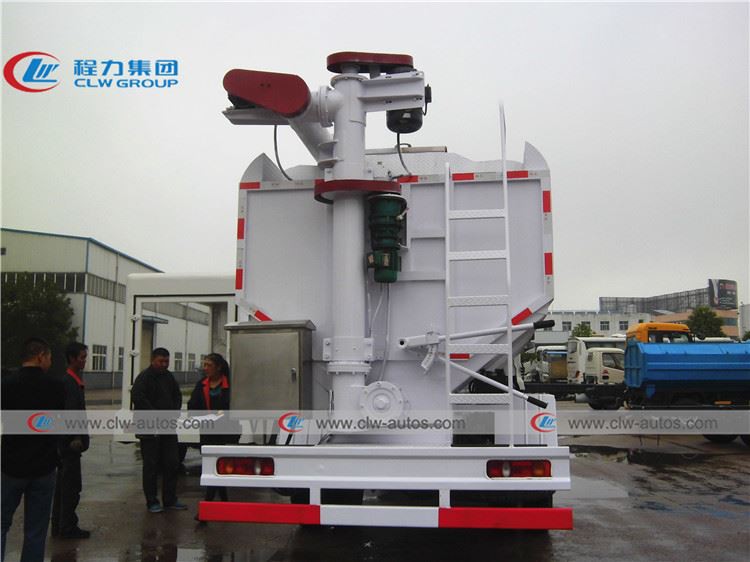

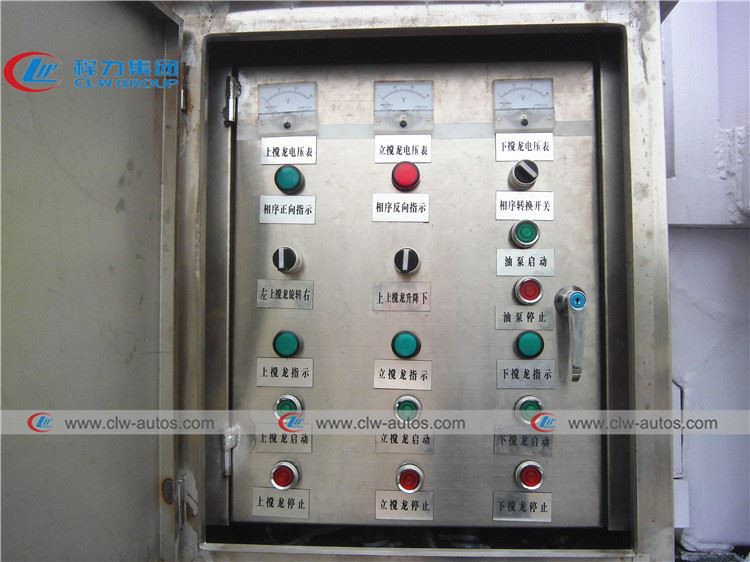

Product pictures
