60,000Liters 30tons Liquid Petrolum Gas LPG Tanker

Material:High Quality Carbon Steel Q345R
Tank Diameter:DN2700mm
Tank Size:60m3, 60cbm, 60000liters, 600000L
Tank Loading Capacity:30t, 30Ton, 30tons, 30mt
Tanker Material:Q345R, 16MnDR, Q370R, etc.

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 60,000liters 30tons liquid petrolum gas lpg tanker in China. If you're going to buy high quality 60,000liters 30tons liquid petrolum gas lpg tanker, welcome to get more information from our factory. For price consultation, contact us.

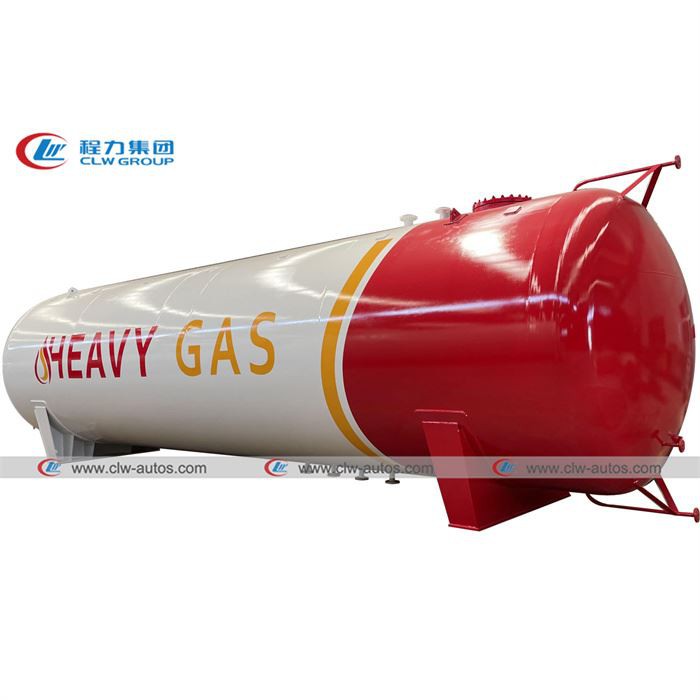

60,000Liters 30tons Liquid Petrolum Gas LPG Tanker

Product Description

1. LPG Tank Storage Content: Liquid Petroleum Gas, Propane, Butane, Liquid Ammonia, etc.

2. Available tank sizes of LPG storage tank: 5m³~200m³, 2.5ton~100tons.

3. Tank Design Standard: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008.

4. Tank Testing: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

5. Optional for lpg gas plant equipments: LPG pump and motor, LPG compressor, volume flow meter, filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.

Product Specification

60CBM 30MT LPG Tank Specifications
Volume of Tank		60 CBM
Filling Weight		33060 kg
Tank Weight		12750 kg
Thickness of Shell (mm)		14 mm
Thickness of Head (mm)		16 mm
Tank Diameter		2700 mm
Overall Size (length x width x height)		1096227283318(mm)
Material of Tank		Carbon Steel Q345R
Design Pressure		1.77 MPa
Hydraulic Test Pressure		2.22 Mpa
Design Temperature		-20℃~50℃
Heat Treatment		Bulk
Corrosion Allowance		1 mm
Medium Density		580 kg/m³
Vapor Outlet		DN50
Gas Outlet		DN50
Life Time		15 years
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Standard Accessories of LPG Tank
Model	Item		Qty	Junction Surface
A42F-25-100	Safety Valve DN100		1	RF
J41N-2.5-50	Stop Valve DN50		6	RF
J41N-2.5-25	Stop Valve DN25		2	RF
J41N-2.5-100	Stop Valve DN100		1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5		1	/
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5		1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa		1	/
WTQ-280	Thermometer M33*2 2.5 degree		1	-40℃~60℃

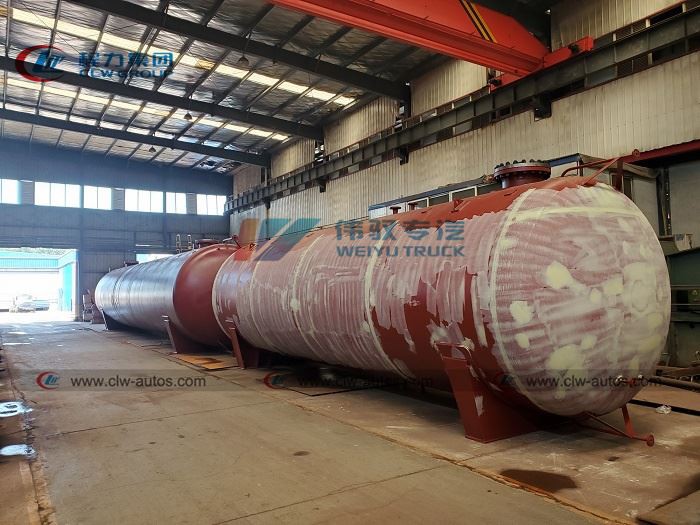

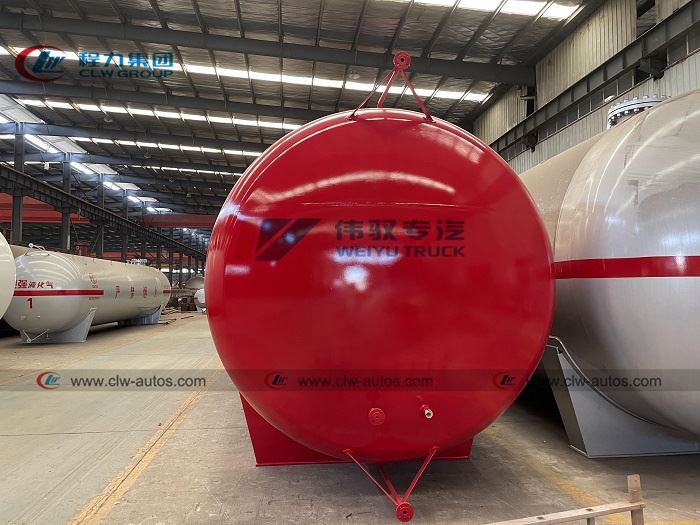

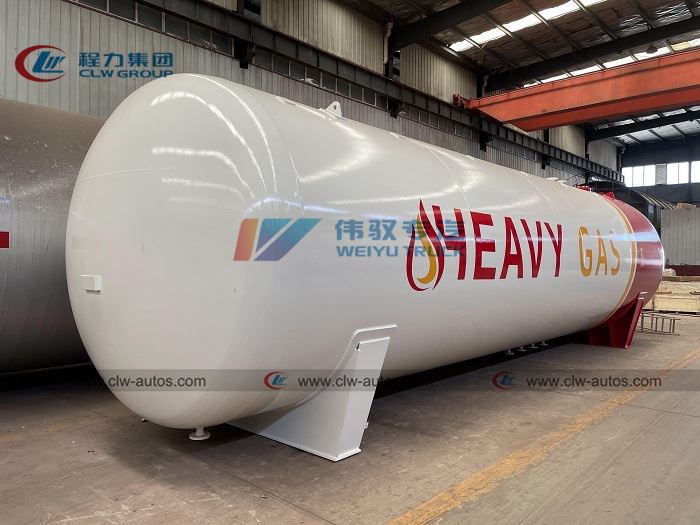

Reference Photos

3. LPG Station

4. Liquid propane gas tanker

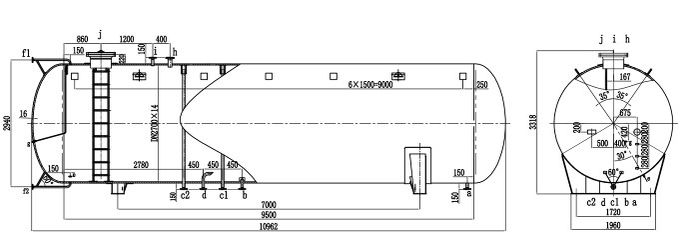

We supply customized drawing for every storage tank

Nozzle data
Characters	Size	Pressure(MPa)	Connect	Junction surface	Purpose
a	DN50	25	HG20592-WN	RF	Drain outlet
b	DN50	25	HG20592-WN	RF	Liquid phase outlet
c1-2	DN50	25	HG20592-WN	RF	Gaseous phase balanced outlet
d	DN50	25	HG20592-WN	RF	Liquid inlet
e	M33*2			Screw-thread	Thermometer connection
f1-2	DN25	25	HG20592-WN	RF	Lever gauge connection
g	M20*1.5			Screw-thread	Pressure Gage
h	DN100	25	HG20592-WN	RF	Safety valve connection
i	DN50	25	HG20592-WN	RF	Emptying mouth
j	DN450	25	HG20592-WN	FM	Manhole

Related Products

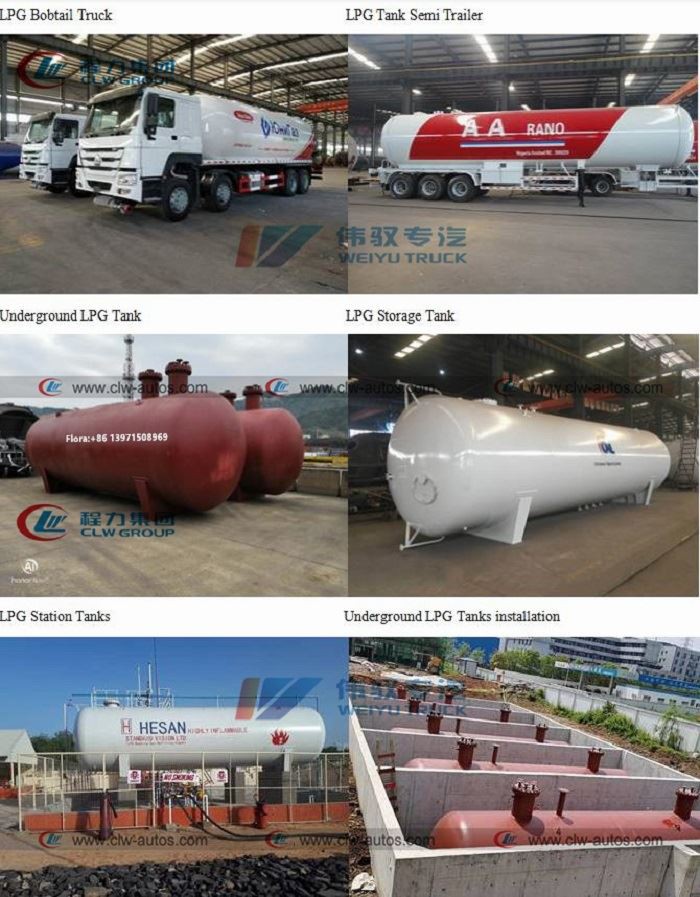

LPG related products--

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.
