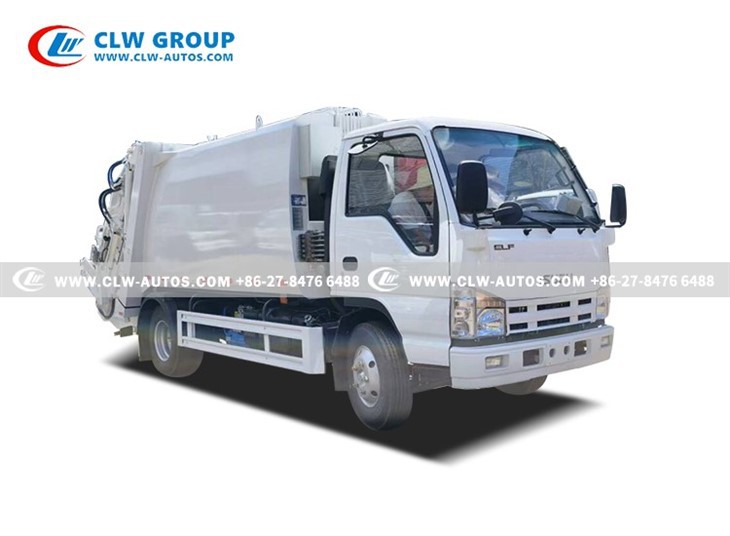

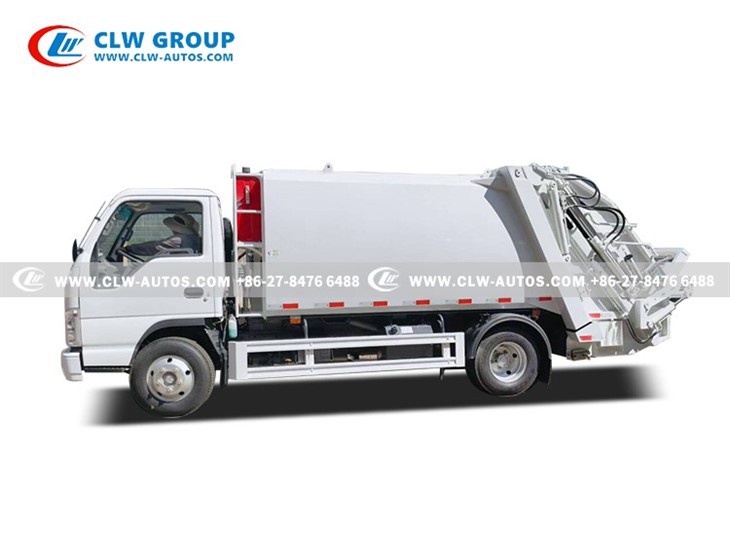

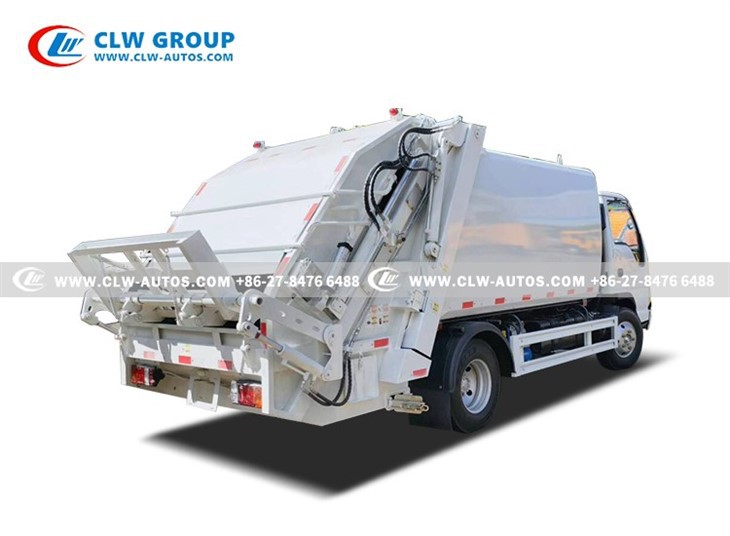

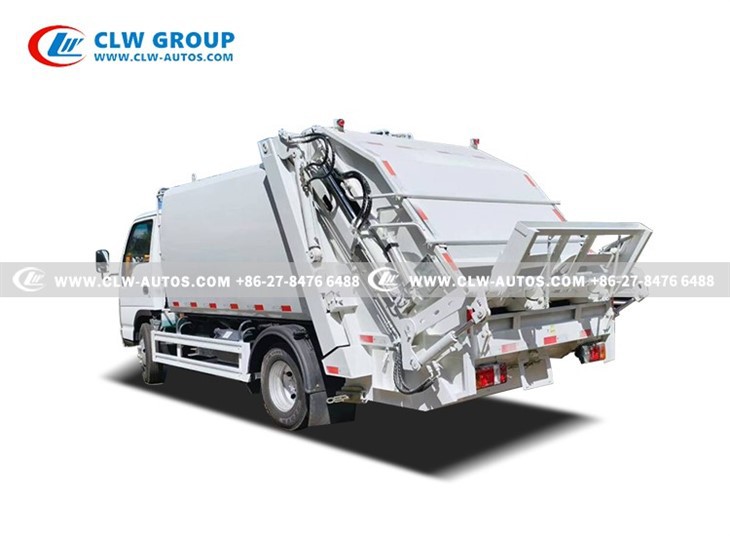

7m3 ISUZU 4X2 Refuse Junk Compactor Garbage Truck

Products Description

A refuse compactor truck is a specialized waste management vehicle designed to collect, compress, and transport municipal solid waste (MSW). Combining a heavy-duty chassis with hydraulic compaction technology, it significantly increases payload capacity while reducing collection frequency.

This ISUZU-based 7-cubic meter refuse compactor truck is engineered for efficient, reliable, and environmentally compliant waste collection and transportation. Built on the robust ISUZU 100P cab chassis platform, it combines proven Japanese engineering with specialized compaction technology to offer municipalities and waste management operators a high-performance solution for urban and suburban sanitation needs. The truck is specifically designed to handle daily residential, commercial, and institutional waste streams effectively.

Core Functions and Advantages

Core Functions

Automated Waste Loading

-Its hydraulic compaction system compresses loose waste within its 7-cubic-meter body, significantly increasing payload capacity per trip compared to non-compacting trucks.

-This reduces the number of trips needed to the disposal site, enhancing operational efficiency.

Leak-Proof Transportation

-Sealed Body Design: Prevents liquid spillage with rubber-edged tailgate

-Corrosion Resistance: SUS304 steel cladding for acidic/organic waste

key Advantages

Chassis & Powertrain:

-Cab: Durable ISUZU 100P standard cab.

-Wheelbase: 3815 mm, optimized for maneuverability in urban environments.

-Engine: Powerful and fuel-efficient ISUZU 4KH1CN6LB diesel engine, delivering 120 HP.

-Emission Standard: Compliant with stringent China VI (GB6) emission regulations.

-Transmission: Reliable ISUZU MSB 5-speed manual transmission for smooth operation and control.

Safety and Running Gear:

-Braking System: Equipped with Anti-lock Braking System (ABS) for enhanced safety and control during braking, especially on wet roads or when fully loaded.

-Tyres: Standard fitment of durable 7.00R16 tyres, suitable for varied road conditions.

refuse garbage junk compactor truck manufactuer

Primary Applications

This 7-cubic meter compactor is perfectly suited for:

Municipal Solid Waste (MSW) Collection: Daily curbside collection in residential neighborhoods, apartment complexes, and villages.
Commercial Waste Collection: Servicing shops, restaurants, offices, and small businesses generating moderate waste volumes.
Institutional Waste Collection: Efficiently handling waste from schools, hospitals, government buildings, and community centers.
Urban & Suburban Environments: Its maneuverable size (thanks to the 3815mm wheelbase and ISUZU chassis) makes it ideal for navigating narrower streets and congested areas common in towns and smaller cities.
Transfer Operations: Collecting waste and transporting it to larger transfer stations or directly to landfills/processing facilities.

Products Specification

Chassis Technical Specification
Driving model	4X2 ISUZU 100P
Cab	100P single row 700 cabin Left hand driving With 2-3 passengers
Wheelbase	3815mm
Engine	Model	4KH1CN6LB
	Type	Diesel, 4 stroke, 4 cylinders in line
	Horsepower	120hp
	Max output power	88kw
	Emission standard	Euro Ⅵ
Gear box	Manual type, 5 forward gears and 1 reverse
Axle loading (front and rear)	2-2.5T ; 4-4.8T
Tyre	7.00R15
Garbage truck body
Garbage Container Size	7 m3
Tanker body material	Quality high tensile Q345 carbon steel
Shape	Rectangular box, arc-shaped rear
Thickness	Side 3mm, bottom 4mm
Filling hopper volume	0.7 m3
Idle Speed	750 rpm
Compaction ratio	0.7-0.85T/m³
Compacting cycle time	≤23 s
Loading cycle time	≤10 s
Unloading cycle time	≤45 s
Oil pump displacement	40 ml/r
Hydraulic oil box size	60 L
System pressure	16 Mpa
PTO operation method	Pneumatic
Operation and Control	Both Automatic(Electrical) and Manual (hydraulic)
Remarks	Rear-mounted wastewater tank Photoelectric sensors Hyva cylinders Zhongmei multi-way valve Wanye gear oil pump CFW seals Dual-mode PLC or Can control system With cabin operation Rear standard equipped with triangualr hopper or cradle-type bin tipper
Optional device	Electrophoresis treatment for whole garbage compactor body Remote control function Optional all sealing waste collection hopper Pneumatic cover to avoid waste flying away during driving Rear swing arm bucket

Factory Real Shot Video for You

7m3 refuse garbage junk compactor truck

refuse garbage junk compactor truck supplier

refuse garbage junk compactor truck with seal cover

7m3 Junk collection solution truck

Different Rear Design of Garbage Compactor Truck

Hanging Bucket Tipping

product-1-1

Pneumatic cover and bucket flip

product-1-1

Triangle collection hopper

product-1-1

Swing Arm Bucket Rear Mechanism

product-1-1

All sealing waste collection hopper

product-1-1

Feeding device of lifting structure

product-1-1
