35Tons LPG Storage Tank 70,000L Liquid Petroleum Gas Filling Plant Tank
Tank Capacity:35tons,70cbm
Design Pressure:1.77Mpa
corrosion allowance :1mm
Service time : 15 years
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 35tons lpg storage tank 70,000l liquid petroleum gas filling plant tank in China. If you're going to buy high quality 35tons lpg storage tank 70,000l liquid petroleum gas filling plant tank, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6.Maintenance-free operation with simple calibration and proof testing.
7.20 years guarantee against manufacturing defects.

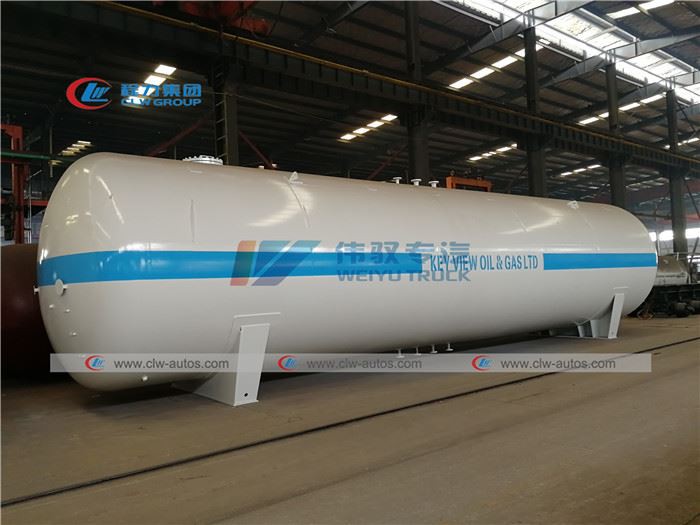

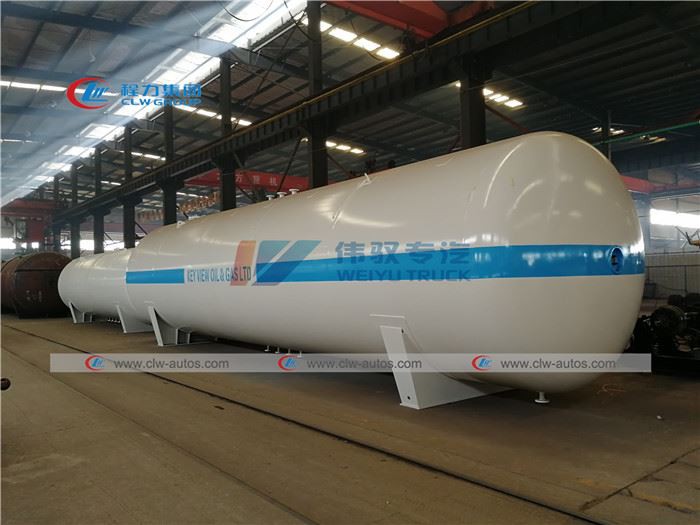

Re
ference picture

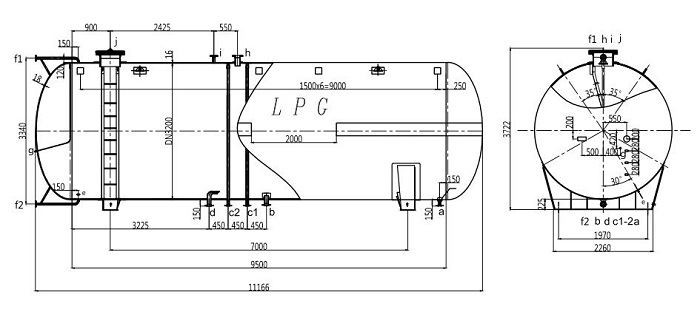

80CBM LPG Gas Tank Diagram

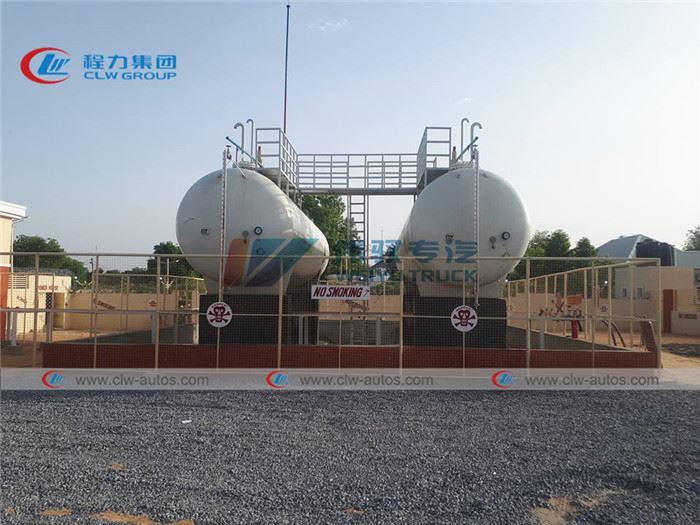

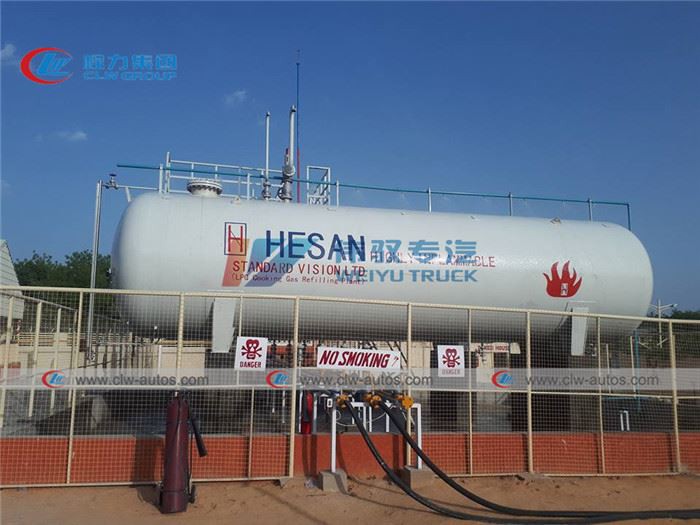

Gas filling Plant Design
Specification
40,000Liters LPG storage tank | |||
Volume of Tank | 70,000Liters | ||
Filling Weight | 27930 kg | ||
Tank Weight | 14480 kg | ||
Thickness of Shell (mm) | 14 mm | ||
Thickness of Head (mm) | 16 mm | ||
Tank Diameter | 2700 mm | ||
Overall Size | 12712*2728*3318(mm) | ||
(length x width x height) | |||
Material of Tank | Carbon Steel Q345R | ||
Design Pressure | 1.77 MPa | ||
Hydraulic Test Pressure | 2.21 Mpa | ||
Design Temperature | -20ºC~50ºC | ||
Heat Treatment | Bulk | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 580 kg/m³ | ||
Vapor Outlet | DN50 | ||
Gas Outlet | DN50 | ||
Life Time | 15 years | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Standard Accessories of LPG Tank | |||
Model | Item | Qty | Junction Surface |
A42F-25-100 | Safety Valve DN100 | 1 | RF |
J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
J41N-2.5-100 | Stop Valve DN100 | 1 | RF |
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | / |
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | / |
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC |
Key word: 35Tons LPG Storage Tank，35tons LPG Tank, 70,000L Liquid Petroleum Gas Tank
