25tons Cooking Gas Tank LPG Storage Tank For Cambodia
Tank Capacity:25tons,50m3,5000Liters
Design Pressure:1.77Mpa
corrosion allowance :1mm
Tank Material: Q345R
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 25tons cooking gas tank lpg storage tank for cambodia in China. If you're going to buy high quality 25tons cooking gas tank lpg storage tank for cambodia, welcome to get more information from our factory. For price consultation, contact us.
Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

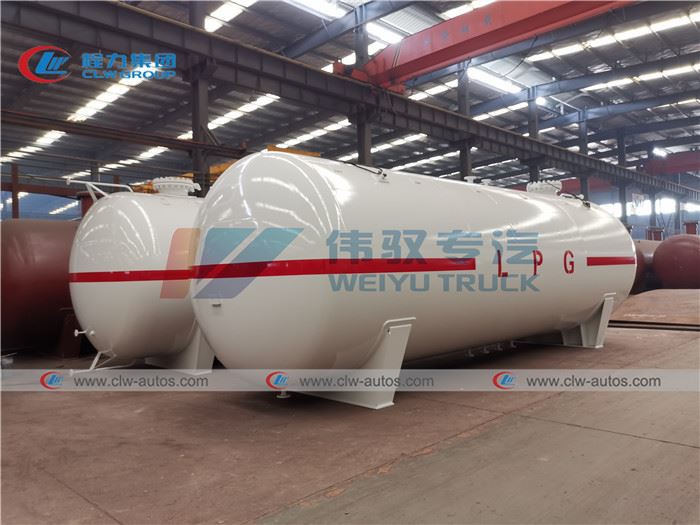

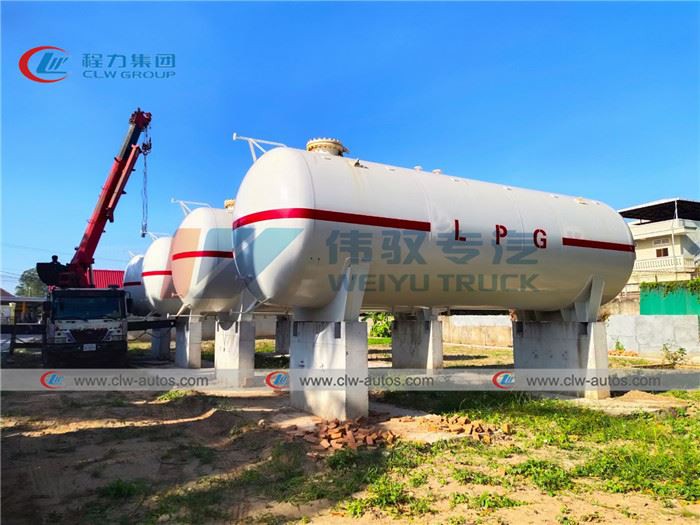

Reference picture
Gas filling Plant Design
Specification
Parameter of 50000liters lpg tank for cambodia | |||||
ITEM | PARAMETER | ITEM | PARAMETER | ||
Volume | 50000liters | Thickness of Shell | 14mm | ||
Tank Material | Q345R | Thickness of End plate | 16mm | ||
Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | ||
Tank Diameter | 2700mm | Loading Capacity | 19950kg | ||
Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | ||
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | ||
Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | ||
Vapor Outlet | DN50 | Gas Outlet | DN50 | ||
Life time | 15 years | ||||
Accessories | |||||
Model | Item | Qty | Junction surface | ||
J41N-2.5-50 | Stop Valve DN50 | 6 | RF | ||
J41N-2.5-25 | Stop Valve DN25 | 2 | RF | ||
J41N-2.5-80 | Stop Valve DN80 | 1 | RF | ||
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |||
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | ||
A42F-25-80 | Safety Valve DN80 | 1 | RF | ||
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |||
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | ||
Key word: 25tons Cooking Gas Tank,25tons LPG storage tank,25tons LPG Gas tank
