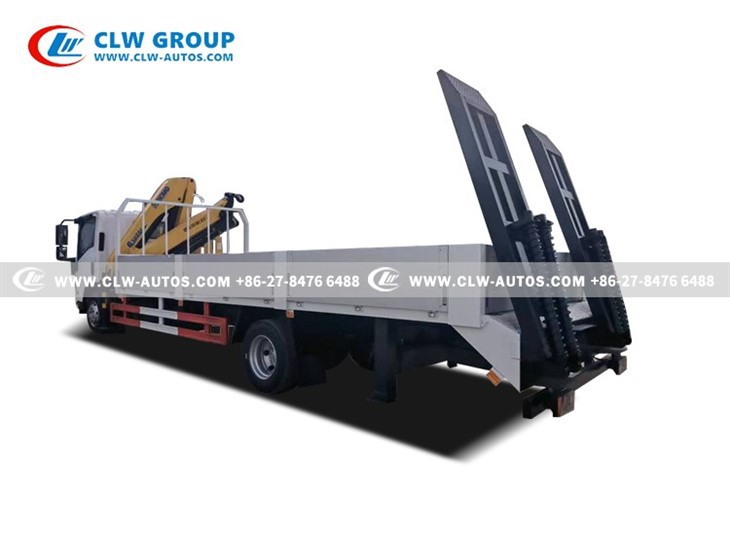

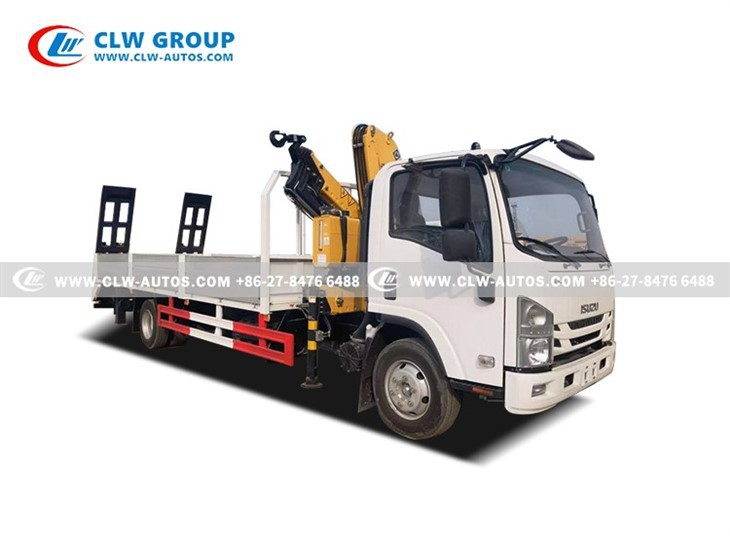

NPR Flatbed Truck With 4Ton Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of npr flatbed truck with 4ton crane in China. If you're going to buy high quality npr flatbed truck with 4ton crane, welcome to get more information from our factory. For price consultation, contact us.

ISUZU NPR 700P 6 Wheels Flatbed Truck With 4Ton Folding Boom Crane

With Hydraulic Ladder/5Ton Winch/Aluminum Alloy Plate

1. Powertrain System

• Engine: Equipped with a 4HK1-TCG61 inline 4-cylinder turbocharged diesel engine, 5.2L displacement, delivering a maximum power of 190HP (140kW) and a peak torque of 500N·m (available at low RPM, ideal for heavy-load starts and climbing).
• Fuel Efficiency: Features high-pressure common rail injection + EGR (Exhaust Gas Recirculation) technology, optimizing combustion efficiency and reducing fuel consumption.
• Emission Standard: Complies with China VI emission standards, equipped with DOC (Diesel Oxidation Catalyst) + DPF (Diesel Particulate Filter) after-treatment system for enhanced environmental performance.

2. Chassis & Suspension

• Wheelbase 5200mm: Balances load capacity and maneuverability, suitable for urban-rural roads and construction sites.
• Frame Structure: High-strength steel riveted ladder frame, with strong torsional resistance and a load capacity of 10-12 tons (varies by configuration).

• Suspension System:

  Front axle: Multi-leaf spring suspension (optional reinforced leaf springs).

  Rear axle: Two-stage leaf spring suspension (commonly 8+5 leaves) for heavy-duty applications.

• Rear Axle Ratio: 4.875 or 5.125, enhancing low-speed torque for climbing and rough terrain.

3. Flatbed Design

• Dimensions: Typically 6.8m long (matched to wheelbase) and 2.3-2.5m wide, with optional steel or wooden flooring.
• Loading Design: Low flatbed height (~1.1m) for easy loading/unloading; some models feature foldable side rails or ramps.
• Regulatory Compliance: Meets GB1589 standards, avoiding over-width/over-length risks.

4. Transmission & Handling

• Transmission: 6-speed manual transmission (Isuzu MSB series), ensuring smooth shifting and high reliability.
• Braking System: Air brakes + spring parking brake, standard ABS + EBD for safer heavy-load braking.
• Steering System: Hydraulic power steering with reduced steering wheel turns, improving maneuverability.

Cab and Comfort

• Cab: Available in single-row or extended cab configurations, with a width of approximately 2 meters, providing a spacious interior. Standard features include air conditioning and power windows.

• Ergonomics: The instrument panel is clearly laid out, with intuitively positioned controls for ease of use. The adjustable driver's seat ensures comfort during long-distance driving.

4-Ton Folding Boom Crane

• Max. Lifting Capacity: 4,000 kg

• Max. Hydraulic Outreach: 11.48 meters

• Max. Lifting Height: 13 meters

5-Ton Winch

• High-capacity towing capability, with a rated pulling force of 5 tons, suitable for heavy-load dragging or recovery operations.

• Electric or hydraulic drive, ensuring stable operation even in challenging conditions (e.g., mud, slopes).

• Equipped with high-strength steel cable or synthetic rope, offering wear and corrosion resistance.

Aluminum Alloy Box Plate

• Transportation of Precision Equipment: The aluminum alloy box provides shockproof and moisture-proof protection for high-value goods.

• Frequent Loading/Unloading Scenarios: The lightweight panels reduce manual handling effort and improve efficiency.

• Long-Distance Transport: The advantages in fuel economy and durability are more pronounced in long-haul operations.

How To Cooperate With Us?

WhatsApp/Wechat Number

+86 188 2740 1066

E-mail

hedy@clw-autos.com

1. Lightweight Advantage

• Reduced Weight: The density of aluminum alloy is only one-third that of steel, significantly reducing the weight of the box panels. This increases the effective load capacity (approximately 30%-40% reduction in self-weight) and complies with regulations on total vehicle mass limits.
• Fuel Savings: A lighter body reduces driving resistance, leading to long-term fuel cost savings of 5%-10%, making it particularly suitable for high-frequency transport scenarios.

2. Durability and Corrosion Resistance

• Strong Corrosion Resistance: Aluminum alloy naturally forms an oxide layer on its surface, resisting salt spray, moisture, and chemical corrosion. This extends its service life (up to 10 years or more), especially in coastal or high-humidity regions.
• Maintenance-Free: Unlike steel box panels, it does not require regular anti-rust treatments, reducing maintenance time and costs.

3. Structural Optimization and Practicality

• Balanced Strength and Toughness: Through alloy reinforcement and structural design (e.g., reinforcing ribs), aluminum alloy box panels can achieve load-bearing capacity close to that of steel while being more resistant to impact deformation.
• Modular Design: The box height, partitions, or opening methods (e.g., side-opening, top-opening) can be flexibly customized to accommodate equipment or cargo of different sizes.

4. Improved Economic Benefits

• High Residual Value: Aluminum alloy has a high recycling value (recovery rate exceeding 90%), yielding higher returns when reselling the vehicle or scrapping the material.
• Insurance Benefits: Some insurance companies offer lower premiums for lightweight, high-safety modified vehicles.
