Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw combined jetting truck in China. If you're going to buy high quality faw combined jetting truck, welcome to get more information from our factory. For price consultation, contact us.

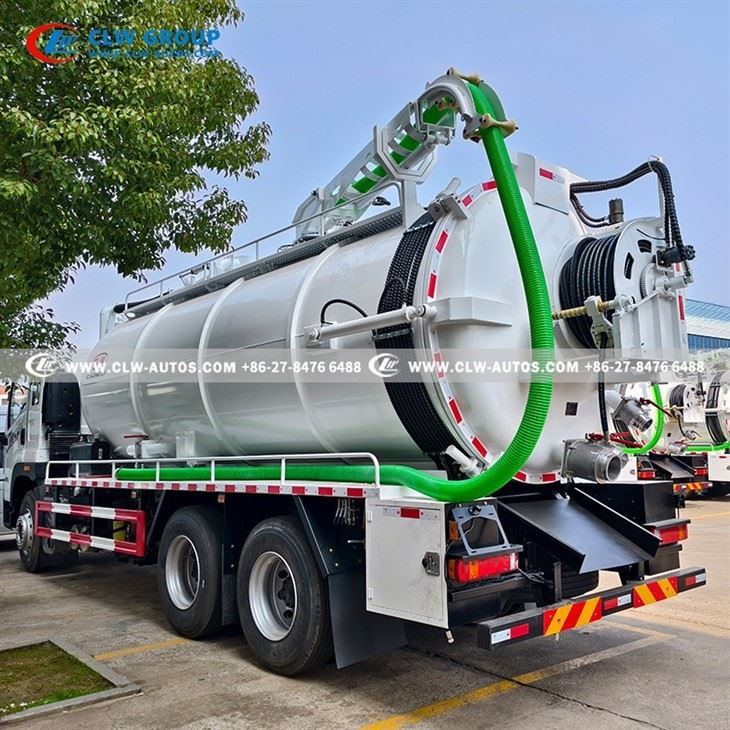

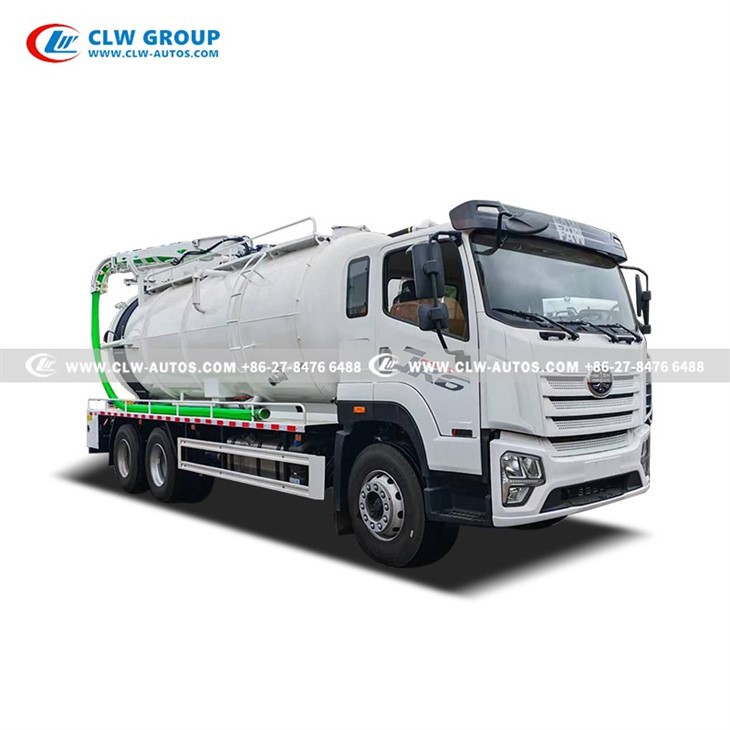

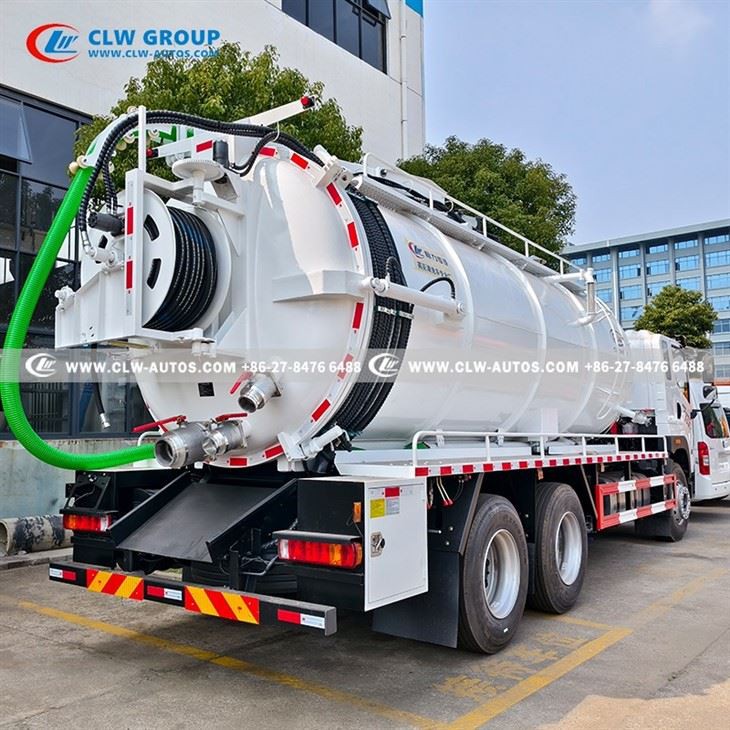

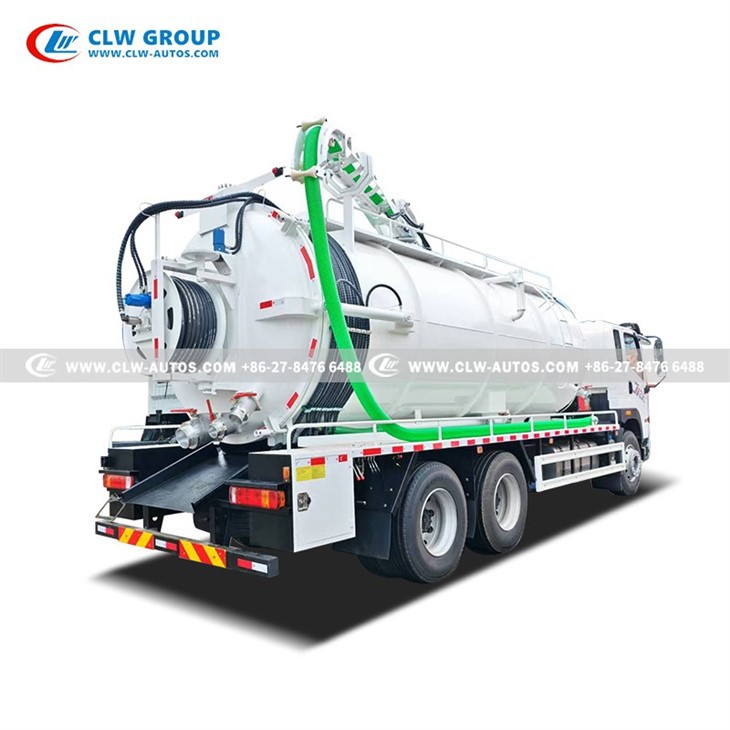

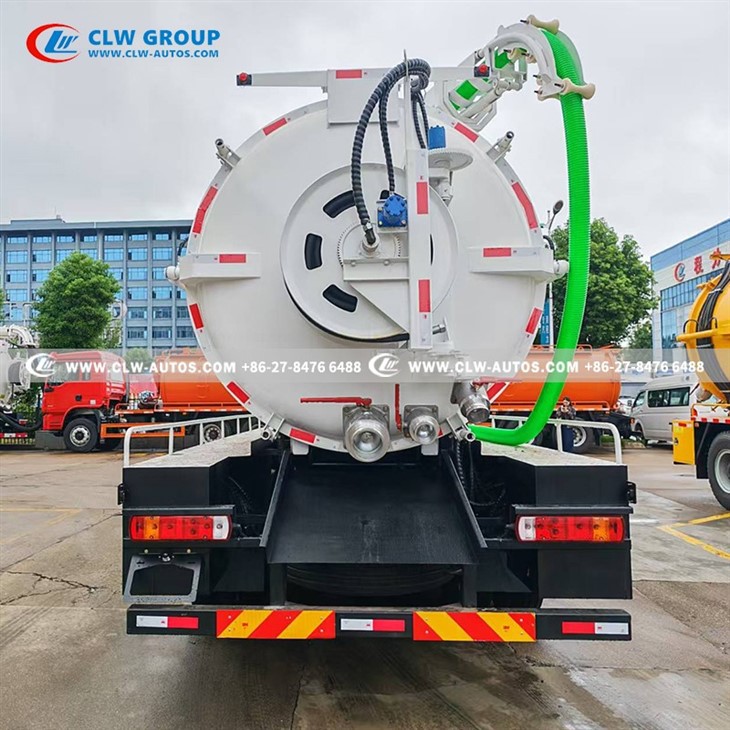

FAW Combined Jetting Truck
The FAW JK6 310HP Combined Jetting Truck is a heavy-duty specialized sanitation vehicle manufactured by CLW GROUP, built on the iconic Jiefang JK6 chassis-renowned for its reliability, power, and cost-effective performance. This dual-function truck integrates high-pressure pipeline cleaning and powerful sewage suction capabilities, making it the ultimate solution for modern municipal environmental management, industrial waste handling, and emergency sanitation tasks. Equipped with a 320HP high-power engine and professional vacuum/jetting systems, it delivers superior efficiency for both routine maintenance and emergency operations.
Combines a high-pressure water jetting system for unclogging and cleaning sewer pipelines and a heavy-duty vacuum suction system for extracting sewage, sludge, and solid-liquid mixtures. It supports one-key switching between suction, cleaning, and discharge modes, maximizing operational versatility.
Powered by a 310HP Weichai 6-cylinder diesel engine with a displacement of 7.7L , ensuring strong power for driving and PTO-driven special equipment. it delivers stable load-bearing capacity and smooth shifting even under full-load conditions.
Tank Body: High-strength carbon steel tank with anti-corrosion coating, available in large capacity for efficient waste storage.
Vacuum System: High-efficiency rotary vane/water ring vacuum pump (optional international brands) with strong suction, low noise, and long service life.
Hydraulic System: Hydraulic drive for tank lifting, rear door opening/closing, and hose reel retraction, ensuring effortless operation.
Safety Protection: Equipped with anti-overflow alarm, vacuum pressure gauge, and ABS braking system to ensure safe and stable operation.
Ergonomic Jiefang JK6 cab with air conditioning, power windows, and multi-functional steering wheel for comfortable long-duration operation. Rear-mounted high-pressure hose reel and retractable suction pipe for convenient storage and quick deployment of working tools.
Municipal Sanitation: Dredging and cleaning urban sewers, manholes, septic tanks, and rainwater pipelines; responding to urban waterlogging emergencies.
Industrial Waste Handling: Extracting and transporting sludge, wastewater, and chemical residues from factories, sewage treatment plants, and power plants.
Agricultural & Aquaculture Use: Removing fecal sewage from large-scale farms and supporting irrigation/drainage pipeline maintenance.
Environmental Emergency Response: Rapidly handling sewage leaks, oil spills, and other accidental environmental pollution incidents.
Public Utilities: Assisting in pipeline inspection and maintenance for urban water supply, drainage, and gas systems.
|
FAW 12m3 Combined Jetting Truck |
||||||
|
Condition |
New condition/Left hand drive/6x4 |
|||||
|
Chassis |
Brand |
FAW |
||||
|
|
Curb weight(kg) |
12500kg |
||||
|
|
Wheelbase(mm) |
4600+1350mm |
||||
|
|
Dimensions(mm) |
9550*2500*3750 mm |
||||
|
|
Front Axle Load(kg) |
5000 kg |
||||
|
|
Rear Axle Load(kg) |
2*13000kg |
||||
|
|
Max. driving speed(km/h) |
90 km/h |
||||
|
|
Clutch |
Reinforced diaphragm clutch |
||||
|
|
Brakes |
air brake |
||||
|
|
Steering Gear |
Power assistant |
||||
|
|
Tire |
Number |
10 pcs with one spare tire |
|||
|
|
|
Specifications |
12R22.5 | |||
|
Transmission |
manual type, 9JSD135T, 9 Forwards and 1 Reverses |
|||||
|
Cabin |
JK6, Single and half cabin, with one bed. Electric windows and doors, electric lift, electric rearview mirrors.It can accommodate three people, With Air conditioner |
|||||
|
Engine |
Brand |
Xichai |
||||
|
Model |
CA6DL1-31 | |||||
|
|
Horsepower(HP) |
310HP |
||||
|
|
Emission standard |
Euro 2 |
||||
|
|
Displacement |
7.7 L |
||||
|
|
Cylinder quantity(pcs) |
6 pcs |
||||
|
Fuel Tank |
400L Aluminum alloy tank |
|||||
|
Upper Body |
||||||
|
Water tank |
Capacity(cbm/liters) |
4m3 /4,000 liters |
||||
|
|
Tank material |
Q235 carbon steel |
||||
|
Tank Thickness |
6 mm |
|||||
|
Safety protection device |
1.High water level; 2.Low water level 3.No water |
|||||
|
Sewage tank |
Capacity(liter) |
8 m3/8,000L |
||||
|
|
Tank material |
Q235 carbon steel |
||||
|
|
Thickness(mm) |
6.0 mm |
||||
|
|
Opening of Rear Cover |
100% open by hydraulic control |
||||
|
|
Working pressure |
100% Vacuum |
||||
|
|
Sewer Discharging outlet(mm) |
100~150 |
||||
|
Vacuum pump |
Chinese Brand Pump |
Brand |
Chinese brand |
|||
|
|
model |
2BEA204-0 |
||||
|
|
Type |
Water circulation pump is suitable for high temperature environments to 50 C |
||||
|
|
Speed(r/min) |
870 r/min |
||||
|
|
Max vacuum |
92% |
||||
|
|
Rate flow rate |
1200 m3/h |
||||
|
High pressure water pump |
Brand |
Pinfl |
||||
|
Model |
UV36 |
|||||
|
Max. Pressure(Bar/Mpa) |
≥220/22.0 |
|||||
|
Rate speed(rpm) |
1000 |
|||||
|
Rate flow(L/min) |
215 |
|||||
|
High pressure Reel |
Length of High pressure hose(m) |
60 meters |
||||
|
|
inner diameter |
19mm |
||||
|
Main parts |
|
|||||
|
Device list |
fire extinguisher 2 x 8 m connectable hoses, complete with quick-couplings |
|||||
|
Painting |
Anti-rust metallic paint, as customer's requirement |
|||||
Customized brand based on requirement!
Chinese Brand water circulation pump
Type & Core Function: designed to create vacuum or suction by using a rotating liquid ring to compress and transport gas/air.
Key Specifications:
Pumping speed: 20.5 m³/min
Max pressure: 8000 Pa
Rotation speed: 980 r/min
Typical Applications: Used in industrial processes like vacuum filtration, gas extraction, dehydration, and suction systems for chemical, pharmaceutical, or environmental industries.
Design: Robust cast-iron construction, suitable for continuous operation in demanding industrial environments.
Jurop Vacuum Blower(Italy-Origin)
Origin & Certification: Made in Italy, CE certified.
Core Function: Serves as a positive-displacement vacuum pump/blower, typically used to generate vacuum or pressure for applications like tanker trucks, liquid transfer, or industrial suction systems.
Design Features: Robust cast-iron construction, manual shut-off valve, oil sight glasses for lubrication monitoring, and a flange connection for hose/piping integration.
Typical Use: Commonly installed on commercial vehicles or industrial equipment to handle air/gas flow for vacuum loading, unloading, or pneumatic conveying.
MORO KAISER Vacuum Blower / Pump (italy- Origin)
Brand & Origin: A MORO KAISER positive-displacement blower/vacuum pump, designed for heavy-duty vehicle-mounted applications.
Core Function: Generates vacuum or compressed air to enable loading/unloading operations (e.g., for vacuum trucks, septic tankers, or bulk material transport vehicles) by moving air/gas efficiently.
Typical Use: Installed on specialized commercial vehicles to perform suction or pressure tasks, such as emptying septic tanks, transporting sludge, or conveying bulk powders/liquids.
Associated Context: Integrated into vehicle chassis, often paired with large tank systems for waste or material handling.
HIBON VTB820 Vacuum Blower (France-origin)
Core Function: A heavy-duty rotary lobe blower designed to generate continuous flow of air or gas at moderate pressure, used for vacuum or pressure applications in industrial and vehicle-mounted systems.
Key Attributes:
Origin: Manufactured by Hibon (France), a leading brand in industrial blowers and vacuum technology.
Design: Robust cast-iron construction with a black finish, optimized for durability and continuous operation in harsh environments.
Performance: Delivers reliable, oil-free air/gas flow suitable for processes like pneumatic conveying, wastewater treatment, or vehicle-mounted suction systems.
Typical Use: Deployed in industrial plants or specialized vehicles (e.g., vacuum tankers) for tasks such as material transport, aeration, or vacuum loading/unloading.
Vehicle-Mounted Hose Reel with Spray Gun
Type & Core Function: A retractable hose reel system, designed to store and deploy a high-pressure hose paired with a spray gun, used for cleaning, washing, or liquid spraying operations (e.g., vehicle cleaning, road maintenance, or tank sanitization).
Key Attributes: Compact, vehicle-integrated design optimized for on-site mobility; corrosion-resistant components (stainless steel, aluminum) to withstand outdoor work conditions.
Typical Use: Deployed on specialized commercial vehicles (e.g., cleaning trucks, tanker trucks) to perform targeted washing, disinfection, or liquid application tasks.
Hubei Chengli Special Automobile Co., Ltd. is a leading manufacturer of special purpose trucks in China, specializing in garbage trucks, fire engine, water tank trucks, vacuum trucks, crane trucks and other engineered solutions for global industrial and municipal markets.
