Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 6x4 15m3 stainless steel vacuum sewage jetting truck in China. If you're going to buy high quality isuzu 6x4 15m3 stainless steel vacuum sewage jetting truck, welcome to get more information from our factory. For price consultation, contact us.
We Are 100% Straight Factory Manufacturer For Sewer Jetting and Vacuum Truck Since 2004

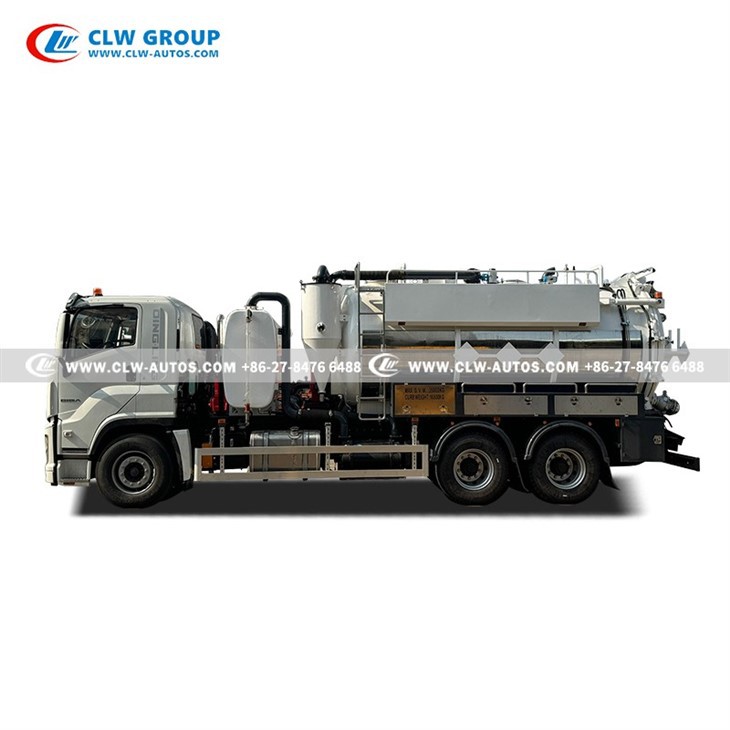

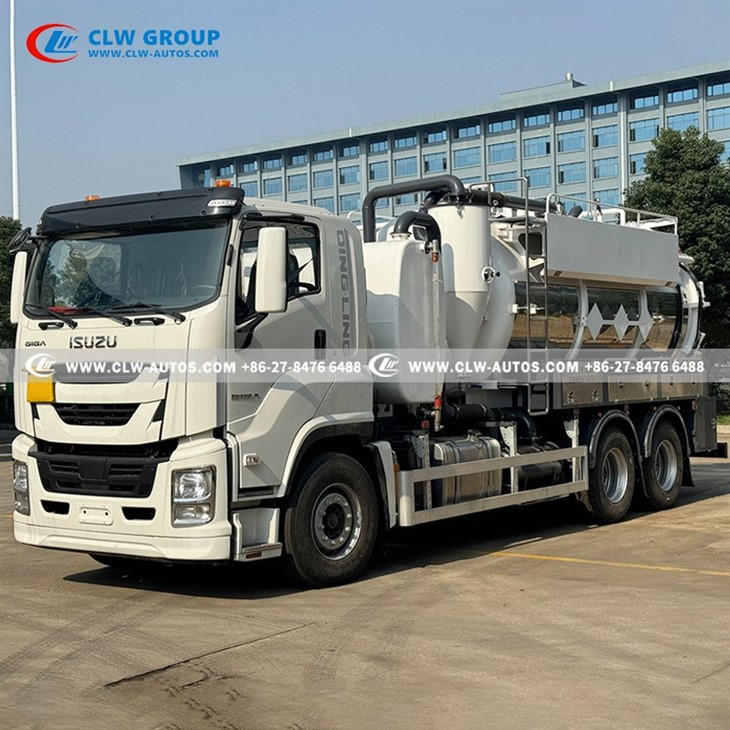

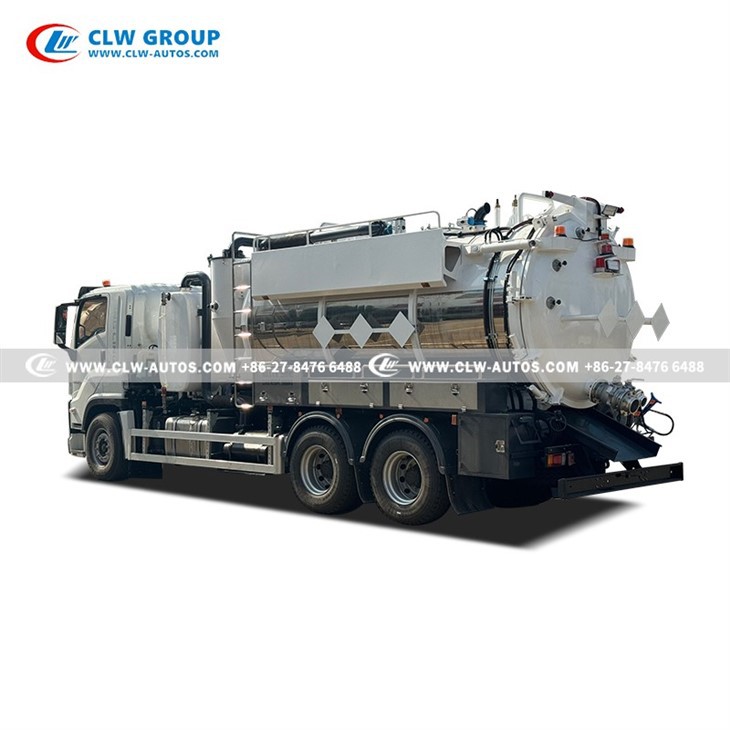

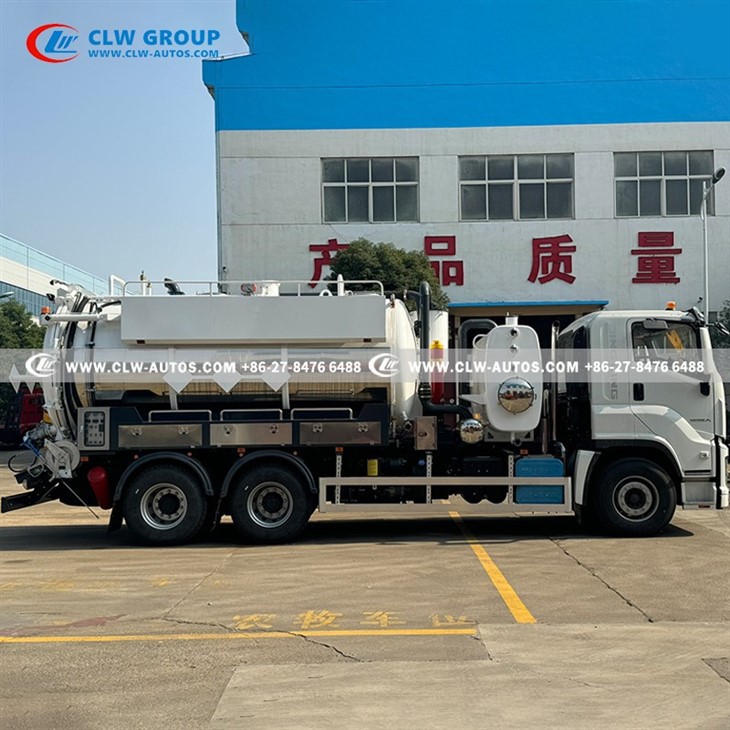

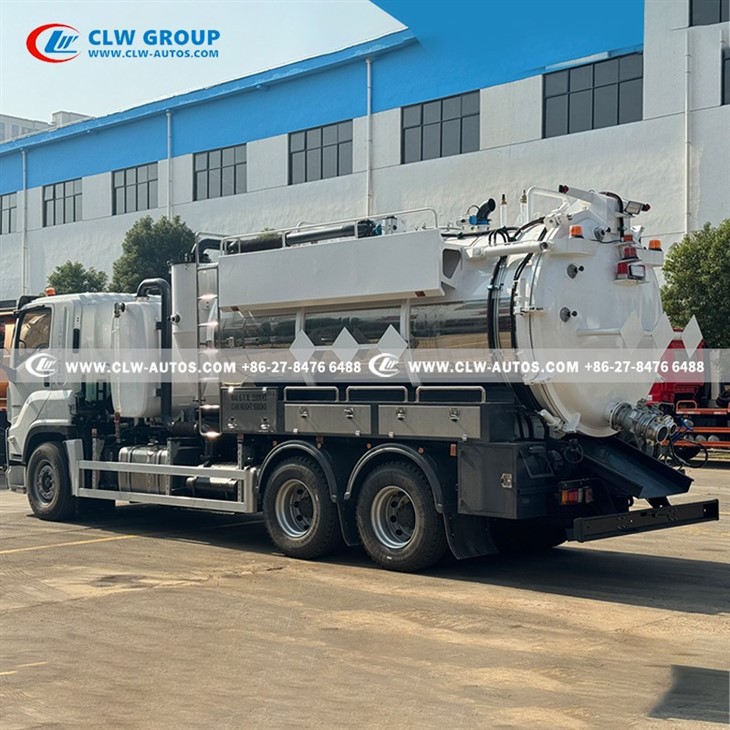

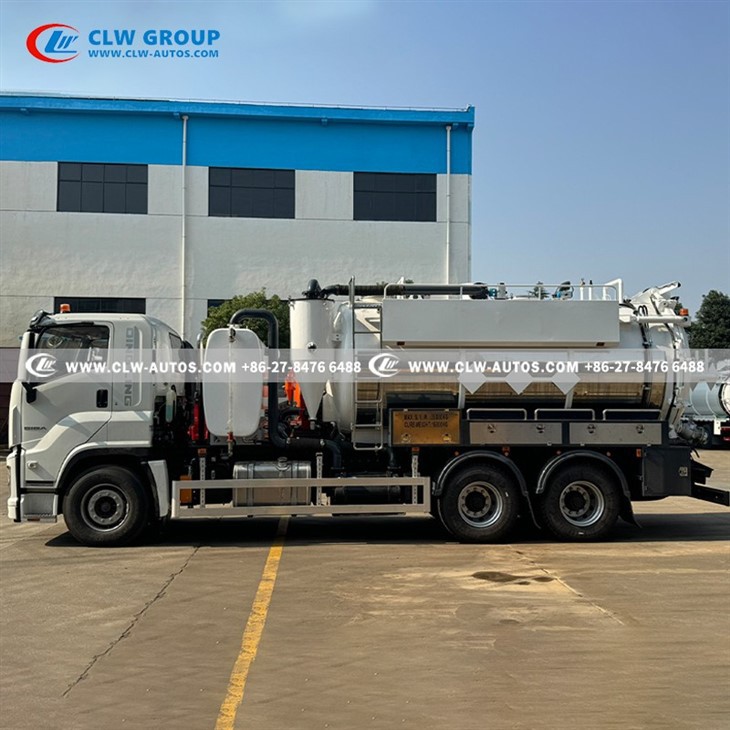

The ISUZU 35-Ton Combined Sewer Jetting and Vacuum Truck is a powerful, all-in-one cleaning vehicle built on a genuine ISUZU chassis. It combines high-capacity waste collection with high-pressure water jetting in a single unit, allowing operators to both loosen blockages and vacuum debris in one continuous workflow.
Designed for demanding environments, this truck is tropicalized for Middle Eastern conditions-featuring enhanced cooling, corrosion-resistant materials, and a durable stainless steel tank body.
Sales Director Shirley Fu
Mobile: +86-135 4506 4324(whatsApp)
Email: shirley@clw-autos.com
· Built on a genuine ISUZU heavy-duty chassis (6x4, 3 axles) - globally trusted for reliability and durability
· Left-hand drive VC61 cabin designed for operator comfort during long shifts
· Air suspension seat reduces fatigue by absorbing road vibrations
· Powerful air conditioning system (heating and cooling) for extreme weather conditions
· Modern conveniences include power steering, central locking, and electric windows
· Powered by a fuel-efficient ISUZU diesel engine meeting Euro VI emission standards
· Smart dual-tank configuration separates waste collection from cleaning operations· Large sewage tank handles sludge, slurry, and liquid waste
· Dedicated clean water tank powers the high-pressure jetting system
· Allows continuous operation without interrupting workflow
· Sewage tank constructed from 316L stainless steel - superior corrosion resistance for waste materials
· Water tank constructed from 304L stainless steel - durable and rust-proof
· Ideal for demanding environments like wastewater plants, industrial sites, and coastal areas
· Equipped with a high-performance vacuum pump for deep suction
· Achieves suction depths of 6–8 meters
· Maximum vacuum rate of up to 94%
· Efficiently extracts thick sludge, solids, and liquid waste from septic tanks, drains, and industrial pits
· Hydraulically operated rear door opens a full 100 degrees
· Enables rapid dumping of collected materials, minimizing downtime
· Full tank alarm automatically alerts operator when capacity is reached
· Prevents overflows and protects the vacuum pump from damage
· Industrial-grade high-pressure water pump delivering up to 270 bar (27 MPa)· Powerful jetting action cuts through grease, tree roots, and sediment inside pipelines
· Includes a 20-meter durable hose reel that retracts smoothly for easy storage
· Complete set of nozzles included:
Standard jetting nozzles for general pipe cleaning
Specialized pipe-cleaning nozzle for stubborn deposits (replaceable tips)
Handheld spray gun for external washing and surface cleaning
· Versatile enough for routine municipal maintenance to heavy industrial cleaning
· Mirror-polished stainless steel finish on tanks· Eliminates need for painting - reduces maintenance and prevents corrosion
· External reinforcing ribs welded onto tank structure
· Provides additional strength and rigidity during heavy-duty operations
· Prevents tank deformation over time
· All accessories undergo electrophoresis coating (e-coating)
· Provides uniform, rust-resistant layer even in hard-to-reach areas
· Tropicalized for extreme conditions:
Enhanced cooling systems for high temperatures
Dust-proofing measures for sandy environments
Corrosion-resistant materials for coastal or chemical environments
· Specifically adapted for Saudi Arabian and tropical climates
| Chassis parameters | ||
| General | Brand new truck,tanker body and parts; | |
| Suitable for Saudi Arabia/tropical condition | ||
| Chassis Model | QL5350TZZWUTDZY | |
| Cabin | Left hand drive | |
| 6X4/3 axles in total | ||
| ISUZU VC61 cabin,one and a half row cab | ||
| Power steering | ||
| Air conditioner(warm&cold model) | ||
| Audio System | ||
| Central lock | ||
| Electric door window | ||
| Multi functional steering | ||
| Air suspension Seat | ||
| Main details | Brand | ISUZU |
| GVW (kg) | 35000 | |
| Net weight(kg) | 16800 | |
| Wheelbase(mm) | 4600+1370 mm | |
| Dimensions(mm) | 9960*2550*3850mm | |
| Front/Rear Axle loading(kg) | 9000 kg | |
| 13000X2 kg | ||
| Max. driving speed(km/h) | 95 km/h | |
| Clutch | Reinforced diaphragm clutch; | |
| Brakes | With ABS, Air brake | |
| Tire | Quantity | 10pcs with one spare tire |
| Specifications | 385/65R22.5 in front axle | |
| 315/80R22.5 for rear axle | ||
| Transmission | Manual type, | |
| FAST,12 forward gears & 2 reverse | ||
| With PTO | ||
| Engine | Brand | ISUZU BRAND |
| Model | 6UZ1-TCG61 | |
| Fuel type | Diesel | |
| Displacement(ml) | 9839ml | |
| Power(kw) | 279kw | |
| Horsepower(HP) | 380HP | |
| Cylinder number | 6 | |
| Emission standard | Euro VI | |
| Oil box | 400L | |
| Power Supply | With PTO,PTO control mounted in cabin. | |
| Accessories | Standard tool kit | |
| Mud flaps | ||
| Safety belts | ||
| Tank Body | ||
| Sewage tank | Capacity(cbm/liters) | 12cbm/12,000 liters |
| Tank material | 316L Stainless Steel | |
| Thickness(mm) | 6mm for shell and end plate | |
| Opening of Rear Cover | 100% open by hydraulic control | |
| Working pressure | 93% Vacuum | |
| Sewer Discharging outlet(mm):6 inch/DN150,stainless steel material | ||
| Water Tanker | Capacity(cbm/liters) | 3 cbm/3000 liters |
| Tank material | 304L Stainless Steel | |
| Thickness(mm) | 6mm | |
| Others |
The top features a manhole, a 4-inch stainless steel ball valve, and a 1/2-inch water pump for drawing water and supplying water to the vacuum pump tank. |
|
| Tank is front tipping under function of oil cylinder; | ||
| a platform on top | ||
| external reinforcing ribs | ||
| a manhole (304 stainless steel holes) on the top | ||
| 304 stainless steel flange | ||
| Safety valve on top of tank | ||
| Positive and negative pressure safety valve | ||
| Painting | The tank body is mirror-polished stainless steel, | |
| the back cover and reinforcing ribs are painted, | ||
| other accessories are disassembled and electrophoretically painted. | ||
| Sewage pump | Brand | Italy brand SAMSON PUMPS |
| Model | 3400 | |
| Max. Speed | 1150 rpm | |
| Air flow | 774 m3/h | |
| Air flow 60% vacuum rate | 684 m3/h | |
| Max. Vacuum | 94% | |
| Continuous duty vacuum | 60% | |
| Max. Pressure in continuous duty | 1(2) bar | |
| Suction depth | 6~8 meters | |
| High Pressure Jetting Pump | Driven by a split shaft from PTO | |
| Brand | Chinese brand | |
| Model | GTM | |
| Scavenging Capacity | 70~90 L/min | |
| Pressure Drive | 270 bar/27 MPA | |
| Rear door | liquid tight by means of a self-compensating seal; | |
| locked by means of at least four (4) manual latches; | ||
|
3 nos of sight glass located at the end dish of the tank,sight glass is tempered-proof and easily replaced; |
||
| Hose Reel | 20 meters sewer jetting hose 13 diameter; | |
|
Equipped with a nozzle and hand-held spray gun, the nozzle diameter for cleaning pipes is 1-1.2 meters. |
||
| Working pressure ≥ 170 bar; | ||
| Bursting Pressure 400 bar; | ||
| Retracting speed 0~25 m/min | ||
| High Pressure Jetting Nozzle | 4 standard nozzles, 1 bottom pipe cleaning nozzle (nozzle replaceable), | |
| 1 hand spray gun. | ||
| Suction Pipe |
Φ102 Suction hose 10 meters long with aluminum or galvanized steel and PVC hose with quick-connection fitting |
|
| Control | 304 stainless steel control box | |
| Pneumatic control button | ||
| Safety device | Full tank alarm, | |
| low water level alarm, | ||
| constant pressure tank | ||
| Other Accessories | Stainless steel ladder at side | |
| Stainless | ||
| Lamps | Rotating warning lamp at rear | |
| Rear arrow sign lamp | ||
| Rear/Side working lamp | ||
| Reversing warning lamp | ||
This versatile truck is used for:
· Municipal Sewer Cleaning – Clearing blockages and collecting waste from drainage systems
· Industrial Waste Removal – Suction of sludge and slurry from factories and treatment plants
· Septic Tank Servicing – Efficient emptying and transport of septic waste
· Emergency Spill Response – Rapid collection of hazardous or non-hazardous liquids
· Pipeline Maintenance – High-pressure flushing combined with vacuum extraction
