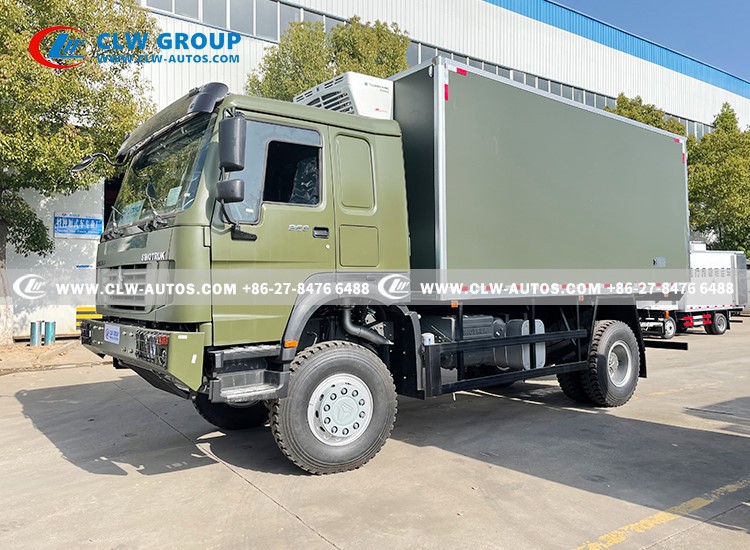

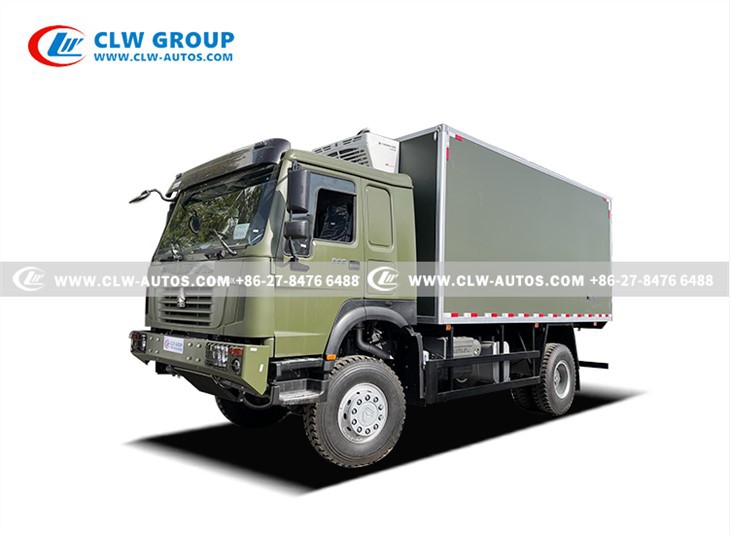

HOWO 4X4 Off Road 15Tons Refrigerated Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x4 off road 15tons refrigerated truck in China. If you're going to buy high quality howo 4x4 off road 15tons refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.





4X4 Refrigerated truck is mainly consists of off road howo chassis, heat insulation box, refrigeration unit, temperature recorders. For special purpose, optional parts will be includes,such as meat hook, aluminum alloy rail, ventilation channel etc. Off road refrigerated truck is mainly used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city.





features of howo 4x4 refrigerated van truck

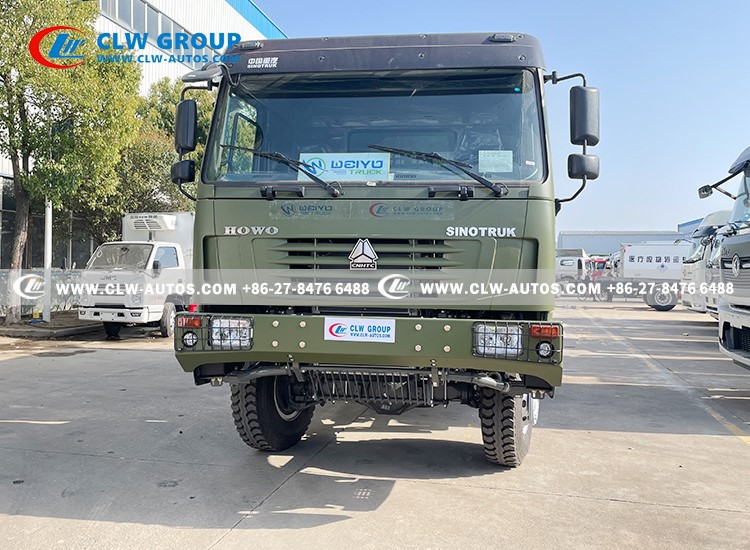

• Strong sinotruk howo truck chassis
• Easy to get spare parts
• 4X4/6X6/8x8 off road driving model

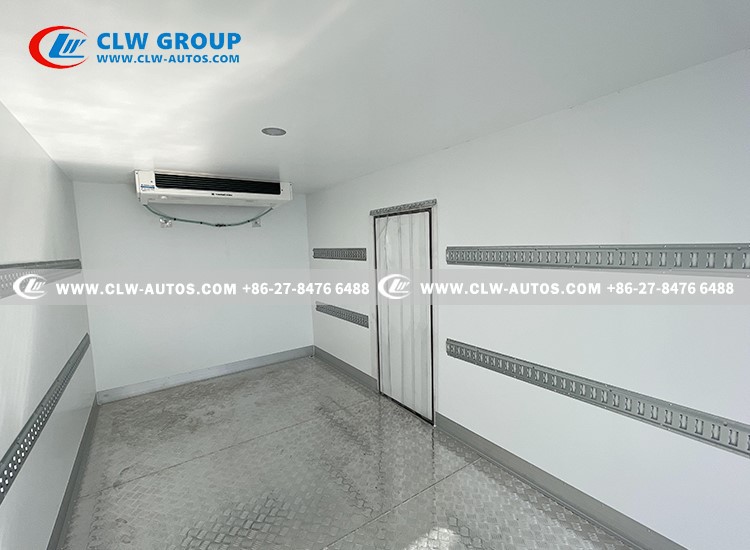

• 10 CM bottom plate and 8 CM side plate
• Fiberglass outside and inside
• 80 mm thickness insulation layer
• Stainless checked plate floor
• Stainless hinges and lock Level
• Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

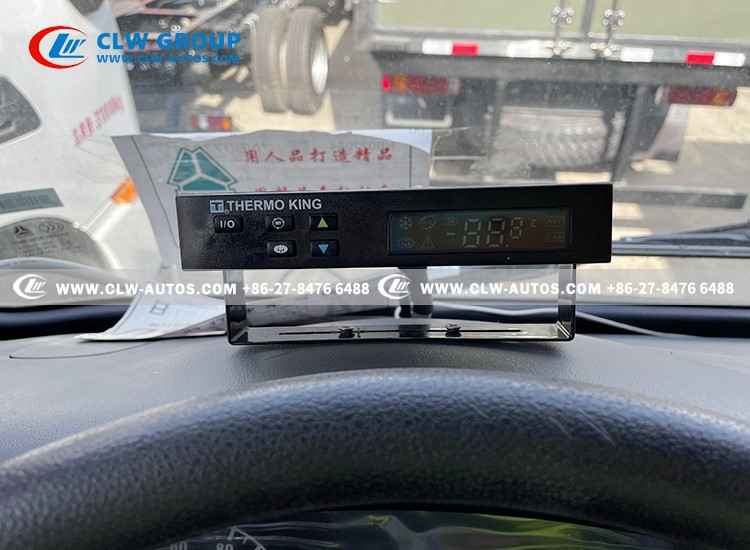

• Refrigeration unit Brand Optional for American CARRIER, THERMO KING. South Korea hanya. China hanxue, etc.
• The Temperature range can be 0° C ~ -20° C.





For quick inquiry,contact us





Truck Brand		SINOTRUK HOWO
Driving Type		Left Hand Driving/Right Hand Driving
Dimension(Lx W x H)(unloaded)(mm)		8268*2496*3200
Oil Tank		400 L
Wheel base (mm)		4300/4600/5200
Max speed(km/h)		95
Curb weight(kg)		7870
Loading Weight(kg)		16000
Engine	Model	WD615.87/ WD615.62/ D10.31-40/ D10.34-40, water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
	Fuel type	Diesel
	Horse Power	290HP/266HP/310HP / 340HP
	Emission	EURO II/III/ IV
Fuel tanker capacity(L)		400
Transmission	Model	HW19710,10 forwards and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	8198 hydraulic steering with power assistance
Front axle	STR
Rear axle	ST16, Loading: 16000KG
Color	White( Optional)
Tyre	12.00R20 tire
	Option: 14.00-25, 14.00R25 (Single tire)
Tyre quantity	6pcs + 1 spare
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500w
	Starter	7.5Kw/24V
Cab	HOWO76 cab, single sleeper with air conditioner,
Van box side	5200X2150X2200 mm

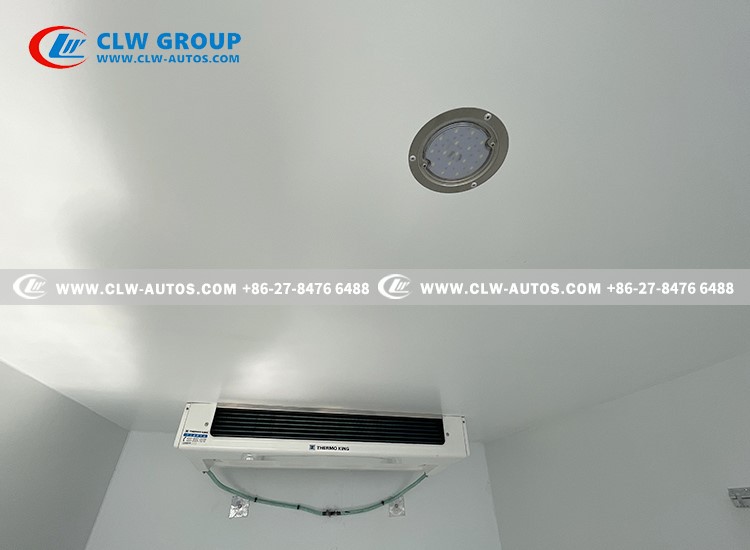

Refrigerated unit	THERMO KING RV-680
