Foton 5Ton Meat Transport Refrigerated Van Truck
Truck Chassis:Foton Aumark;
Refrigerator:US Brand Thermo king
Loading capacity: 5tons
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 5ton meat transport refrigerated van truck in China. If you're going to buy high quality foton 5ton meat transport refrigerated van truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose of Refrigerated Truck: It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of isuzu Refrigerated Truck: Refrigerating unit and control system.
3. With hydraulic integrated molding production line, the thermal insulation performance reaches the national A-class standard.
4.The truck body is made of galvanized stainless steel wrap angle, thick aluminum alloy edging, rear door frame is stainless steel, thick stainless steel back door hinge and lock parts, LED lighting and truck body width lamp are used inside the body.

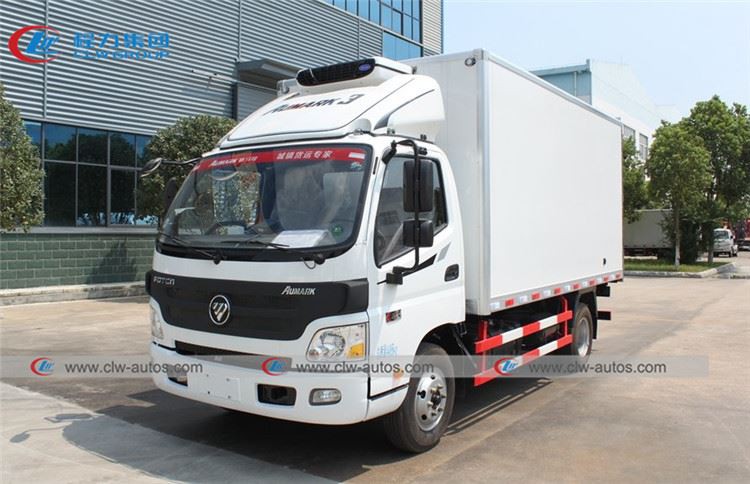

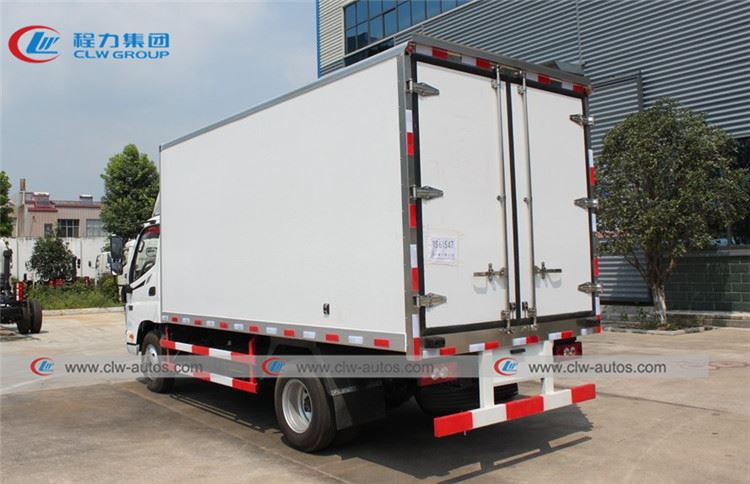

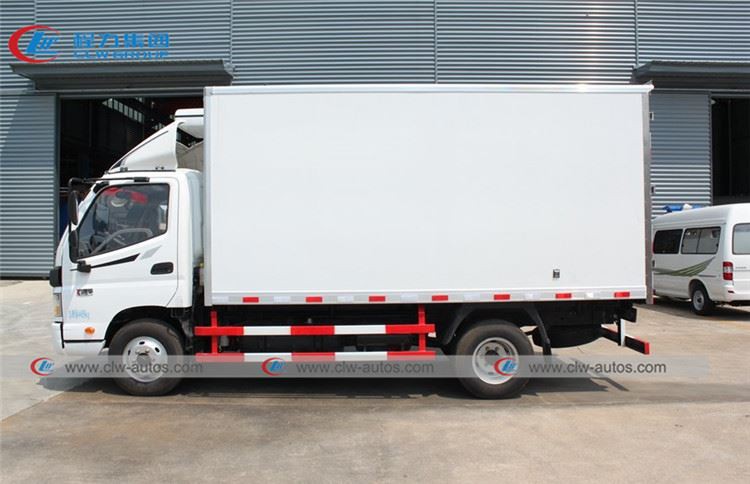

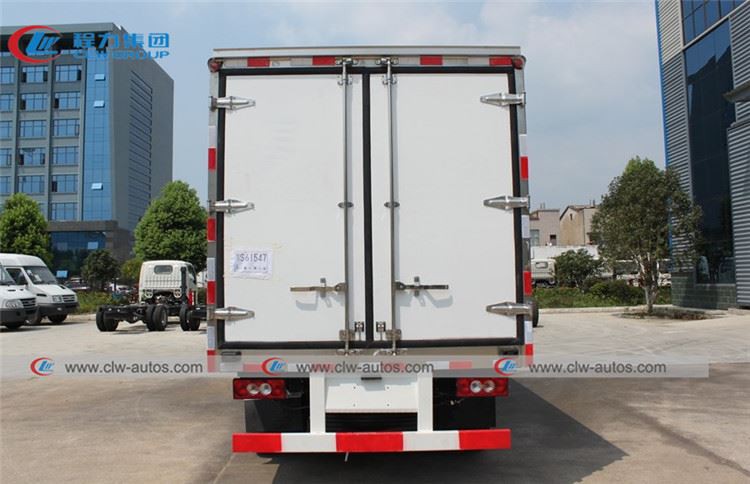

Reference picture
Specification
| ||||
Overall Dimension | 5995×2320×3350(mm) | Gross Weight | 4495 (Kg) | |
Curb Weight | 2805 (Kg) | Loading Weight | 1495(Kg) | |
| ||||
Chassis parameters | Chassis Brand | Foton | ||
Cabin | Single, Left Hand Driving, with A/C | |||
| Model | 4 Cylinders | ||
Power | 96 KW/130 HP | |||
Emission standard | EURO II | |||
Displacement | 2780 ml | |||
Fuel type | Diesel | |||
Gearbox | 5 Forward & 1 Reverse Gear | |||
Front and Rear Axle load | 2.5T/4.8T | |||
Wheel base | 3360(mm) | |||
Brake System | Oil brake | |||
Steering Gear | Power Assistant | |||
Tire | 7.00-16, 6 Pieces with 1 Spare Tire | |||
Maximum speed | 90 (km/h) | |||
| ||||
Van | Box size | 4085×2100×2100(mm) | ||
Material | Fiberglass | |||
Insulating Layer | 8cm Polyurethane Foam | |||
Refrigerator | Brand | Carrier | ||
Applicable temperature (ºC) | -18~0 | |||
Remarks | Part Optional: Ventilation slot | |||
Hook | ||||
External power supply | ||||
Side door | ||||
Key word: Refrigerated truck ,Freezer truck, Freezer Van Truck, meat transport truck
ISUZU 5tons Refrigerator Van Truck
