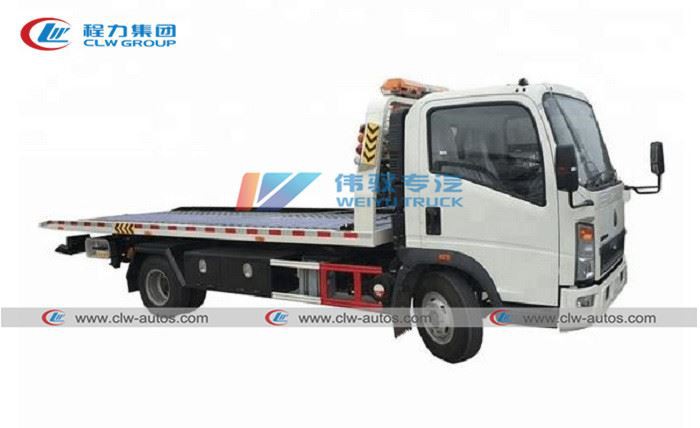

Sinotruk Howo 4t Flatbed Towing Wrecker Truck

Engine:diesel engine 130hp;
Driving model:LHD
Gear box:MSB 5-speed forward and 1 reverse
Towing capacity:4tons,5tons,6Tons

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 4t flatbed towing wrecker truck in China. If you're going to buy high quality sinotruk howo 4t flatbed towing wrecker truck, welcome to get more information from our factory. For price consultation, contact us.

Sinotruk Howo 4t Flatbed Towing Wrecker Truck

Product Description

1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.

Product Specification

General Technical Parameters
Overall Dimension			8490x2350x2410 (mm)
Gross Vehicle Weight			9410kg
Curb Weight			56700kg
Chassis Specification
Chassis Parameters	Chassis Brand		Howo
	Cabin		Single, Right or Left Hand Driving
	Engine	Model	4 Cylinders
		Emission Standard	EURO 3
		Displacement	5.19L
		Fuel Type	Diesel
	Gearbox		6 Forward & 1 Reverse Gear
	Front and Rear Axle Load		4T/7T
	Wheel Base		3800(mm)
	Overhang( Front/Rear)		1015/2450(mm)
	Angle(Approach/departure)		24/9(°)
	Brake System		Air Brake
	Steering Gear		Power Assistant
	Tire		8.25-16, 6 Pieces with 1 Spare Tire
	Maximum Speed		110(km/h)
Superstructure
Flatbed	Dimensions		5600x2350 (mm)
	Max. Loading Weight		4000(kg)
	Operating Stroke		2700 (mm)
	Min. Angle of Slope		8(°)
	Platform Height from the Ground		1070(mm)
Winch	Quantity		1pc
	Winch Rating Pulling Capacity		4000 (kg)
	Length of Steel Cable		25 (m)
Hoisting Organ	Rating Under-Pulling Capacity		6000 (kg)
	Rating Under-Hoisting Capacity		2000 (kg)
	Fully Extended Max Under-Hoisting Capacity		1600 (kg)
	Max Under-Hoist Useful Length		1640 (mm)
Remarks	1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars

Reference Photos

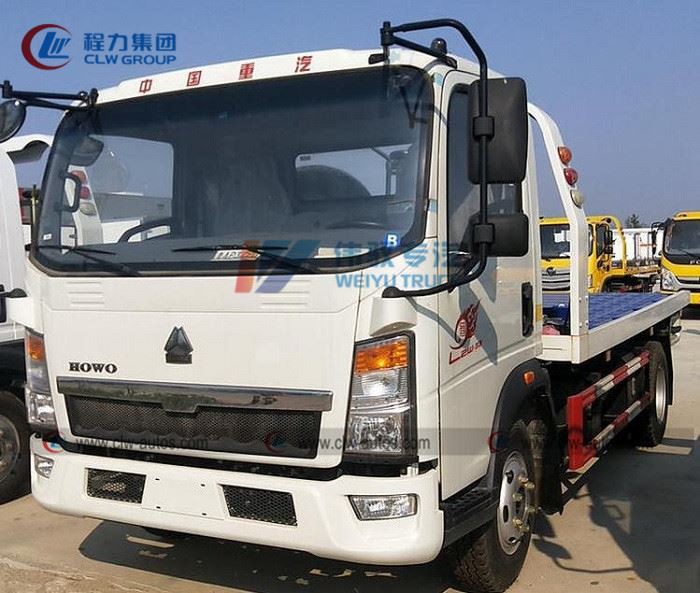

4t platform wrecker truck

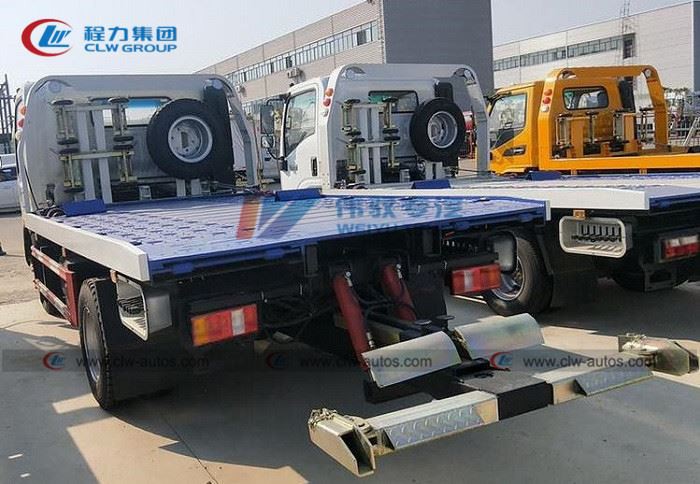

howo wrecker truck

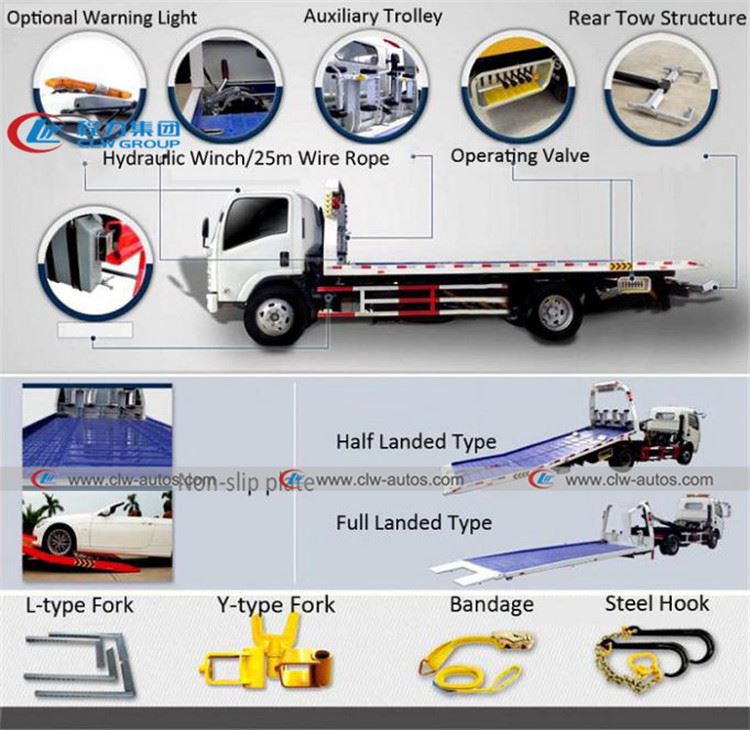

Structure Diagram

Remote controller

50tons tow truck02

Key word: Sinotruk Howo 4tons platform wrecker truck, Howo 4*2 flatbed towing truck, Howo road rescue wrecker, Road towing wrecker, Towing truck, Recovery wrecker truck, 4t towing truck, 4tons tow truck, Road Rescue Wrecker Truck.
