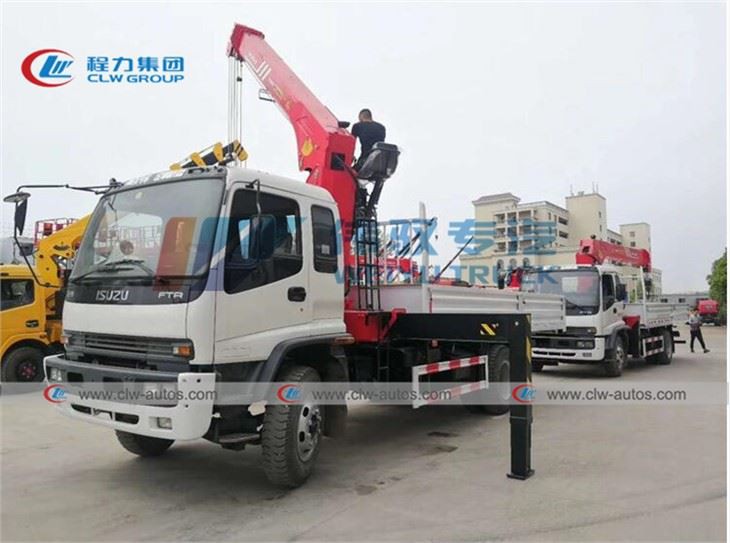

ISUZU Lorry Mounted Straigh-arm 10Tons Palfinger Crane

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu lorry mounted straigh-arm 10tons palfinger crane in China. If you're going to buy high quality isuzu lorry mounted straigh-arm 10tons palfinger crane, welcome to get more information from our factory. For price consultation, contact us.



Function

--Lorry mounted crane(also called Truck with Crane, Truck Crane,truck mounted crane) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.

--Lorry mounted crane can be divided into various types as follows,

1) according to truck brands, there are SINOTRUK HOWO, FOTON, Dongfeng, SHACMAN, CAMC, JAC, JMC and ISUZU Lorry mounted crane;

2) according to driving model: 4x2, 4x4, 6X4, 6x6, 8x4, 8x8 and 10x4 Lorry mounted crane;

3) according to lifting weight: 2tons 3.2tons 5tons 6.3tons 8tons 10tons 12tons 15tons 18tons 20tons 25tons 30tons Lorry mounted crane

4) According to crane type,there are telescopic/straight arm and knuckle/folding arm Lorry mounted crane

Feature

--Crane: We can supply International brand XCMG and PALFINGER for optional.

--Landing leg: Hydraulic control, top quality, easy for operation.

--Storage box: High quality carbon steel Q235

--Truck chassis: Japanese brand ISUZU Diesel engine truck chassis

--Tire: 10R22.5 tubeless tire with high trafficability.

--SPS25000 is designed with high-strength steel plate and hexagonal boom, featuring high strength, light dead weight and strong lifting capacity.

--Rated lifting capacity: 10 tons, arm length: 14 or 17.7 meters.

--Arm frame form: straight arm

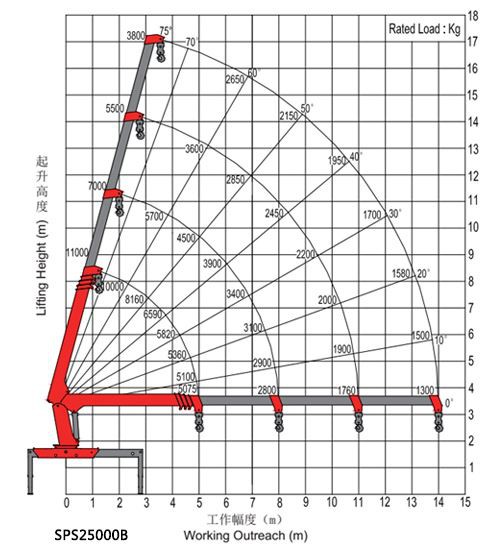

Technical parameter of SPS25000 crane

Main technical parameter
Item	Unit	SPS25000B	SPS25000C
Rated lifting weight	Kg	10000	8000
Rated lifting moment	T.m	25	25
Max outreach	m	14	17.7
Max lifting height	m	16.1	20.1
Length of the basic boom	m	5.3	5.3
Length of the fully extended boom	m	14.3	18.1
Numbers of the boom	/	4	5
Profile method of the basic boom	/	Octagon	Octagon
Range of the boom lifting angle	。	0-75	0-75
Outrigger span	mm	5600	5600
Recommended volume for the system	L/min	70	70
Recommended oil tank volume	L	200	200
Weight of the crane	Kg	3820/3850	4110/4130
Operating pressure	Mpa	27/34	27/34
Operating mode		Operated at land/Aerial operation	Operated at land/Aerial operation

Why do you choose palfinger crane?

★Accurate positioning: smooth movement, accurate positioning, can complete high difficulty, high precision lifting tasks

★Fuel saving: crane is 500-1000 kg light, and can be lifted under the state of engine idle, 30% fuel saving

★Save trouble: the crane has a low failure rate and adopts a large number of maintenance-free designs. The maintenance is economical and simple, reducing the use cost by 30%

★Save worry: timely and thoughtful service, one call to solve problems, save 30%-50% of maintenance cost

★Strong operation capacity: the strongest lifting capacity, the extra-long lifting range, the operation capacity is increased by 10%-20%

★Continuous operation: continuous operation under high temperature and heavy load environment, the operation efficiency can be increased by more than 30%.

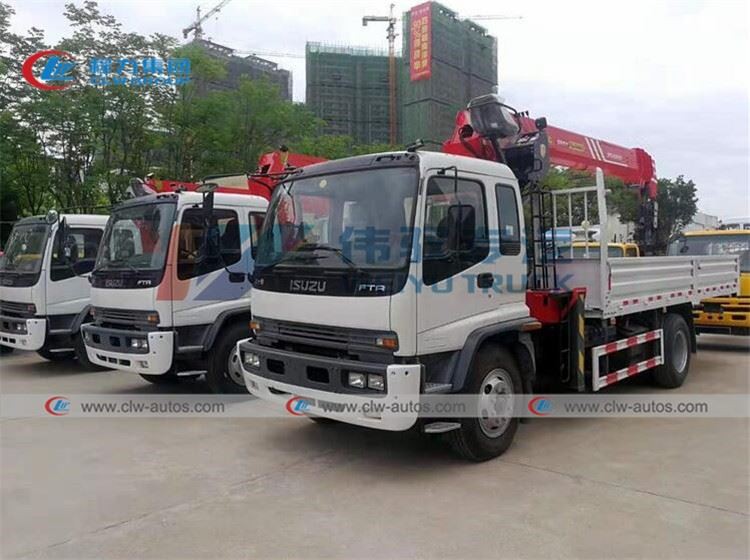

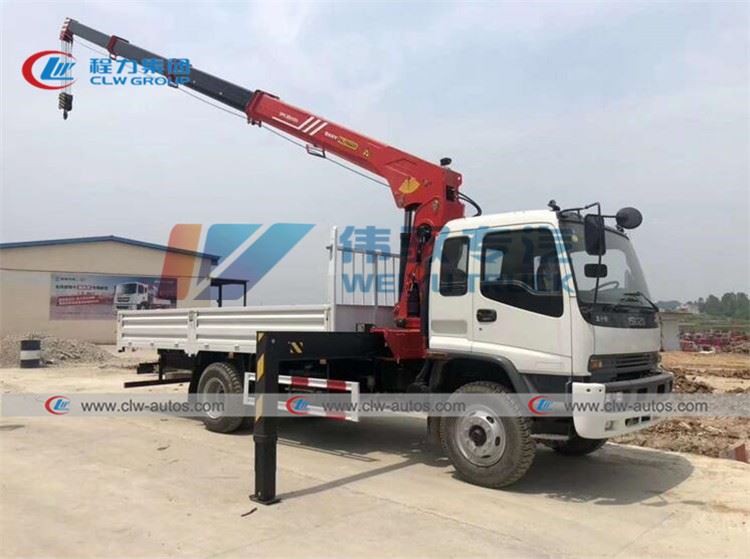

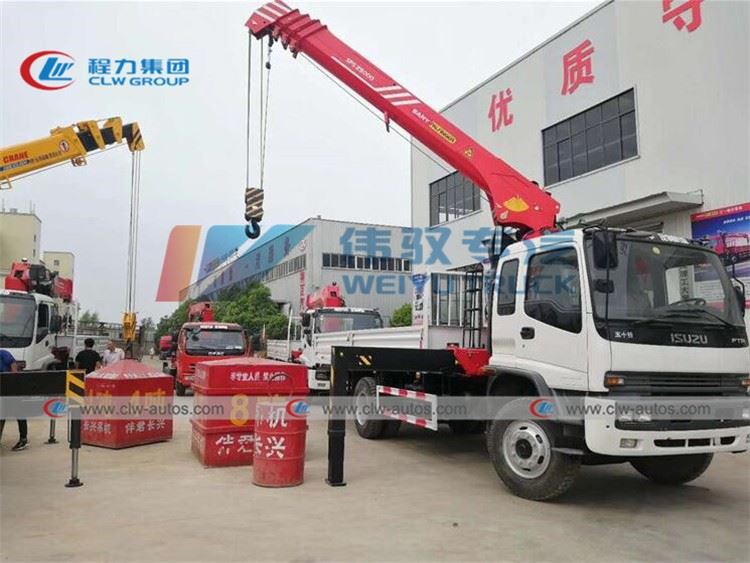

Reference picture

Key word:telescopic Boom Truck, Truck Mouted Crane, Truck Crane,Truck With Crane,isuzu lorry with crane,10tons crane truck

Hot Tags: isuzu lorry mounted straigh-arm 10tons palfinger crane, China, manufacturers, suppliers, factory, price, Construction Truck
