Howo 4X2 5Tons Freezer Cooling Van Truck
Engine:diesel Yunnei YN4102QBZL;
Driving model:LHD or RHD
Gear box:WLY6T46,6 Forwards and 1 reverse
Tire:7.00R16
Box Size:4100*1740*1750 mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 4x2 5tons freezer cooling van truck in China. If you're going to buy high quality howo 4x2 5tons freezer cooling van truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--Freezer(also called cooling van truck,refrigerated truck,refrigerator truck,refrigerator wagon,refrigerated box car,freezer wagon,temperature controlled vehicle,preservation vehicle) is used to deliver and transport perishable stuff at specific temperature.
--The refrigerated unit brand is optional,such as themo king,carrier,chinese brand hanxue,huatai and so on.
--according to power supplying method,ohe type is vehicle engine powered refrigerated unit through PTO and another is powered by seperately carried power unit.
--The freezer box is with high quality temperature preservation material.The surface is optional for fiberglass,color plate,aluminum alloy or stainless steel,and 80mm PU foam in middle to ensure perfect insulation.
-- Freezer can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc freezer truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 freezer truck;
3) according to temperature request during delivery,there are fresh transport freezer truck with temperature request around -5 ℃ and frozen cargo(meat,seafood,icecream) transport with temperature request around -16 ℃ .
Feature
--high quality howo truck chassis;
--Spacious truck cabin with A/C;
--Powerful engine for tough road with reliable performance;
--high quality temperature preservation van body;
--Reliable chinese or USA brand refrigerated unit;

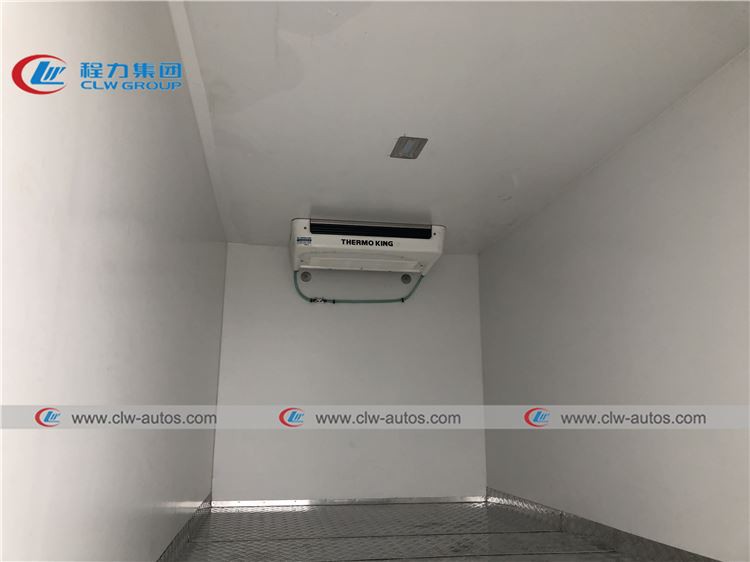

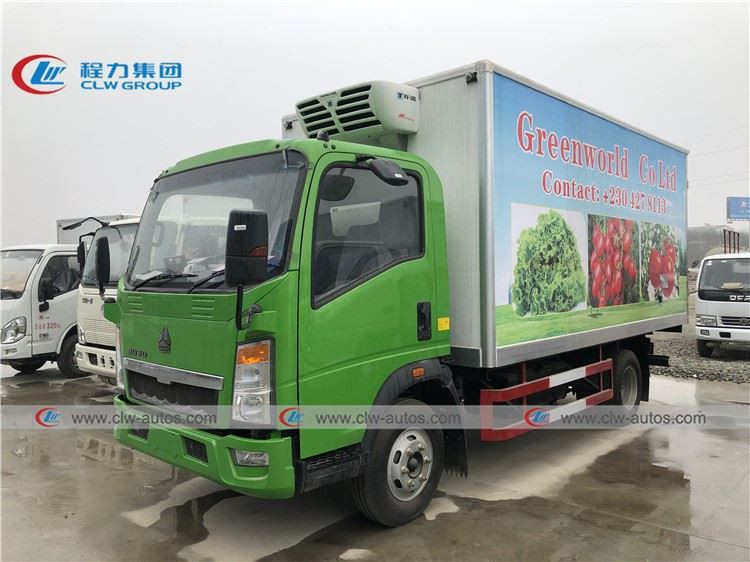

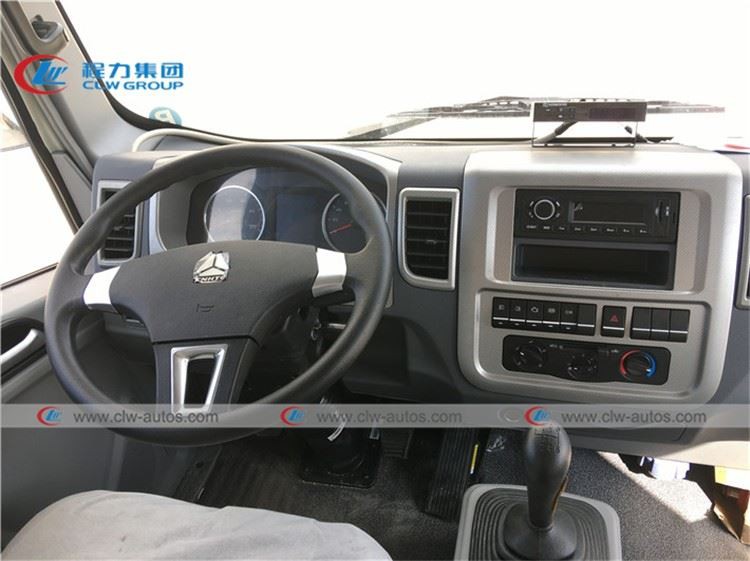

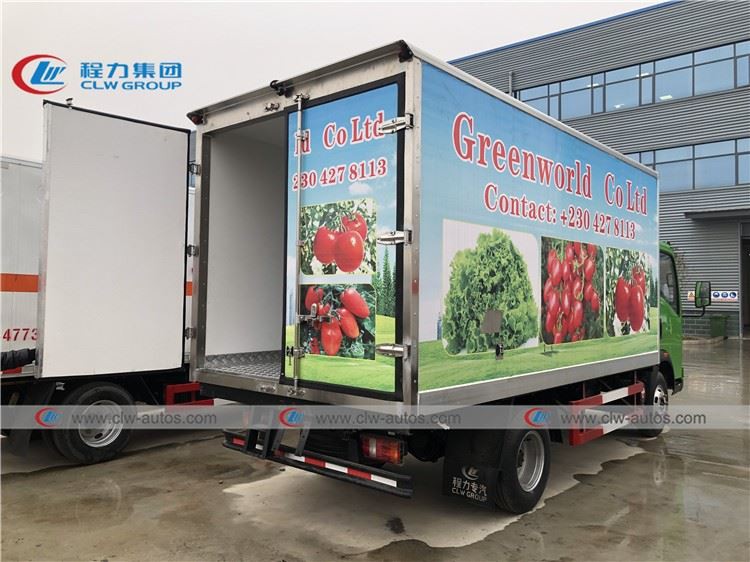

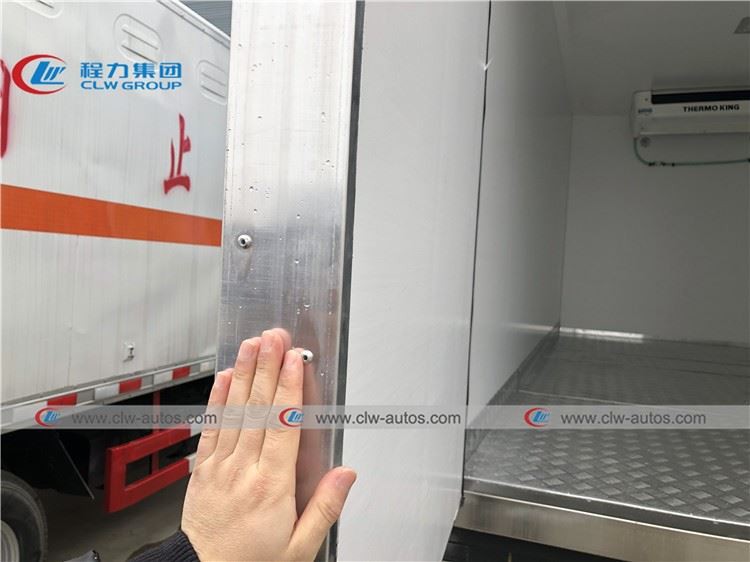

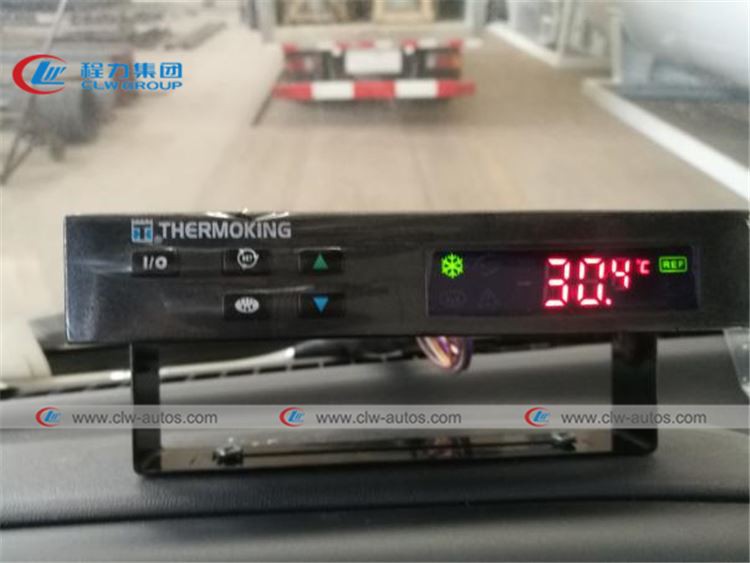

Reference picture
Specification
Condition | New condition/Left hand drive/4x2/Howo 2880 cabin/with A/C | ||
Chassis | Brand | HOWO | |
Curb weight(kg) | 2740 kg | ||
Payload(kg) | 5000kg | ||
Wheelbase(mm) | 3360 mm | ||
Dimensions(mm) | 5995*2500*3250 mm for 5Tons 6980X2500X3250 mm for 7Tons | ||
Front/Rear axle loading(kg) | 2400/4200 kg for 5Tons; | ||
Front/Rear overhang(mm) | 1160/1545 mm | ||
Wheel track (front/rear) (mm) | 1605/1555 mm | ||
Approach/Departure angle(°) | 18/18 | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Hydraulic oil brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 7.00R16 for 5Tons; | ||
Transmission | Manual type, WLY6T46,6 Forwards and 1 reverse | ||
Engine | Brand | Yunnei Engine | |
Model | YN4102QBZL | ||
Fuel type | Diesel | ||
Displacement(ml) | 3760ml | ||
Power(kw) | 85 kw | ||
Horsepower(HP) | 116 HP | ||
Maximum torque(N.m) | 220 N.m | ||
Maximum torque speed(rpm) | 1700 rpm | ||
Minimum fuel consumption under full load | ≤224g/kW.h | ||
Cylinder number | 4 pcs | ||
Emission standard | Euro III | ||
| |||
Box of | 1. Box Size of 5Tons: 4100*1740*1750 mm; 2. Box Material: glass epoxy in the surface; Foam in the middle . 3.Thickness of side ,top ,front ,rear 80mm; 4.Inside bottom: Aluminum pattern plate | ||
Refrigerating System | 1. Working temperature range:-18℃ -0℃ 2. Refrigerating unit brand and model: USA brand Thermo King KV300 for 5Tons; | ||
Remarks | Color is optional | ||
