Dongfeng 6CBM Concrete Mixer Truck
Tank Size:6 CBM;
Hydraulic Pump & Motor:US/Italy/Chinese Brand for option
Support Customize logo
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6cbm concrete mixer truck in China. If you're going to buy high quality dongfeng 6cbm concrete mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman, etc.
2. High Tension Steel Q345 Tank Material in 4mm.
3. International Brand Motor, Pump, Reductor & Radiator
4. 400Liter Water Tank with Pressure Water Filling
5. Water Filling System to Keep the cement moisture.
6. Tank and hand Washing Device.

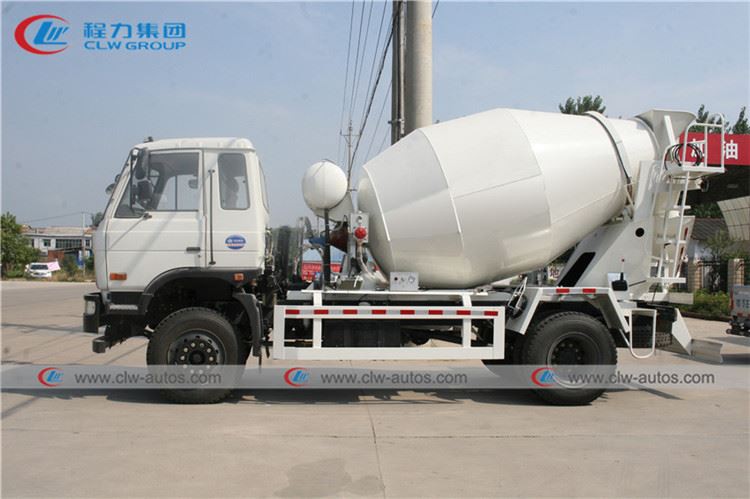

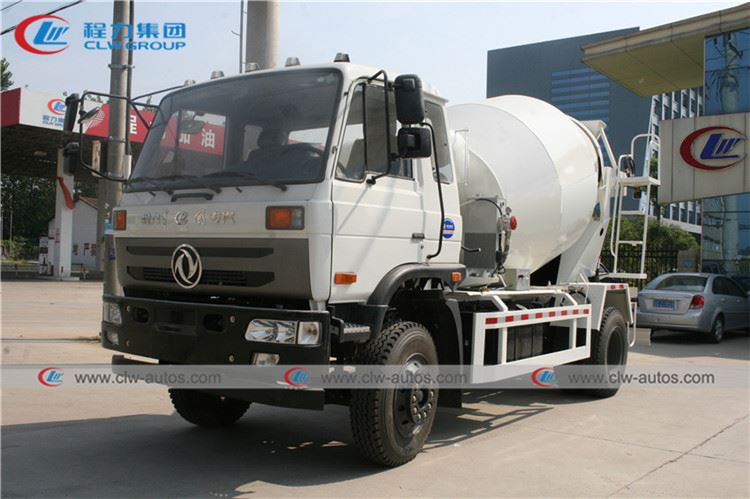

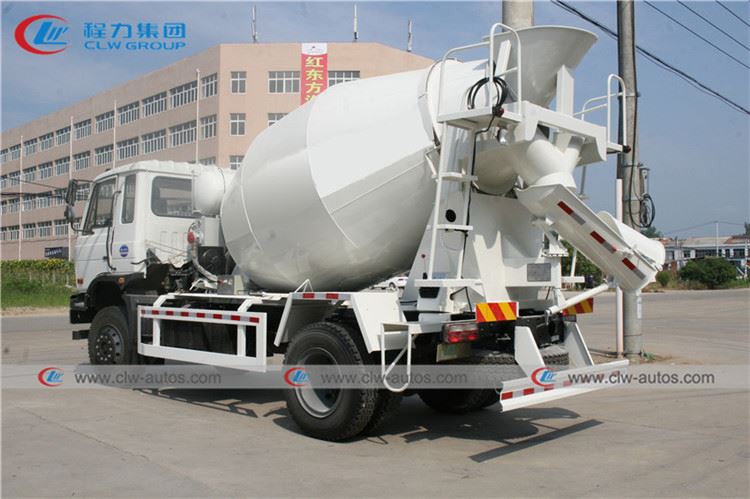

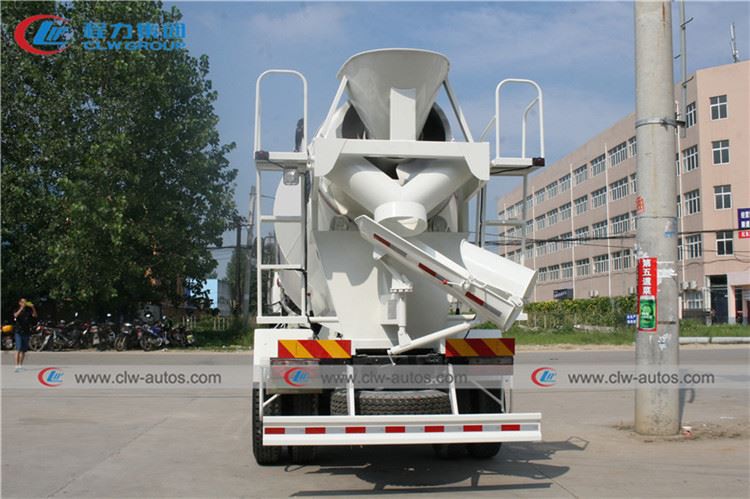

Reference picture
Truck Structure
Specification
| New condition/Left hand drive/4x2 | |||||
| Brand | Dongfeng | ||||
Curb weight(kg) | 7250 kg | |||||
Wheelbase(mm) | 3600 mm | |||||
Dimensions(mm) | 7330*2480*3700 mm | |||||
Axle Load(kg) | 3600/9000 kg | |||||
Max. driving speed(km/h) | 80 km/h | |||||
Clutch | Reinforced diaphragm clutch | |||||
Steering Gear | Power steering, hydraulic steering with power assistance | |||||
Tire | Number | 6pcs with one spare tire | ||||
Specifications | 8.25R20 tire | |||||
| 5 Forwards and 1 Reverse with PTO | |||||
It can accommodate three people, With Air conditioner | ||||||
Brand | YUCHAI | |||||
Model | ||||||
Displacement(ml) | 4214 ml | |||||
Power(kw)/Horsepower/(HP) | 96 kw/130 HP | |||||
Emission standard |
| |||||
| ||||||
|
|
| ||||
Material | Manganese Steel | |||||
| Feeding Speed (m3/min) | ≥2.8 | ||||
Discharging Speed (m3/min) | ≥1.2 | |||||
Discharging Residual rate(%) | ≤0.5 | |||||
Mixing Tank Rotating Speed (RPM) | 0-15 | |||||
Discharging range | 180° full range | |||||
| Hydraulic Pump | US SUNNY brand | ||||
Hydraulic Motor | US SUNNY brand | |||||
Reducer | China local brand | |||||
Radiator | China local brand | |||||
| Tank volume(Liters) | 200 Liters | ||||
Water supply type | Pneumatic water supply | |||||
| Control Way | Connecting Rod Controlling | ||||
| 1. Mixer Tank and Vane use special anti-resistant material. 2. Discharging slot and feeding plate are the same anti-resistant material as the tank. 3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. 4. With US brand driving system. Discharging fast, no residue. | |||||
| 1. Color is optional 2. LOGO painting as per customer request | |||||
