Foton P4 P5 P6 Led Advertising Truck
LED Screen pixel pitch:P4,P5,P6
two side screen lifting
two Hydraulic mobile stage
OUMA brand,Silent diesel generator, 15KW
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton p4 p5 p6 led advertising truck in China. If you're going to buy high quality foton p4 p5 p6 led advertising truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
2. Main parts of LED screen billboard truck : LED screen, Generator set, Computer, Control system etc.
3. Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
4. LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
5. Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.

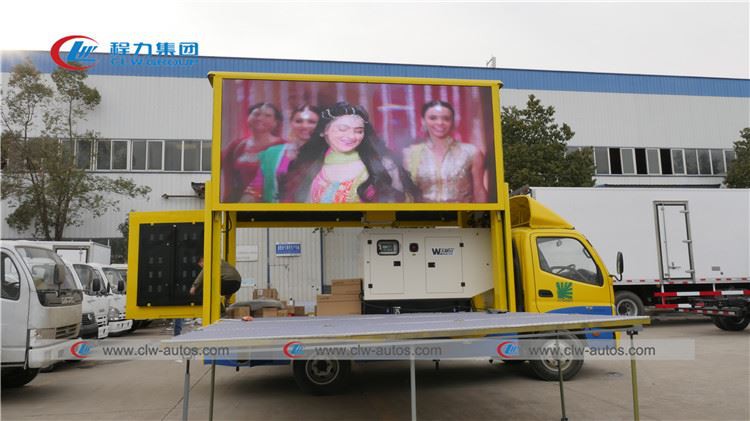

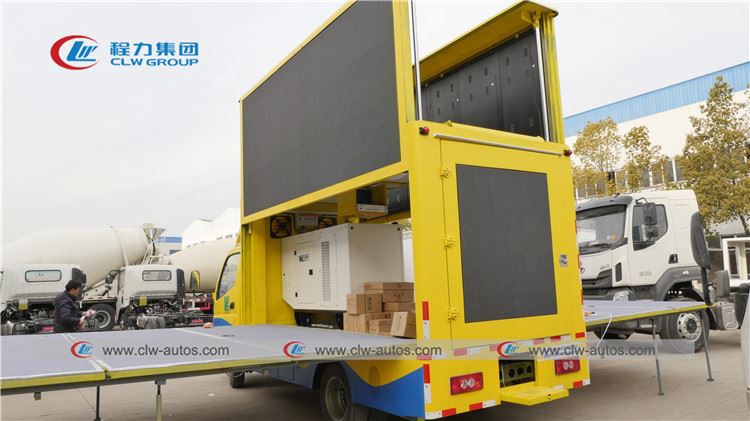

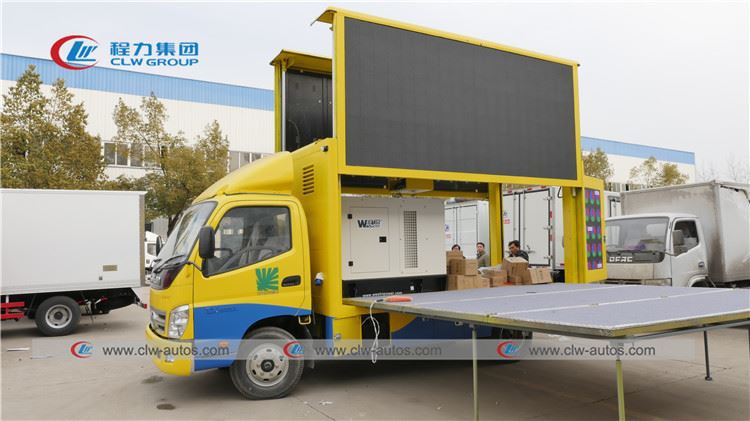

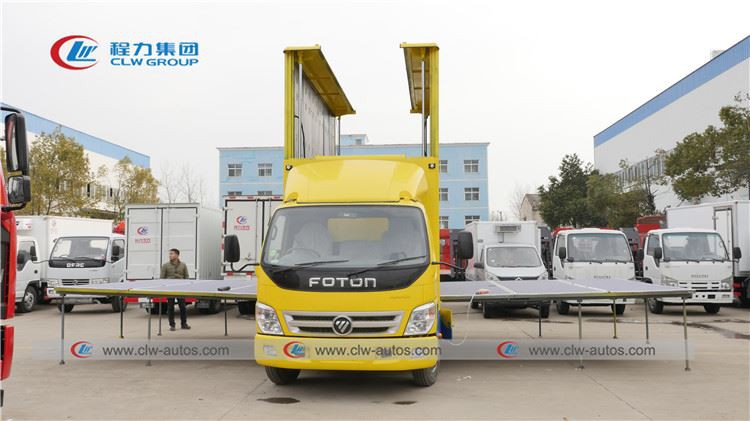

Reference picture




Specification
| |||
Overall Dimension | 5995×2190×3300(mm) | ||
Gross Vehicle Weight | 4495(Kg) | ||
Curb Weight | 4250(Kg) | ||
| |||
Chassis parameters | Chassis Brand | FOTON | |
Cabin | Single, Left Hand Driving, with A/C | ||
Engine | Model | 4 Cylinders | |
Power | 72KW/98HP | ||
Emission standard | EURO 3 | ||
Displacement | 2.771L | ||
Fuel type | Diesel | ||
Gearbox | 5 Forward & 1 Reverse Gear | ||
Front and Rear Axle load | 2.2T/5T | ||
Wheel base | 3360(mm) | ||
Overhang( Front/Rear) | 1095/1540(mm) | ||
Angle(Approach/departure) | 22/16 (°) | ||
Brake System | Oil brake | ||
Steering Gear | Power Assistant | ||
Tire | 700R16, 6 Pieces with 1 Spare Tire | ||
Maximum speed | 90(km/h) | ||
| |||
| Pixel | Outdoor full colour display screen P6 | |
Dimension(LxW)(mm) | Both side: 3840*1728 | ||
Rear:1280*1440 | |||
Description | Screen lift on both sides | ||
Waterproof, shake-proof, high brightness, long life | |||
General configuration | 1. OUMA brand,Silent diesel generator, 15KW | ||
2. One set industrial computer with control system | |||
3. Sound system: Loudspeaker 4pcs, amplifier 1pc | |||
4. Internal and external electrical distribution box. | |||
5. Circulating ventilation and cooling systems. | |||
6. 5CM composite steel frame body | |||
7. Aluminum patterned floor | |||
Remarks | Equipped with Hydraulic stage | ||
The color of the superstructure is oprional. | |||
