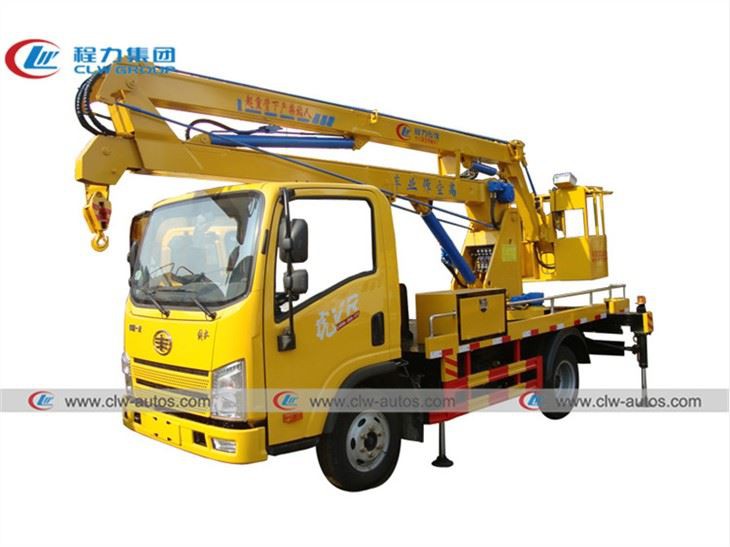

FAW 4X2 16meters Folding Arm Aerial Work Platform Truck
Lifting height:16meters
Truck brand:FAW,JMC/FOTON/ISUZU/DONGFENG/HOWO
Application:lamp repair/airport/aerial working
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 4x2 16meters folding arm aerial work platform truck in China. If you're going to buy high quality faw 4x2 16meters folding arm aerial work platform truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description:
1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
3. Full Computer Control System with Danger Warning System.
4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
5. Rectangular Shape Arms to Increase the Arm Strength.
6. V Shape Leg, H Shape Leg can be adapted to Different Road Condition Increasing the Stability.
Product specifications:
| Technical Parameter | |
| Product Name | FAW 16Meter aerial platform work truck |
| Dimension(Length×width×height) | 5998*2500*2900mm |
| GVW | 4495kg |
| Curb weight(kg) | 4465kg |
| Platform rated load | 200kgs, 2 persons |
| Fuel type | Diesel |
| Maximum speed(km/h) | 100km/h |
| Cab | 3 people; with air conditioner |
| Chassis | |
| Chassis brand/model | FAW Tiger VR |
| Drive type | 4×2; LHD |
| Transmission | Manual;5 forward gear, 1 backward gear |
| Leaf springs | 8/7+7,9/9+8 |
| Tyre specifications | 7.50R16LT 14PR |
| Tire number | 6 (+1 spare tire) |
| Wheelbase | 3300mm |
| Axle number | 2 |
| Approaching/Departure Angle | 20/13° |
| Front/Rear suspension | 1155/2025mm |
| Front/Rear tread | 1680/1640mm |
| Front/Rear axle loading | 1855/2640kg |
| ABS | YES |
| Engine | |
| Engine brand | CHAOCHAI |
| Displacement | 3153ml |
| Power | 110hp |
| Emission standard | Euro V |
| High altitude operation system | |
| Max working height | 16m |
| Max working range | 9.5m |
| Arm type | Hydraulic folding arm boom |
| Slewing angle | 360° full rotary |
| Outtrigger span | 4000*4000mm |
| MAX hydraulic flow | 30L/min |
| Hydraulic rated pressure | 20MPa |

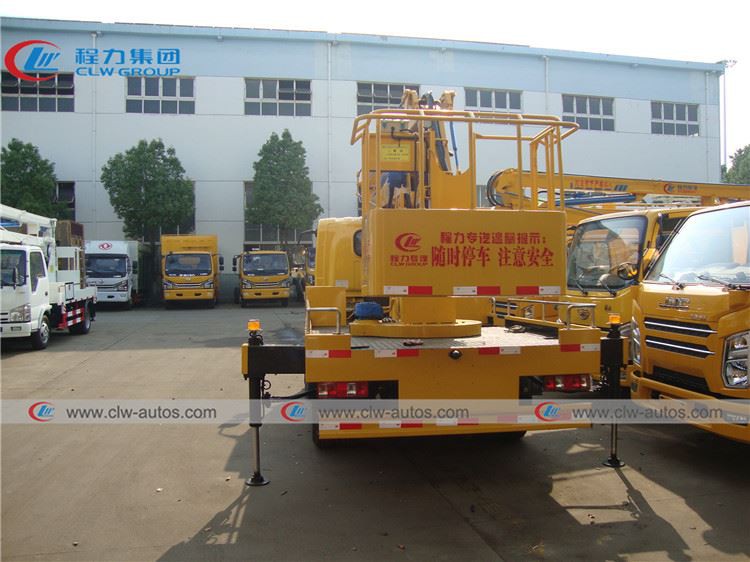

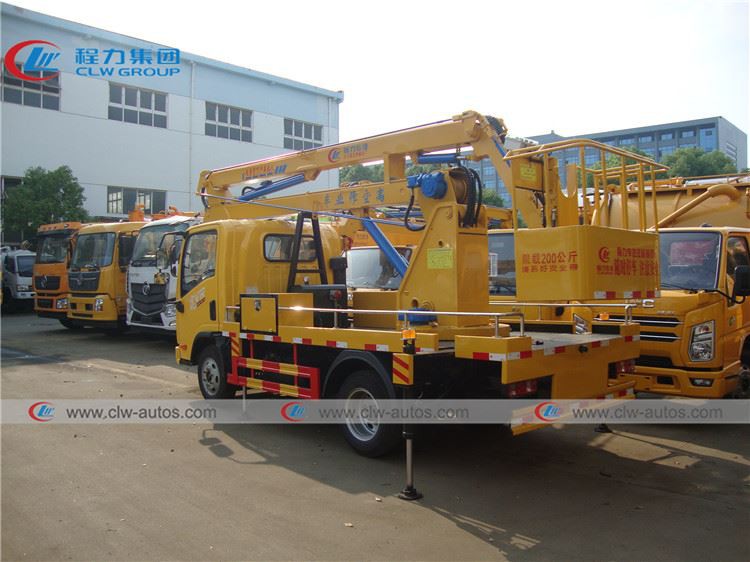

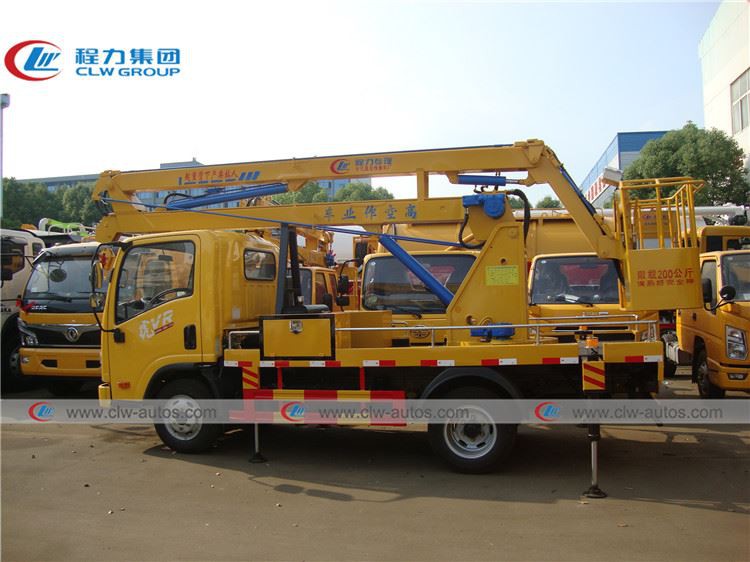

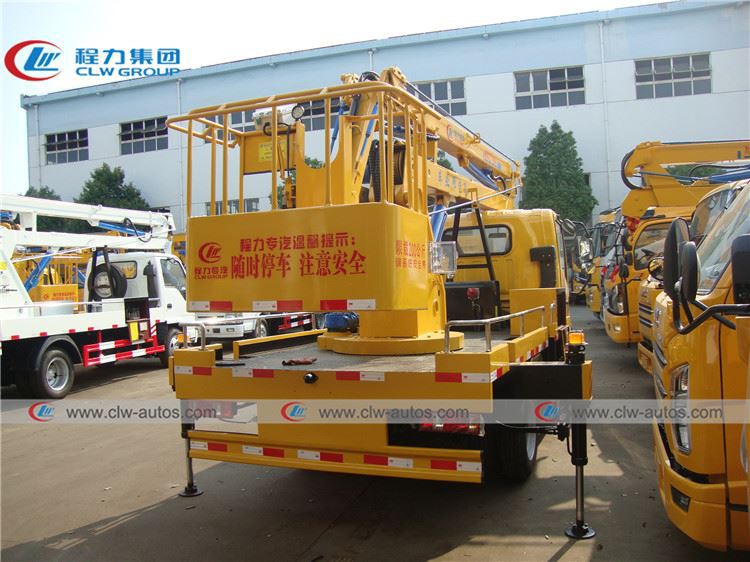

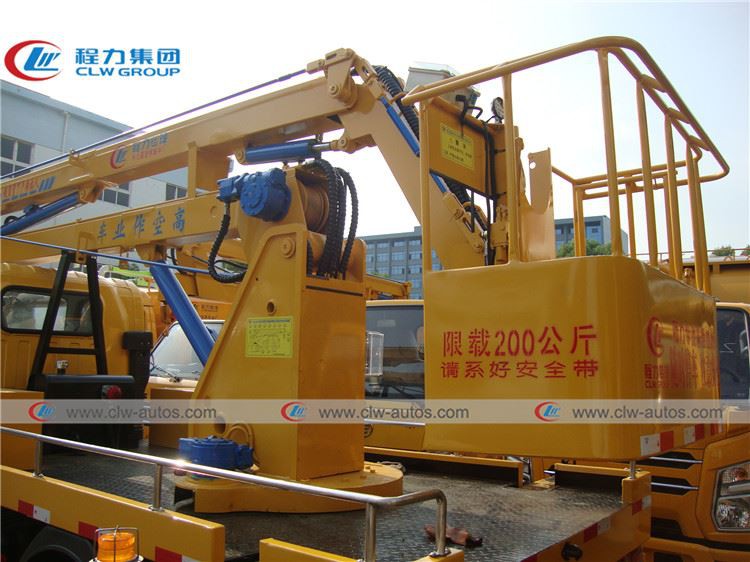

Product pictures:

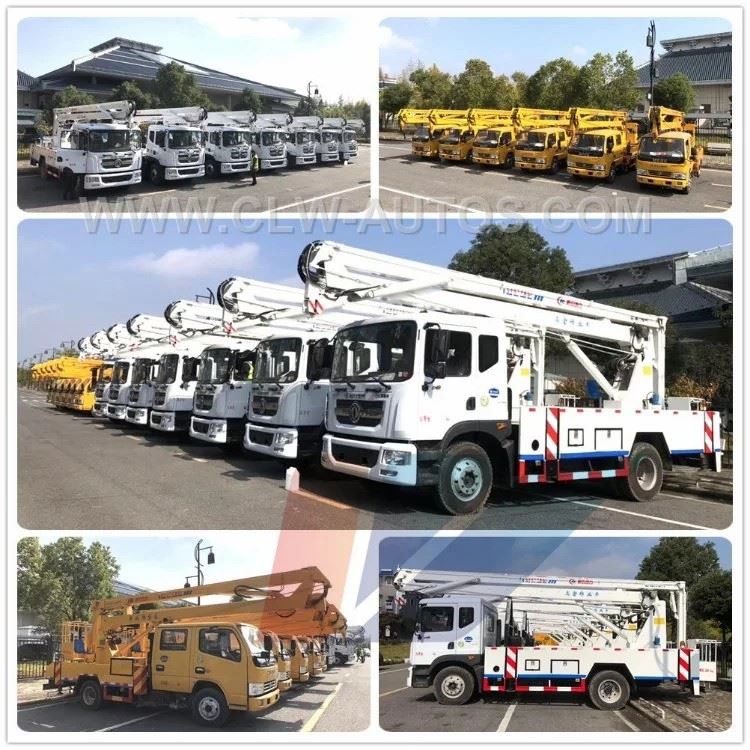

Bulk orders:
