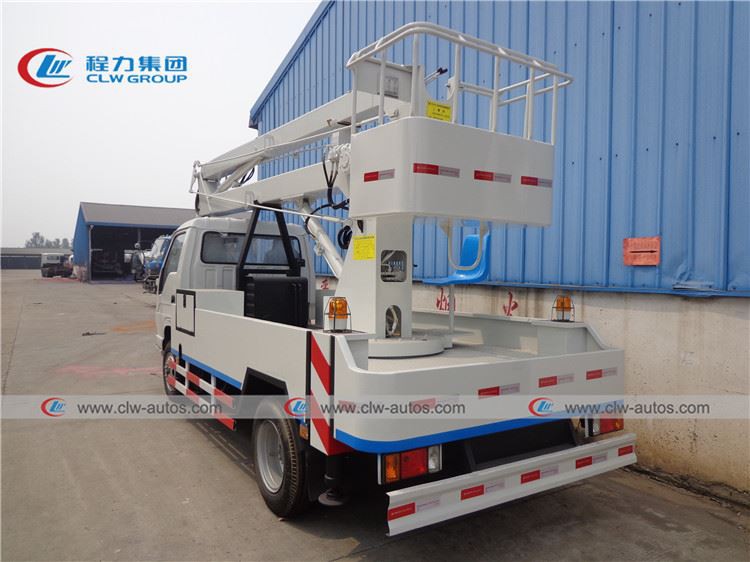

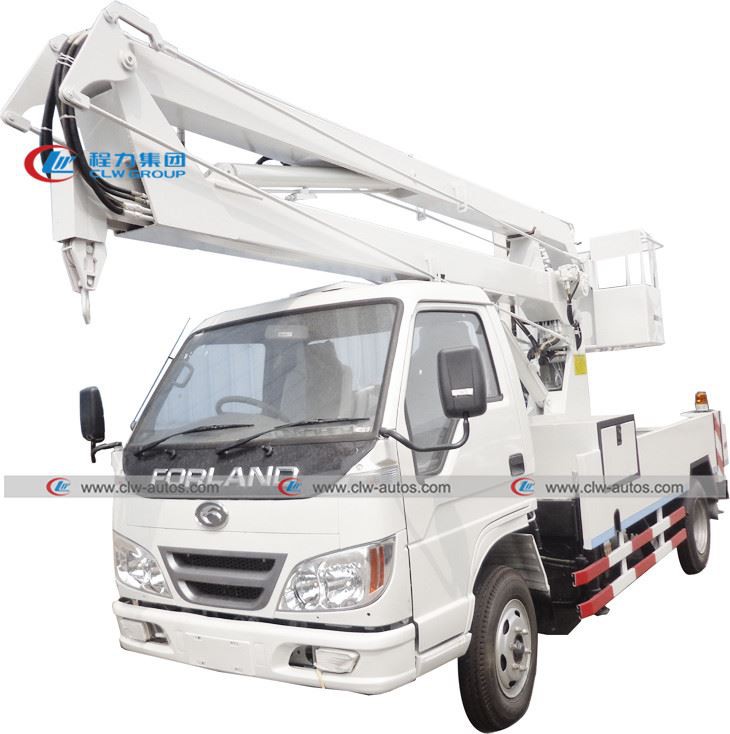

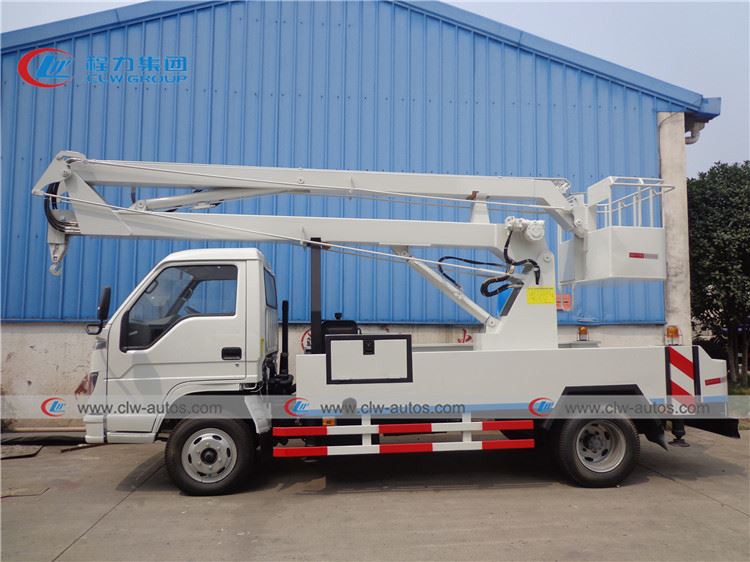

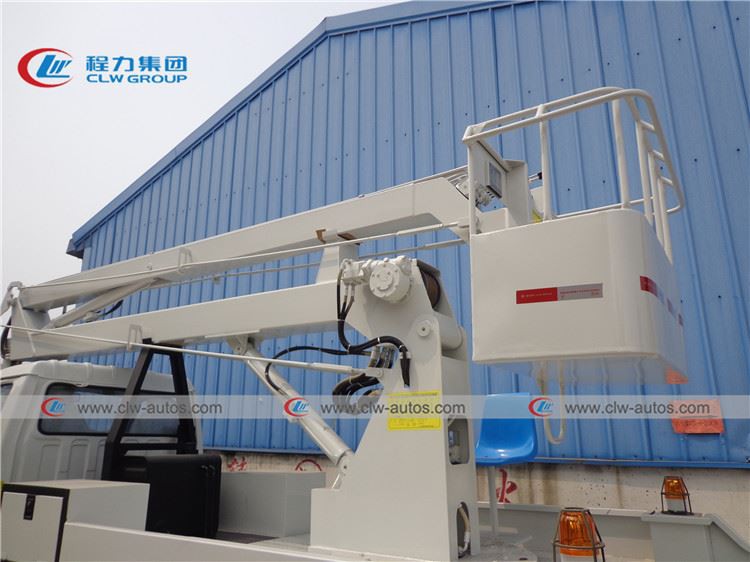

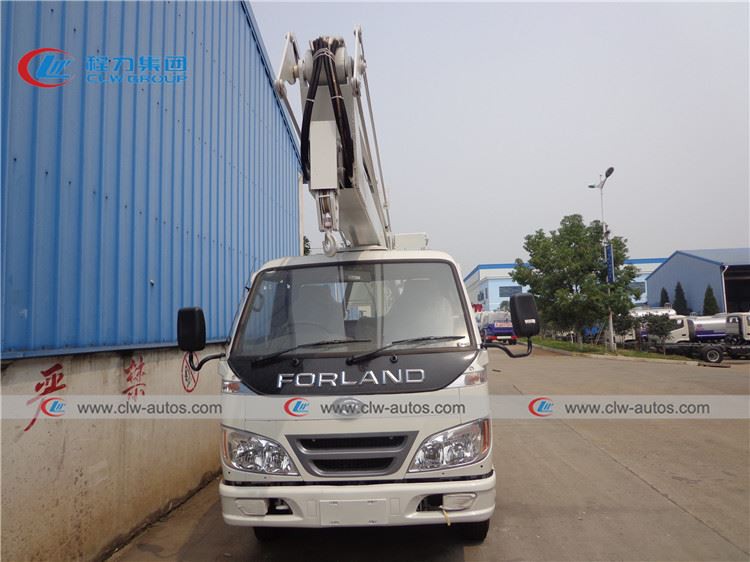

FOTON Forland 16 Meters Truck Mounted Aerial Work Platform
Lifting height:16meters
Truck brand:FOTON/ISUZU/DONGFENG/HOWO
Application:lamp repair/airport/aerial working
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton forland 16 meters truck mounted aerial work platform in China. If you're going to buy high quality foton forland 16 meters truck mounted aerial work platform, welcome to get more information from our factory. For price consultation, contact us.

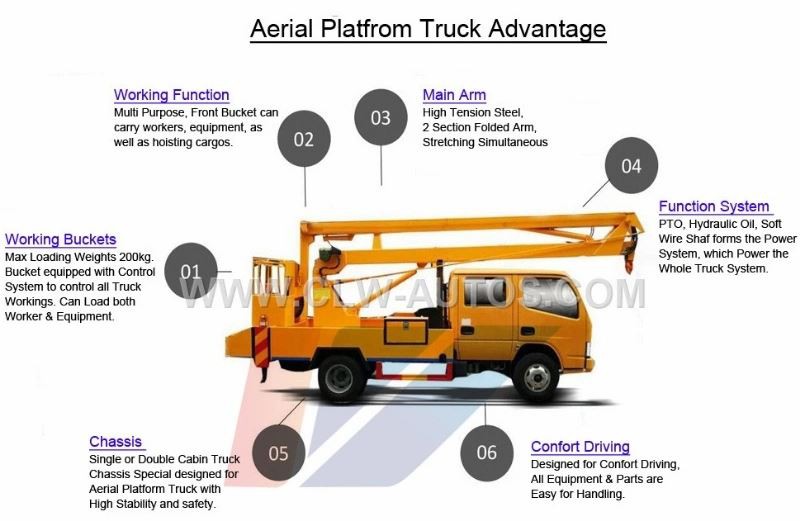

Description
1. Automatic Bucket Balance System, Bucket will be Stayed in Balance Level in All Working Time.
2. The Stretching Angle Up to 80°, which will be Easier to Handle in All Time.
3. Full Computer Control System with Danger Waring System.
4. LCD Screen in Both the Bucket and Truck to Display the Working Status.
5. Rectangular Shape Arms to Increase the Arm Strength.
6. V Shape Leg, H Shape Leg can Adapted to Different Road Condition Increasing the Stability.
Specification
AERIAL PLATFORM TRUCK | ||
Truck Brand | CLW | |
Chassis Brand | Foton forland | |
Approx. Dimension | 7200*2320*3120 mm | |
GVW | 6495kg | |
Cab | Cab Capacity | 3 seats |
Air Conditioner | With Air Conditioner | |
Chassis | Drive Type | 4X2,LHD or RHD |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120 HP / 88 KW | |
Displacement | 3856ml | |
Emission Standard | Euro II or EURO III | |
Wheelbase/No.of axle | 3800mm / 2 | |
Tyre Specfication | 7.50-16,7.50R16,8.25-16,8.25R16 | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Automotive metallic paint | |
Superstructure | Max working height | 16Meters |
Working cage | 200kg capacity | |
Beam | Hydraulic control | |
Slewing | 360 continuous rotation | |
Equipment | Four hydraulic outriggers are equipped, stable and reliable Dual control system both in the working cage and on the deck. Safety device: relief valve, balance valve, double way hydraulic lock , motor emergency system Insulated aerial platform ,hoist hook with cables optional | |

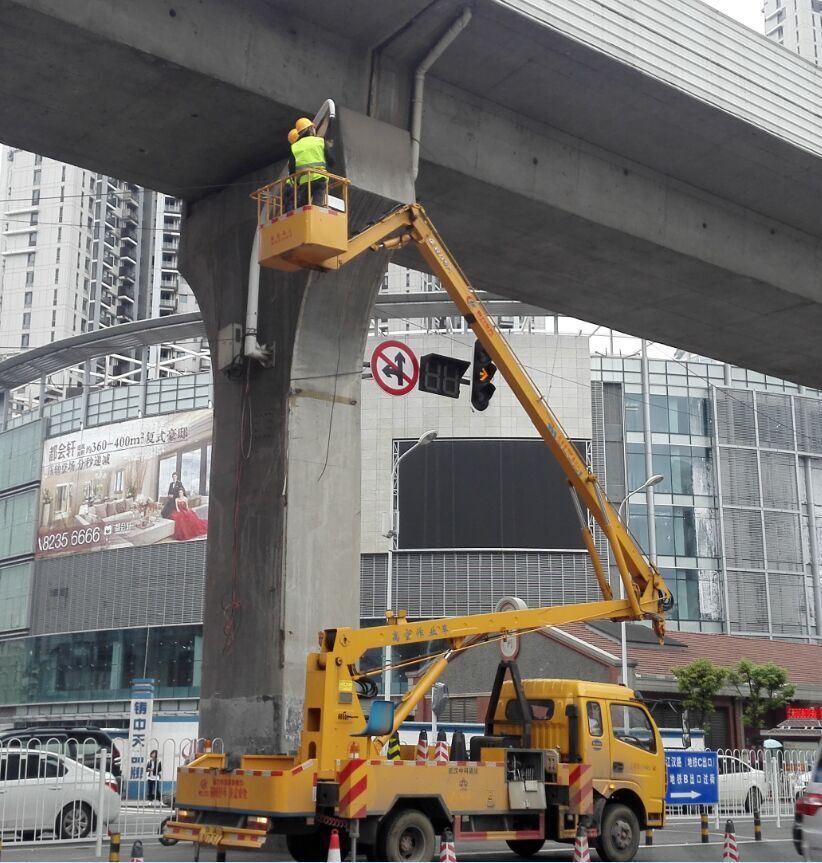

Working scenario
Bulk orders
