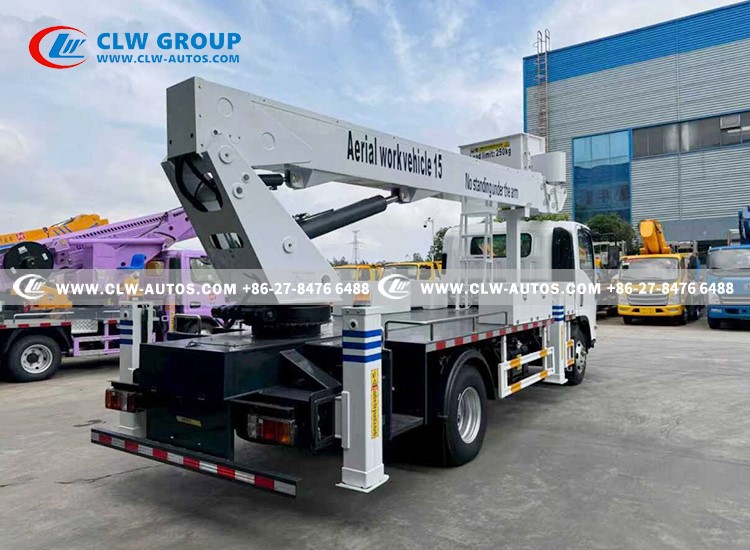

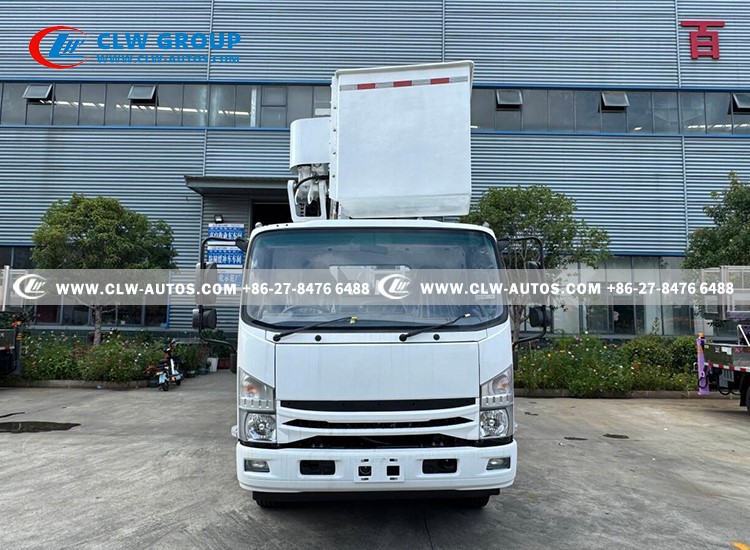

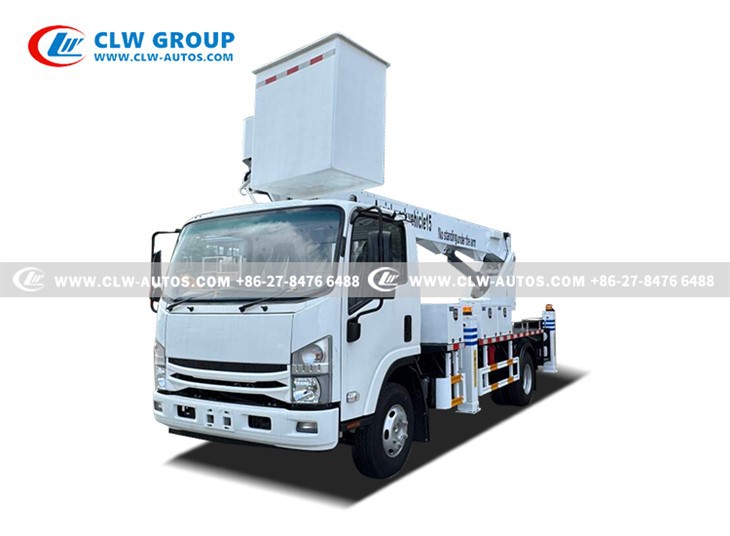

ISUZU 15m Straight Manlift Truck

Drive Type: 4x2
Engine Power: 120 HP
Manlift Max. Lifting Length: 15meters
Basket Loading Capacity:200kg
Left Hand Drive
ISUZU KV100 Cabin
With Insulative Bucket
Straight Boom Type

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 15m straight manlift truck in China. If you're going to buy high quality isuzu 15m straight manlift truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU KV100 6 Wheels 4x2 Straight Boom Tye 15meters Aerial Work Platform Truck

With 200kg Insulative Bucket

product key technologies

4ISUZU 4x2 23m Aerial Work PlatformTruck

ISUZU KV100 Chassis

Optimal Mobility: Shorter wheelbase ensures excellent steering and urban maneuverability without compromising cargo space.

Cost Efficiency: 120HP engine delivers reliable power with outstanding fuel economy, reducing long-term operating costs.

Application Scenarios of 15-Meter Aerial Work Platforms

15-meter working height for extended reach.
Sturdy chassis ensures enhanced operational stability.
Compact design enables easy access to tight spaces.
Smooth proportional controls for precise platform positioning.
Reliable hydraulic system with low maintenance requirements.

Products Parameters

ISUZU KV100 15meters Aerial Work Platform Truck
Chassis Specification
Chassis Model	QL104
Driving Model	4x2
Dimension	8000 x 2400 x 3500 mm
Cab	Original ISUZU KV100 cabin With Air Conditioner Left Hand Drive
Wheelbase	3360mm
Gross vehicle Weight	4000 kg
Front Axle Loading Capacity	2500 kg
Rear Axle Loading Capacity	4800 kg
Axle Number	2
Tire	7.00R16
Tire	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start.
	Model: 4KH1CN6LB
	Horse power: 120 HP
	Displacement: 2999ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
Transmission	5 Forward & 1 Reverse
Fuel Tank Capacity	100L

Upper Specifications
Working Platform	Size: 1600 x 700 x 1000 mm
	Insulative materiala
	Rated Load: 200 kg
Boom Form	Straight
Max. Working Height	15 meters
Outrigger Span	Landscape: 4200 mm
	Portrait: 4000 mm
	Front "V" type, Rear "H" type Independently adjustable (controlled)
Partition Boards & Walkway Boards	Material: Stainless Steel & Anti-slip
Rotator	360 ° of continuous rotation
Operation	Electrically controlled operation Manual emergency operation
Control System	CAN control system, equipped with wireless remote control, realize stepless speed regulation

Chassis Pictures

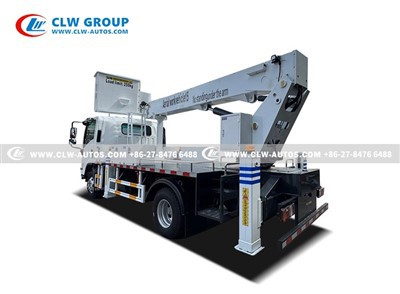

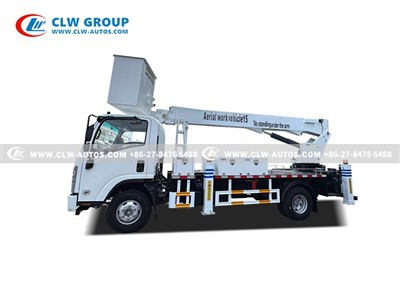

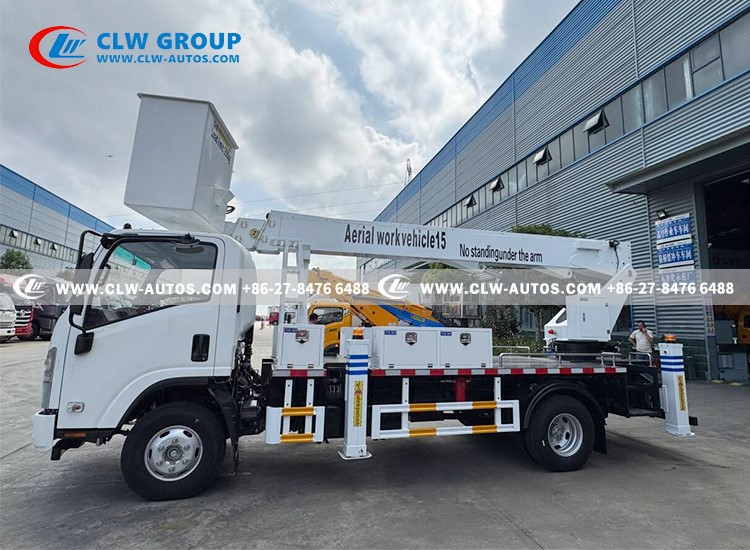

4ISUZU kv100 4x2 15m Aerial Work Platform Truck

Features Of Straight Boom Form

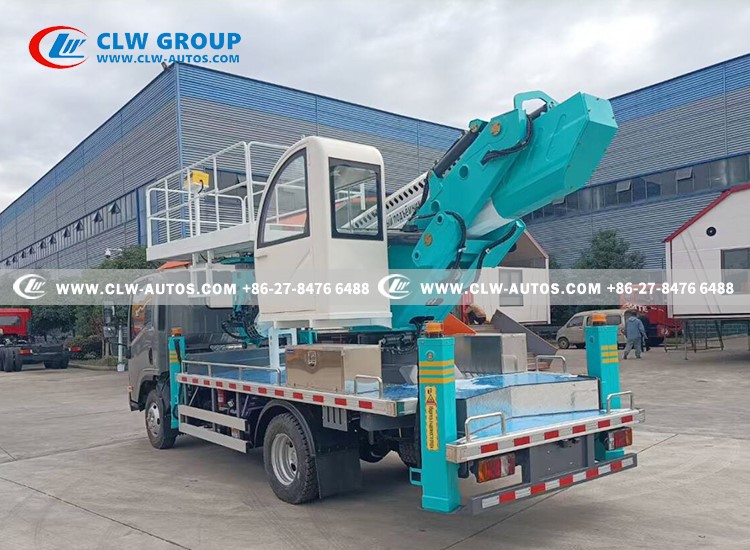

ISUZU 23Meter Aerial Work Platform Truck

1. Extensive Working Range and High Coverage

The "articulated arm + telescopic boom" structure allows it to overcome certain obstacles during operation. Its working range and flexibility surpass other boom types of similar height, providing greater coverage area.

2.High Mobility and Strong Passability

Built on Isuzu's proven light truck chassis, the vehicle features a compact body size and a small turning radius. It enables quick relocation and adapts well to complex sites such as narrow urban roads and factory areas.

3. Reliable Power and Fuel Efficiency

Equipped with Isuzu's original efficient diesel engine, it delivers smooth and reliable power output while offering excellent fuel economy, effectively reducing long-term operating costs.

4. Stable Load-Bearing and Precise Operation

The optimized boom structure is securely connected to the reinforced chassis frame. Combined with a proportional hydraulic control system, it ensures extreme stability and fine control of the platform during lifting and operation.

5. Intelligent Safety and User-Friendly Operation

It comes with comprehensive electronic safety devices (such as load moment limiting, automatic leveling, emergency descent, etc.) and intelligent anti-collision features, effectively ensuring the safety of personnel and equipment while reducing operational difficulty.
