ISUZU 36m Boom Lift Truck

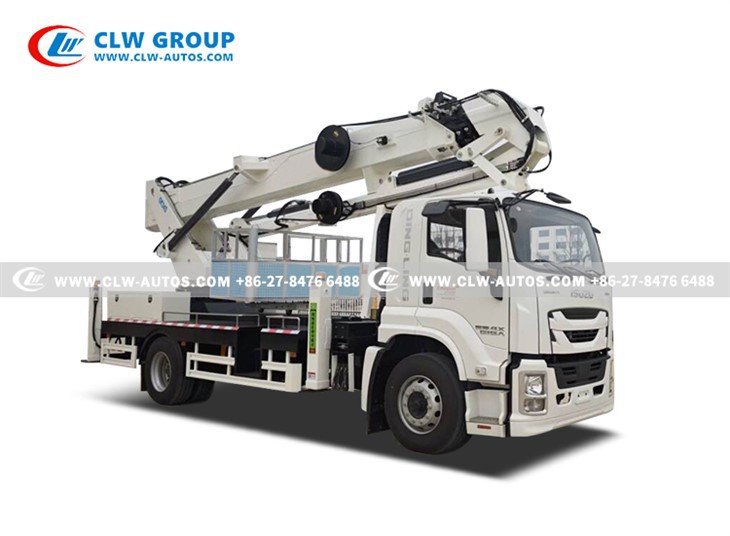

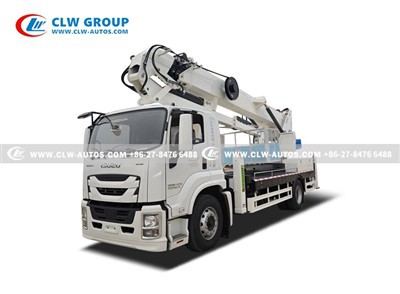

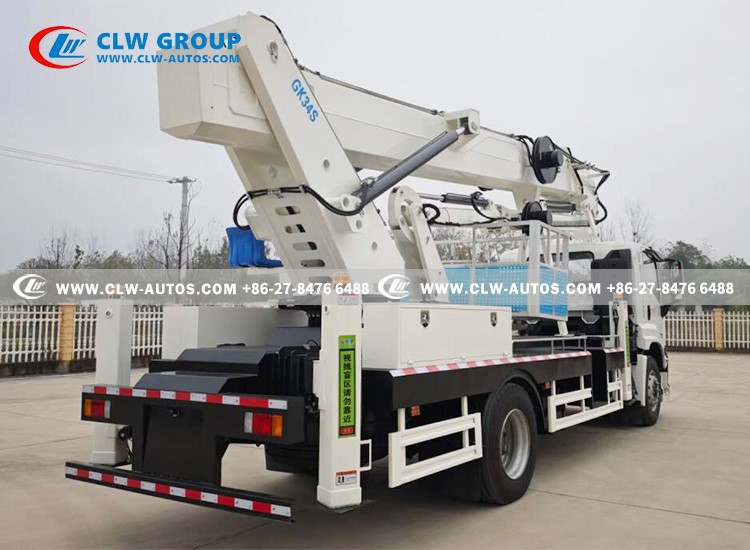

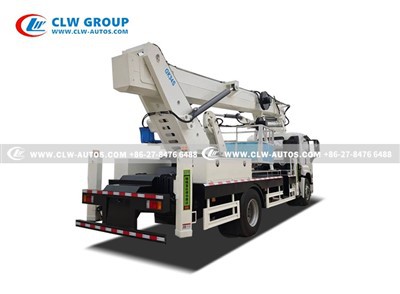

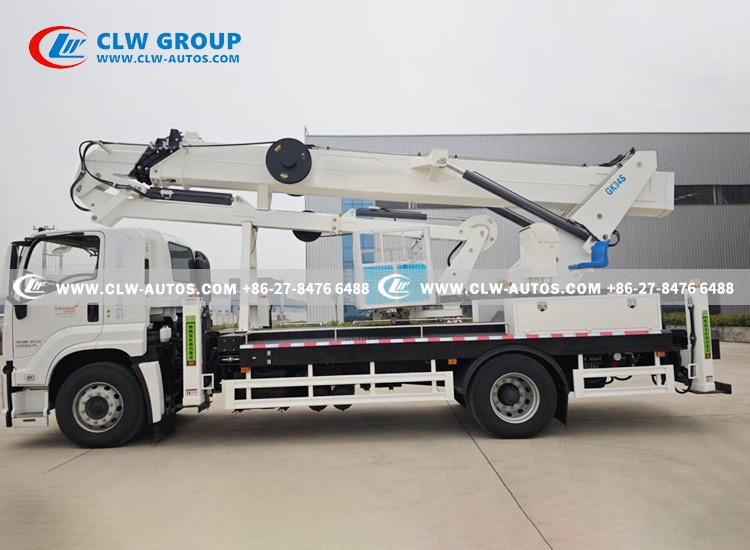

ISUZU 36M Telescopic Boom Lift Truck



We are professional special vehicle manufacturer in China since 2004 | Brand new truck factory price for sale







The Isuzu 36m telescopic boom lift truck, articulated high-low aerial work platform truck, is a specialized engineering vehicle engineered for superior performance in both elevated and below-ground level tasks. Utilizing advanced hydraulic or mechanical systems, it safely elevates and lowers the work platform to various heights and depths, providing operators with a secure and stable environment for a wide range of applications.



 Unmatched Versatility for Multiple Industries



This aerial platform is designed to meet the demanding needs of various sectors, making it an indispensable asset for:



 Power & Telecommunications: Grid maintenance, line installation, and tower repairs.

 Construction & Municipal Work: Building facade maintenance, installation, and municipal projects.

 Transportation & Bridges: Inspection, lighting repair, and signage installation.

 Landscaping & Arboriculture: Tree trimming and maintenance in complex terrains.



It is perfectly suited for critical tasks such as installation, repair, cleaning, inspection, and emergency services.



 Key Performance Features & Advantages

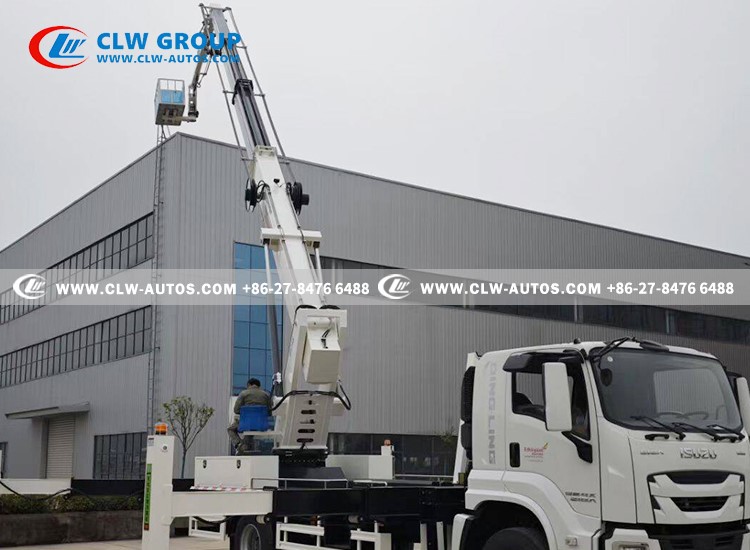

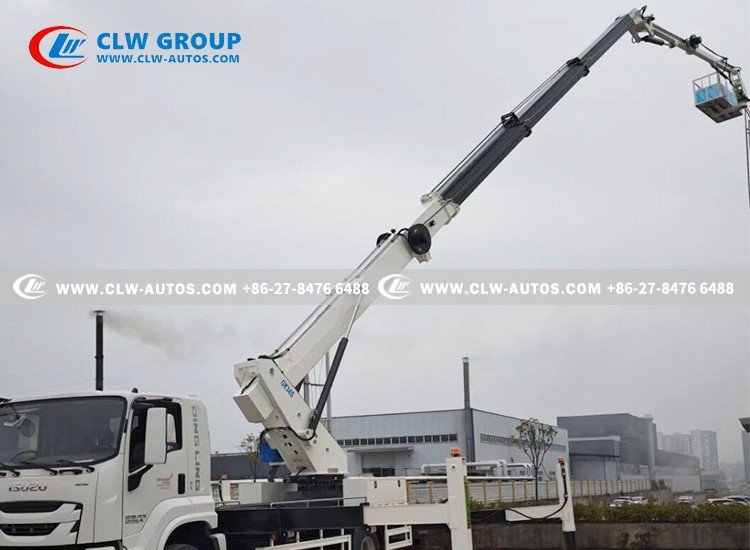

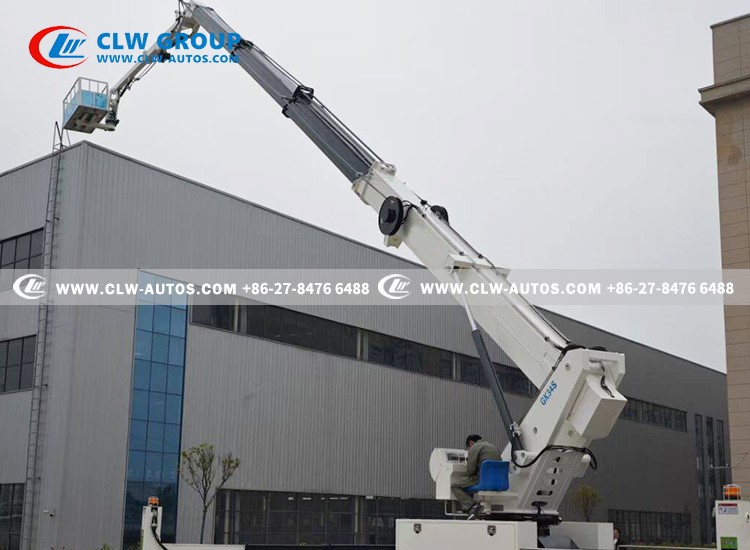

1. Extensive 36-Meter Working Height

Achieves a maximum working height of 35 meters, providing extensive reach for high-elevation tasks.

Capable of negative height (below ground) operation, making it ideal for excavation, slope work, and underground structure maintenance.



2. Superior Flexibility with Articulated Boom

The advanced articulated boom design allows for precise positioning and the ability to work over and around obstacles.

Excellent flexibility in complex and confined spaces ensures optimal reach and angle adjustment.



3. High Efficiency & Productivity

Rapidly deploys personnel and tools to the desired height, significantly reducing setup and auxiliary time.

Smooth platform movements enable quick repositioning, leading to faster job completion and enhanced overall productivity.



4. Compact & Maneuverable Design

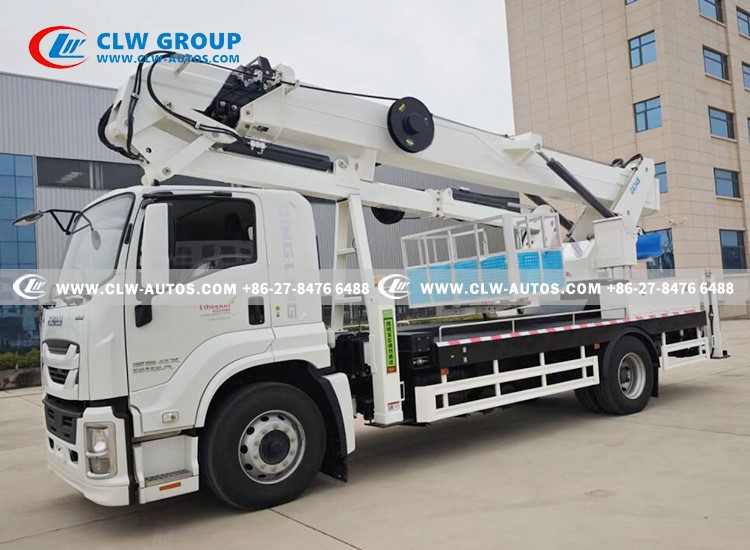

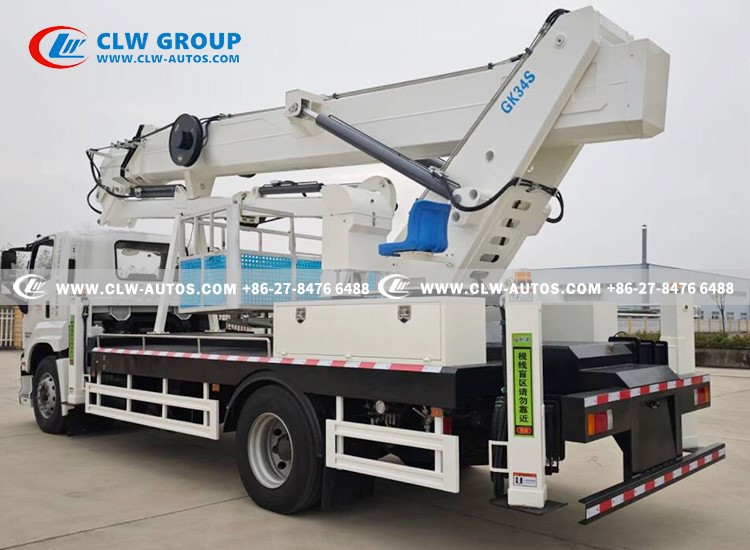

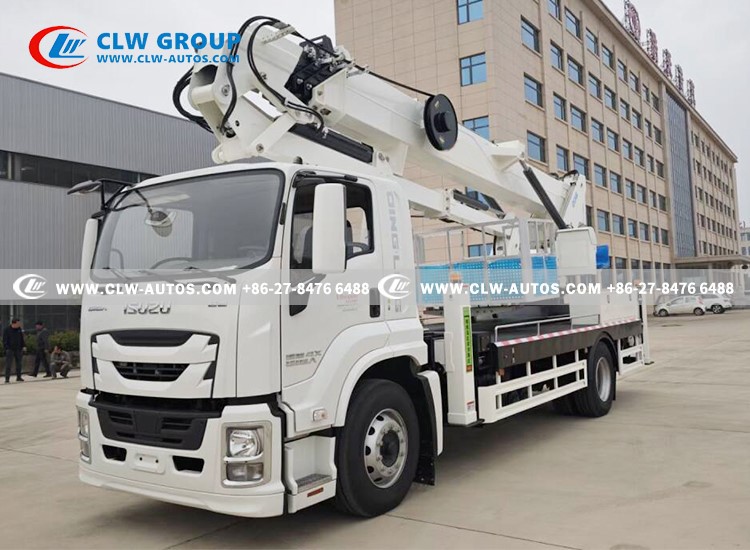

Features a space-saving folding boom that minimizes the vehicle's footprint during transport and parking.

Built on a highly mobile Isuzu truck chassis for easy relocation between different job sites.





 For qiuck Inquiry, contact Juniper:



 Whatsapp/Wechat: +86 139 2570 3918

 Email: juniper@clw-autos.com







Parameters Of Truck Chassis
Overall Dimension	9000x2520x4200mm
Cab	ISUZU VC61 Cab Left hand driving 3 seats One sleeper Air conditioned Central locking Power steering Electrical window
Engine	Diesel Engine, ISUZU 4HK1-TC60, 205HP/151kW, Euro VI 4 Cylinder in Line, Watering Cooling, Four Stroke, Direct Injection
Gearbox	Manual transmission ISUZU MLD 6 Forward & 1 Reverse Speed
Axle Loading	Front axle: 6,300kg Rear axle: 13,000kg
Tire	295/80R22.5 7 pieces including 1 spare tire
Parameters Of Upper Structure
Main technical parameters of the operation	Max. working height	36 m
	Lowest working height	9 m
	Maximum operating range behind the platform	19 m
	Maximum operating range on the side of the platform	14 m
	Maximum boom tilt angle of the platform	75°
	Rated load of bucket	400 kg
	Bucket size	2000x1000x1000mm
Outrigger	Method: Front H and rear V, can adjustable independently Control: Individually adjustable or linked Front span: 8350mm, Rear span: 7680mm Left span: 7680mm, Right span: 7260mm
Main boom	Four-section fourteen-sided working boom, with synchronous telescopic design Made of Baosteel BS960E high-strength steel
Rotation	Platform can 360° continuous rotate in both directions Bucket can 360° rotate
Operation method	Remote controller with monitor showing display arm length, working height, working radius, tilt angle in English Manual control on the platform with monitor showing display arm length, working height, working radius, tilt angle in English Manual control in the operator's cabin
Hoarding&walking platform	Stainless steel fence and anti-slip walking platform
Automatic interlock device for getting on and off the vehicle	Used for interlocking when getting on and off the vehicle to prevent accidents caused by misoperation.



Discover the Isuzu 36m Articulated High-Low Aerial Work Platform – your reliable partner for efficient and safe access solutions across multiple sectors.
