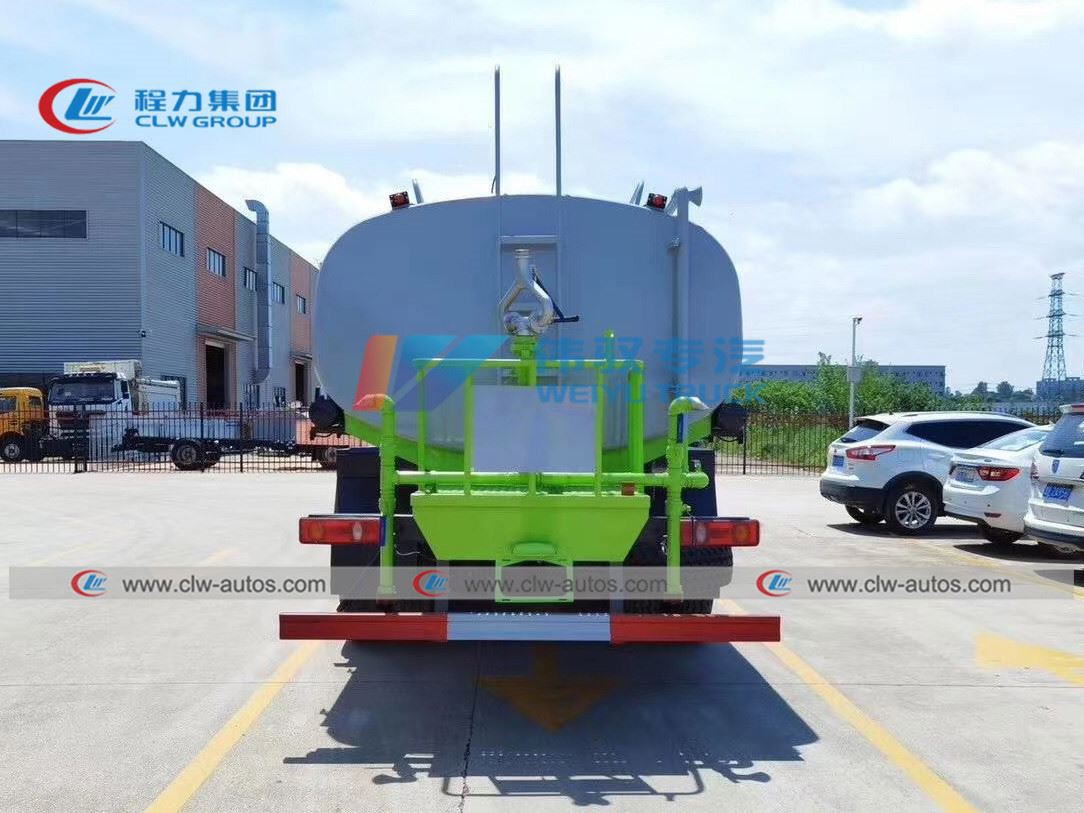

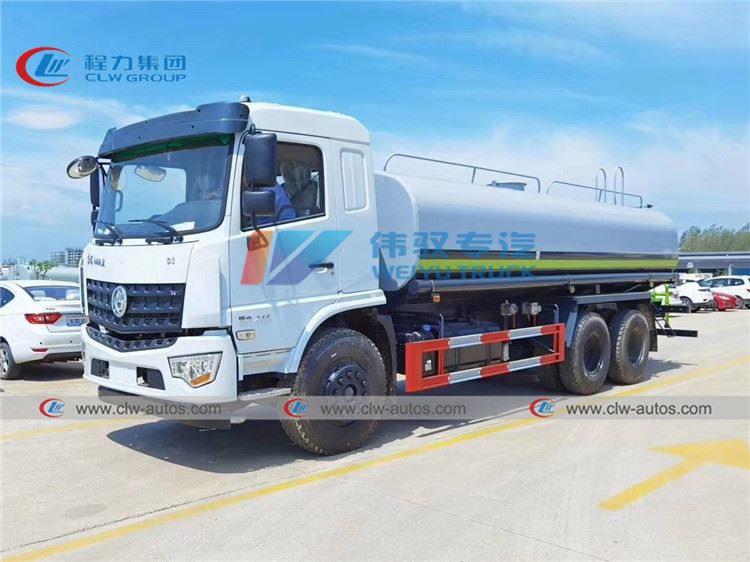

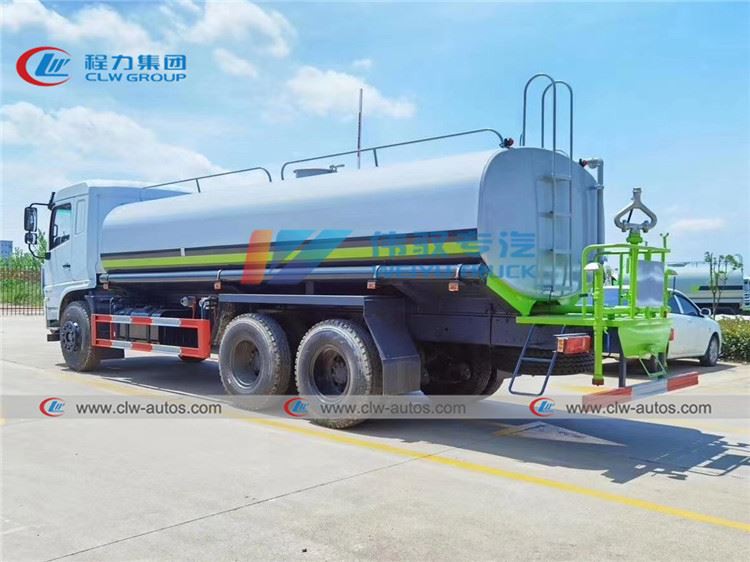

Dongfeng Kinland 20m3 Water Sprinkler Truck With Rear Fire Fighting Cannon
15meter Front Flush
50meter Water Cannon
Rear & Side Spraying
Dongfeng Cummins Engine
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng kinland 20m3 water sprinkler truck with rear fire fighting cannon in China. If you're going to buy high quality dongfeng kinland 20m3 water sprinkler truck with rear fire fighting cannon, welcome to get more information from our factory. For price consultation, contact us.
Dongfeng Kinland 20m3 Water Sprinkler Truck with Rear Fire fighting Cannon
1. Manufacturer: China biggest trucks and lpg tanks manufacturer.
2. China well known manufacturer: Top 500 in China, Top 3 in Hubei province.
3. Experience: more than 16 years experiences.
4. With powerful technology force, strong research and development ability.
We can satisfy customers' different demands with making special products according to their requests.
Chassis Specification | |||
Item No. | Parameters | ||
Chassis Brand | Dongfeng | Overall Dimension | 10260x2500x3200mm |
Gross Vehicle Weight | 25000kg | Curb Weight | 10335 kg |
Loading Weight | 14470 Kg | Wheel Base | 4350+1350 mm |
Cabin | Dongfeng D310, LHD, Central Lock, Electric Glass Window, 2 Passenger Allowed, | ||
Engine | Cummins ISD245 50 Diesel Engine,6 Cylinder in Line, 4 Stoke Inter cooling, | ||
Engine horsepower | 245HP, EURO 5 | ||
Transmission/Gearbox | FAST, 9JS119T-B, 9 Forward & 1 Reverse Gear | ||
Axles | 7Ton Front Axle, 2x10Ton Rear Axle | ||
Brake System | Pneumatic | ||
Steering Gear | Power Assistant, | ||
Tire | 11.00R20 16PR, 10 Pieces with 1 Spare | ||
Fuel Tank | 350Liters | ||
ABS | With ABS | ||
Max Driving Speed | 90 km/h | ||
Water Tanker | |||
Tank Volume: | 20m3 / 5,300 Gal | ||
Tank Material: | 5mm Q235B Carbon Steel, | ||

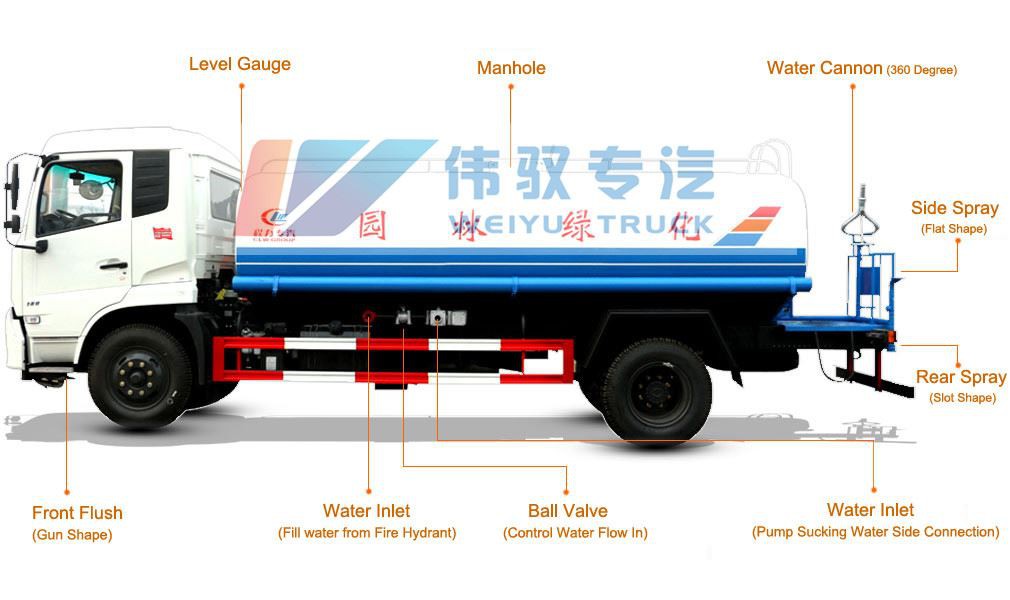

Sprinkling System: 1. Truck Pump: suction height >7m, 2. Full Tank Suction Time: 7 minutes 3. Front/rear/side Sprinkler: sprinkling width > 14m 4. Rear Side Sprinkler: sprinkling width 7 meters in 20 square meter coverage. 5. Rear Working Platform with Rear Ladder, 6. Water Cannon: Range >28m, 7. Other Parts: Water Valve1 piece, Fire Valve1 piece, Pipes 2 piece 3 meter long, Sprinkler 2 pieces

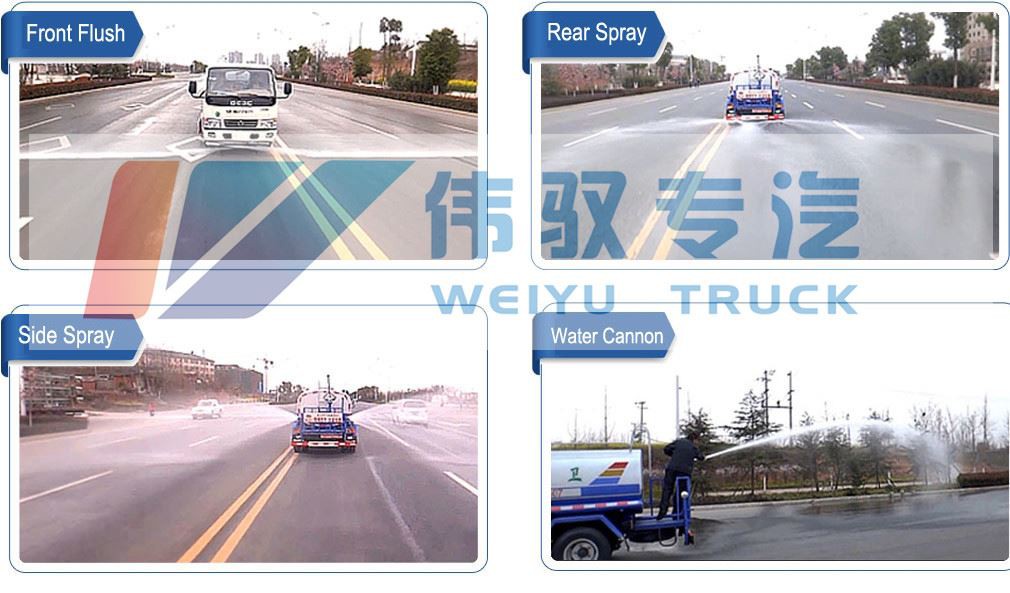

Function Specification: 1. Front Spraying: to both right and left side, washing the dirt or dust off the road. 2. Back Spraying: dust control and wet the road. 3. Back Platform: High pressure gun which can watering tree and flower beside road. | |||
