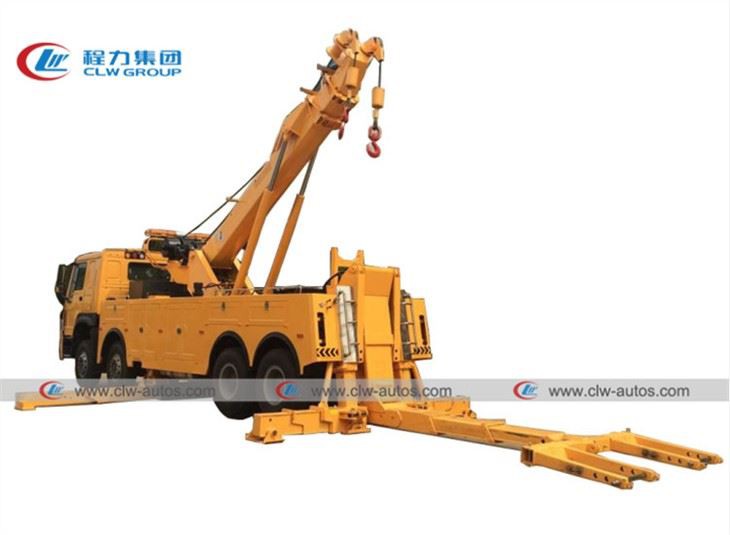

Sinotruk HOWO Rotary Boom 50T Wrecker Tow Truck
Sinotruk HOWO Rotary Boom 50T Road Recovery Wrecker Tow Truck 2 winches, 25tons capacity each. Hoisting System capacity: 25Tons. Remote control is available.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo rotary boom 50t wrecker tow truck in China. If you're going to buy high quality sinotruk howo rotary boom 50t wrecker tow truck, welcome to get more information from our factory. For price consultation, contact us.
Good Descrition:
1. We are manufacture of Wrecker tow trucks more than 15 years from China
2. Wrecker tow trucks brand : Jac, Isuzu,Howo, Foton, Dongfeng, Shacman, Jmc,etc.
3.Wrecker tow truck type: flatbed one drag two cars, Wrecker truck with crane ,the association is dragged on one by one, Drag association,etc.
4.Wrecker tow truck capacity : 4Ton, 5ton, 6tons, 8tons, 10tons, 12tons, 14tons, 18tons, 20tons,etc.
5.Wrecker tow truck main market : South America,Myanmar, Cambodia,the Philippines, Africa, Middle Asia,etc.
6. Wrecker tow truck information : please contact with Ms. Helen Jiang from Chengli Special Automobile Co., Ltd.
WhatsApp: +86 135 5419 5719
Feartures:
1. One-towed-one type tow wrecker truck, mainly used for emergency resuce services once your cars or vehicles got broken. Truck repairing service station,
police station, after-sales center, etc.
2. 50 tons, 60tons 70tons Rotation lifting boom crane, with strong lifting arm and rear tow arm
3. 2 sets 25tons winch with 45m steel rope
4. Import hydraulic system, more reliable and stable
5. Control levers on boths side of wrecker truck, with remote control box
6. With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving
7. We provide various wreckers with different types of towing equipment such as Boom, Hook and Chain ("sling" or "belt lift"), Wheel lift (Spectale Lift),
Flatbed ("rollback" or a "slide"), Integrated ("Self Loader" Snatcher, Quick Pick or Repo Truck), etc. ranging from 3MT to 20MT capacity.

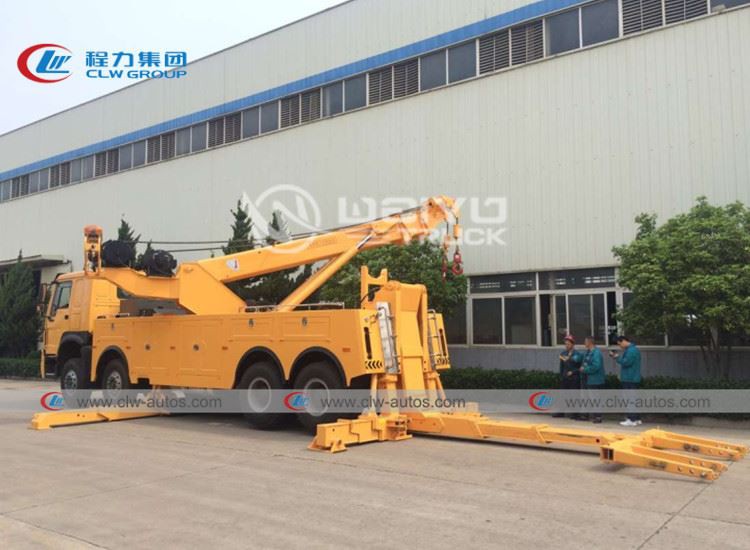

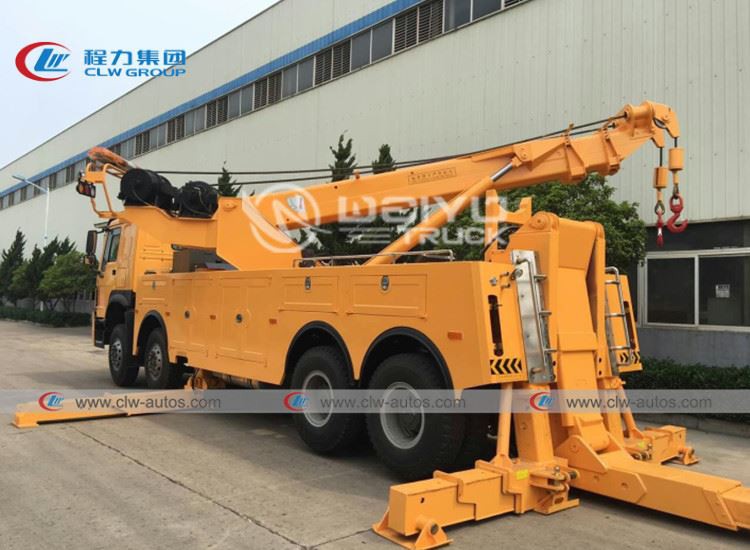

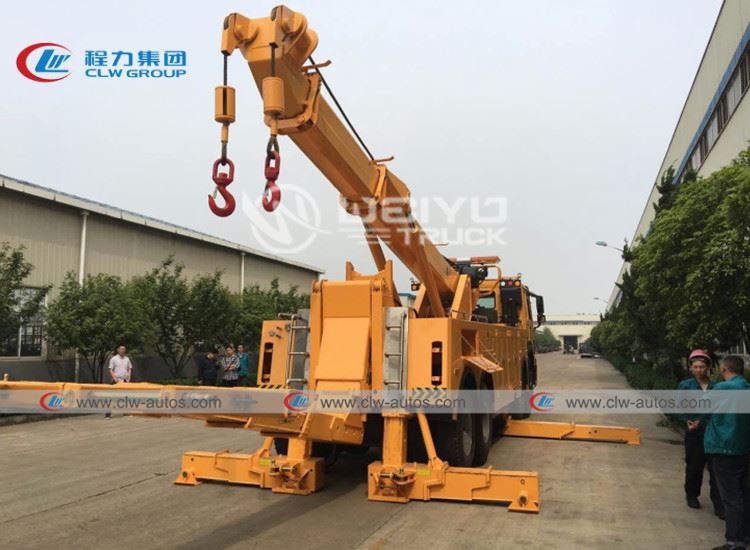

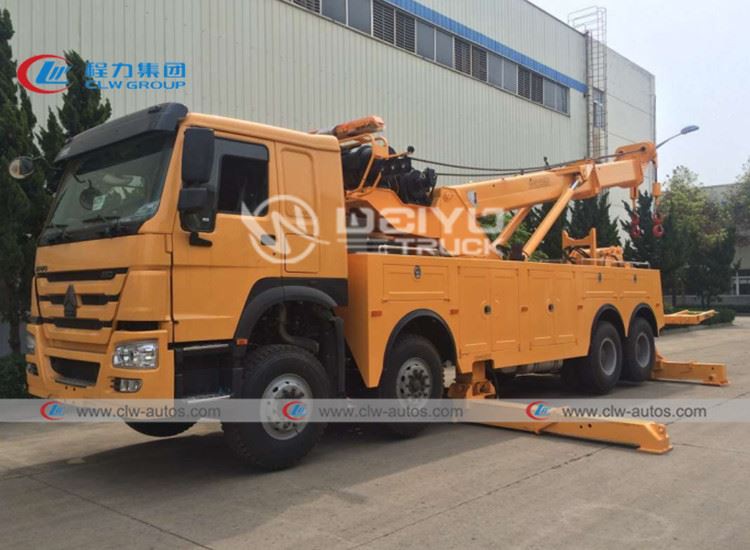

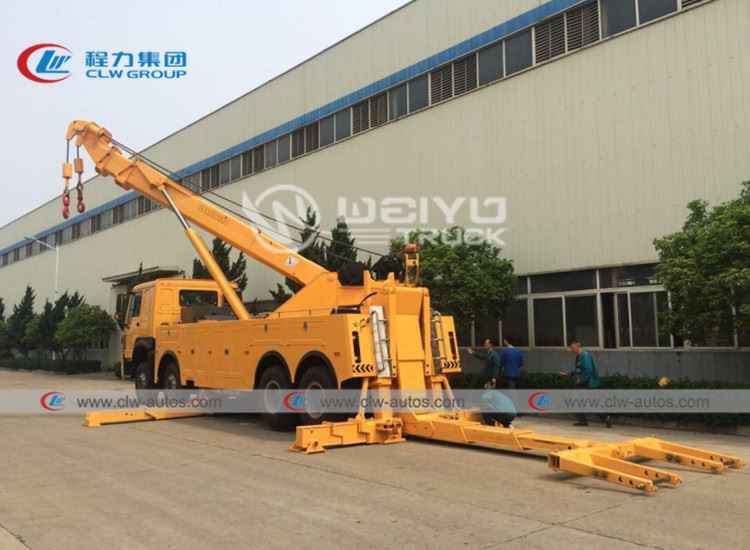

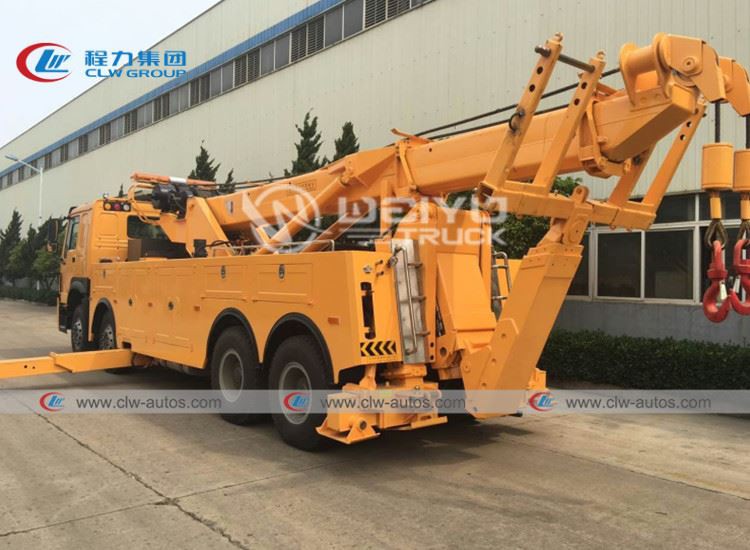

More Pictures for Sinotruk HOWO Rotary Boom 50T Wrecker Tow Truck:
Parameters for Sinotruk HOWO Rotary Boom 50T Wrecker Tow Truck:
Items
| Unit
| Value
| |
Under Lift
| Lifting weight
| kg
| 7500
|
Max. Lifting weight
| kg
| 12435
| |
Max. Lifting weight of original place
| g
| 14000
| |
Max. Lifting weight of full extension boom
| kg
| 4000
| |
Rated towing weight
| kg
| 32000
| |
Max. Designed towing weight
| kg
| 60000
| |
Effective length of boom
| mm
| 3415
| |
Extension traveling of boom
| mm
| 1700
| |
Folding angle of boom
| °
| 90
| |
Boom
| Max. Rated hanging weight
| kg
| 14000
|
The height from hook to the ground
| mm
| 9430
| |
Extension traveling of lifting boom
| mm
| 3045
| |
Turning angle
| °
| 360
| |
Numbers of winch
| piece
| 2
| |
Rated pulling power of winch
| kg
| 25000×2
| |
Dia. Of steel cable
| mm
| 18
| |
Length of steel cable
| m
| 40
| |
Min. Speed of steel cable
| m/min
| 7
| |
Rotation angle
| °
| 54
| |
Vehicle
Parameters
| External dimension
| mm
| 10410×2500×3500
|
Chassis model
| ZZ1257N5847W
| ||
Drive
| 8×4
| ||
Axle base
| mm
| 5825+1350
| |
The whole weight of empty load
| kg
| 19435
| |
Load of front axle of empty load
| kg
| 7205
| |
Load of rear axle of empty load
| kg
| 12230
| |
The whole weight of full load
| kg
| 32000
| |
Load of front axle of full load
| kg
| 7000
| |
Load of rear axle of full load
| kg
| 25000
| |
Wheel base (front/rear axle)
| mm
| 2022/1830
| |
Front suspension
| mm
| 1500
| |
Rear suspension
| mm
| 1205
| |
Approach angle
| º
| 16
| |
Departure angle
| º
| 23
| |
Min. Ground clearance
| mm
| 260
| |
Min. Turning diameter
| m
| ≤24
| |
Grade ability
| %
| ≥30
| |
Max. Speed
| km/h
| 90
| |
Engine model
| -
| WD615.47
| |
Engine emission
| L
| 9.726
| |
Rated power
| kw/r/min
| 273/2200
| |
Max. Torque
| n·m/r/min
| 1500/1100~1600
| |
Fuel type
| Diesel
| ||
Tire size
| 12.00R20
| ||
Persons
| 2 | ||
