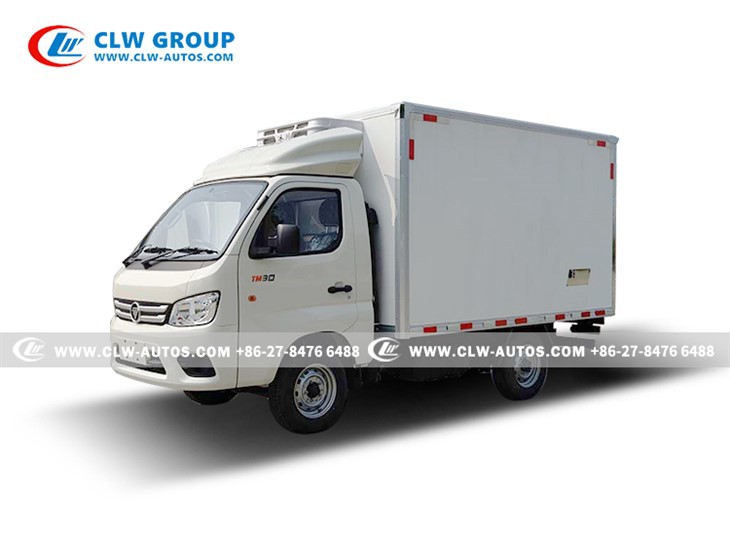

FOTON 1 Ton Refrigerator Van Truck

Foton Light Truck Chassis
Small Refrigerated Van Body
Good Delivery for Ice cream,Fish,Meat,Vegetable,Drinking,Vaccine,Medicine,etc

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton 1 ton refrigerator van truck in China. If you're going to buy high quality foton 1 ton refrigerator van truck, welcome to get more information from our factory. For price consultation, contact us.

Foton Small 1 Ton Refrigerator Van Truck

Direct Sale From Manufacturer in China

Products Descriptions

Refrigerator van truck, which is also known as refrigerated truck, refrigerated boxcar, refrigerator wagon, freezer vehicle, freezer wagon, termperature controlled truck, refrigerator car, preservation vehicle, is a closed van vehicle equipped with refrigeration device to transport frozen or fresh-keeping goods. It is often used to transport ice cream, frozen meat (refrigerated truck), dairy products (milk transport truck), vegetables and fruits (fresh cargo transport truck), vaccine drugs (vaccine transport truck) and so on.

Product Features:

Small size, low cost, easy to start business.
Van body:three layers material, 80mm fiberglass material inside and outside, insulation material in the middle.
Refrigeration unit: minus 5 degrees Celsius to minus 18 degrees Celsius, optional for American Carrier, American Thermo King, Chinese famous brand.

Optional for:

Side door
Ventilation slot
Transparent door curtain

Guide rail for meat hook
Backup power system/Independent power
Temperature and Humidity loggers

Products Parameters

Foton Small Refrigerator Van Truck
Condition	New condition/Left hand driving
Overall Dimension	5500x1850x2625mm
GVW	3.0 ton
Loading Weight	1.0 ton
Tare Weight	1.7 ton
Chassis	Cabin			FOTON 4X2, Left Hand Driving, Single row. Two passengers allowed, with Air Conditioner.
	Wheelbase			2850 mm
	Axle load (front/rear) (mm)			1500kg/2500kg
	Max. driving speed(km/h)			80 km/h
	Clutch			Reinforced diaphragm clutch
	Brake			Oil Brake with ABS+EBD control system
	Tire	Quantity		6 pcs with one spare tire
		Specifications		185R14
Transmission	Manual type, HOWO 5T20, 5 Forwards and 1 reverse
Engine	Model			Quanchai QC485
	Fuel type			Diesel engine
	Type			4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Displacement			2.156L
	Power			65kw
	Horsepower			88hp
	Emission standard			Euro 2
Axles	Front			1.5 ton
	Rear			2.5 ton
	Rear axle speed ratio			4.33
Upper Structure
Van box	Rough Box size(mm)			3200x1710x1700mm
	Box material		Outer layer	Fiberglass panels
			Middle Insulating Layer	80mm Polyurethane foam
			Inner layer	Fiberglass panels
Refrigerating Unit	Brand			American Thermo King
	Model			RV-380
	Applicable temperature			Temperature down to -18ºC
Remarks	The color and LOGO can be customized as per client's requirement
