HOWO 8000L Fuel Truck With Flow Meter

Fuel Tank
Tank volume	8m³/ 8,000L Fuel tank
Compartment No	Two compartment ( Or customized multi compartment)
Tank material	Aluminum alloy steel
Tank thinkness	4mm of tank and 5 mm of end plate
Tank shape	Square or as request
Manhole cover	2 pc of European Aluminum alloy manhole covers, ∮500mm 2 set with breather valve
Volume Flow Meter
Flow Range	55 – 550 L/min
Register Unit	Mechanical Display (Litres)
Display Features	Large-digit reset counter (trip) & Non-resettable totalizer
Preset Function	Mechanical push-button preset (supports volume-set delivery)
Printer	Integrated Mechanical Ticket Printer,prints transaction receipts and delivery records
Hose Reel	Red industrial-grade reel (manual or power rewind)
Control Valve	Manual ball valve with safety handle (Pump Outlet)
Compatible Fluids	Diesel, Gasoline, and other light fuel oils
Oil Pump
Brand	Chinese Brand
Type	80-60 carbon steel pump
Flow rate	80-60m³/h
Drive Mode	PTO-Driven
Pumpline system	2.5 inches
Other configurations
Walkway at top of tanker	Color and design as customer's requirement
Handrail	Manual controlled at two sides of truck
Ladder	At rear of tank
Accessories	Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire(1 pc); Fuel Discharge Hoses(2 pcs); Tool box(1 pc); Truck will be waxed before shipment;

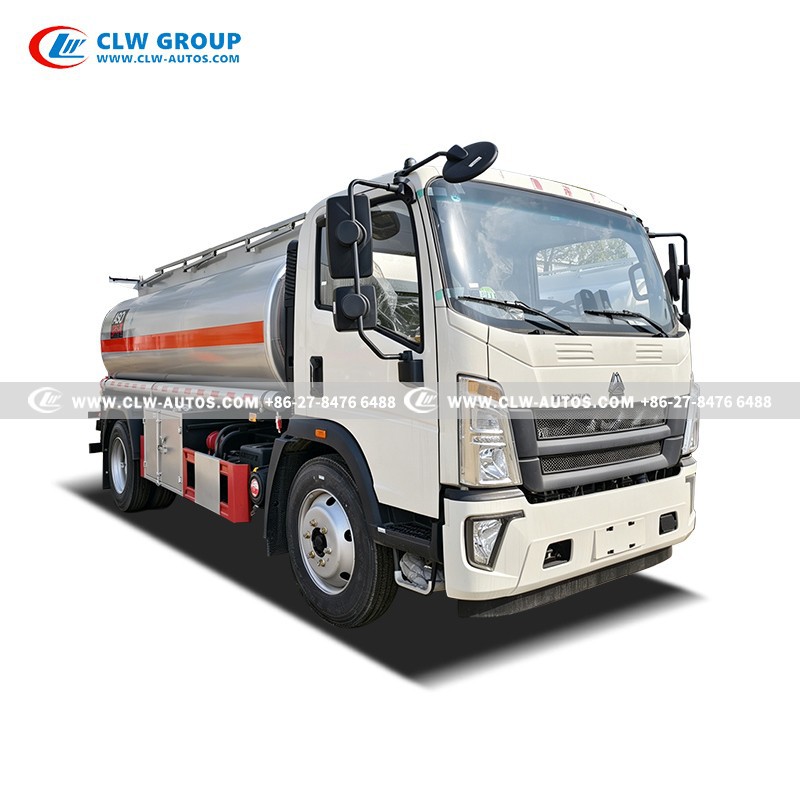

HOWO 9m³ aluminum alloy oil tanker truck overall dimensions: 6900*2200*2730mm,  the truck is lightweight and flexible.

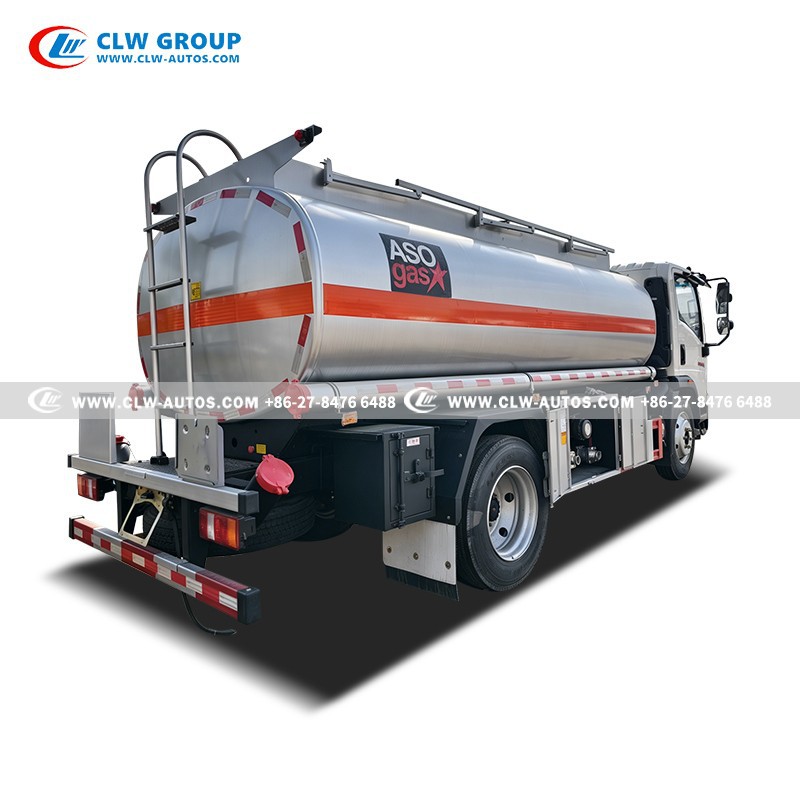

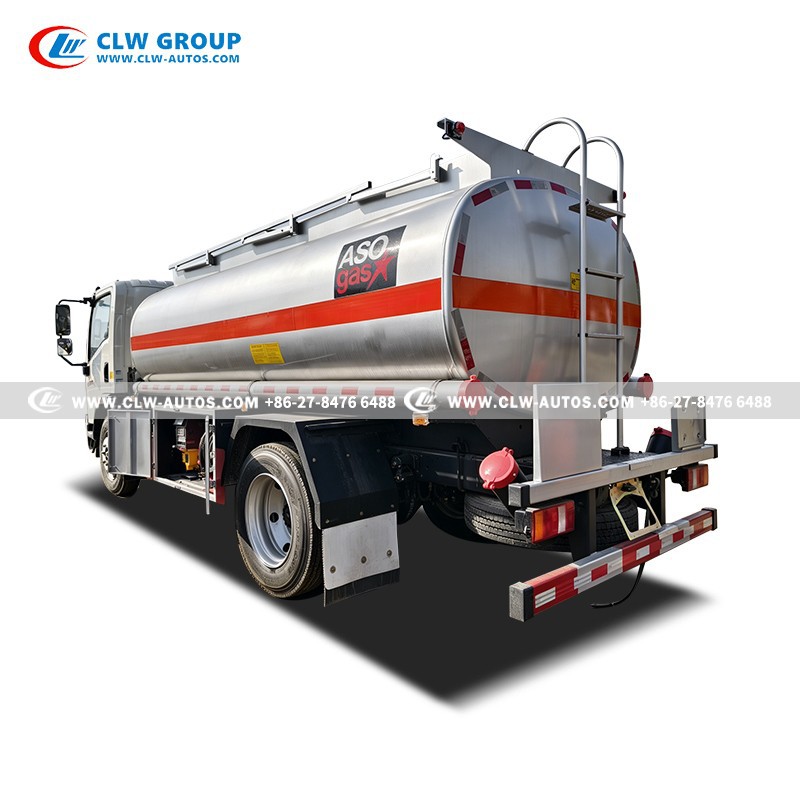

Stainless steel fuel tanker design with a rear-mounted access ladder, side protective guards, and specialized hose storage for safe and efficient fuel transportation.





Oil Pump:

• Flow Rate: 30m³/h. Features strong self-priming capability, large flow rate, stable operation, low noise, and long service life, making it ideal for rapid oil filling and transfer.



Refueling hose reel:

• Volume flowmeter:  precisely calculates the amount of oil added

• DN40 pump outlet: High-flow, rapid oil discharge

• Hose: 15-meter automatic retraction refueling hose with anti-static design for easy operation.

• Refueling Nozzle: Refueling nozzles typically have a switch-lock function for convenient operation.



Inlet/Outlet System:

• Pump Inlet/Outlet Lines: Power can be obtained from the chassis via a power take-off to drive the oil pump, enabling rapid oil inlet and outlet.



Drain Hose:

• Two 3-meter-long drain hoses are used to connect the pump to the oil tank or for draining excess oil, enhancing operational flexibility.

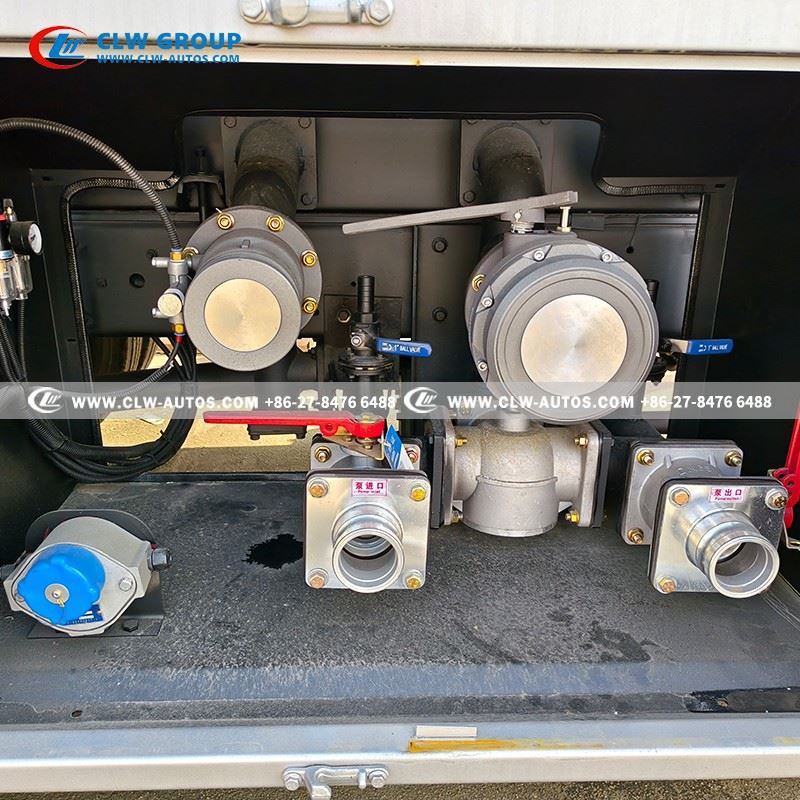

Pumping and piping control system integrated with dual-directional pump ports, pneumatic safety valves, and an anti-static/overflow protection module to facilitate precise fuel suction, delivery, and gravity discharge operations.

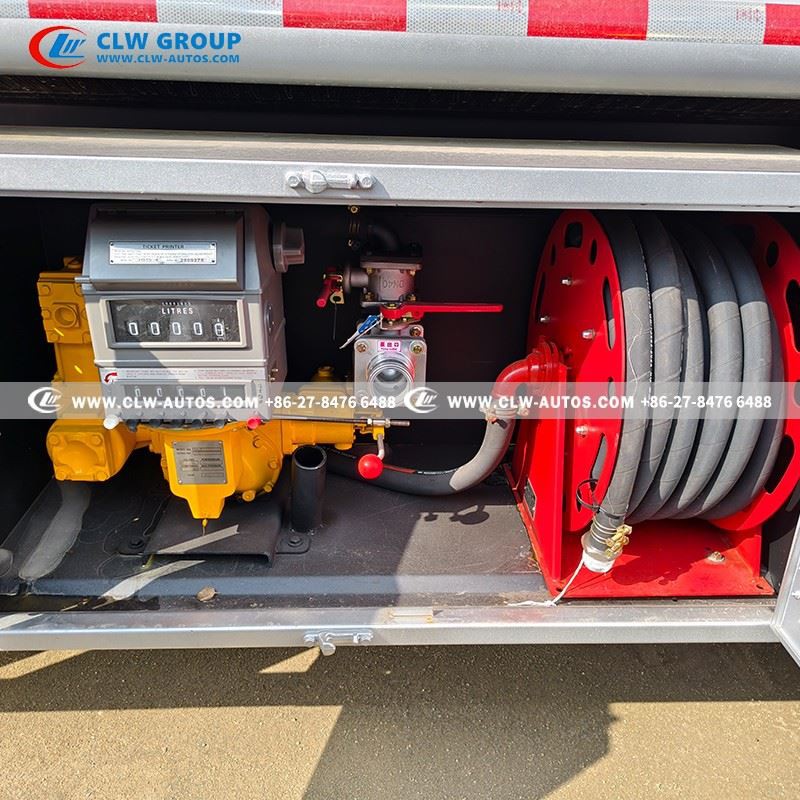

High-precision mechanical positive displacement flow meter system featuring a manual preset counter and an integrated ticket printer, designed for accurate, power-independent fuel measurement and transaction documentation.



DN40 pump outlet serves as a versatile flow control hub, enabling a seamless switch between high-volume bulk discharge and precision long-reach refueling while ensuring immediate safety shut-off.



Automatic hose reel provides organized storage and effortless deployment of the fuel hose, featuring a self-retracting mechanism and a high-pressure swivel joint for efficient, tangle-free refueling operations in mobile environments.





More Details Pictures

Emergency shut-off valve remote control switch

Discharge pipe cylinder sewage outlet

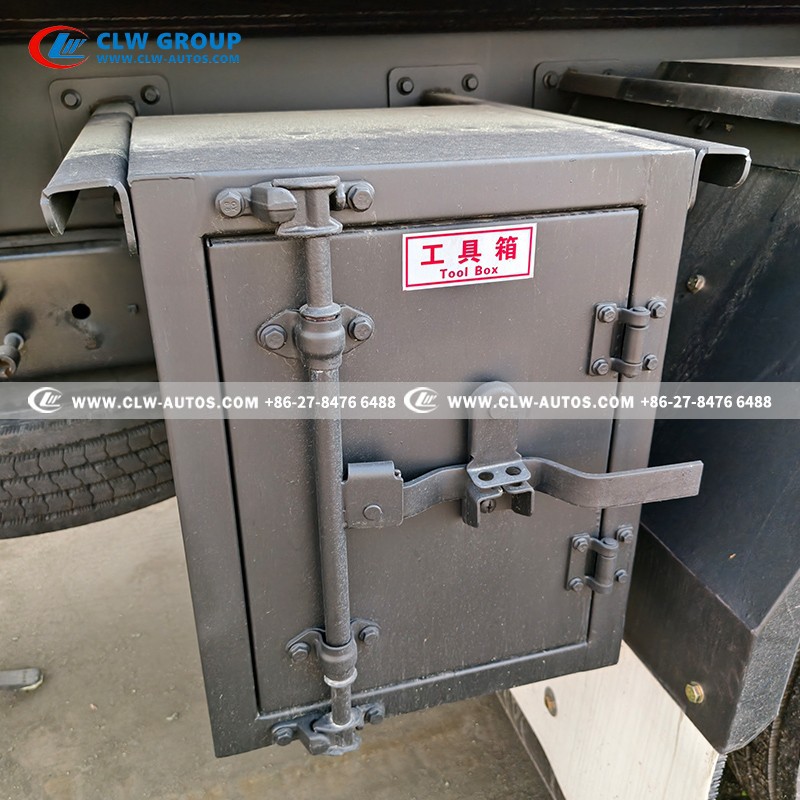

Tool box  for storage maintenance tools

 AdBlue (DEF) tank for treating harmful nitrogen oxide emissions



Our advantage



	100% custom-made
	3 cbm to 35 cbm fuel truck available
	Short delivery time 30~45 days
	Easy operation & Easy maintenance
	1 years spare parts & Technical support
