Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 25m³ petroleum peddler truck in China. If you're going to buy high quality shacman 25m³ petroleum peddler truck, welcome to get more information from our factory. For price consultation, contact us.

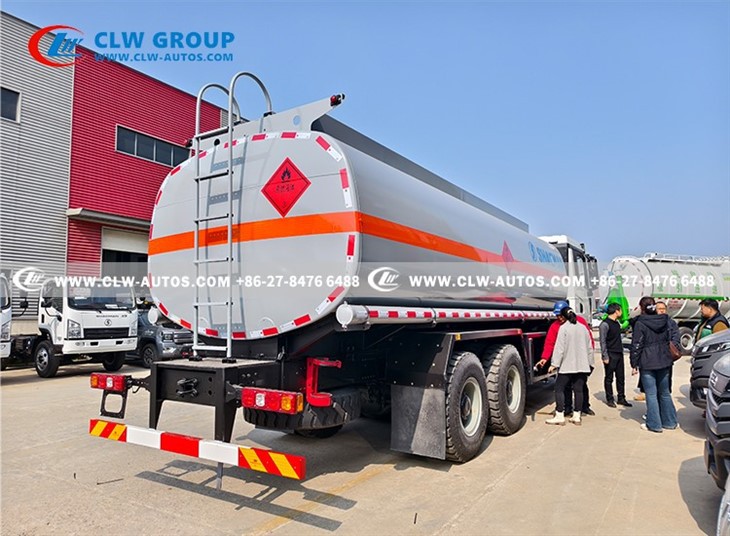

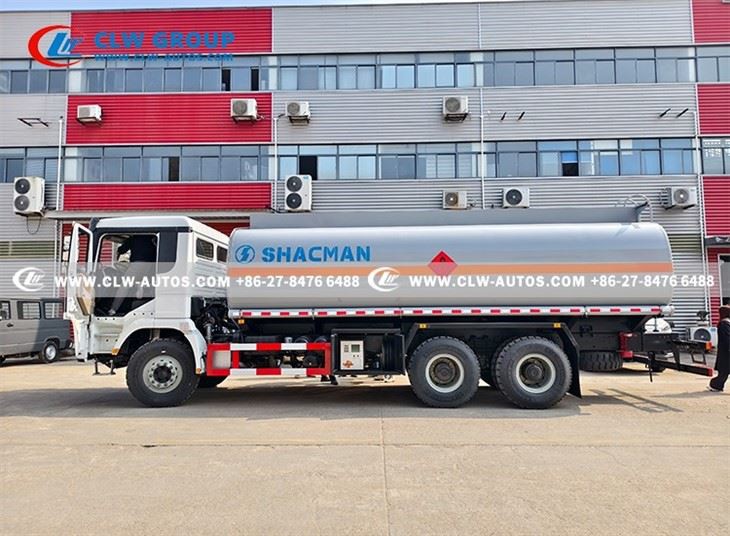

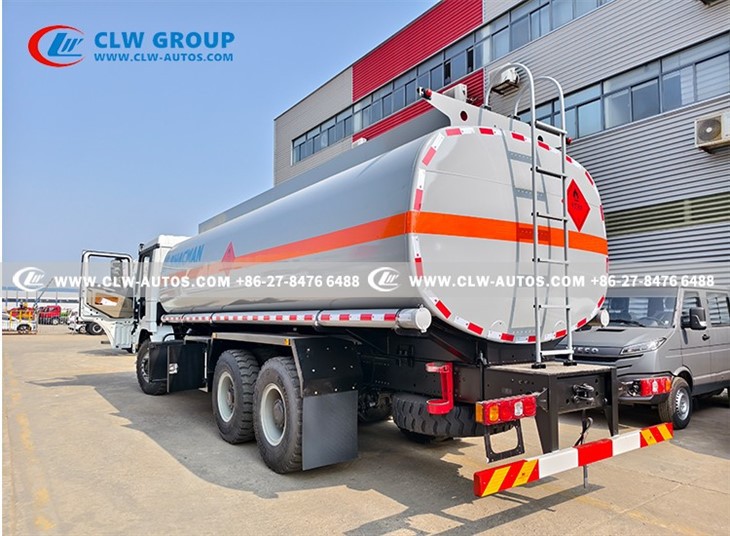

SHACMAN 6x4 25m³ Fuel Tank Truck
SHACMAN's reliable chassis and WEICHAI's powerful engine, guaranteeing long service life !
25m³ large-volume single tank design, no internal partitions, ensuring smooth liquid flow and easy cleaning.Anti-static and explosion-proof treatment to meet the transportation safety requirements of flammable petroleum products.
Equipped with Censtar fuel dispenser and automatic hose reel, supporting accurate metering and fast refueling.Functions include real-time display of sales amount, liter count, and unit price, with data recording for management.
Emergency shut-off valve automatic alarm device (HAKJ-19A)：Triggers alarm and cuts off pipeline in case of abnormal pressure or accident, preventing leakage.Explosion-proof electrical components and anti-overflow valves, fully compliant with national safety standards (GB 7258-2017).Flame-resistant tank material and emergency exhaust system to minimize risk in hazardous scenarios.
keywords
#SHACMAN #FuelTruck #RefuelingTruck #FuelDispenser #OilTanker #MobileRefueler #FuelBowser #TankTruck #FuelDelivery #HazardousGoodsTruck
Product Name: SHACMAN 6x4 Petroleum Peddler Truck
Application: Transportation & distribution of refined oil products
Tank volume: 25m³ / Single compartment
Cab: Single row and half cabin, LHD, A/C
Wheelbase: 4575+1400 mm
Engine: WP10.380E22
Horsepower: 380HP
Emission standard: Euro II
Gearbox: 12 Forwards and 2 reverse
Gross Vehicle Weight: 26000 kg
Front/Rear Axle loading: 7000kg /19000kg X2
Tires: 12.00R20, 10 pcs with one spar
|
Super Structure Specification |
|
|
Fuel Tank |
|
|
Tank volume |
25m³/ 25000L Fuel tank |
|
Compartment No |
Single compartment ( Or customized multi compartment) |
|
Tank material |
Q235 High-strength carbon steel |
|
Tank thinkness |
5mm of tank and 5 mm of end plate |
|
Tank shape |
Square or as request |
|
Manhole cover |
1 pc of European Aluminum alloy manhole covers, ∮500mm 1 set with breather valve |
|
Fuel Dispenser |
|
|
Dispenser brand |
Top brands of China-Censtar |
|
Dispenser position |
1pc dispenser built-in left side of the truck |
|
Hose reel |
15 meters |
|
Nozzle type |
High Flow Rate Nozzle |
|
Flow rate |
5 – 80 L/min |
|
Dispenser fuction |
Volume metering, price calculation, sales record |
|
Oil Pump |
|
|
Brand |
Chinese Brand |
|
Type |
80-60 carbon steel pump |
|
Flow rate |
80-60m³/h |
|
Drive Mode |
PTO-Driven |
|
Pumpline system |
2.5 inches |
|
Other configurations |
|
|
Walkway at top of tanker |
Color and design as customer's requirement |
|
Handrail |
Pneumatic controlled at two sides of truck |
|
Ladder |
At rear of tank |
|
Accessories |
Fire Cap(1 pc); Fire extinguisher(2 pcs); Anti-static wire; Fuel Discharge Hoses(2 pcs); Truck will be waxed before shipment; |
Central fuel supply for construction machinery and heavy-duty fleets!

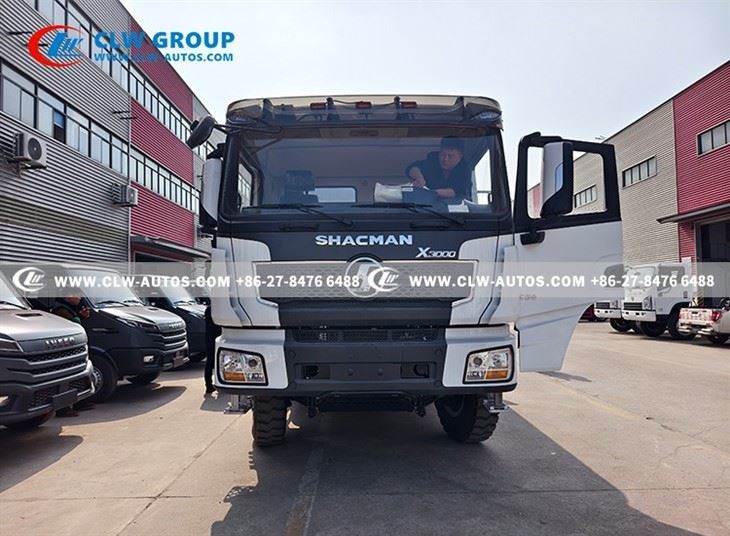

sHACKMAN X3000 cab
High roof sleeper cab,
Air suspension driver seat
2 Seat With One Sleeper
With Air Conditioner
Electric Window
Euro II emission standards
Valve box
Single tank, no partition
Easy cleaning & smooth oil flow
API valve(American Petroleum Institute)
Complete explosion-proof & leakage prevention
Also can customized multi-compartments as require
Fuel Dispenser
Anti-Static Design
Integrated Fuel Filter
Heavy-Duty Flow Rate
High-Flow Auto-Nozzle
Automatic Rewind Reel
High-Precision Metering
Other configurations

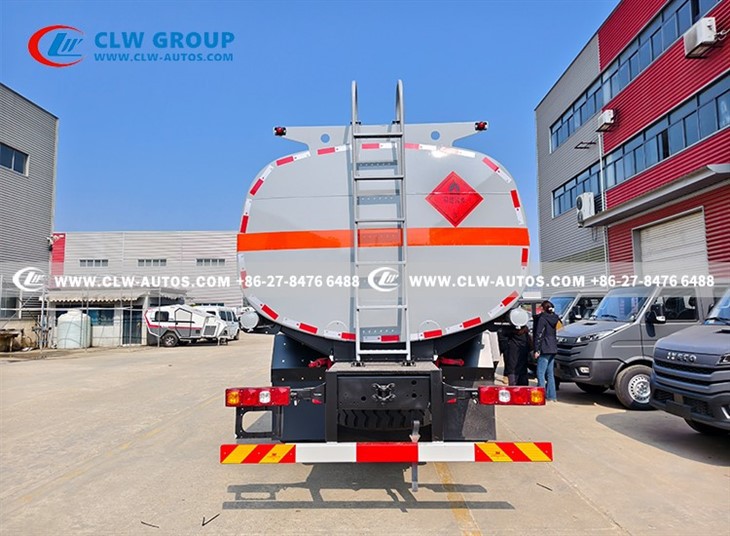

Rear ladder
1pc spare tire
Anti-static wire
2pcs Fire extinguisher
2pcs Fuel Discharge Hoses
Multi-functional and suitable for various scenarios.
Construction On-site Refueling
On-site fuel supply for construction machinery, time-saving & efficient
Refined Oil Transport
Safe oil transfer between depots and service stations
Mining & Remote Area Refueling
Central oil supply for remote mines, guarantee vehicle endurance
Factory Private Oil Supply
Standard private oil storage & supply for industrial parks
There are various modes of transportation for you to choose from!
