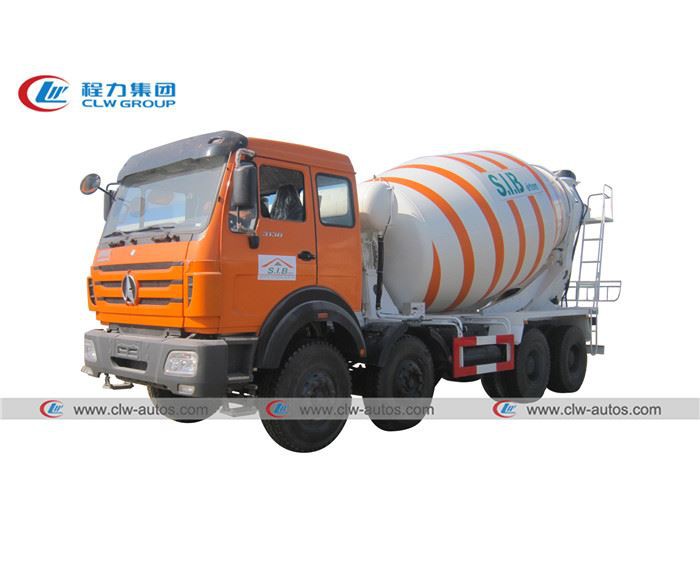

16CBM 8x4 Beiben Cement Mixer Truck
Truck Chassis:International brand Beiben adopts Germany Benz technology
Hydraulic Pump & Motor:US/Italy/Chinese Brand
Reducer:International brand and Chinese brand for optional
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16cbm 8x4 beiben cement mixer truck in China. If you're going to buy high quality 16cbm 8x4 beiben cement mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: For long distance transportation of concrete to construction site from concrete mixer station.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Internation brand of main parts: Italy brand PMP, US brand SAUER and Germany brand are optional.
4. Chassis: International truck chassis brand Beiben(Adopts Germany Benz technology)
5. Warranty: 1 Year of Engine, Gear box and Driving Axle for Chassis; 1 Year of main parts such as hydraulic pump, hydraulic motor and reducer.
6. Tank material: High strength Q345
7. Engine: Powerful diesel engine
8. PTO: Full - power PTO system
9. Painting and LOGO: We can do the customized design of the painting and LOGO for each customer.
10. Certificate: ISO CCC; We also can supply some certificate as clients' request like BV SGS COC SONCAP FERI
To all customers
1. Why we buy the concrete mixer truck?
CLW group reply: To make money and expand the business
2. How we can make big money from this business?
CLW group reply: Cooperate with reliable supplier and choose top quality products.
3. What's the top quality concrete mixer truck?
CLW group reply: Internation brand truck chassis and main parts, few repair works and good after sales service.
4. Purchasing concept
CLW group reply: Save time, earn enough moeny and have future.
5. Why choose us?
CLW group reply: Germany technology and import brand of main parts and our 16CBM 8x4 Beiben Cement Mixer Truck have been exported to more than 30 countries such as Nigeria, Tanzania, Uganda, Rwanda, UAE, Ivory Coast, Ghana, Kenya, LAOS and South America etc.

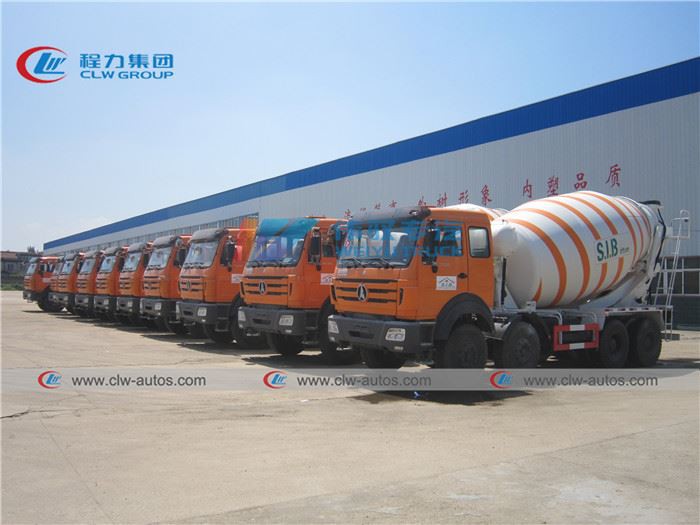

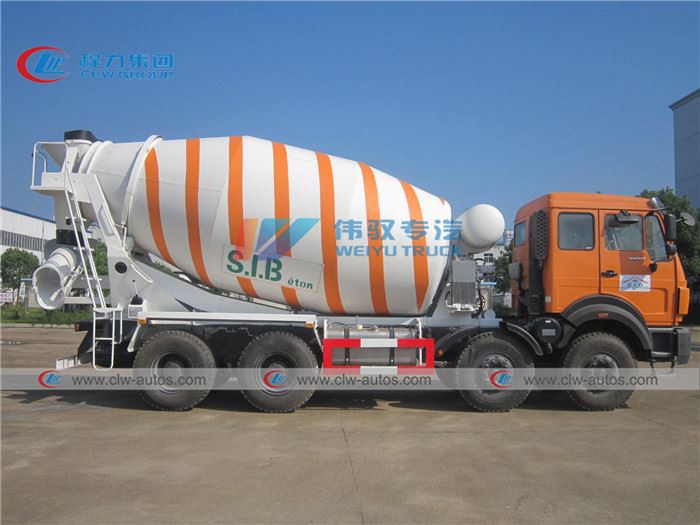

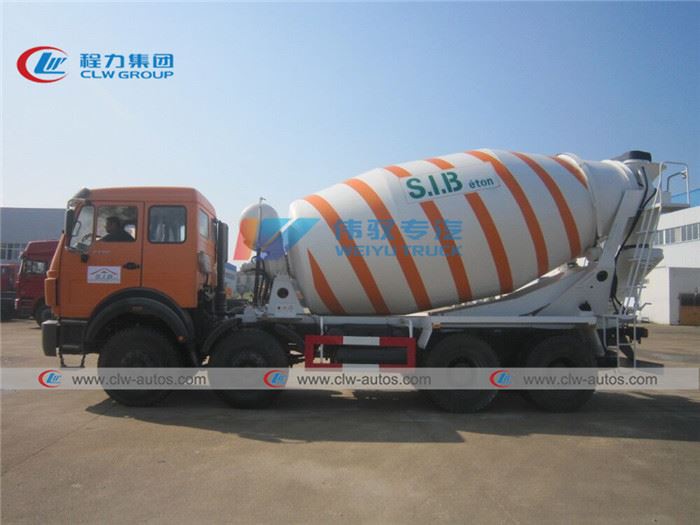

Reference picture
Truck Structure
Specification
Condition | New condition/Left hand drive/8X4 | ||||
| Brand | Beiben | |||
Curb weight(kg) | 24860 kg | ||||
Wheelbase(mm) | 1850+4350+1350 mm | ||||
Dimensions(mm) | 10480*2496*3980 mm | ||||
Overhang (front/rear) (mm) | 1500/2605 mm | ||||
Approach/Departure angle(°) | 16/16° | ||||
Axle Load(kg) | 7000/7000/16000/16000kg | ||||
Max. driving speed(km/h) | 90 km/h | ||||
Clutch | Reinforced diaphragm clutch | ||||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||||
Steering Gear | Power steering, hydraulic steering with power assistance | ||||
Tire | Number | 10pcs with one spare tire | |||
Specifications | 12.00R20 | ||||
Batter | 2x12V | ||||
Starter motor capacity | 24V | ||||
Fuel tank(L) | 400 L | ||||
Transmission | 10 Forwards and 2 Reverse with PTO | ||||
Cabin | It can accommodate three people, With Air conditioner | ||||
Engine | Power(kw)/Horsepower/(HP) | 283 kw/385 HP | |||
Emission standard | Euro 3 | ||||
Upper & Equipment | |||||
Mixer drum | Max. Capacity | 16.0 CBM | |||
Material | Manganese Steel, 5mm thickness | ||||
| Feeding Speed (m3/min) | ≥2.8 | |||
Discharging Speed (m3/min) | ≥2 | ||||
Discharging Residual rate(%) | ≤0.5 | ||||
Mixing Tank Rotating Speed (RPM) | 0-17 | ||||
Discharging range | 180° full range | ||||
System | Hydraulic Pump | US SAUER DANFOSS brand | |||
Hydraulic Motor | US SAUER DANFOSS brand | ||||
Reducer | Italy PMP brand | ||||
Radiator | China local brand KLMAKE | ||||
Water Supply System | Water Tank Capacity (liters) | 400 | |||
Water supply type | Pneumatic water supply | ||||
Control System | Control Way | Connecting Rod Controlling | |||
| 1. Mixer Tank and Vane use special anti-resistant material. | ||||
2. Discharging slot and feeding plate are the same anti-resistant material as the tank. | |||||
3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable. | |||||
4. With US and Italy brand driving system. Discharging fast, no residue. | |||||
Remarks | 1. Color is optional | ||||
