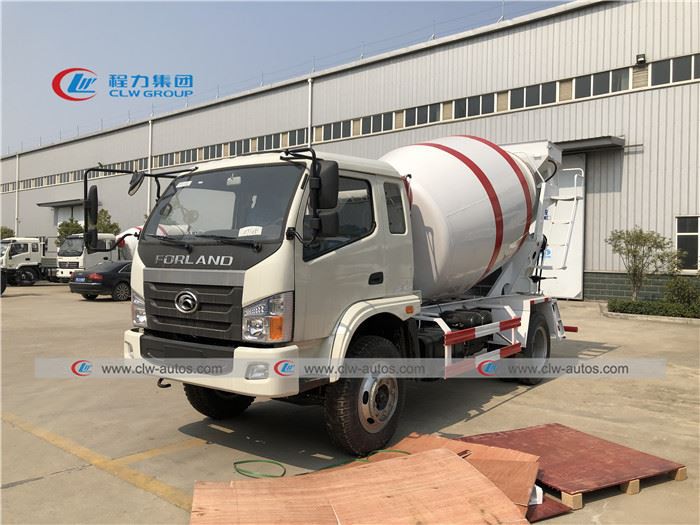

Forland 5CBM Concrete Cement Mixer Truck
Tank Size:6 CBM;
Hydraulic Pump & Motor:US/Italy/Chinese Brand for option
Support Customize logo
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of forland 5cbm concrete cement mixer truck in China. If you're going to buy high quality forland 5cbm concrete cement mixer truck, welcome to get more information from our factory. For price consultation, contact us.
Description
1. Purpose: For long distance or short distance transporting concrete in construction site.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis:orland, Dongfeng, SHACMAN or SINOTRUK 4x2 chassis for optional.

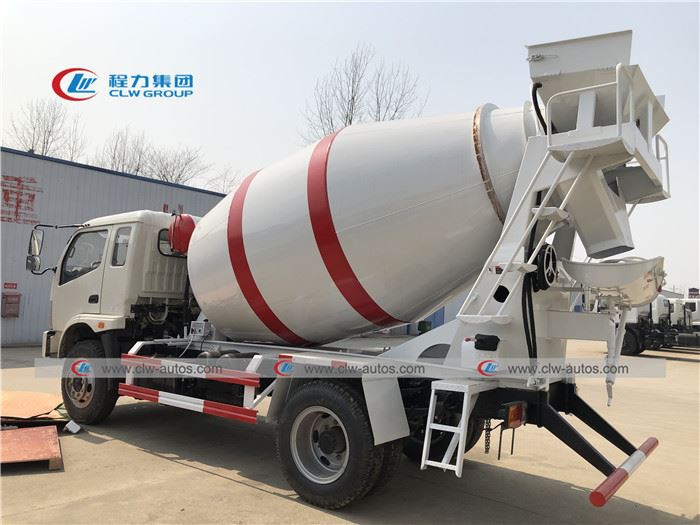

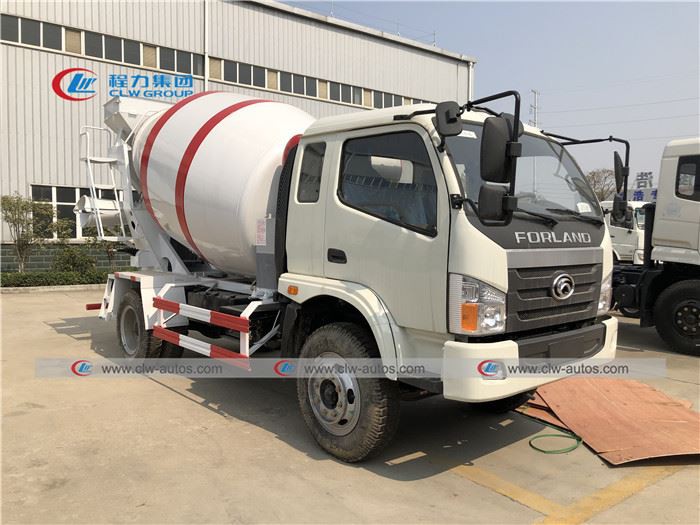

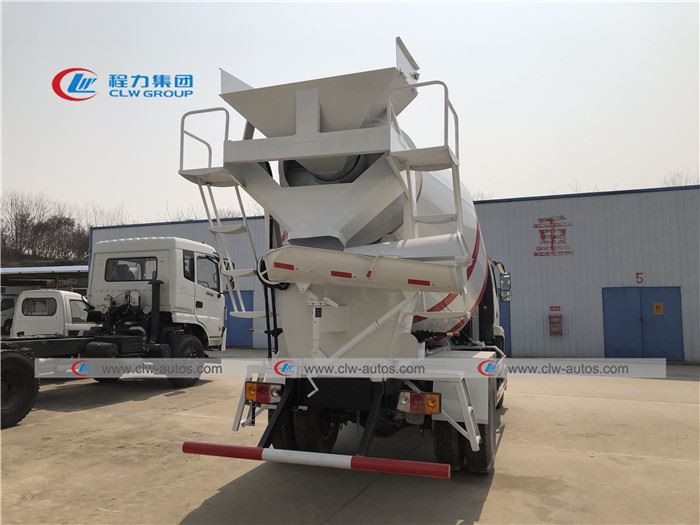

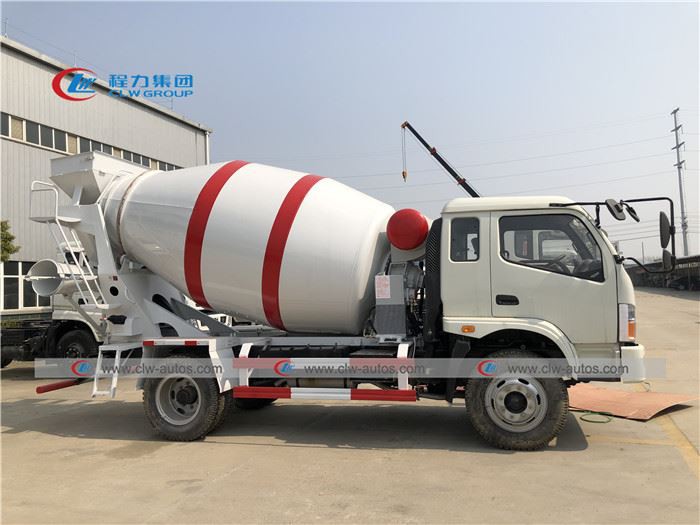

Reference picture
Truck Structure
Specification
Cabin | Driving type 4x2, LHD | |
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6825×2400×3450 |
Wheel base (mm) | 3600 | |
Wheel track (front/rear) (mm) | 1500/1860 | |
Approach/Departure angle(°) | 32/14 | |
Weight in KGS | payload | 5300 |
Front axles loading capacity | 5150 | |
Rear axles loading capacity | 8410 | |
Max. driving speed(km/h) | 85 | |
Engine | Brand | yuchai |
Horse Power(HP) | 130 | |
Emission standard | Euro II | |
Gearbox | 5 forwards & 1 reverse | |
Steering | Left hand drive | |
Tire | 6 unit with one spare, 9.00-20 | |
Upper structure | ||
Mixer Drum | Mixer Capacity | 5 cubic meters |
Drum thickness | 6mm | |
Blade thickness | 4mm | |
Tanker Material: | Q345 Carbon Steel | |
Filling Rate(%) | 59 | |
Input Speed (m3/min) | ≥2.8 | |
Output Speed (m3/min) | ≥1.2 | |
Surplus Ratio | ≤0.5 | |
Tanker Rotate Speed(rpm) | 0~17 | |
Drum Drive System | Hydraulic Pump | Italy Brand: PMP |
Hydraulic Motor | Italy Brand: PMP | |
Speed Reducer | Germany Brand: ZF | |
Radiator | KAITONG | |
Water Tank Volume(L) | 200 | |
Key word: Concrete mixer truck, cement mixer vehicles, cement Mixer truck, forland concrete mixer truck,agitator truck
Hot Tags: forland 5cbm concrete cement mixer truck, China, manufacturers, suppliers, factory, price
