SHACMAN L3000 Street Cleaning Sweeper Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman l3000 street cleaning sweeper truck in China. If you're going to buy high quality shacman l3000 street cleaning sweeper truck, welcome to get more information from our factory. For price consultation, contact us.

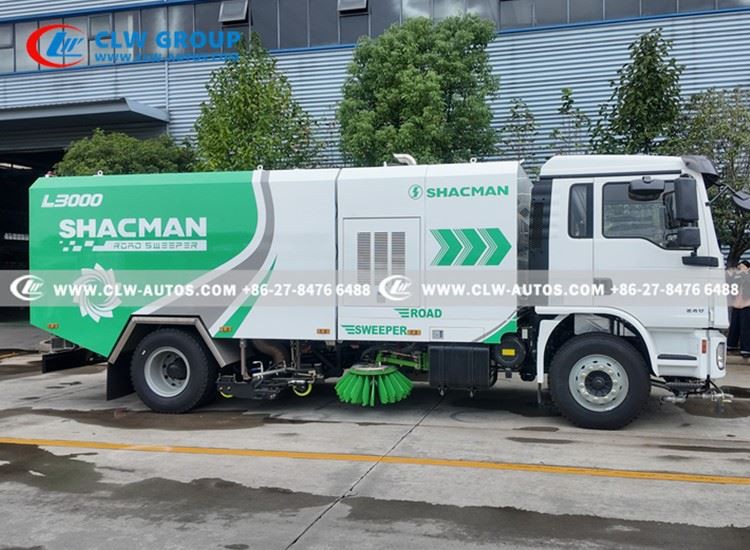

The SHACMAN L3000 Road Washing & Sweeping Truck is an advanced, high-capacity municipal cleaning vehicle engineered for comprehensive, large-scale street and highway maintenance. It features an intelligent dual-tank system with a 7,000-liter clean water tank and a 9,000-liter dust/sludge collection tank integrated onto SHACMAN L3000 4x2 chassis. This truck combines high-pressure washing, mechanical sweeping, vacuum recovery, and dust suppression into a single, highly efficient operation, making it ideal for urban sanitation departments, highway maintenance contractors, and industrial park services.

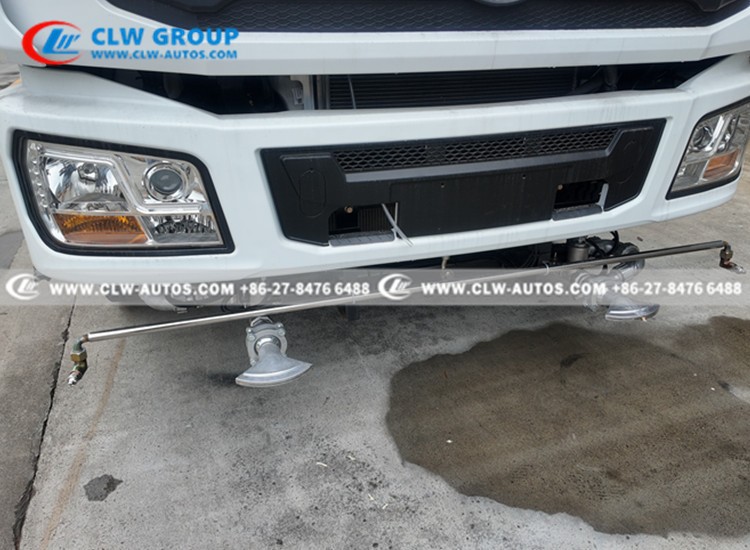

 Front Sprinkler for Road Washing & Sweeper Truck

Low-pressure flushing: For relatively clean road surfaces, the low-pressure flushing function can be activated. The water pump is driven by the chassis power take-off to realize the low-pressure flushing function of the sprinkler truck.

Its primary function is pre-wetting the road surface ahead of the sweeper's main brushes and vacuum system. This significantly enhances sweeping efficiency by suppressing dust, softening and loosening hardened debris, and preventing fine particles from becoming airborne-resulting in cleaner roads, improved air quality, and extended equipment life.

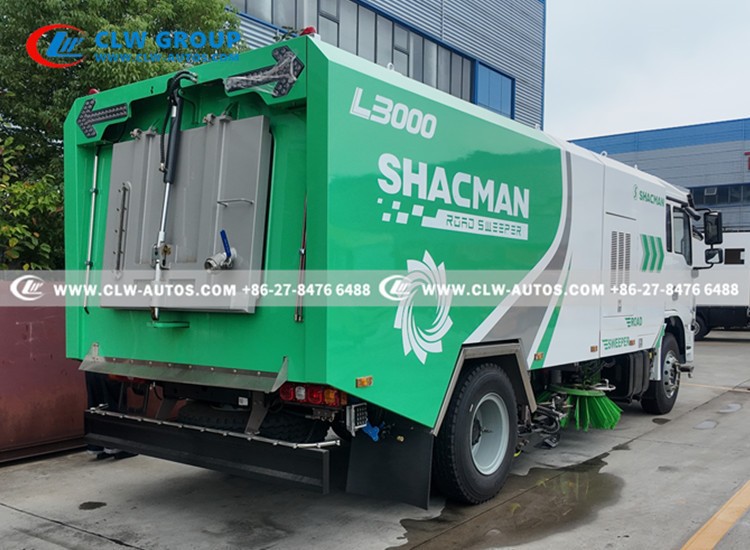

Rear spray dust suppression-Rear Spraying:

A spray boom with multiple spray nozzles is installed below the garbage bin at the rear of the sweeper truck. To prevent secondary pollution caused by dust raised by the vehicle during operation, the rear spray switch can be turned on. High-pressure water flows through the nozzles and is sprayed out in a mist, which can effectively reduce airborne dust and purify the air.

Road Curb and curbstone facade cleaning:

During the cleaning and sweeping operation, for sidewalks and facades that are higher than the road surface, the ball valves on the left and right spray booms on the curb cleaning bends can be opened. High-pressure water is sprayed through the water pipes, and the high-pressure water curtain formed can complete the cleaning of the curb and curbstone facade.

High-pressure cleaning:

The vehicle is equipped with a 20-meter automatic winding reel and a high-pressure cleaning gun, which makes it convenient for users to clean their vehicles while parked, keep the vehicles clean, and prevent dust accumulation from causing blockages in the oil and air lines, thus affecting the service life of the vehicles.





















1. Heavy-Duty SHACMAN L3000 4×2 Chassis, 6 Wheels

• Model: SHACMAN L3000 Series 4×2
• Wheel Base: 5000-5200mm
• Engine: High-torque 6‑cylinder diesel, WP6.240E32; 240HP, compliant with China VI / Euro V emissions.
• Transmission: FAST8JS85TM; 8‑speed manual transmission with 2 reverse;
• Cab: Spacious 3‑person cabin with ergonomic controls, air conditioning, enhanced visibility, and low noise insulation.

2. Intelligent Dual‑Tank System (Total 16,000L)

• Clean Water Tank (7,000L)

• Capacity: 7,000 liters for high‑pressure washing and dust suppression.
• Material: Stainless steel or corrosion‑protected carbon steel.
• Features: Internal baffles, submersible supply pump, level sensor, and large top fill port with strainer.

• Dust/Sludge Collection Tank (9,000L)

• Capacity: 9,000 liters for collected debris, mud, and wastewater.
• Material: Reinforced carbon steel with wear‑resistant lining.
• Vacuum System: High‑power centrifugal fan generating ≥ 28 kPa vacuum.
• Filtration: Two‑stage – primary cyclone separator + secondary HEPA filter.
• Unloading: Rear hydraulic tip‑hopper or direct pump‑out via 6″ valve.

3. Integrated Cleaning &  Vacuum Sweeper System

High‑Pressure Washing Module:

• Pressure: 8–12 MPa (1,160–1,740 PSI).
• Flow Rate: 60–100 L/min.
• Spray Bars: Front (pre‑wetting) and rear (rinsing) bars with adjustable nozzles.

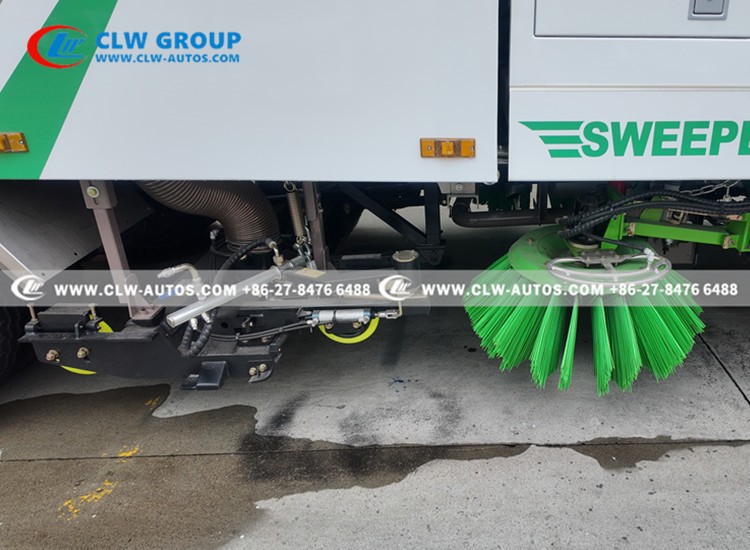

Mechanical Sweeping Module:

• Main Brush: Side‑mounted, hydraulically driven, 2.8–3.2 m working width.
• Side Brush: Adjustable auxiliary brush for curb cleaning.
• Debris Conveyor: Belt or auger system transfers sweepings to collection tank.
• Vacuum Recovery Module:
• Suction Nozzle: Adjustable width, follows main brush for immediate pickup.
• Airflow: ≥ 5,000 m³/h.

4. Hydraulic & Control System

• Hydraulic Power: Dedicated system for sweeper drive, brush lift, conveyor, and valve actuation.
• Control Panel: Centralized touch‑screen + manual override in cabin.
• Automation: Programmable modes (e.g., "Heavy Soiling," "Light Dust," "Water‑Saving").
• Monitoring: Real‑time display of water level, tank capacity, system pressure, and fault alerts.

5. Road‑Friendly & Environmental Features

• Water‑Saving Nozzles: Precision spray patterns minimize consumption.
• Dust Seal: Tight sealing on suction nozzle reduces airborne particle escape.
• Noise Reduction: Enclosed pumps and optimized fan design for quieter operation.
• Emission Compliance: Modern diesel engine with DOC+DPF/SCR system.

1. Municipal Street Cleaning: City roads, avenues, public squares, and pedestrian zones.
2. Highway & Expressway Maintenance: Shoulder cleaning, debris removal, and tunnel washing.
3. Industrial Park & Port Areas: Heavy‑duty cleaning of container yards, loading docks, and access roads.
4. Airport Operations: Runway and taxiway FOD (Foreign Object Debris) removal.
5. Urban Drainage Cleaning: Combined with jetting function (optional) for gutter and drain flushing.

How To Cooperate With Us?

The SHACMAN L3000 Road Washing & Sweeping Truck with 16,000‑liter dual‑tank system sets a new standard for municipal and industrial cleaning-delivering unmatched capacity, efficiency, and versatility to keep roads clean, safe, and environmentally friendly.
