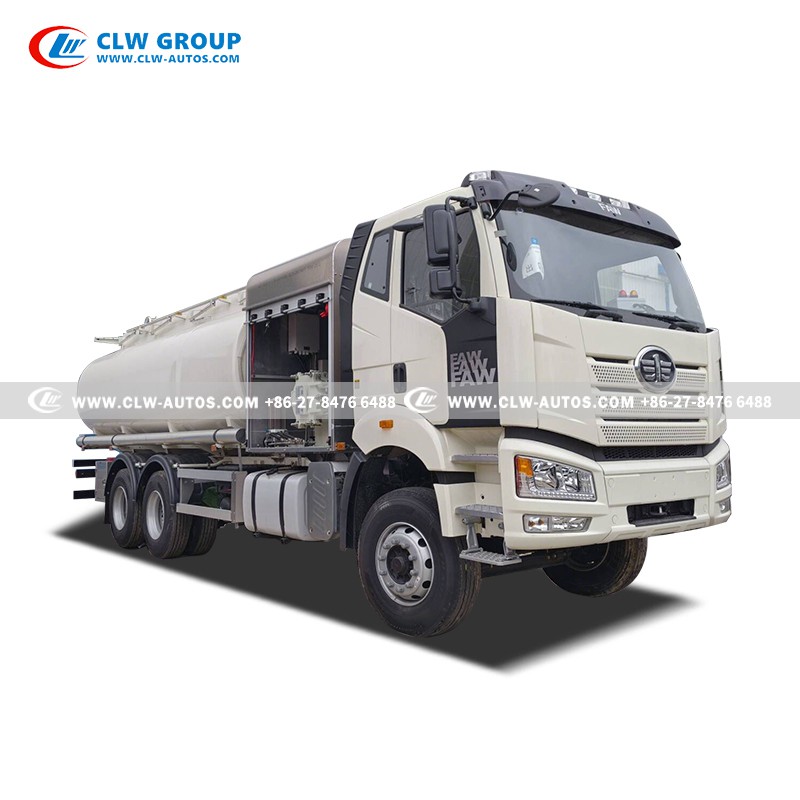

Aircraft Refueling Truck FAW J6P

FAW J6P 350hp
GSE Fuel Truck 20CBM
Aviation Ground Support Vehicle
Airport Service Vehicle
Aircraft Ground Fueling Equipment
Airport Service Vehicle

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Aircraft Refueling Truck FAW J6P in China. If you're going to buy high quality Aircraft Refueling Truck FAW J6P, welcome to get more information from our factory. For price consultation, contact us.

The FAW J6P Aircraft Refueling Truck is a reliable and efficient aviation fuel supply vehicle designed for safe and precise aircraft refueling operations at airports.

Products Description

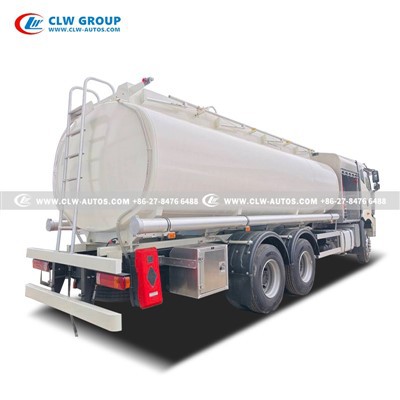

The FAW J6P Aircraft Refueling Truck is built on the FAW J6P heavy-duty chassis and is specially designed for aircraft ground refueling operations.

It is suitable for refueling various aircraft types at civil airports, military airbases, and general aviation airports. The vehicle is equipped with a high-precision fuel delivery system, advanced safety protection devices, and a stable control system, ensuring safe, efficient, and accurate fueling of aviation kerosene.

With its robust structure, reliable performance, and user-friendly operation, the FAW J6P aviation fuel truck meets the strict requirements of modern airport ground support operations.

Products Specification

Technical Parameters
Condition	New condition/Left hand drive/6x4
Chassis	Brand		FAW
	payload(kg)		14650 kg
	Wheelbase(mm)		4800+1350mm
	Front/Rear axle loading weight(kg)		7000/18000 kg
	Dimensions(mm)(Whole Truck)		854025003680 mm
	Max. driving speed(km/h)		80 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10pcs with one spare tire
		Specifications	12R22.5 ou 12.00R20
	Fuel tank volume(L)		400 L
	Transmission	Manual type, 12 Forwards and 2 reverses
Steering	Power steering, hydraulic steering with power assistance
Cabin	Flat-top extended cab, manual windows, manual rearview mirrors, driver's seat with mechanical shock absorption. It can accommodate three people, With Air conditioner
Engine	Brand		faw
	Model		CA6DL2-35E3F
	Fuel type		Diesel
	Displacement(ml)		8570 ml
	Power(kw)		261 kw
	Horsepower(HP)		350 HP
	Cylinder number		6 pcs
	Emission standard		Euro 3
Upper & Equipment
Fuel tank	Capacity(cbm)		20 cbm
	Tank material		Aluminium alloy 5182
	Compartment quantity(pcs)		1 pcs
	Filling medium		Aviation kerosene
	Piping system		Aluminium alloy 5182
	Manhole		Quantity(pcs)	2pcs
			Size(mm)	500 mm
			Standard	API
			Material	Aluminium alloy
	Breather valve		Quantity(pcs)	4 pcs
			Material	Aluminium alloy
	Oil-gas recovery system		With
	Overflow protection system		With
	Bottom valve		1 unit 8inch
	Tank body thickness(mm)		5.6 mm
	End cap thickness(mm)		5.7 mm
	Baffle thickness(mm)		5.7 mm
Filter	China famous brand;Flow rate is 2500L/min
Flow Meter	The Precision level is 0.2 level. Flow rate is 2500L/min
Centrifugal Pump	Pumping in and pumping out. Flow rate is 2500L/min
Filling nozzle	1.5inch (DN38) 20m Gravity refueling hose with filling nozzle(≥350L/min) 2.5inch(DN65) 25m Pressure refueling hose with filling nozzle(≥1200L/min)
Hose Reel	It is driven by hydraulic motor. The winding/rewinding speed is adjustable
Level gauge	6 inch floating-ball type level gauge

Autre equipement

Differential pressure gauge	Equipped
Air eliminator	Equipped
Reel expansion joint	Equipped
In-line pressure control valve	Equipped
DeadMan system	Equipped
Valve	Equipped
Bypass valve (overflow pipe pressure)	Equipped
Pneumatic system	Equipped
Dial gauge	Equipped
Main valve with Venturi tube	Equipped
Swivel joint compensator	Equipped
Electrostatic reels	Equipped
High level sensor	Equipped
Straight through valve	Equipped

detail

Details determine success

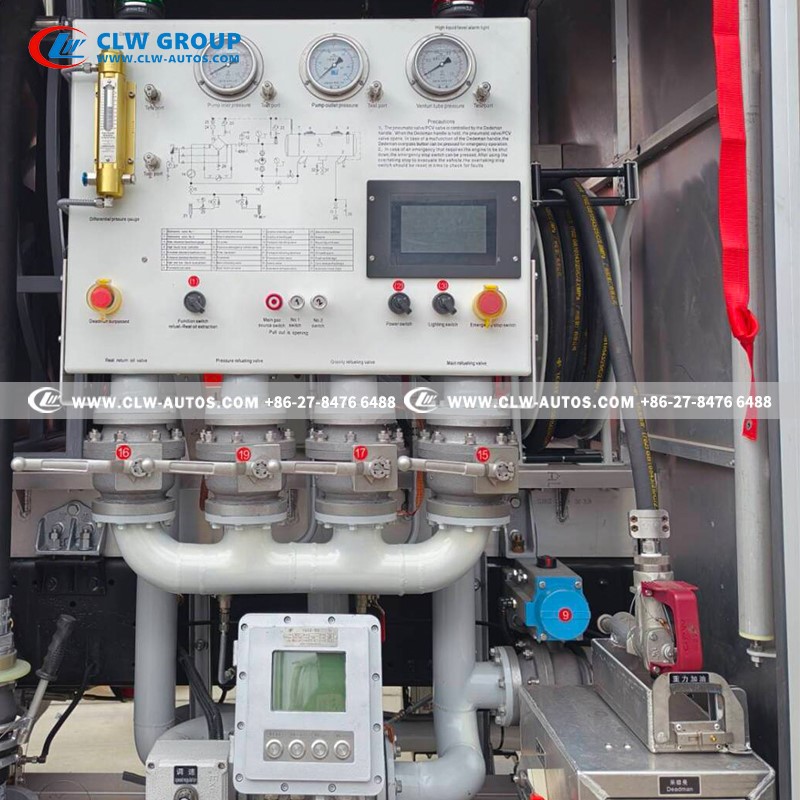

Aircraft Refueling Control and Metering System

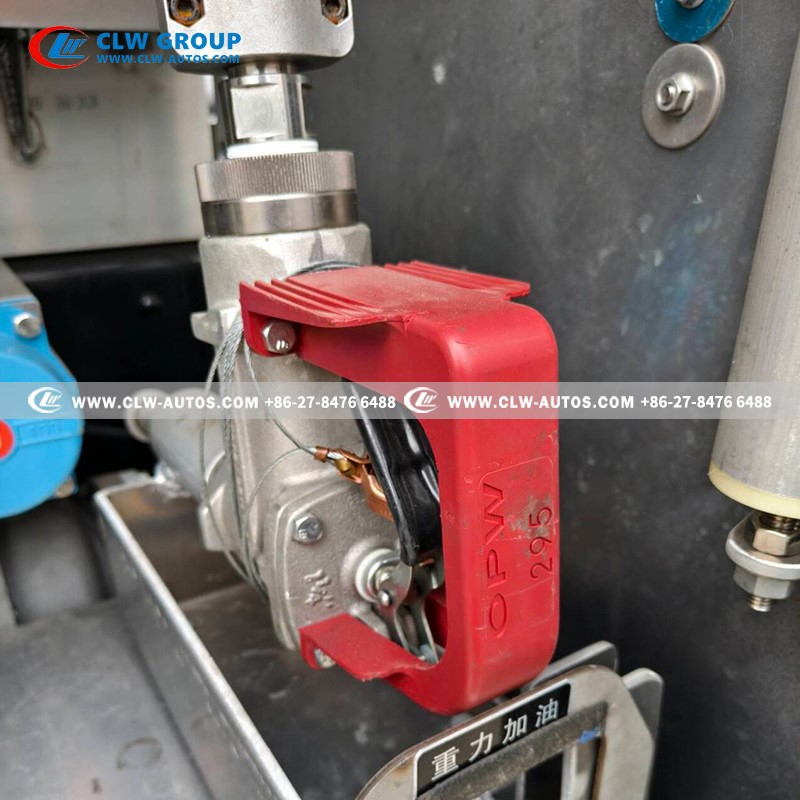

Gravity Refueling Coupling

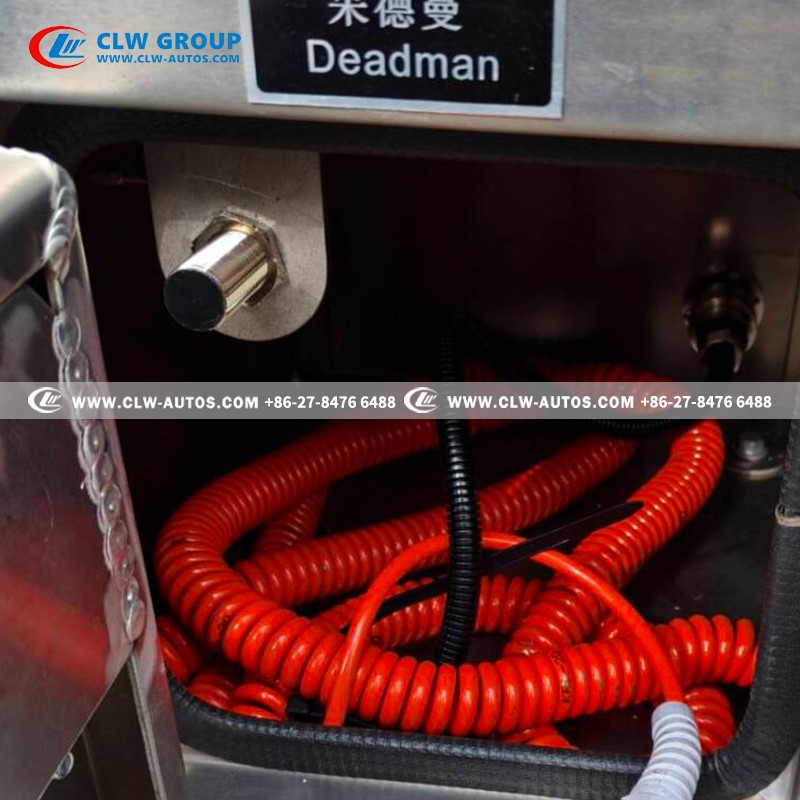

Deadman Control System

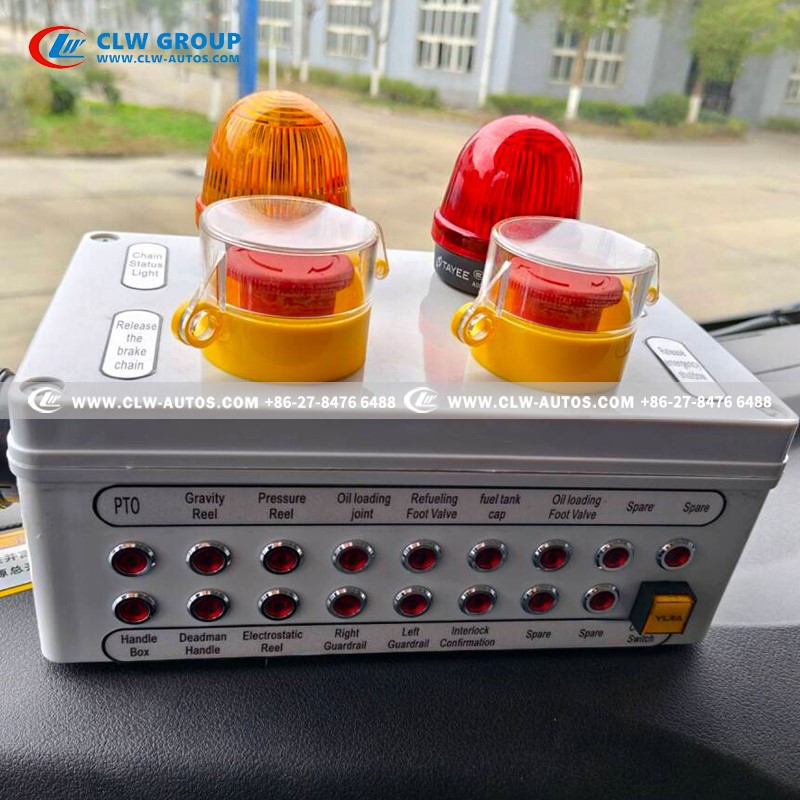

PTO and Safety Interlock Indicator Syst

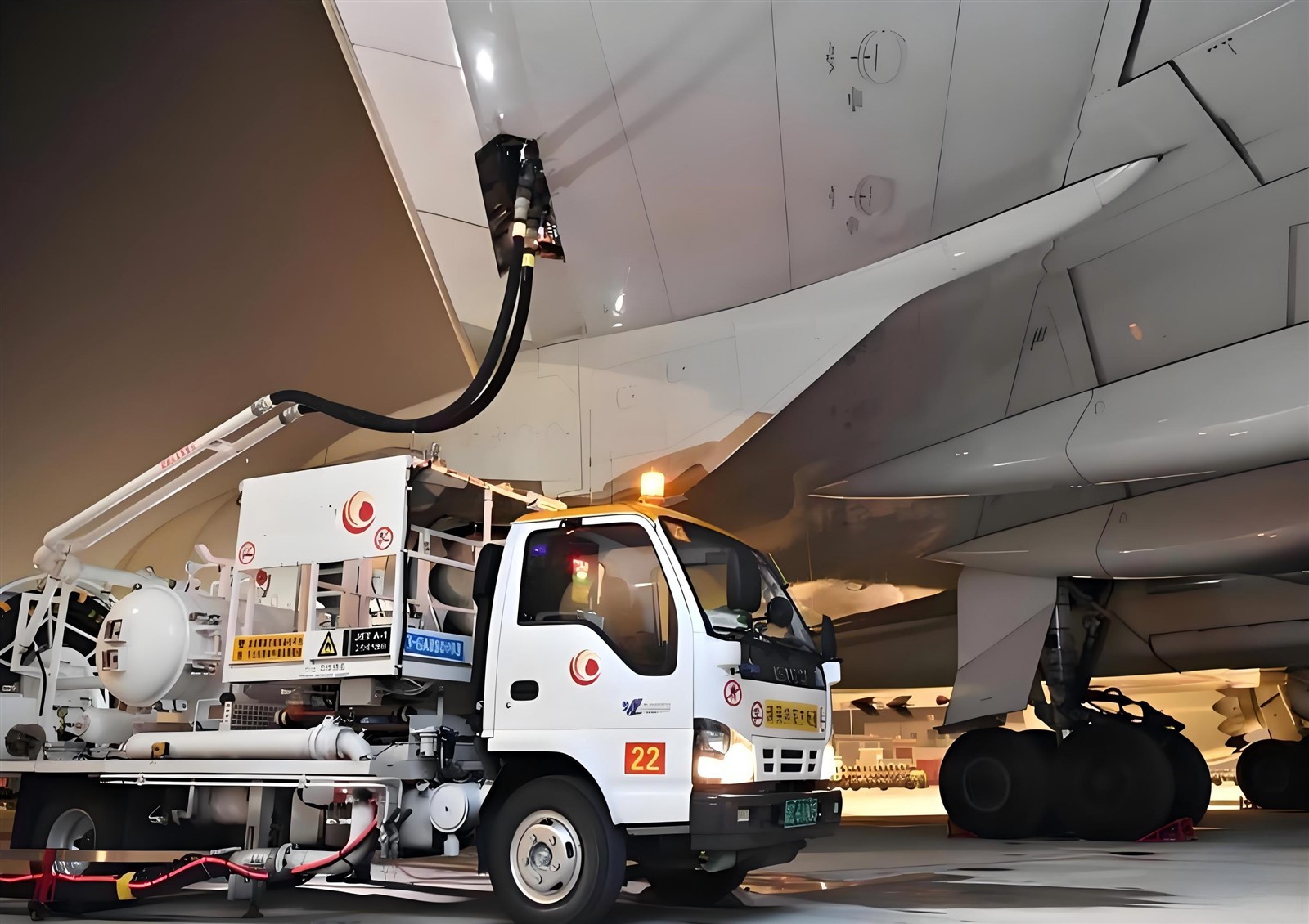

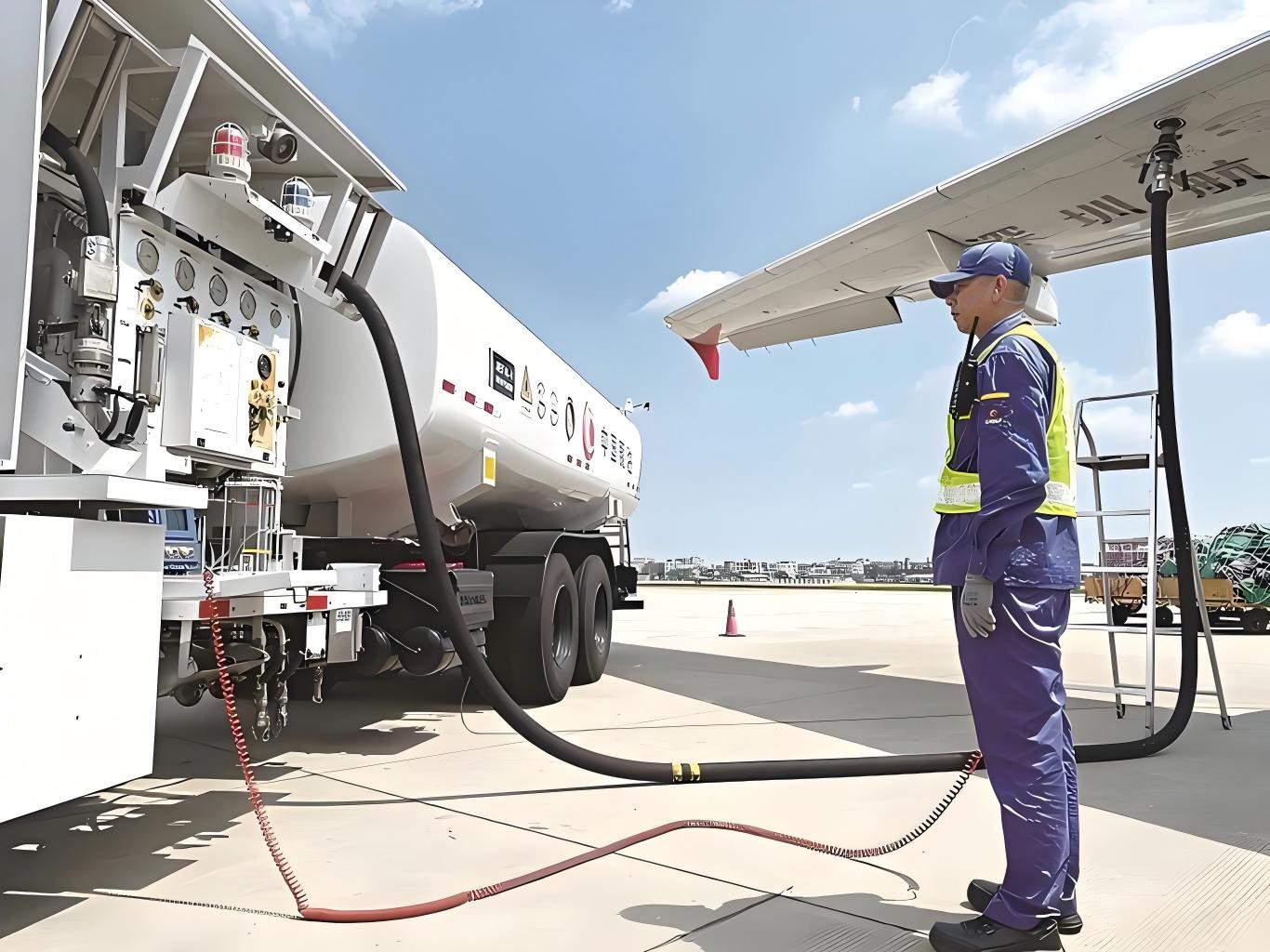

Refueling system and Primary applications

Where It's Used

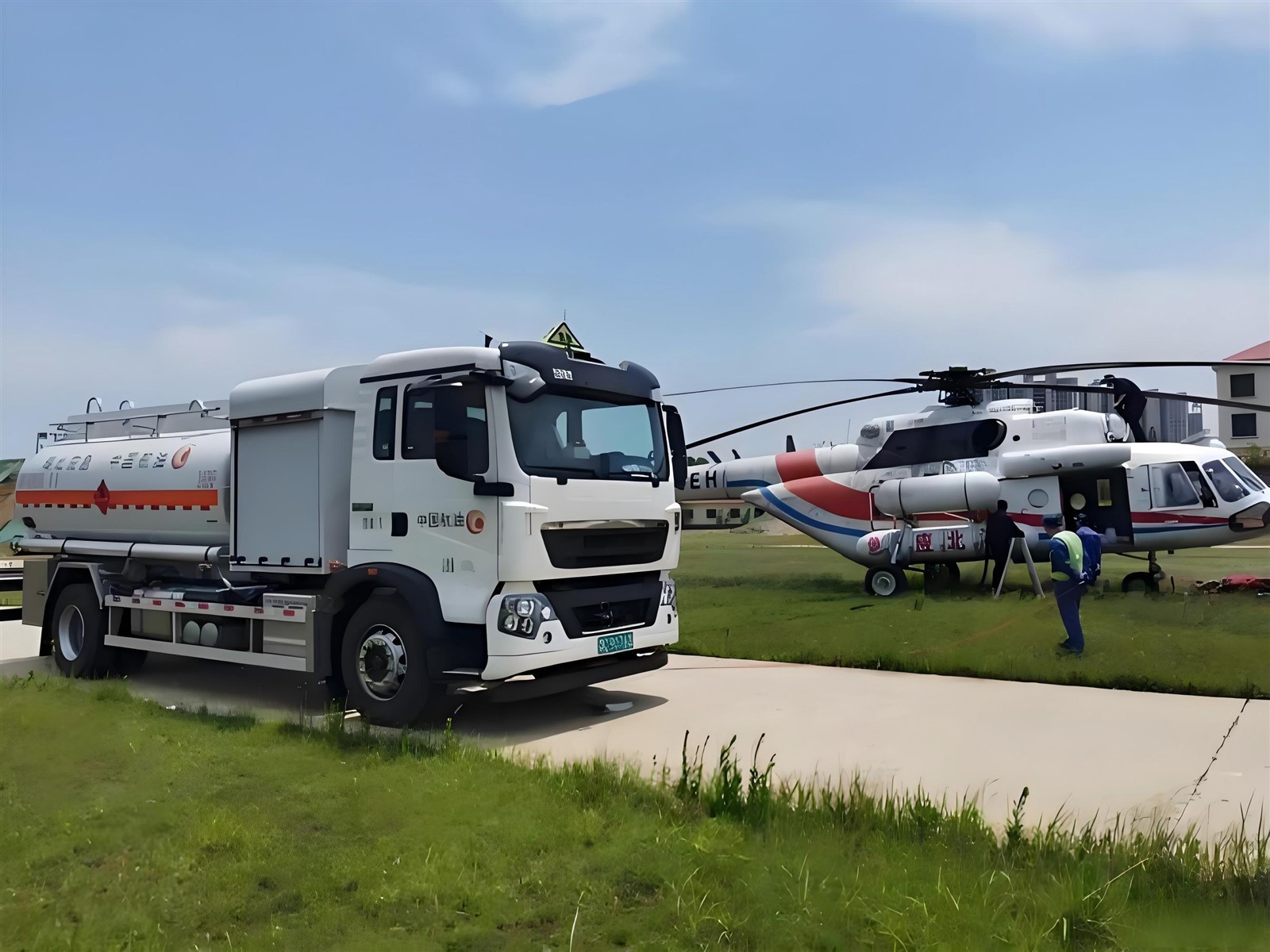

Commercial Airports
Supports fast turnaround for narrow-body and regional aircraft at busy civil aviation hubs.

Business Aviation & Service Centers
Well-suited for FBOs and MRO facilities handling corporate jets, charter aircraft, and cargo operations.

Defense & Government Operations
Provides reliable refueling support for military transport and special-mission aircraft.

Remote & Mobile Operations
Ideal for locations without fixed hydrant systems, enabling flexible on-site refueling for charter and remote airfield operations.

Mobile and Remote Fueling

Ideal for projects where fixed hydrant systems are unavailable, enabling flexible on-site refueling.

Business Aviation & MRO

Ideal for fixed-base operators and maintenance facilities servicing corporate, charter, and cargo aircraft fleets.

Off-Airport & Remote Sites

Suitable for refueling operations in locations without fixed hydrant systems, supporting charter and special missions in remote or temporary airfields.
