ISUZU GIGA AIO 5Tons Crane Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu giga aio 5tons crane truck in China. If you're going to buy high quality isuzu giga aio 5tons crane truck, welcome to get more information from our factory. For price consultation, contact us.

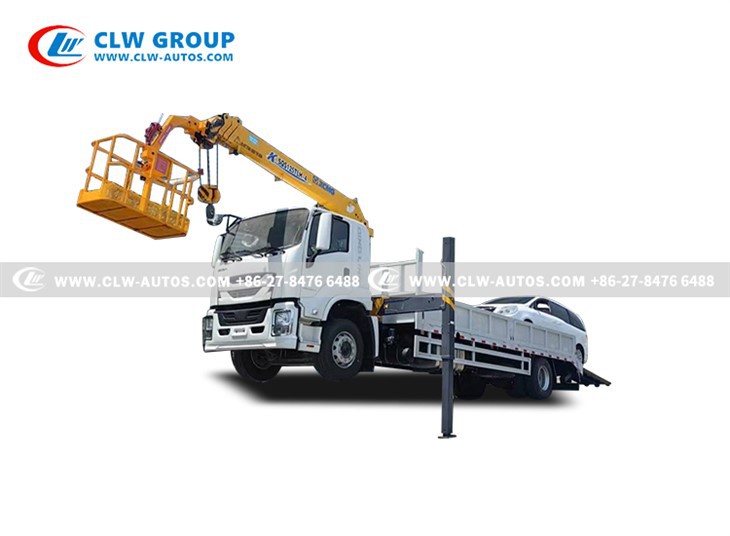

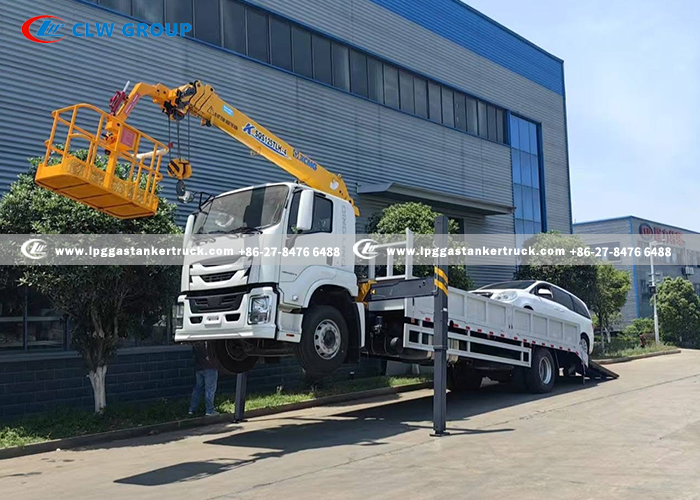

ISUZU GIGA AIO 5Tons Crane Truck

With Ladder And High-altitude Suspended Basket For Philippines





The main purpose of adding a ladder to a truck crane ( Also called as "Lorry Crane", "Mobile Crane", "Derek Truk", "Kren Lori"  is to improve loading and unloading efficiency and enhance transportation safety. It is especially suitable for long-sized goods, heavy equipment and agricultural purposes. In the Philippine market, this modification can better meet the needs of construction, logistics and agriculture, and is a practical solution to enhance the versatility of vehicles.





1. Transporting long goods (such as steel pipes, wood, electric poles, etc.)

• The ladder can be used as a cargo extension support frame to prevent overlong goods (such as steel pipes and wood over 12 meters) from sagging or shaking during transportation.
• The boom of the truck crane is responsible for loading and unloading, and the ladder provides an additional fixing point to ensure transportation safety.

2. Loading and unloading engineering equipment (such as generators, water pumps, small machinery)

• The ladder can act as a ramp to facilitate forklifts or manual push equipment to get on and off the vehicle.
• It is suitable for construction sites or remote areas without professional loading and unloading equipment.

3. Transporting construction materials (such as steel bars and precast concrete components)

• The ladder can help fix the goods to prevent them from slipping.
• At construction sites, workers can also use the ladder to get on and off the vehicle to improve work efficiency.

4. Agricultural use (such as sugarcane, coconut trunks, agricultural machinery)

• In rural areas of the Philippines, ladders can be used to load and unload heavy agricultural products or small agricultural machinery.
• Compared with pure crane operation, ladder + manual collaboration is more flexible and less costly.

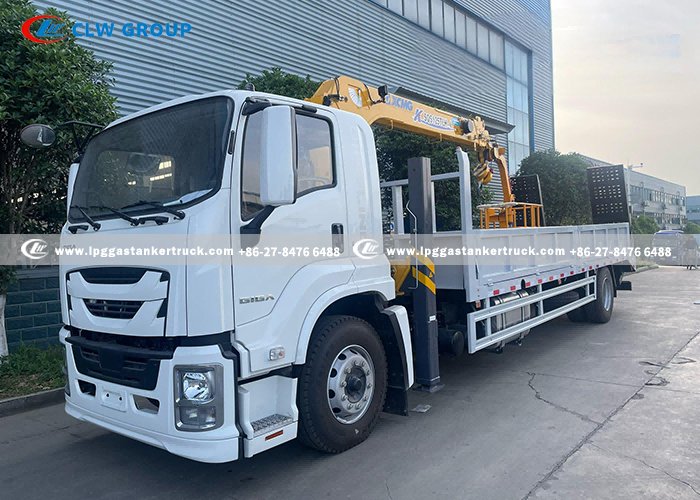

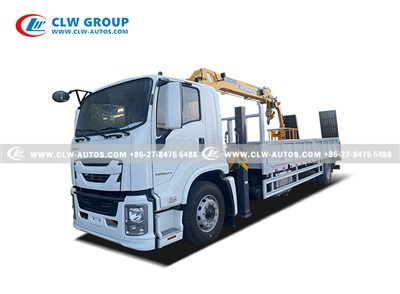

ISUZU Crane Truck With 5Tons Straight Boom Crane
Chassis Specification
Chassis Model	QL118
Driving Model	4x2
Dimension	9000 x 2500 x 3900 mm
Wheelbase	5000 mm
Gross vehicle Weight	18000 kg
Curb Weight	9650 kg
Front Axle Loading Capacity	6300 kg
Rear Axle Loading Capacity	13000 kg
Axle Number	2
Tire	295/80R22.5 18PR
	6pcs with 1 spare tire
Engine	ISUZU diesel engine 4 cylinders in a line Water cooled, turbocharged, after cooled, cold start.
	Model: 4HK1
	Horse power: 205 HP
	Displacement: 5193ml
	Emission standard: Euro 6
Transmission	Model: ISUZU
	6 Forward & 1 Reverse
Upper Parameters
Cargo Box
Size (L*W*H)	5200 X 2300 X 550 mm
Loading Capacity	15 Tons
Bottom Thickness	5 mm
Side Thickness	3 mm
Material	High quality Q235 carbon steel

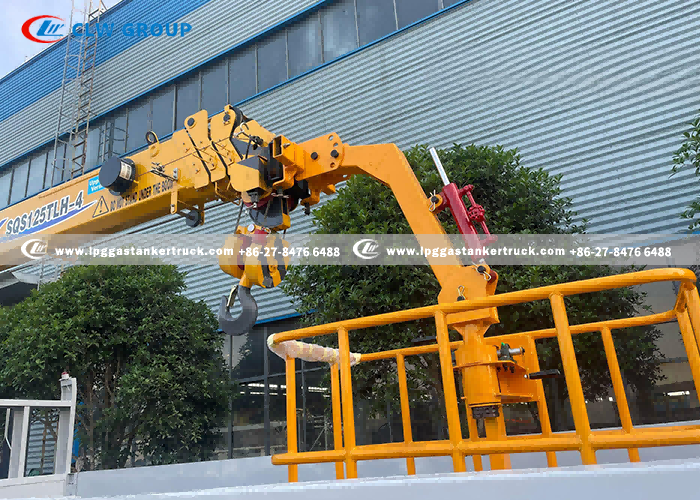

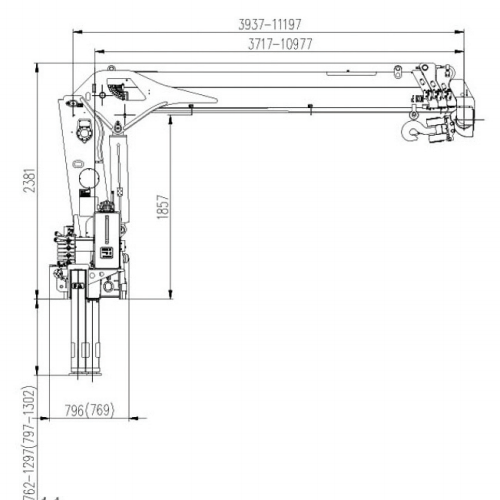

Crane
Model	SQS125TLH-4
Working Platform	360°turning (left or right), H-shape legs 360°
Extendable Boom Section	1 main boom + 4 extendable boom
Crane Type	Straight Boom Crane
Max. Lifting Capacity	Effectively: 5000 kg at 2.5 meters
Max. Working Radius	11.2 meters
Max. Lifting Height	13 meters
Max. Lifting Moment	125 kN.m
Max. Oil Flow of Hydraulic System	63 L/min
Max. Pressure of Hydraulic System	22 Mpa
Crane Weight	2100 kg
Landing Leg	4 Pcs hydraulic handing leg
Optional	Hydraulic tipper box
	Box thickness as required
	Remote controller is optional
	Customized logo and color

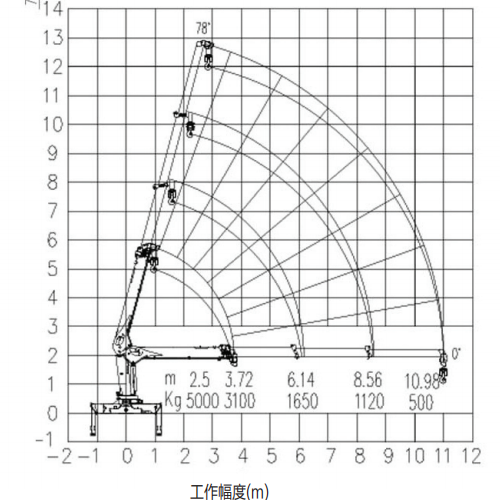

Crane Rated Lifting Load



Practical application in the Philippine market



In the Philippines, the addition of ladders to truck cranes is particularly suitable for:

• Construction sites: transporting long-sized building materials such as steel bars and cement pipes.
• Ports/logistics: loading and unloading steel pipes and container auxiliary equipment.
• Agricultural transportation: transporting cash crops such as sugarcane and coconut trunks.
• Remote area operations: Ladders provide a low-cost solution in places where there is no professional loading and unloading equipment.

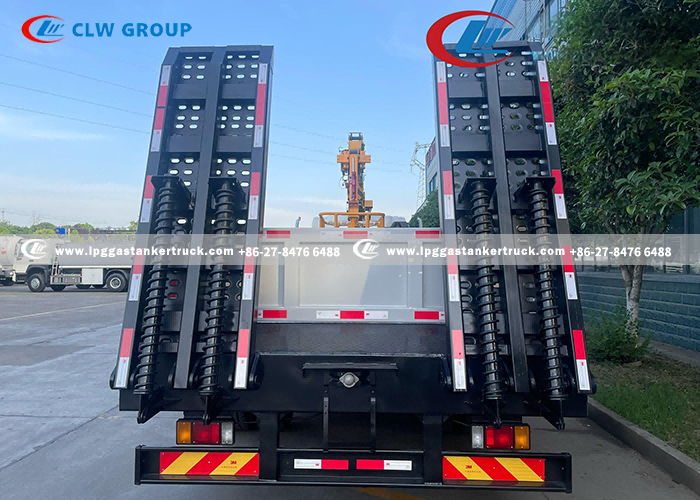

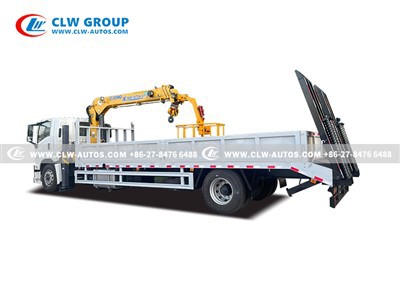

Functions and Advantages of Adding a Rear Ladder

1. Functions

• Convenient Access to Heights: The ladder provides a safe passage, allowing operators to quickly reach the top of the truck bed or crane boom for equipment inspection, maintenance, or aerial work.
• Auxiliary Operations: In scenarios such as power line repairs or billboard installations, the ladder can serve as a supplementary tool, reducing reliance on additional climbing equipment (e.g., scaffolding).

2. Advantages

• Time and Cost Savings: Eliminates the need for a separate ladder, improving work efficiency.
• Enhanced Safety: Fixed ladders are more stable than temporary ones, reducing the risk of falls from heights.
• Versatility: When used in combination with a work basket, the ladder can serve as a transition platform.





We are 100% Straight Factory Manufacturer
We have 100% Quality Assurance
Welcome to visit our factory!
