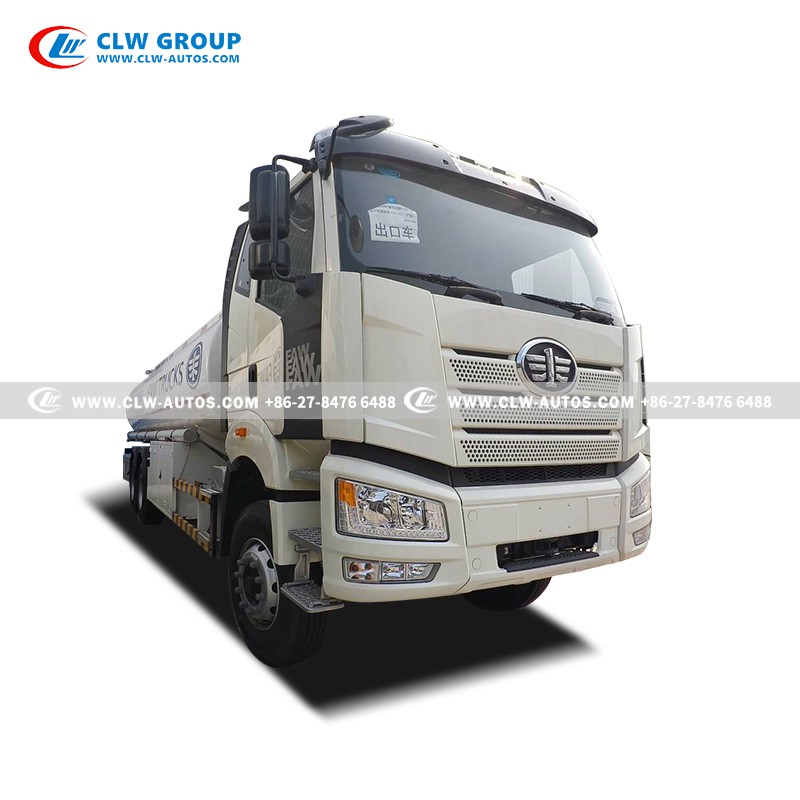

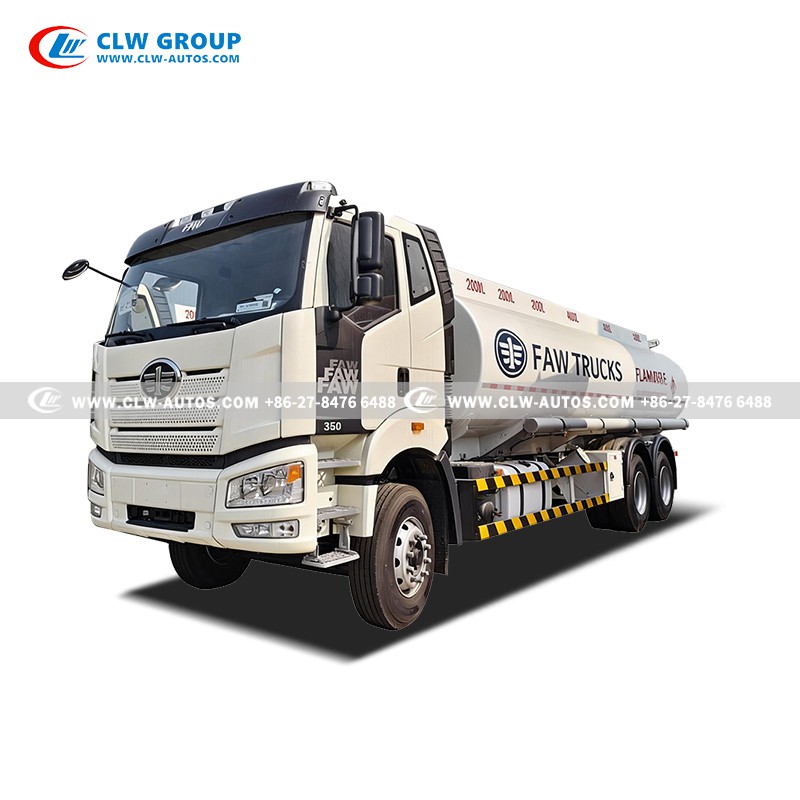

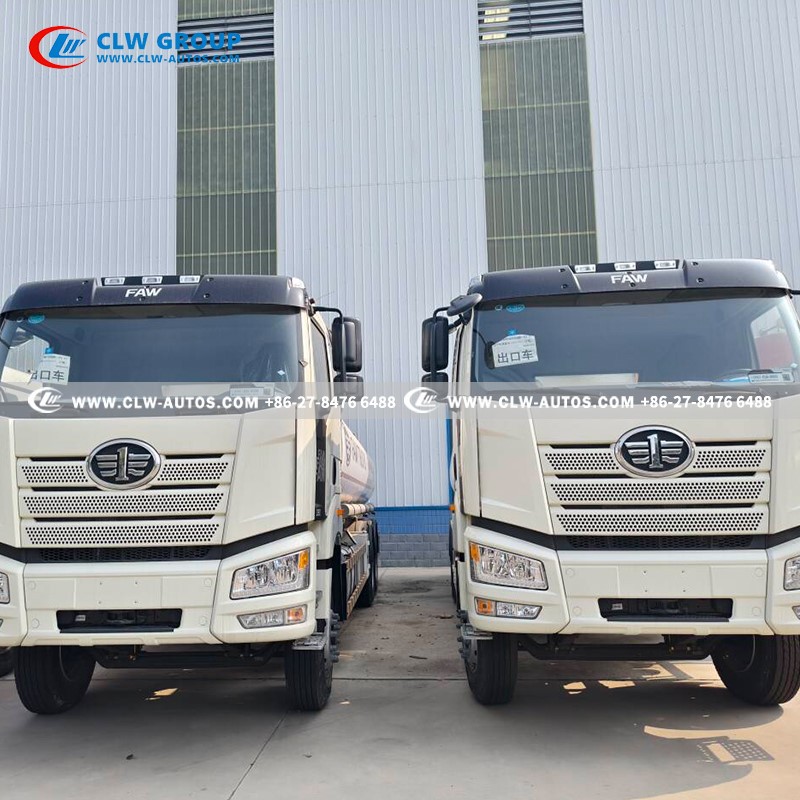

24cbm Fuel Oil Tanker With 7 Compartments
Truck brand: FAW J6P Lhd 350hp
Divided into 7 compartments
Tank material: High quality Q235 or optional Aluminum alloy for lighter weight

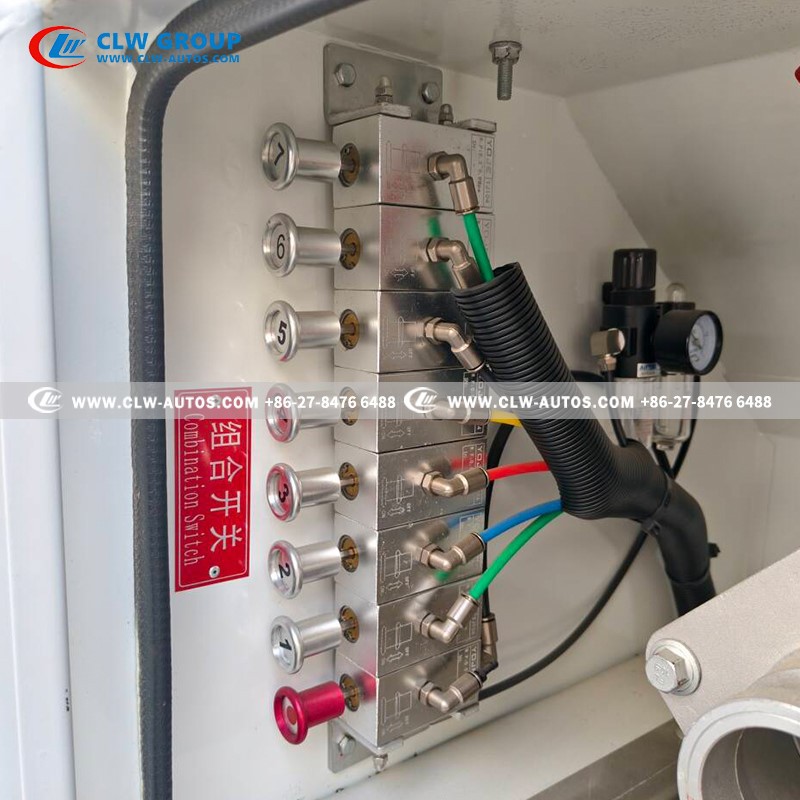

7*Emergency valves (API bottom-loading adapters), remote-controlled
Engine: FAW 350HP,euro 2
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 24cbm fuel oil tanker with 7 compartments in China. If you're going to buy high quality 24cbm fuel oil tanker with 7 compartments, welcome to get more information from our factory. For price consultation, contact us.
FAW J6P 24cbm 7-Compartment Fuel Tank Truck
Multi-product Oil Transport Tanker for Sale
Products Description
Maximize Your Fuel Logistics Efficiency with Segmented Precision
The FAW J6P 6x4 24m³ Tank Truck is a state-of-the-art, medium-to-heavy duty hazardous materials transport vehicle designed for the sophisticated demands of modern petroleum logistics. Built on the legendary FAW J6P chassis, this 24-cubic-meter (approximately 6,340 gallons) tanker features a critical enhancement: a 7-compartment segregated tank design.
This allows operators to safely transport different types of oil products simultaneously-such as various grades of gasoline, diesel, or even biofuels-in a single, efficient journey. As a certified dangerous goods transporter, it combines robust engineering with precision fluid handling to serve as the backbone of your downstream supply chain, from refinery to depot and depot to retail stations.
Also known as a 7-bay fuel truck, gasoline tanker, or oil delivery truck, this FAW J6P model is specifically engineered for distributors and logistics companies that require maximum flexibility. The defining feature of this unit is its 7 independent compartments, which function as separate tanks on a single chassis.
This design effectively turns one truck into multiple delivery vehicles, eliminating the need for a fleet of single-product trucks. Each compartment is isolated with its own dedicated loading and unloading system, ensuring product integrity and allowing you to deliver gasoline, diesel, and other fuel types to multiple customers or different tank configurations at a single station in one trip. Powered by a high-performance FAW engine, this 24,000-liter fuel tank semi-trailer replacement offers superior maneuverability and compliance with the strictest international safety standards for ADR/ (hazardous goods) transport.
Technical Specification
|
Chassis Technical parameter |
||
|
Driving mode |
FAW J6P, 6*4 |
|
|
Dimension |
10900*2500*3250mm |
|
|
Gross weight |
25000kg |
|
|
Curb weight |
11500kg |
|
|
Wheelbase |
4600+1350mm |
|
|

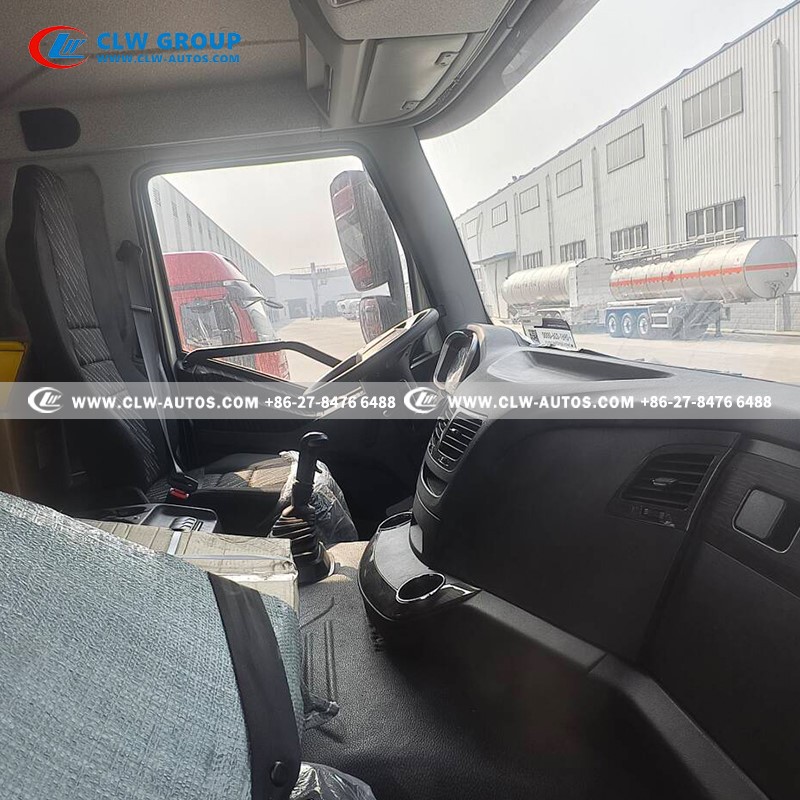

Cabin |
Steering wheel |
Left hand drive or right hand drive |
|
Configuration |
With air conditioning Steering power Central locking Electric door and window |
|
|
Engine |
Engine brand |
WP10.350E32, 6 Cylinder |
|
Horsepower |
350HP |
|
|
Emission standard |
Diesel, EuroⅡ |
|
|
Transmission |
Manual, FAST 9JS119, 9 Forward & 1 Reverse | |
|
Tire |
315/80R22.5, 10 Pieces with 1 Spare | |
|
Front axle loading |
6500kg |
|
|
Rear axle loading |
11500kg |
|
|
Upper structure parameter |
||
|
Fuel tank capacity |
24m3/24,000liters |
|
|
Tank material |
Carbon steel/ Stainless carbon/ Aluminum alloy |
|
|
Compartment No. |
7 Compartments, compartment no. can be customized |
|
|
Fuel dispenser |
2 sets, flow rate at 70L/min English operation panel Showing unit price/ filling volume/ total price |
|
|
Oil pump |
2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment |
|
|
Filling hose |
1 inch and 15 meters 2 sets for diesel and petrol separately |
|
|
Filling hose reel |
2 Nos |
|
|
Manhole cover |
API manhole |
|
|
Safety feature |
Breather Valve+Emergency cut-off Valve |
|
|
Operation compartment |
Located at rear of truck with aluminum alloy door |
|
|
Control system |
Power on/off Lighting Fuel pump on/off Fuel dispenser on/off Main valve on/off Fuel level digital display |
|
|
Others |
2 sets of 4kg extinguishers 1 set of static belt |
|
|
Painting |
Color and design as customer's requirement |
|
Products Reference Pictures
1. Robust FAW J6P Chassis & Powertrain
Proven Platform: The FAW J6P is renowned globally for its reliability, fuel efficiency, and durability in heavy-duty applications.
Powerful Engine: Powered by a high-torque FAW engine (e.g., CA6DK1 series) with advanced combustion technology (FCCS II), delivering strong power for fully loaded grades while optimizing fuel consumption.
Lightweight Design: The chassis incorporates lightweight technologies such as a new F5N front axle, lightweight 435 axles, and an aluminum alloy tailgate, reducing tare weight without compromising load capacity.
Long Service Intervals: Designed for high utilization with extended oil change intervals (up to 100,000km for the rear axle) and maintenance-free wheel ends, maximizing uptime.
2. Superior Safety for Hazardous Transport
Safety is paramount in Class 3 flammable liquid transport. This FAW tanker is built to exceed global standards:
Compliance: Fully compliant with European ADR (Accord Dangereux Routier) and dangerous goods transport regulations.
EU Standard Equipment: Standard features include EU-standard manhole covers (manlids) with pressure/vacuum valves, and a bottom-loading/ unloading emergency valve (API adapter) with thermal and over-speed sensors.
3. Multi-Product Flexibility with 7-Compartment Design
Customizable Capacities: While the average compartment size is approximately 3.4m³, the internal volumes can be customized to suit your operational needs. Common configurations include a "mixed" layout with a few larger compartments (e.g., 2 x 5m³) for high-volume products and several smaller compartments (e.g., 5 x 2.8m³) for niche or premium fuels, optimizing payload for multi-stop deliveries .

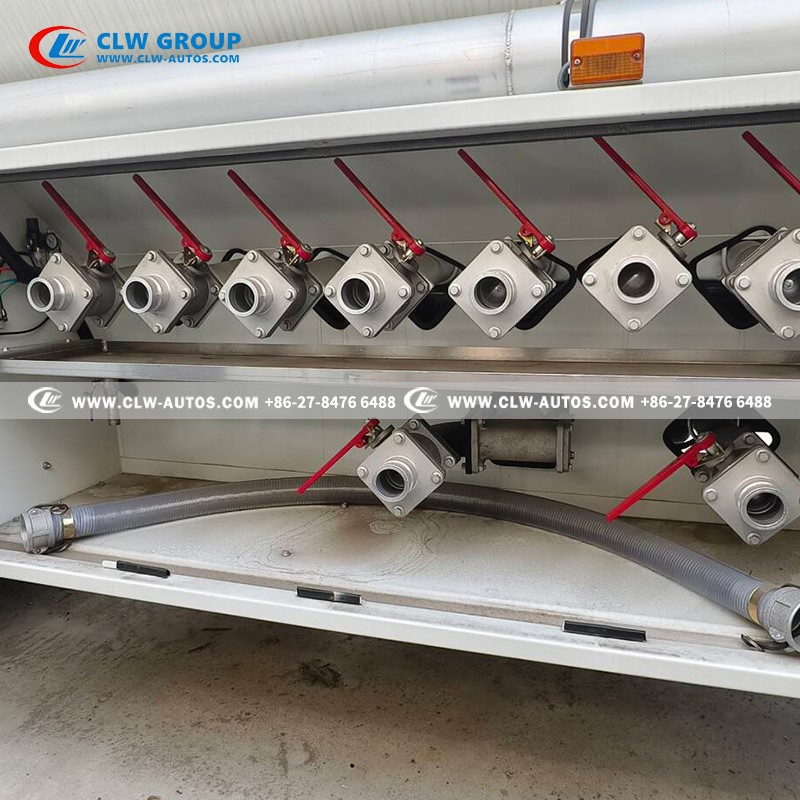

Independent Control: Each of the 7 compartments is equipped with its own independent piping, valves, and controls, giving the operator precise command over which product is loaded or discharged at any time.
4. Advanced & Safe Loading/Unloading System

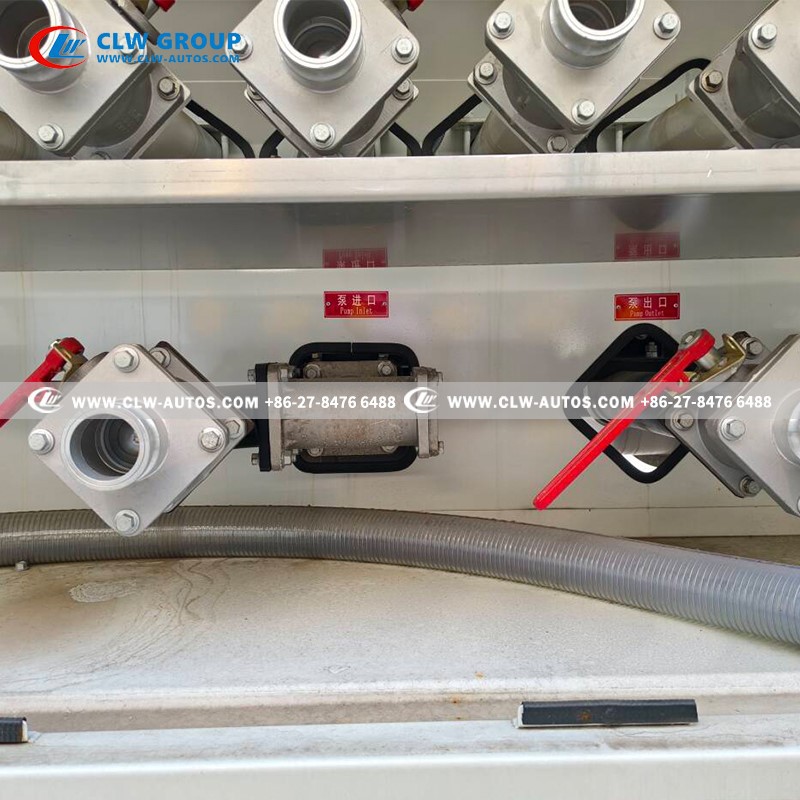

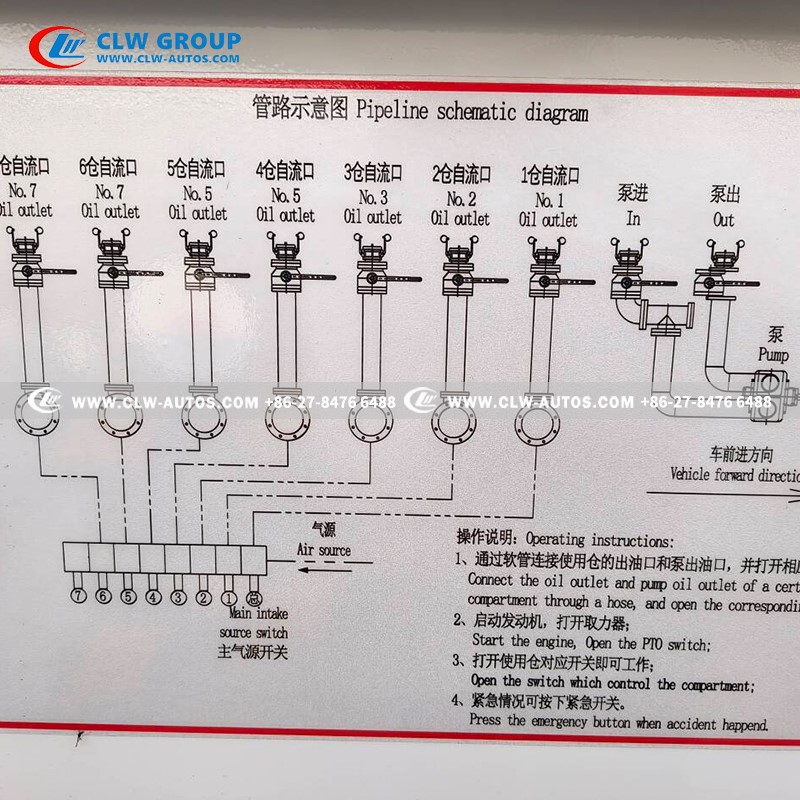

Dedicated Manifold System: The vehicle features a sophisticated multi-way pipeline system. Operators can easily switch between compartments to ensure the correct product is delivered to the correct external tank.
Optional Metering and Pumping:
Flow Meters: For precise fiscal metering during unloading, each line or the main manifold can be equipped with high-accuracy flow meter.
Onboard Fuel Dispenser: For direct refueling of customer vehicles or equipment, the truck can be fitted with a fuel dispenser and a 15-meter automatic retractable reel, turning it into a mobile filling station.
Hydraulic or PTO Pump: Equipped with a high-efficiency pump (often an arc gear pump) for rapid loading and unloading operations.
Diverse Application Scenarios
The versatility of this 7-compartment oil tank truck makes it a strategic asset for various sectors:
- --Petroleum Distribution Companies: Ideal for transporting gasoline, diesel, and biofuel blends from coastal depots or refineries to inland storage facilities.
- --Retail Fuel Supply (Gas Stations): Perfect for delivering precise quantities of multiple fuel grades to service stations with underground tanks. A single truck can fill all tanks at a station in one visit.
- --Mining & Industrial Operations: Transporting diesel fuel directly to heavy equipment in mining sites or large construction projects, often using the optional dispenser for direct refueling.
- --Aviation Fuel Supply: Transporting Jet A-1 fuel to smaller regional airports or airfields where dedicated hydrant systems are not available.
- --Commercial & Agricultural Fuel Delivery: Supplying heating oil to commercial buildings or diesel to large-scale farming operations.
Key features and advantages
7-Compartment Versatility: One Truck, Multiple Loads
The key advantage is operational flexibility. By consolidating multiple products into a single vehicle, you drastically reduce fleet requirements and delivery costs.
This multi-compartment tanker allows you to respond to complex orders efficiently, minimizing the number of trips needed to service multiple customers or multi-tank stations.
Uncompromising Safety Architecture
We prioritize the protection of your driver, your cargo, and the environment. From the remote-controlled emergency valves and internal baffles to the EBS braking system and lane departure warning, every component is selected to mitigate risk.
The vehicle is a mobile safety hub, compliant with the most rigorous international standards.
Built for Uptime and Lower Total Cost of Ownership
Durable Chassis: The J6P platform boasts a B10 life of over 1.5 million kilometers for its core assemblies, ensuring years of reliable service.
Fuel Efficiency: Advanced combustion and thermal management technologies make this one of the most fuel-efficient trucks in its class.
Reduced Maintenance: Features like long-life lubricants and oil-lubricated wheel ends (100,000km maintenance intervals) drastically cut downtime and workshop visits.
Customization to Fit Your Exact Needs
We understand that no two logistics operations are the same. This FAW tanker can be tailored to your specific workflow:
Material Choice: Choose standard carbon steel or opt for aluminum alloy to reduce tare weight and increase payload capacity .
Metering Options: Integrate flow meters for fiscal transfers or a full onboard dispenser system for direct-to-vehicle fueling .
Volume Distribution: Work with our engineers to design the 7 compartments in a "big + small" layout that perfectly matches your customer's order patterns .
ABOUT US
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
Ready to enhance your chick logistics with guaranteed viability?
Contact us to discuss customizing the perfect transporter for your business.
