Shacman H3000 8X4 30CBM Fuel Tanker Truck
30 Tons PMS delivery truck
Fuel truck to ivory coast
AGO transport truck
30000 L Oil Tank Truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman h3000 8x4 30cbm fuel tanker truck in China. If you're going to buy high quality shacman h3000 8x4 30cbm fuel tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Shacman H3000 fuel tank truck(also called shacman oil filling truck,oil dispenser truck,petroleum tank truck,Lube oil delivery truck,PMS delivery truck,AGO transport truck,30 cbm oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck,fuel bowser truck,fuel truck with metering system) is used to transport fuel,oil,diesel,gasoline,kerosene,PMS,AGO,crude oil,lube oil and refill cars or trucks and other automobiles easily.
Above shacman H3000 fuel tank truck is customized for cote d'lvore with anti-thief lock.
whatsapp for quick inquiry +86 135 45064324
Technical Parameters
Specification | ||
Driving type | 8×4,left hand drive | |
Overall Dimension mm(LxWxH) | 11300×2500×3750 | |
Wheelbase(mm) | 1800+4575+1400 | |
Max. Speed(km/h) | 90km/h | |
Max. Grade ability(%) | 30 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Type | Turbo Charged Middle Cooling,6-cylinder,4-Stroke | |
Emission Standard | EURO Ⅱ | |
Rated output power | 380HP/280KW | |
Rated speed | 2200 | |
Max.Torque | 1600N.m/1500~1800r/pm | |
Displacement(L) | Displacement:9.726L | |
Transmission | Brand | FAST |
Model | 10JSD180 with QH70 10 forward and 2reverse | |
Front axle | 2×MAN 7.5T | |
Rear axle | 2×13T MAN double reduction drive axle, ratio 4.769 | |
Clutch | Eaton technology | |
Steering | ZF technology | |
Frame | 850*300(8+5) | |
Suspension | multi leaf spring suspension | |
Fuel tank | 400L fuel tank | |
Wheels and tires | 12.00R20,12+1 | |
Brakes | Running brake:Dual circuit compressed air brake | |
Parking brake:Air discharging with spring control | ||
Auxiliary brake:Engine exhaust brake | ||
Without ABS | ||
Cabin | H3000 flat roof cab,one sleeping bed hydraulic Driver’s Seat Four-Point hydraulic Suspension Cab Air condition Metal Bumper | |
Others | ordinary air filter165Ah maintenance-free battery | |
Up body | ||
Tank size | 30,000 L | |
Tank material | Carbon Steel Q235 | |
Thickness | 5mm | |
Compartment | 4 | |
Others | Volume flow meter | |
Aluminum Alloy Fuel Pump | ||
15 meters Fuel Hose | ||
Structure of a fuel refueling truck
1. Fuel refilling truck chassis:
The tanker chassis is optional for ISUZU,Dongfeng, FAW, Foton, Shacman, Sinotruk, JAC, JMC and other large automobile manufacturers.
2. Tank body part:
Equipped with anti-scouring plates
Tank body accessories are equipped with manholes, liquid outlet valves, etc.
Optional for flowmeter,level gauge,dispenser
3. Fuel dispenser:
A fuel dispenser uses the power of a truck and can be moved with the truck to meet the needs of mobile fuel sales in urban or rural areas.
suitable for gasoline, diesel, ethanol gasoline
small size and convenient operation.
brands: Shanghai Seck refueling machine, Guangdong Hengshan refueling machine, Beijing Sanjin refueling machine, Zhengzhou censtar refueling machine, Shanghai Bolai refueling machine.
4. Automatic return reel:
The automatic return reel is available in 10 meters, 15 meters, 18 meters, and 20 meters.
Usually we supply 15 meters hose
5. Fuel pump:
self-priming pumps, gear pumps, stainless steel pumps, centrifugal pumps

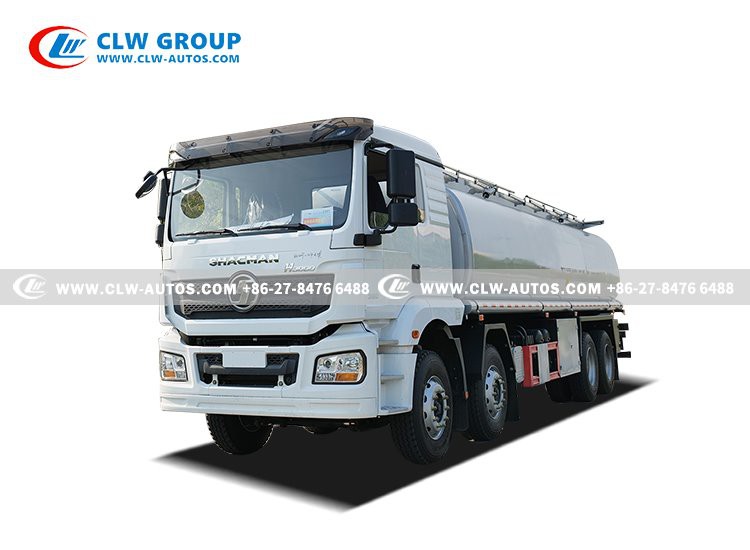

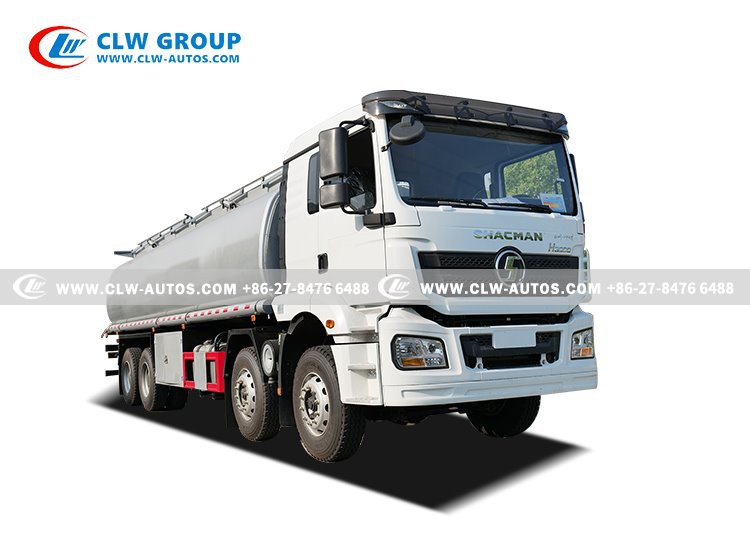

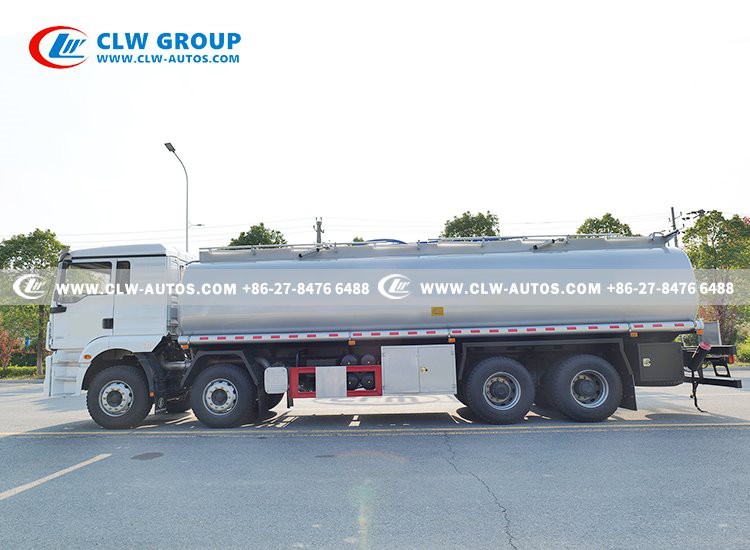

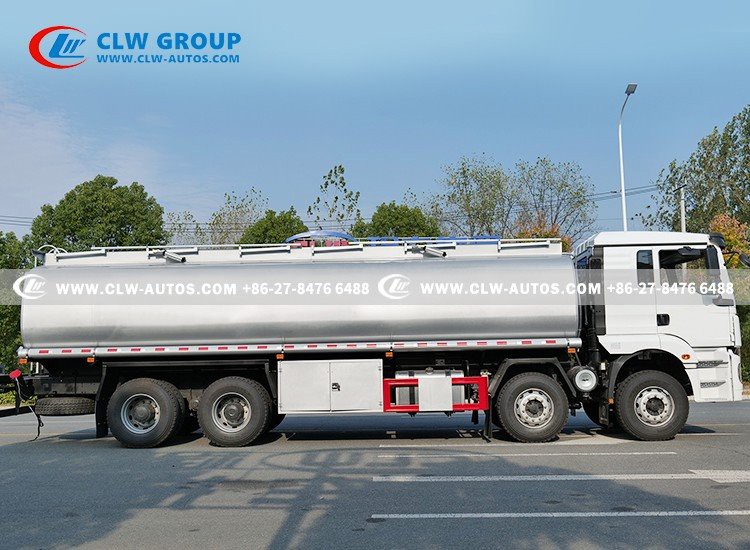

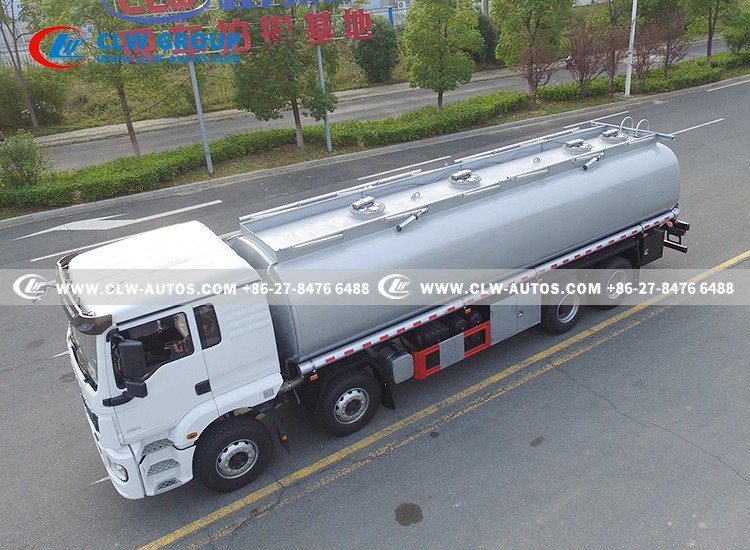

Reference pictures
