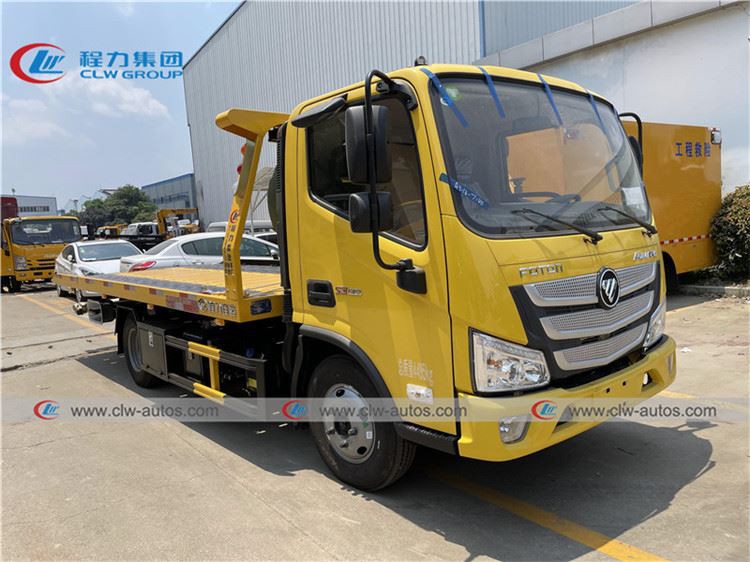

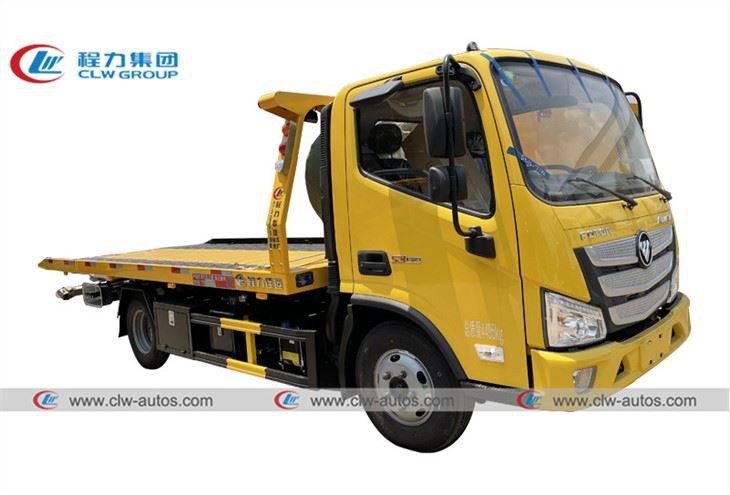

Foton Aumark 3tons Flatbed Wrecker Towing Trucks

Chassis Brand: Foton Aumark Capacity: 3tons Wheel base:3360mm

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of foton aumark 3tons flatbed wrecker towing trucks in China. If you're going to buy high quality foton aumark 3tons flatbed wrecker towing trucks, welcome to get more information from our factory. For price consultation, contact us.

Product Description

Flatbed wrecker (also called tow truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) Based on the type or size of vehicle to be towed, wreckers are usually designed into two types.

One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.

The loading surface of the platform is formed by stamping die once. The endurance is strong and the shape is not deformed. The plate surface is smoother, the structure is more professional and the strength is higher. The hydraulic parts adopt internationally renowned brands, and the product quality is guaranteed.

It integrates multiple functions such as lifting, carrying, dragging, pulling and so on. The hydraulic oil pipe is made of galvanized steel, which has good pressure resistance, strong heat dissipation performance, beautiful and durable.

1) 3-6Tons Wrecker Truck for Towing Broken Cars or Equipments.

2) Foton Brand Chassis for Euro Ⅱ-Ⅵ Emission

3) Spare parts of 3-6tons wrecker tow truck:

--Italy brand multi-way valve and balance valve;
--Gernamy Roxroth technology hydraulic cylinder and joint;
--International Brand Sealing elements;
--Strengthed Checked platform.

4. We have different brands of truck chassis to make the wrecker tow truck, Foton, SINOTRUK HOWO, Dongfeng, FAW, ISUZU, JAC etc.

Product Specification

ITEM	UNIT	DESCRIPTION
Vehicle name		FOTON Aumark 3ton flatbed wrecker tow truck
Overall dimension	mm	5995×2300×2350
Flatbed dimension		4200×2300
Curb weight	kg	Appro×4100
Flatbed loading weight		Appro×3000
Carriage arm towing weight		Appro×2000
Wheel base	mm	3360
Front/Rear overhang		1095/1540
Approach/departure angle	°	22/12
Standard configuration	1) Flatbed weighing capacity 3 ton,widely used in transporting cars, vans, SUVs, mini vans.
	2) Hydraulic control flatbed extend and rollback.

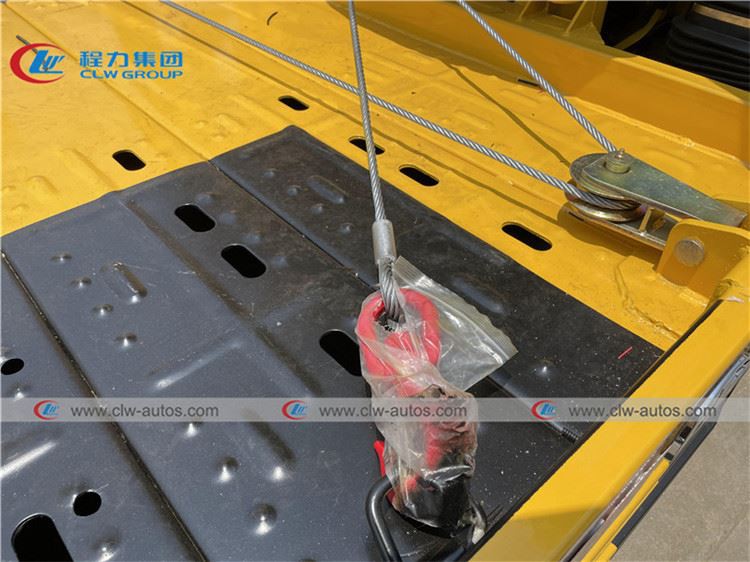

	3) A 4 ton winch, 25m steel rope.
	4) Hydraulic tail plate,thickness 8mm,length 1m.
	5) Rear carriage arm towing capacity 2 ton, hydraulic control lifting.
	6) Rear tail lights LED,both sides electronic lights.
	7) 2pcs auxiliary wheels
	8) 4pcs bunding belt
Chassis Parameter
Cabin	Single row cabin,air conditioner, cabin roof warning light, 2 passengers
Drive form	4×2
Engine	Brand: CUMMINS Model: ISF2.8s5129T, 129hp Type: diesel, 4 cylinder, turbocharged, intercooled. Displacement: 2780ml Emission standard: Euro 5
Transmission gearbox	5-speed, manual
Tire model	7.00R16
No.of tires	6 pcs
