Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of africa ambulance in China. If you're going to buy high quality africa ambulance, welcome to get more information from our factory. For price consultation, contact us.

FOTON Ambulance To West Africa

We are professional special vehicle manufacturer in China since 2004

Brand New Truck Factory Price For Sale

Product Descriptions

The Foton View G7 Short Wheelbase Ambulance (Patient Transport Model) is modified based on Foton Motor's View G7 short-wheelbase model. Equipped with a 2.4L gasoline 4K22 engine, the vehicle delivers powerful performance, high efficiency, and excellent fuel economy. It features a comprehensive active and passive safety system, with a top speed of 150 km/h. Ideal for hospitals and emergency centers in Africa, particularly for patient transfers and urban emergency rescue operations.

Advanced Safety Technology:

Bosch 9.1 ABS + EBD for superior braking stability.
Guided front crumple zone design to absorb impact energy.
High-strength steel body with reinforced anti-collision beams for maximum protection.
Low center of gravity for enhanced stability and driver safety.
Optimized Medical Compartment Spacious and ergonomic cabin layout for efficient patient care.
Advanced medical conversion technology (meeting China industry-leading standards).

Medical Cabin Rescue Facilities

Automatic Loading Stretcher: All-aluminum alloy frame: Lightweight yet high-strength design. Load capacity: 181 kg.
IV Hook: Two infusion bottle holders mounted on the cabin ceiling. Load capacity: 2.5 kg each.
Medical Oxygen Control System: Includes two 10L lightweight steel oxygen cylinders (nominal pressure: 15 MPa) for easy loading/replacement. Features: Single-gauge pressure reducing valve. Oxygen terminal + ventilator interface. Integrated oxygen inhaler with humidifier bottle for comfortable humidified oxygen delivery.

Medical Electrical System

Lighting Two stable 12V interior LED lights.
Inverter 500W vehicle-mounted sine wave inverter. Stable frequency/voltage/power output. Equipped with a 220V/12V multi-purpose socket (supports 2-pin/3-pin plugs + AC/DC dual-use).
Disinfection Lamp One smart UV sterilization lamp with timer for cabin hygiene.

Product Photos

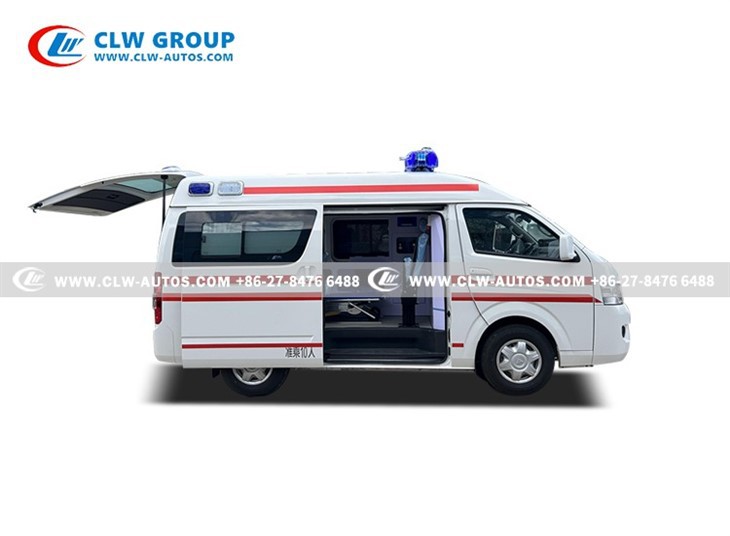

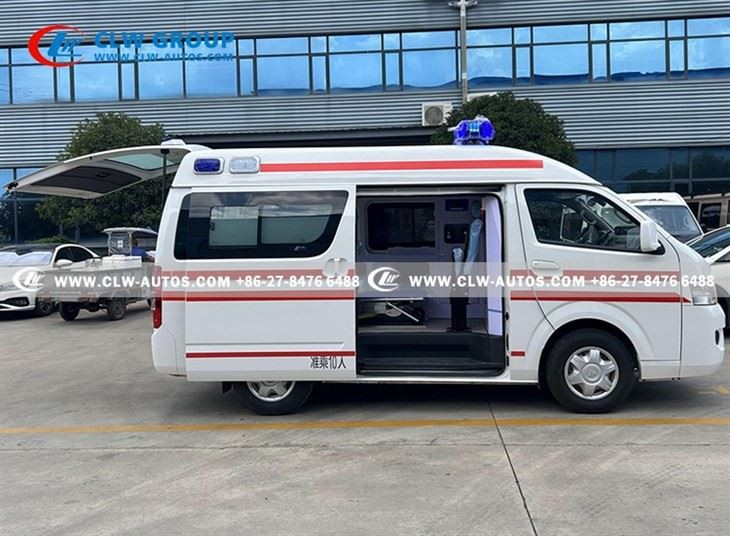

Sliding door on the right side of the vehicle

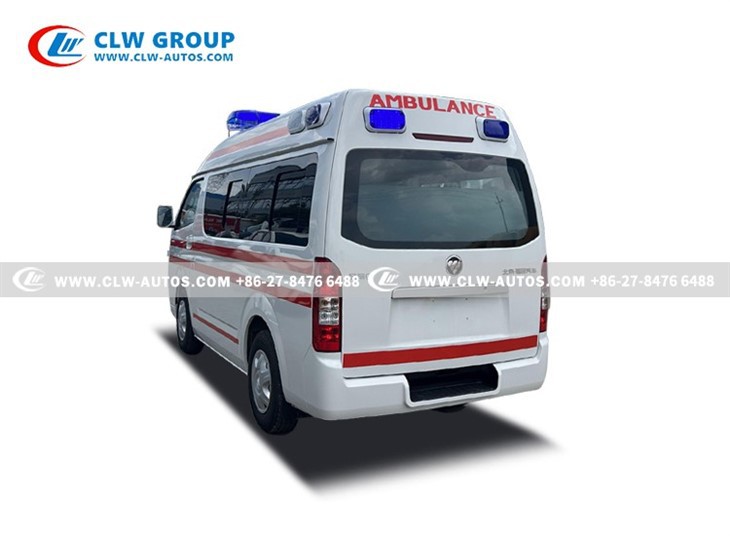

The rear door adopts an upward-lifting tailgate structure

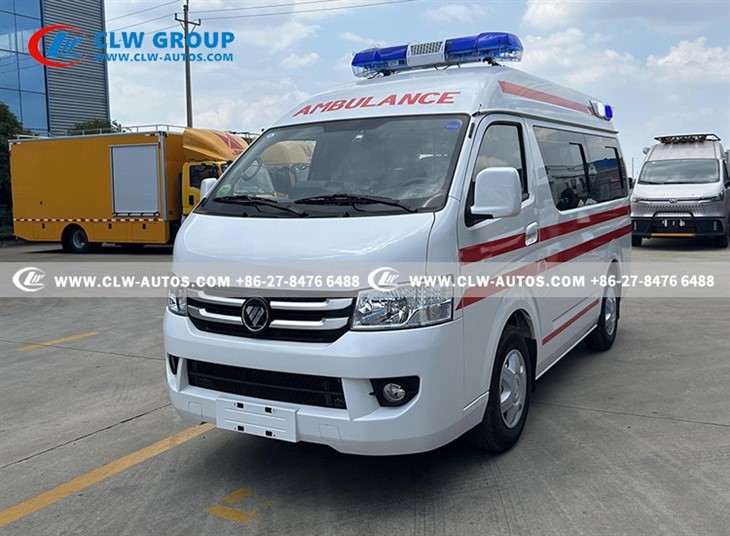

Front top I-shaped warning light, horn power 100W

Blue flashing lights are installed on both sides and the tail to provide effective warning

Quick contact us

Contact sales manager: Juniper Gong

Mobile:+86-13925703918 (Whatsapp/Wechat)

Email: juniper@clw-autos.com

Technical Parameters

Chassis model	FOTON View
Maximum total mass	2860 kg
Number of crew members	6 people (including stretcher passengers)
Vehicle dimensions	4840×1695×2440mm (LxWxH)
Medical cabin dimensions	2800×1540×1580mm (LxWxH)
Approach/departure angle	15 °/ 16.5 °
Maximum speed	150 km /h
Engine model	Mitsubishi 4K22D4M,Euro VI, 2.378 L/118 KW
Fuel tank capacity	65 L
Tire	195R15C,4 + 1pcs
Minimum ground clearance	165 mm
Gearbox	Manual 5 forward gears, 1 reverse gear
Suspension type	Double wishbone torsion bar spring independent suspension/leaf spring non-independent suspension
Power type	Hydraulic power steering
Braking type	Front disc and rear drum , hydraulic brake
Body structure	The right side of the vehicle features a sliding door, and the rear end features a wide, lift-up tailgate, facilitating easy access for medical personnel, patients, and stretchers.
Vehicle appearance	The vehicle is entirely white with customized decoration. The vibrant colors are eye-catching and provide effective warnings. The medical cabin glass is covered with frosted glass paper 2/3 of the way to effectively protect patient privacy.
Warning lights	The front top I-shaped warning light is aesthetically pleasing and stylish. The speaker has a 100W power rating. Blue flashing lights are installed on both sides and the rear for effective warning.
Rescue system	Automatic loading stretcher: All-aluminum alloy frame, Comfortable soft stretcher mattress, light weight and high strength, load-bearing 181kg, convenient, stable and easy to get on and off. There are two hanging infusion bottle holders on the top of the medical cabin, which can bear the weight. 2.5kg, beautiful appearance, reliable quality
Medical oxygen control system	Equipped with an oxygen cylinder cabinet, which includes two 10L Steel oxygen cylinders, nominal pressure 15MPA (weight Light, easy to load and unload ), and equipped with a single-meter pressure reducing valve, an oxygen terminal, A ventilator interface and an integrated oxygen inhaler. The patient can control the oxygen output when breathing oxygen, and is equipped with a humidifier bottle to provide patients with Humidified oxygen is more conducive to patients' oxygen inhalation.
Lighting	2 x 12V The cabin lighting has a stable light source and a large illumination area.
Inverter	Car-mounted sine wave 500W, stable frequency, stable voltage, The output power is stable, providing power for the equipment on board. Electricity; 1 Group 220V/12V Multifunctional socket (can be connected to two/three holes, AC/DC dual purpose).
Disinfection lamp	Intelligent and timed ultraviolet disinfection ensures cabin hygiene and safety.
Air conditioning/heating	Air conditioning and heating devices, with independent cooling and heating controls in the rescue cabin.
Middle partition wall assembly	Partition wall is installed between the cab and the medical cabin to separate.Observation window on the dividing wall between the front and rear carriages for easy observation and communication.
Medical cabin interior	A folding reverse seat behind the rear cabin partition, a single seat on the right , a set of long seat cabinets covered with sky blue imitation leather, equipped with a safety hammer in case of emergency.
Cabinet assembly	The cabinet has a large storage space and can be used to place medical equipment on the countertop.
Medical Flooring	Adopt new light floor decoration materials (light weight, environmental protection, can be reused ), the floor is waterproof, Anti-corrosion, Wear-resistant and antibacterial, it is easy for medical staff to clean and organize .
