Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of iveco 4x4 mobile clinic in China. If you're going to buy high quality iveco 4x4 mobile clinic, welcome to get more information from our factory. For price consultation, contact us.

IVECO 4X4 Mobile clinic Ambulance

We Are 100% Straight Factory Manufacturer For Ambulance Since 2004

Products Description

The IVECO mobile medical unit(MMU) ambulance is a versatile and widely used emergency medical vehicle, also called the Ambulance Bus, Medical van, Rescue vehicle, Field hospital vehicle, Mobile clinic, Emergency medical vehicle, Disaster response vehicle, Mobile treatment unit, Medical RV,or COVID-19 mobile unit, Mass casualty unit, mobile ICU( Intensive care unit), Combat ambulance and Tactical medical vehicle, etc.

Features:

Iveco 4×4 ambulance

F1CE8481M diesel engine

four-wheel-drive off-road chassis

Full time four-wheel drive

electronically controlled shifting

Durability

Built with high-strength boron steel panels and specialized off-road axles,reinforced by a 180mm high-section frame for superior torsional resistance and load capacity.

Safety and Stability

Low center of gravity ensures safe, stable operation even on uneven terrain.

Medical Compartment

Features a rust-proof aluminum anti-torsion shelter with optimized space design for smooth medical operations in extreme conditions.

Leading Modification Tech

Equipped with cutting-edge medical vehicle customization tailored for high-risk rescue missions.

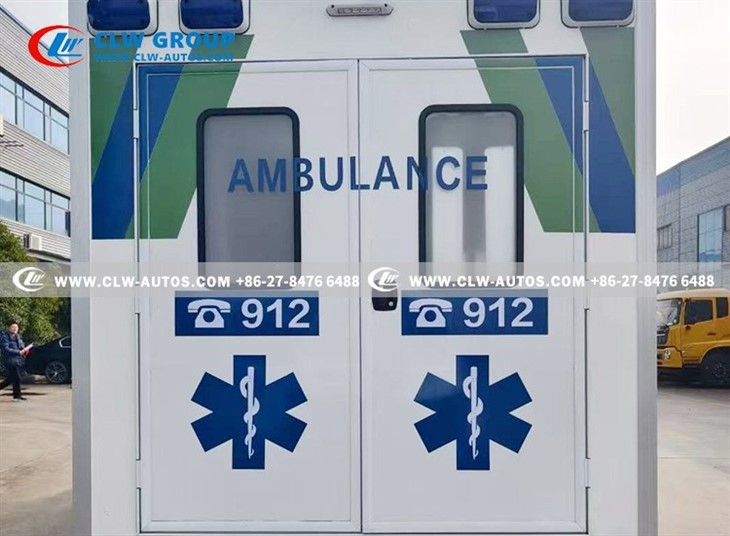

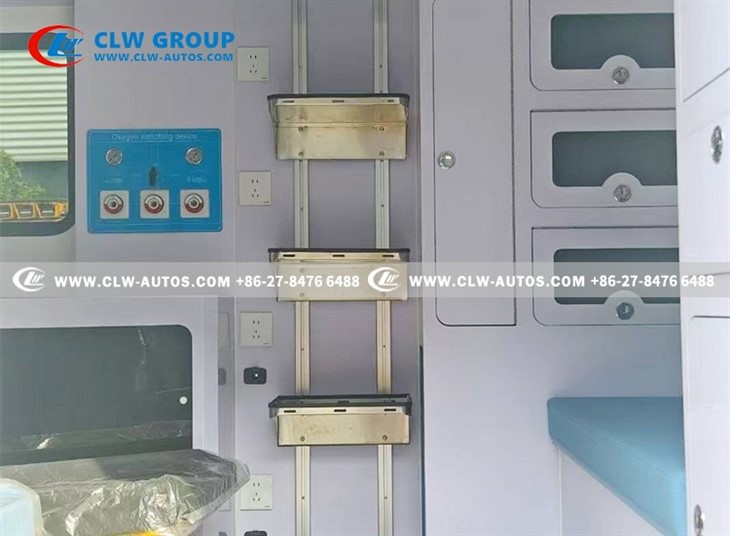

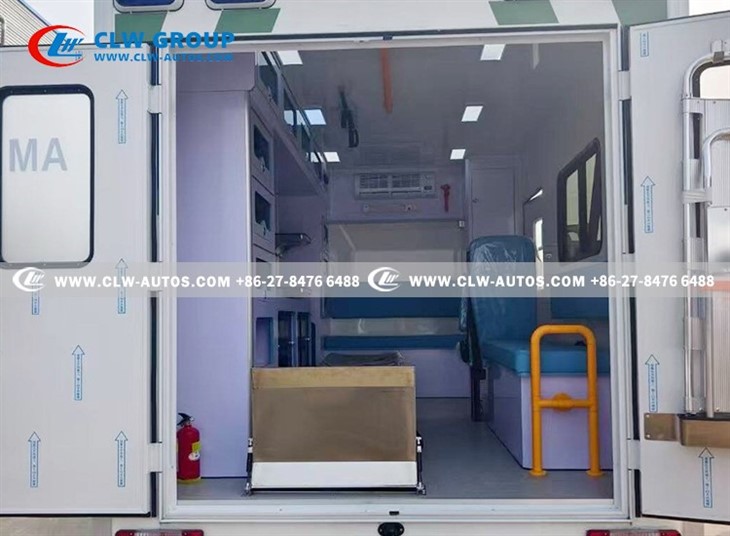

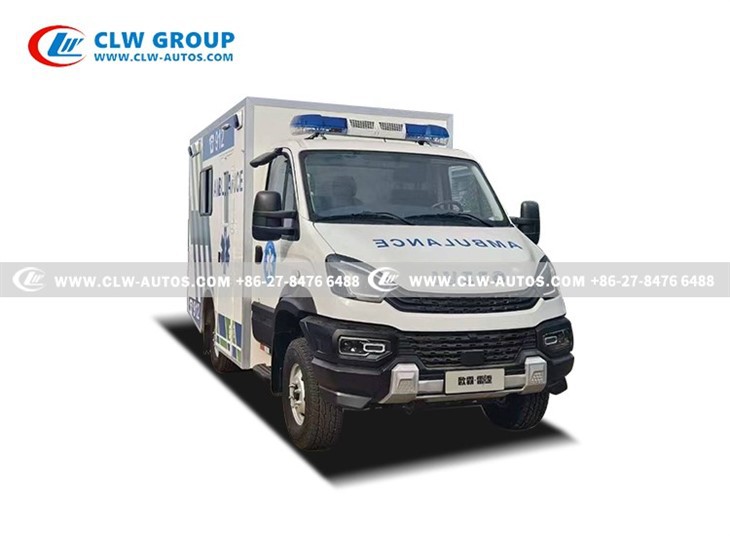

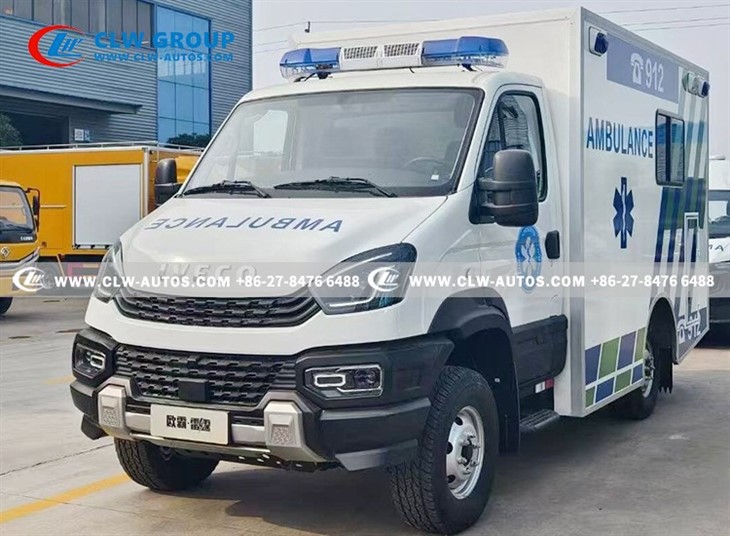

Reference pictures

Products Specification

Technical Specification
Model	CL5041XJH6AYS
Driving type	4X4
Passengers	7 people (including patients)
Dimension	566521002870mm
Wheelbase	3365mm
Front/rear overhang	940/1645mm
Front/rear truck width	1670/1670mm
Approach/departure angle	37/17°
Gross weight	4490kg
Curb weight	3950kg
Oil tank volume	110L
Front /rear axle loading	1860/2630kg
Rated power	132kw/180hp
Displacement	2798ml
Maximum torque	430/1400-2800 N.m/r/min
Speed limit	140km/h
Minimum stable speed	2.5km/h
Maximum gradability	60°
Bauchfreiheit	215mm
Minimum turning diameter	14m
Ramp angle	20°
Trench width	650mm
Vertical obstacle height	280mm
Fording depth	850mm
Engine model	F1CE8481M
Fuel type	Diesel
Emission standard	National Ⅵ
Transmission	Left handing driving, Manual , 6 forward gear
Transfer case	Full time four-wheel drive, electronically controlled shifting, chain drive
Tires	265/75R16LT 10PR

Device Specification
Medical alert appearance	Truck body structure	Steel reinforced frame construction
	Truck body structure	The swing door on the right side, double-opening tailgate structure at the rear end
	Appearance	All white, Red Cross logo at sides and rear door, with colorful strips all round
	Appearance	Medical bay glass with black privacy film
	Warning lamps	I-shaped integrated LED alarm light assembly
		Siren horn power 100W, wire control controller
		Blue flash lights installed on both sides and at the rear
Medical cabin rescue facilities	Rescue system	High strength aluminum alloy automatic on-board stretcher, with adjustable PVC waterproof foam mattress
		Thickened oval leg tubes, assistant upper wheels
		High quality stainless steel stretcher platform
		1 set of aluminum alloy rail-type infusion stands, with 2 folding hooks
	Medical oxygen control system	Two 10L steel oxygen cylinders, with nominal pressure of 15MPA
		Two oxygen terminals
		A ventilator interface and a wall oxygen inhaler
		Equipped with a humidifying bottle to provide moist oxygen
Medical electrical system	Lamps	12V cabin lights *6
	Lamps	Infusion spotlights *2
	Inverter	1000W vehicle-mounted sine wave
		220V multifunctional socket *3
		12V multifunctional socket *1
	Sterilizing lamp	Intelligent timed ultraviolet disinfection *1
Air circulation system	Air conditioning /heating	1 set of rear air conditioning and rear heater device, independent control of cooling and heating
Air circulation system	Ventilator	1 set of DC12V multifunctional ventilation fan with suction and exhaust
Medical cabinet interior	Box body	The box is made of aluminum wit torsion tension resistance
		External middle door adopts flat push door, 180°rear double opening door
		Electroplated medal parts and integrated structural frame doors and components
	Cabinet	One set of new environmental protection materials made of long strip equipment cabinet
		One set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2*10L oxygen cylinders
		One set of sliding door cage cabinet made of new environmentally friendly materials
		One set of long seat cabinets, including seat cushion, bracket and two point seat-belts
	Decoration	Medical leather flooring
Auxiliary devices	Walkie-talkie	One hands-free microphone installed in the cockpit and one in the medical compartment
	Fire extinguisher	1kg dry powder fire extinguisher
	Waste pail	1 pedal-style dirt bucket with cover
	Safety handrail	A long handrail installed on the top
	Emergency hammer	One installed in the cabin

Optional devices
Negative pressure purification device	0.15M2 maximum air flow rate; 0.8m/s filtration rate; 0.3 microns particle size, reaching more than 99.995%(standard 99.7%). The relative pressure in the cabin is -30Pa to -10Pa.
Traffic assistance system	Dashcam and reversing video
Stretcher	Scoop stretcher
Stair stretcher	Loading capacity: 160kg

Why do you choose us?

We also provide different brands of Mobile Medical Unit Ambulance, such as Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.

Our advantages:

The medical compartment features a rust-proof aluminum torsion-resistant cabin designed for spacious interiors and optimized workflow, ensuring reliable operation in harsh terrains and disaster zones.
Leveraging cutting-edge medical vehicle technology, the Iveco 4×4 Ambulance excels in emergency scenarios, offering critical care mobility for high-risk medical rescues.
Ideal for off-road emergencies, disaster response, and remote-area medical support, this vehicle combines durability, safety, and advanced engineering to meet the demands of life-critical missions.
Equipped with the European chassis technology, the mobile clinic is rugged, reliable and engineered for heavy-duty performance in harsh enviroments.
Our safety equipment includes features like ABS, airbags and reinforced cabin structures to protect both medical staff and patients during transit.
The climate control device adopts heating and air conditioning systems to maintain a comfortable environment for patients and staff.
