Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of philippines compressed garbage truck 20cbm in China. If you're going to buy high quality philippines compressed garbage truck 20cbm, welcome to get more information from our factory. For price consultation, contact us.
Philippines Compressed Garbage Truck 20CBM/20 M3
Philippines design rear loader garbage truck/compactor waste truck/refuse truck is with ISUZU 10-wheel VC46/VC61/GIGA truck chassis and ISUZU 350 HP diesel engine.
whatsapp for quick inquiry +86 135 4506 4324
Why do you choose ISUZU GIGA garbage compactor truck?
Strong axle with higher loading capacity
Low fuel consumption
large horsepower
Easy to get spare parts
Wider sleeper
Body capacity 18/20/22CBM
High strength Protector
high strength steel garbage box
side plate is whole plate bending molding,without welding to ensure long service life.
Germany Siemens CAN BUS System(more convenient operation)
ISO Certified Hydraulic Cylinders
Patented Design with Balance Valve for safety
CE Standard Hydraulic Oil Pipeline
|
TECHNICAL SPECIFICATION |
||
|
Main specification |
Chassis brand |
ISUZU VC46/GIGA model |
|
Chassis model |
QL1250 |
|
|
Overall dimension(L*W*H) |
10050×2496×3400mm |
|
|
Compressed tank |
20m3 22m3 |
|
|
Rated Loading capacity |
20,000 kg |
|
|
Gross weight |
25,000 kg |
|
|
Chassis |
Drive modle |
6x4 left hand drive |
|
Cabin |
VC46 ,single row cab, allowable 3 passengers,air conditioner, USB radio interface, car interior |
|
|
Front axle |
7ton loading capacity |
|
|
Rear axle |
18ton loading capacity/ 2 axles |
|
|
Wheel Base |
5100mm+1300mm |
|
|
Front/rear suspension |
1032/2138mm |
|
|
Approach/departure angle |
24/12(°) |
|
|
Transmission |
FAST, 9 gears frowards and 2 reverse. |
|
|
Tyre size & number |
11.00R20. with one spare tyre |
|
|
Max speed |
100km/h |
|
|
Engine |
Model |
6UZ1-TCG40 |
|
Engine Type |
6 cylinders, Diesel,Vertical in-line, water-cooled, |
|
|
Horse power |
350HP |
|
|
Displacement |
9,839ml |
|
|
Emission |
Euro 4 |
|
|
Compactor Body |
|
|
Tanker body material |
Quality high tensile Q345 carbon steel |
|
Shape |
rectangular box, arc-shaped rear |
|
Thickness |
Side 5mm, Bottom 6mm |
|
Garbage Container Size |
20 CBM |
|
Waste Container |
|
|
Waste container size |
4 m3 |
|
Waste container material |
High quality carbon steel |
|
Thickness |
Side 3mm Bottom 4mm |

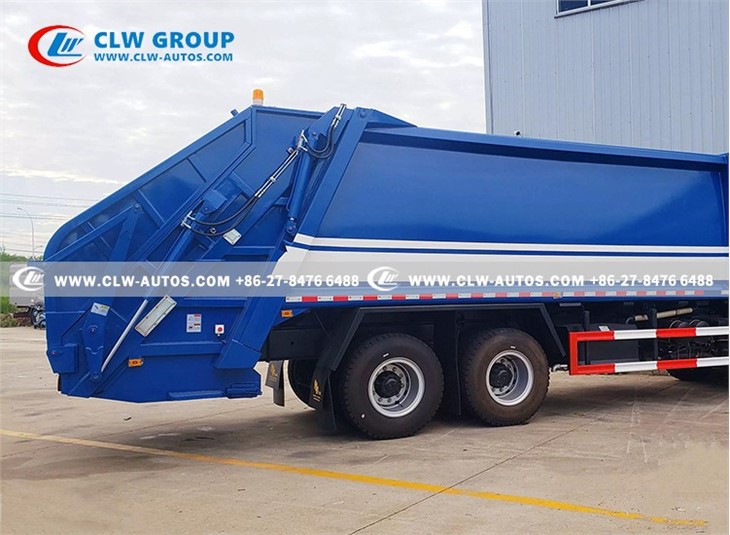

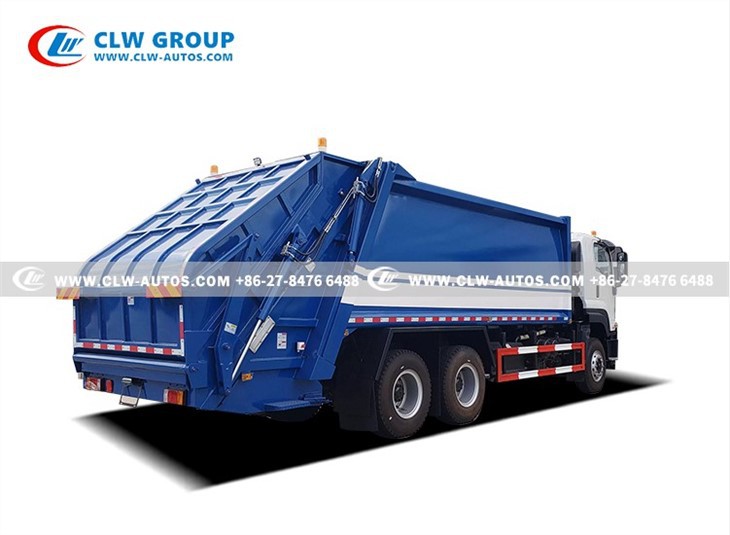

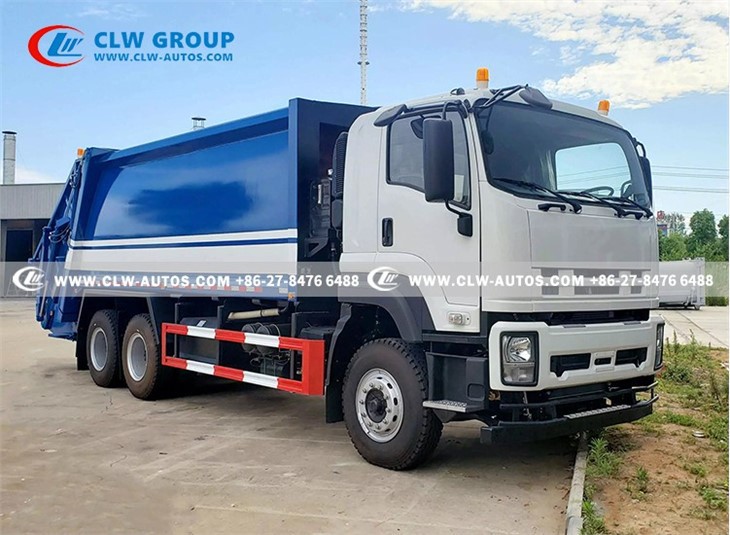

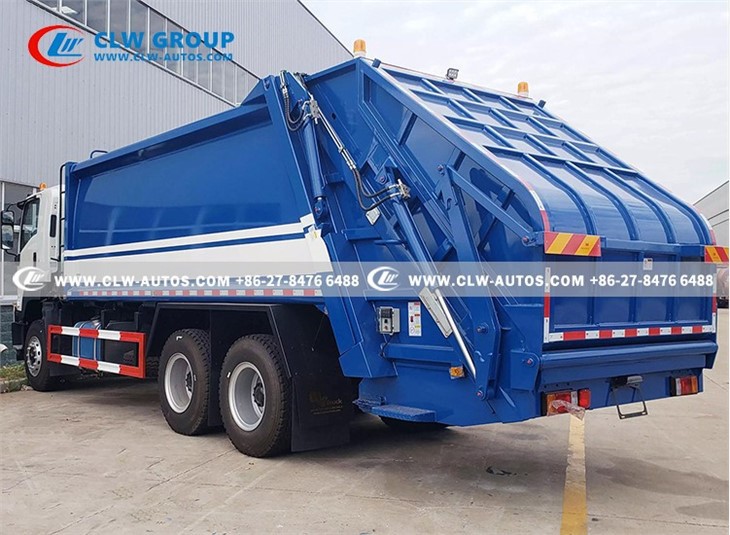

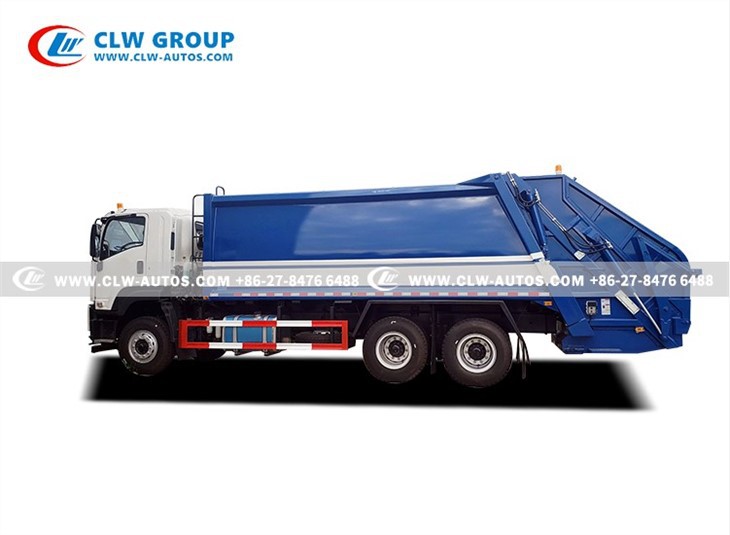

ISUZU GIGA Garbage Compactor Truck 20 cbm
ISUZU 350HP Garbage Compactor Truck 20m3
Strong garbage box with beautiful painting of ISUZU 20cbm
Except for angola design garbage truck with large waste container,we also supply customized waste collection method and design as follows,
Flip type with 120L/240L/660L/330L garbage bucket
Rear Triangle bucket,
Rear swing arm system.
Sealing large waste collection container
Pneumatic sealing cover
