Angola Garbage Compactor Truck 20CBM
Angola design garbage truck/compactor waste truck/refuse vehicle is different from chinese standard design compactor garbage truck. Except for normal rear loader garbage truck design,angola garbage compactor truck is equipped with extra winch or hydraulic lifting system on top of garbage box for lifting up waste collection box in boat-shape.
whatsapp for quick inquiry +86 135 4506 4324Why do you choose sinotruk howo 371HP garbage compactor truck?
Strong axle with higher loading capacity
Low fuel consumption
large horsepower,suitable for African road
Easy to get spare parts in Africa
Wider sleeper
Body capacity 18/20/22CBM
High strength Protector
high strength steel garbage box
side plate is whole plate bending molding,without welding to ensure long service life.
Germany Siemens CAN BUS System(more convenient operation)
ISO Certified Hydraulic Cylinders
Patented Design with Balance Valve for safety
CE Standard Hydraulic Oil Pipeline
Specification of Truck Chassis | ||
Driving Model | 6X4/10-wheel/Left hand drive | |
Cab | l HOWO 76 cabin l Standard for 1 driver and 2 passengers l With one sleeper l Safety belts l Rear view mirror on both sides l Front window equipped with wind screen wipers l Forward control type l All welded steel cab of tilt type, Mechanical cab tilting l Front and rear mechanical cab suspension l Adjustable driver’s seat l Air conditioning system. l Entry steps are made from non-slip metal | |
Wheel Base | 4325+1350mm | |
Rated Loading Weight | 10,000 kg | |
Curb Weight | 15000 kg | |
Axle Loading (front/rear) | 7,000/16,000X2 kg | |
External Dimensions (L x W x H) | 10308*2500*3360mm | |
Overhang (front/rear) | 1500/1945mm | |
Wheel track (front/rear) | 2022/1830 mm | |
Approach/Departure angle | 16°/ 23° | |
Max. driving speed | 95 km/h | |
Engine | Model | WD615.69 |
Type | l 6-cylinders in a line l Water cooled l turbocharged l after cooled l cold start. | |
Horse Power | 336 HP | |
Max output power | 247 KW | |
Max. Torque | 1350 N.m | |
Emission standard | Euro II | |
Displacement | 9726ml | |
Fuel Box | Capacity | 400 liters |
Type | Steel fuel tank,with lockable cap | |
Mounted on left hand drive chassis | ||
The fuel filter system shall be adequate to cope with the climatic conditions of Africa | ||
Gearbox | HW19710,10 forward gears & 2 reverse | |
Clutch | Reinforced diaphragm clutch | |
Tire | 12R22.5, 10 pieces with 1 spare tire. | |
Compactor Body | |
Tanker body material | Quality high tensile Q345 carbon steel |
Shape | rectangular box, arc-shaped rear |
Thickness | Side 5mm, Bottom 6mm |
Garbage Container Size | 20 CBM |
Waste Container | |
Waste container size | 4 m3 |
Waste container material | High quality carbon steel |
Thickness | Side 3mm Bottom 4mm |
Lift Up Cylinder | |
Located at top of garbage truck body | |
Brand | Huali brand |
Oil Cylinder Diameter | 110 mm |
Steel Rope Diameter | 10 mm |

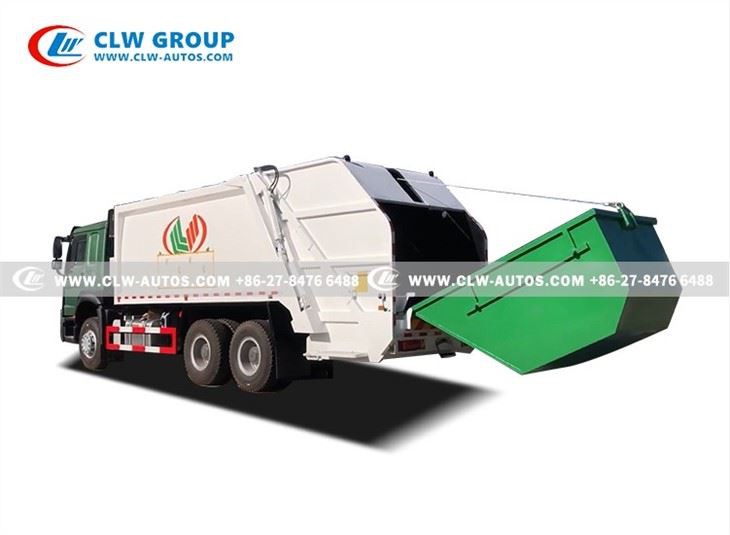

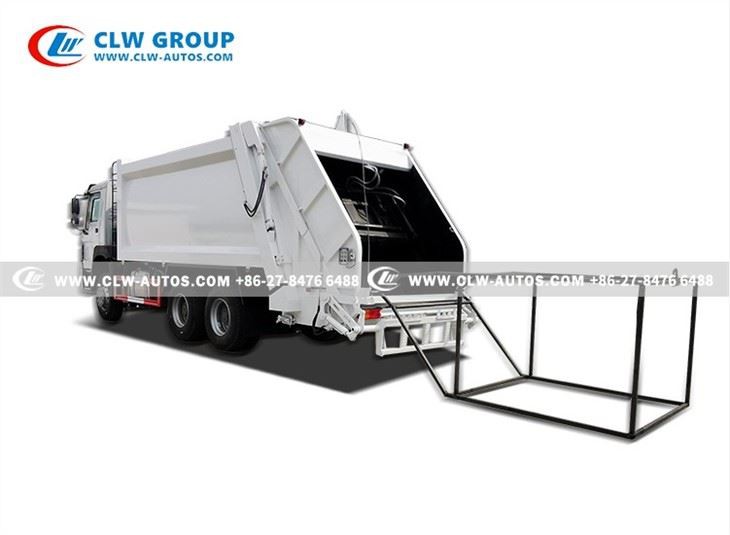

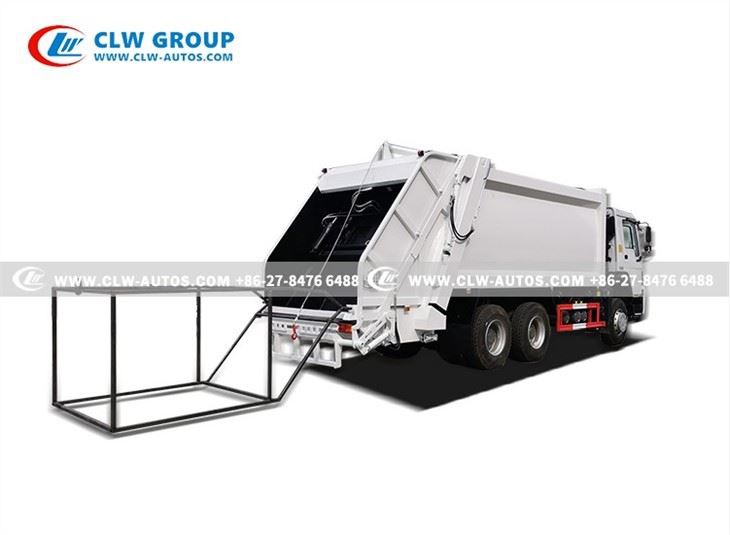

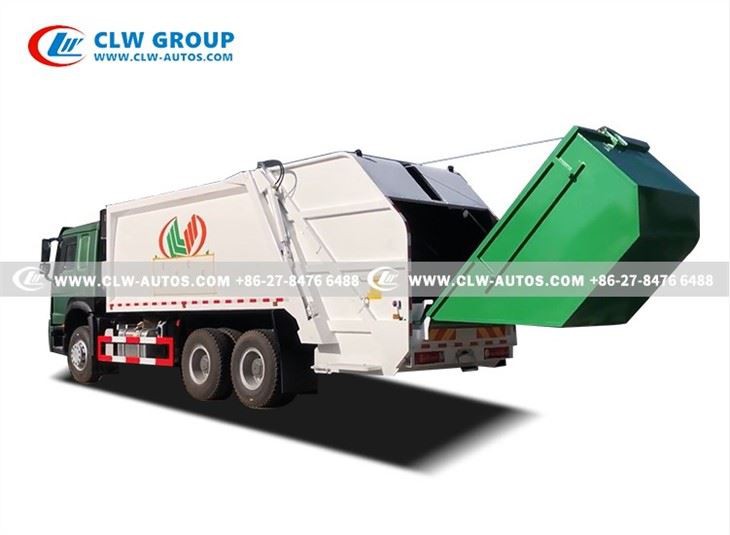

Angola market design Sinotruk Howo Garbage Compactor Truck 20 cbm
Sinotruk Howo 371HP Garbage Compactor Truck 20m3
Sinotruk Howo 371HP Garbage Compactor Truck 20m3 for Angola with rear 5 tons winch
Except for angola design garbage truck with large waste container,we also supply customized waste collection method and design as follows,
Flip type with 120L/240L/660L/330L garbage bucket
Rear Triangle bucket,
Rear swing arm system.
Sealing large waste collection container
Pneumatic sealing cover
