Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of road construction asphalt distributor (6m³) in China. If you're going to buy high quality road construction asphalt distributor (6m³), welcome to get more information from our factory. For price consultation, contact us.

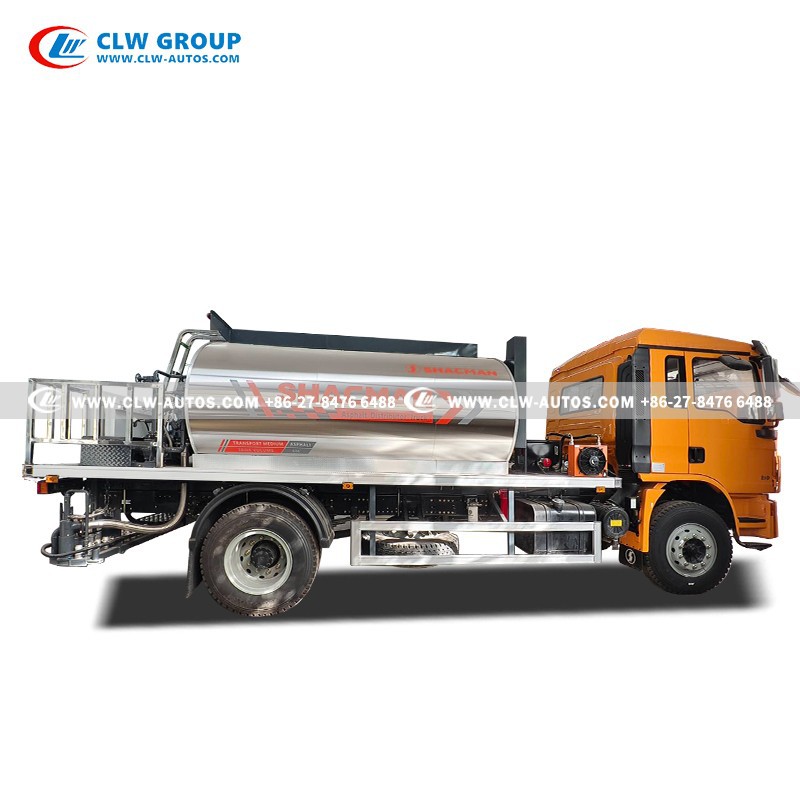

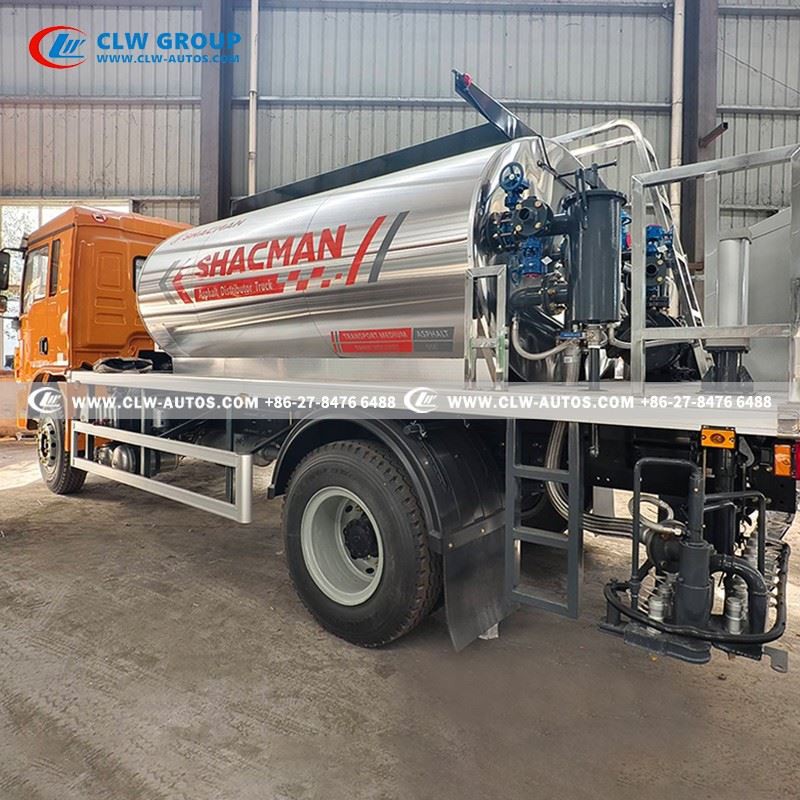

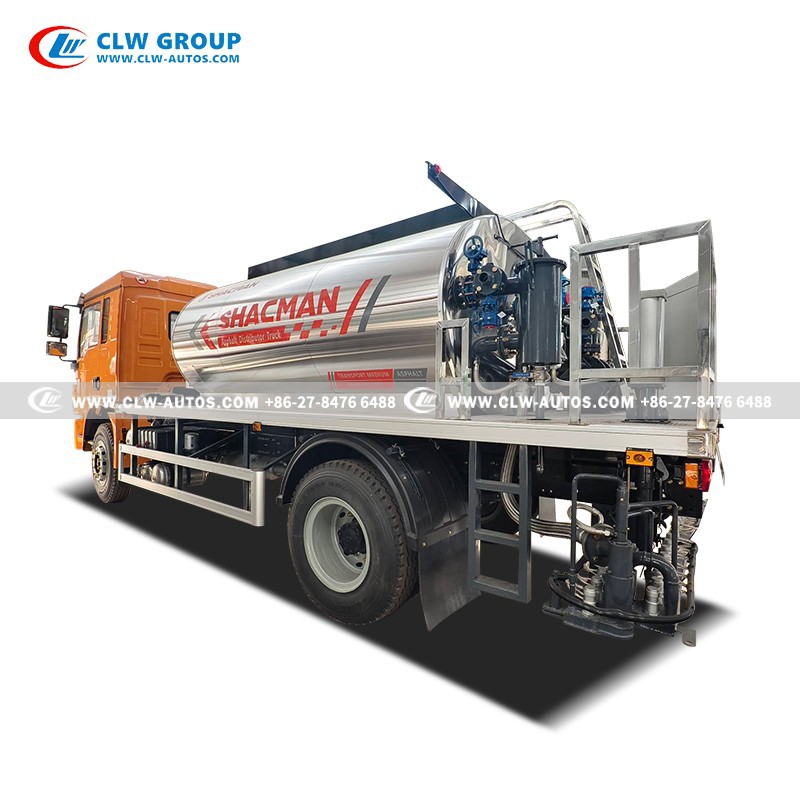

The 6-cubic-meter fully intelligent asphalt distributor is an automated asphalt spraying construction product. The product uses a programmable controller to control the entire asphalt spraying process, ensuring high-precision spraying with the asphalt spraying volume unaffected by vehicle speed changes. It is mainly used in the construction and maintenance of highways, roads of all grades, and municipal roads, and is suitable for spraying various types of asphalt, such as prime coats, bonding coats, and top and bottom seal coats, on different road surfaces.
Unique Leading Technology
Infineon Chip-Based Intelligent Integrated Control Unit
Integrated Folding Joint of Spray Beam
Full-Circuit Heating
Function-Controlled Spraying Technology
Intermittent Spraying
|
Truck chassis |
||||
|
Chassis |
Brand |
SHACMAN |
||
|
Model |
F3000 |
|||
|
Gross Vehicle Weight (GVW) |
18000KG |
|||
|
Curb weight(kg) |
8750kg |
|||
|
Wheelbase(mm) |
4000mm |
|||
|
Dimensions(mm) |
5995*2040*3000 mm |
|||
|
Front/Rear axle loading(kg) |
4800/10000kg |
|||
|
Front/Rear overhang(mm) |
1340/2300mm |
|||
|
Wheel track (front/rear) (mm) |
1927/1860mm |
|||
|
Max. driving speed(km/h) |
100 km/h |
|||
|
Clutch |
Reinforced diaphragm clutch |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|||
|
Tire |
Quantity |
6pcs with one spare tire |
||
|
Specifications |
10.00R20 |
|||
|
Transmission |
Fast 8JS85T Manual type, 8 Forwards and 2 reverse |
|||
|
Cab |
L3000 cabin Left hand drive, Air conditioning, electric window regulator, manual tilt and turn, central locking (with remote control) |
|||
|
Engine |
Model |
WP6.210E32 |
||
|
Fuel type |
Diesel |
|||
|
Displacement(ml) |
6230 ml |
|||
|
Power(kw) |
155kw |
|||
|
Horsepower(HP) |
210 HP |
|||
|
Cylinder number |
6 cylinders |
|||
|
Emission standard |
Euro III |
|||
|
Maximum torque |
750N·m |
|||
|
Technical Parameter |
Value / Specification |
|
Maximum Spraying Width |
4.5 m |
|
Spraying Accuracy |
±1.3% |
|
Asphalt Spraying Rate |
0.1–3.2 L/m² |
|
Asphalt Tank Capacity |
6 m³ |
|
Working Speed |
2–16 km/h |
|
Overall Dimensions |
7900 L × 2500 W × 3440 H (mm) |
|
Power Take-off Method |
Gearbox PTO |
|
Intelligent Nozzles |
34 individually controlled intelligent nozzles |
On-board Accessories
|
System Name |
Component Name |
Brand / Note |
|
Power Take-off (PTO) |
Specialized |
|
|
Asphalt System |
Heating Asphalt Pump |
Specialized |
|
Heat Transfer Oil Pump |
Specialized |
|
|
Asphalt Tank Heating |
Burner |
Riello (Italy) |
|
Spray Bar Assembly |
Intelligent Nozzle |
Specialized |
|
Pneumatic System |
Lifting Cylinder |
Specialized |
|
Solenoid Valve |
Specialized |
|
|
Hydraulic System |
Hydraulic Pump |
Specialized |
|
Asphalt Pump Motor |
Specialized |
|
|
Heat Transfer Oil Pump |
Botou, Hebei |
|
|
Electronic Control System |
Controller Chip |
Infineon (Germany) |
|
Sensors |
- |
Omron (Japan) |
On-board Attachments
|
Item |
Quantity / Specification |
|
Wear-resistant Alloy Nozzle |
2 pcs |
|
Hand Spray Gun |
1 unit |
|
Hand Spray Gun Hose |
5 m Nylon or 10 m Steel Wire Hose |
|
Asphalt Suction/Discharge Hose |
6 m (1 piece) |
|
Sealing Ring |
Several |
|
On-board Tool Set |
1 set |

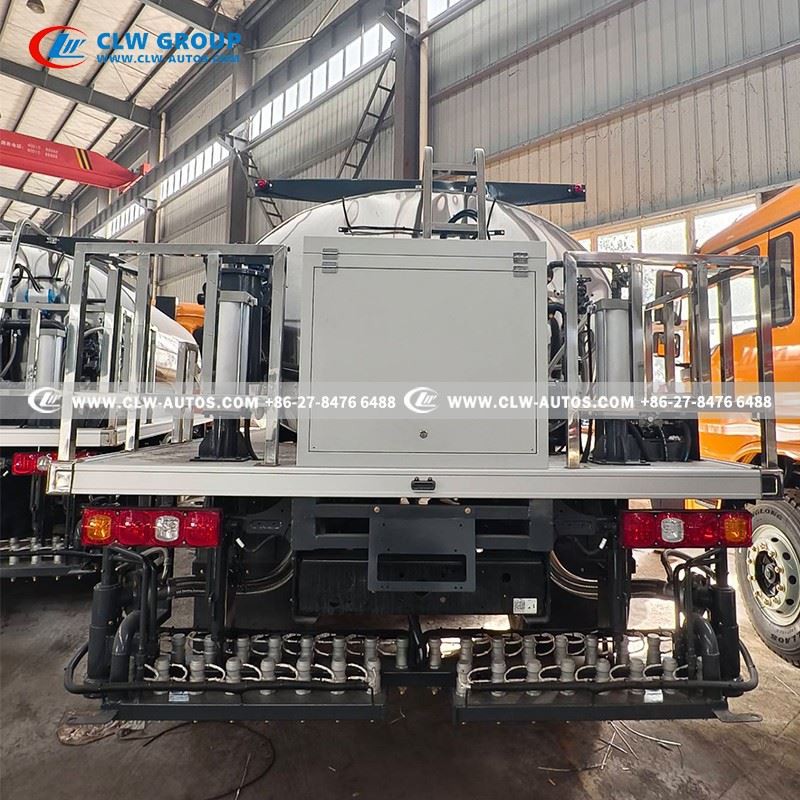

1. Maximum spray width of 4.5m, three-section folding spray beam;
The integrated folding joint effectively ensures the service life and sealing reliability of the heat transfer oil hose;
2. The three-section spray arm is controlled by one unit, enabling triple spraying or intermittent spraying; Gold Quality
Professionalism Creates Excellence, Dedication Wins Trust Page 6 of 9
3. The spray arm is equipped with a heat transfer oil heating pipe to ensure unobstructed flow of the spraying medium.
1. Heated asphalt pump, adaptable to various asphalt application methods; can pump external asphalt into the tank for self-priming, and can also pump out asphalt from the tank;
2. Optional manual spray gun for localized asphalt spraying on corners and special areas to meet special working conditions.
Chassis System

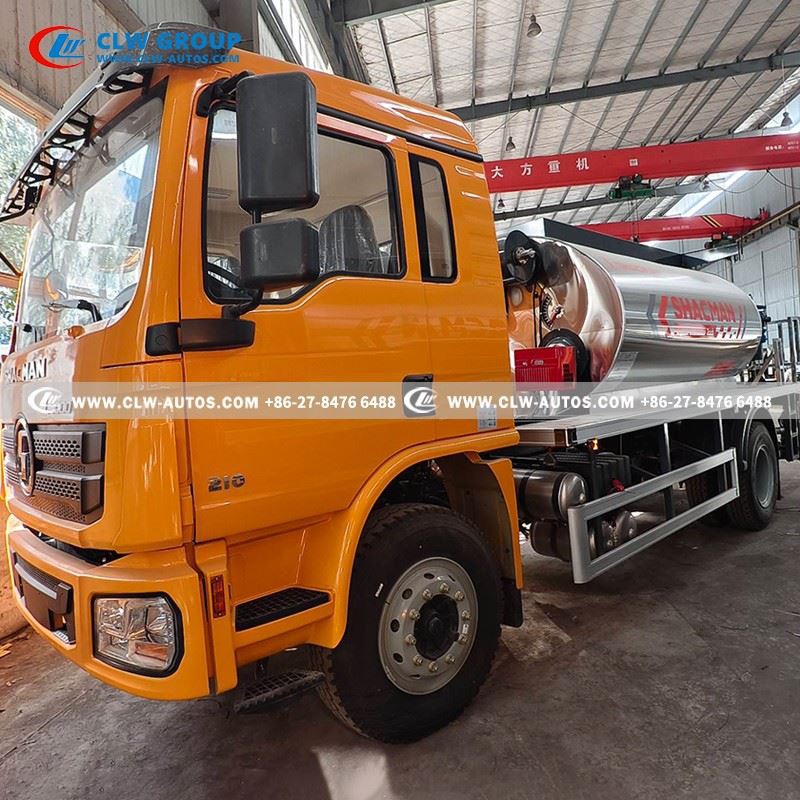

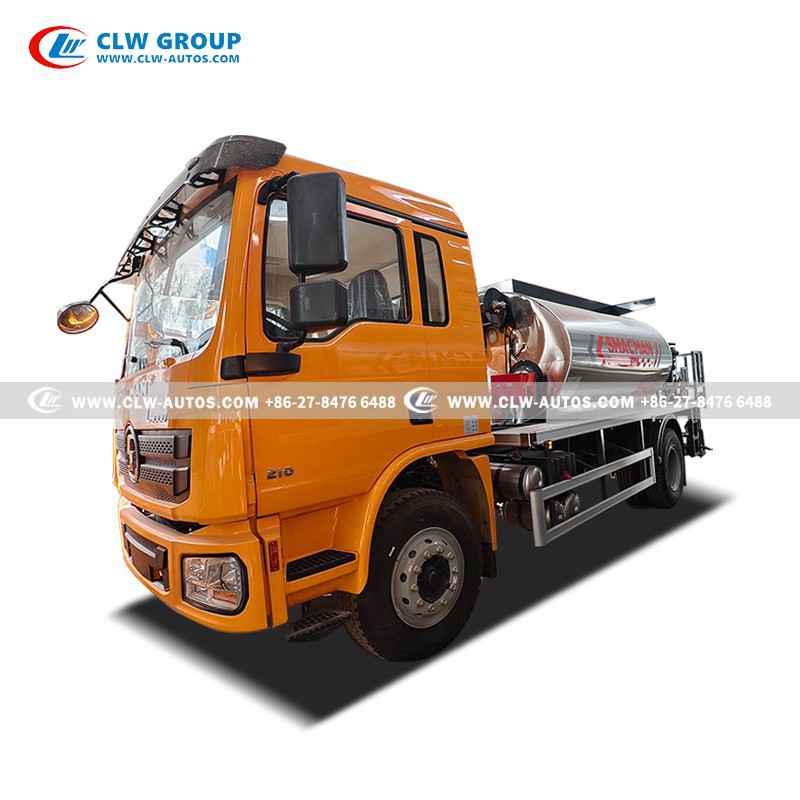

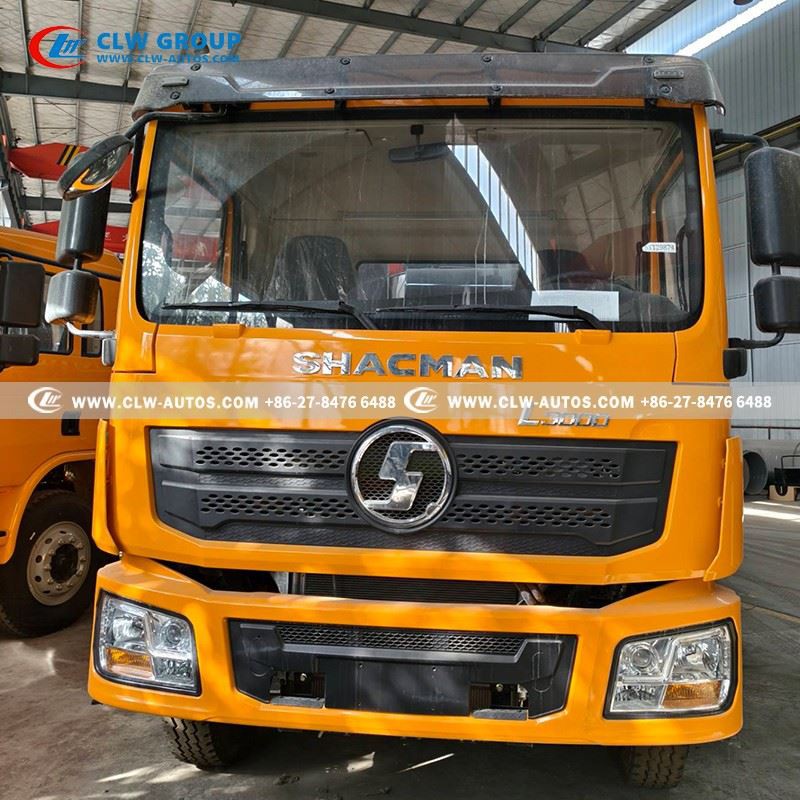

This vehicle uses the SHACMAN L3000 chassis, boasting excellent and robust load-bearing capacity, agile and easy handling, and a stylish and imposing appearance.
It provides safe, efficient, and reliable services to a wide range of road construction customers. The Weichai 210 horsepower engine delivers strong power, safety, reliability, and comfortable operation.
Heating System
1. Employs an Italian Riello diesel burner with a heating power of 140-200 kcal/h and fuel consumption of 6-15 L/h. It boasts high heating efficiency and features automatic ignition and temperature control.
2. The heat transfer oil heating system provides full heating for the tank, pipelines, and spraying devices. The burner operation is automatically controlled from the driver's cab based on the set asphalt and heat transfer oil temperature
Hydraulic and Pneumatic System
The hydraulic and pneumatic components are from internationally renowned brands, ensuring reliable quality and stable performance. The electro-hydraulic proportional closed-loop control system ensures that the asphalt spraying rate remains unaffected by vehicle speed changes within the set range. A system cooler is included to improve system stability.
Electrical Control System
The spraying is controlled from the cab, making it simple and convenient.
Equipped with both automatic and manual operating systems, the intelligent control system in the cab allows for easy setting of the asphalt spraying rate per square meter, with the system automatically adjusting relevant control parameters to ensure a constant spraying rate per unit area.
The vehicle's outer casing is made of stainless steel, which is corrosion-resistant, durable, and aesthetically pleasing.
