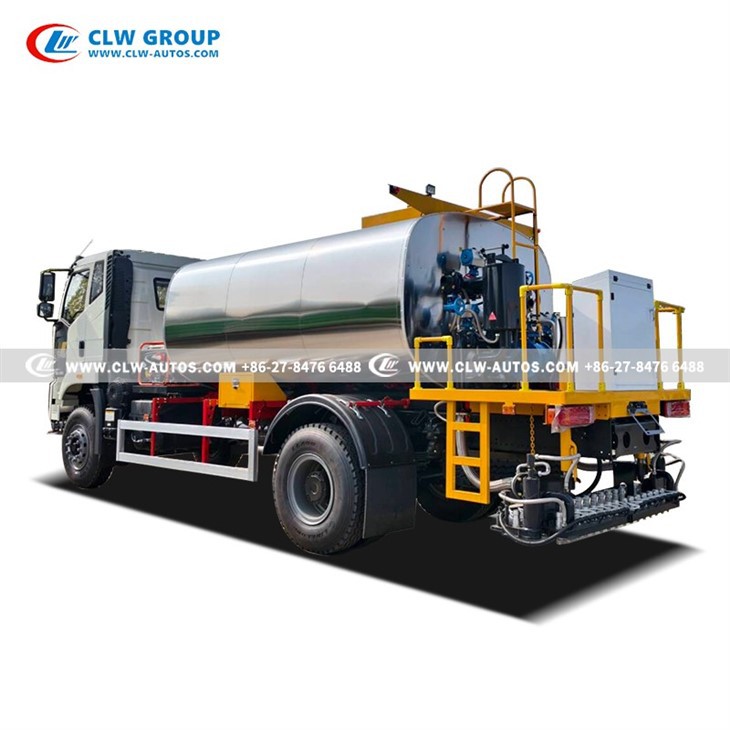

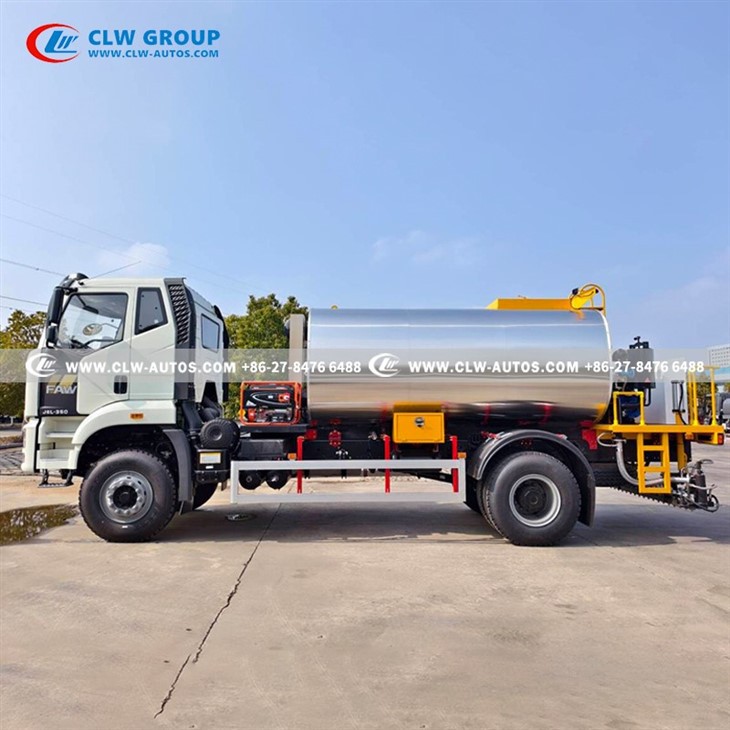

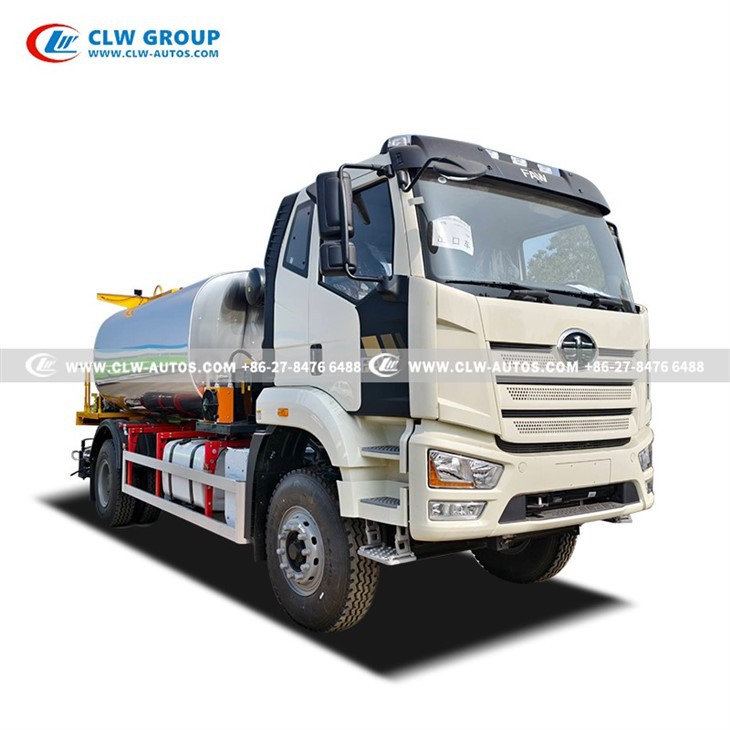

FAW J6L 350hp 10CBM Intelligent Asphalt Distributor Truck
Advanced intelligence meets rugged durability for flawless asphalt application
1.Intelligent Control for Ultimate Precision
The FAW J6L asphalt distributor features a fully intelligent automatic control system. Operators can manage spraying parameters via the in-cab display or the rear platform manual panel. The computer ensures a consistent spray rate regardless of vehicle speed, dramatically reducing material waste while guaranteeing a flawless, uniform application on every road surface.
2.Superior Heating for Versatile Materials
Equipped with a RIELLO burner and RY air-cooled thermal oil pump, the system delivers rapid heating and precise temperature control. This powerful combination efficiently handles various binders, including hot asphalt, emulsified asphalt, cutback asphalt, and high-viscosity modified asphalt, ensuring optimal fluidity and reliable performance even in demanding environments like Libya.
3.Robust Construction for Lasting Reliability
Built on a durable FAW J6L 350HP 4x2 chassis, this machine is engineered for hard work. The QGB high-viscosity insulated pump and 34 precision nozzles guarantee even distribution, while the high-pressure air and diesel cleaning system prevents asphalt solidification. These features significantly extend component life and reduce maintenance costs.
keywords
#IntelligentControl / #UniformSpraying / #MultiMaterialCompatibility / #RIELLOBurner / #HighViscosityPump / #DurableChassis / #EasyMaintenance / #LibyaExport
Product Name: Intelligent Asphalt Distributor Truck
Application: Road Maintenance
Cab: One row and half cabin, LHD, A/C
Wheelbase: 4800 mm
Engine: CA6DL2-35E3F
Horsepower: 350HP
Emission standard: Euro II
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 18000 kg
Curb weight: 6800 kg
Loading weight: 11200 kg
Front/Rear Axle loading: 6500kg /11500kg
Tires: 12.00R20, 6 pcs with one spare
Step1
Thermal Oil Circulation & Pipeline Heating
Start Pump, Open Valves 12 & 15, Ignite Burner for Heating,
Oil Temp ~250°C, Ensure Bitumen in Nozzle is Melted.
Burner & Pump, Start Main Circulation Debugging
Step2
Select Spraying Mode
1.Automatic Spray (Main)
2.Handheld Nozzle Spray (Auxiliary)
Step3
Automatic Spray (Main)
Switch to Auto, Set Width, Volume, and Bitumen Type.
Open Nozzle Switches, Disengage Clutch, Start Engine, Set Low Gear.
Reach Point, Start Pump & Main Nozzle Switch, Spray Constantly.
Keep Engine at 1200 RPM, Use F3 to Calibrate Errors.
Step4
Handheld Nozzle Spray (Auxiliary)
Switch Control to 'Rear' and Mode to 'Manual'.
Open Return Valve 7 (Adjust Pressure) & Manual Valve 9.
Engage PTO, Open Inlet Valve & Bitumen Pump, Start Hand Spray.
Pressure via Rear Knob, Operate as Needed.
Spraying Operation Completed.
|
Asphalt Tank |
|
|
Asphalt type |
Hot asphalt, SBS modified asphalt, emulsified asphalt |
|
Tank volume |
10CBM / 10m³ |
|
Tank material |
High quality carbon steel |
|
Intermediate insulation layer |
50mm rock wool insulation layer,≤12℃/8h |
|
Tank Outside covering |
1mm Stainless plate |
|
Asphalt Spaying width |
4.5 meters |
|
Asphalt Spaying volume |
0.1~3.2 L/㎡ |
|
Driving speed when spaying |
2~16 km/h |
|
Hydraulic System |
|
|
Hydraulic pump |
Heifei Changyuan brand |
|
Driving Motor |
AKS05-130(Ningbo ) |
|
Proportional valve |
Tianwan Brand,EFBG-03-160-HF |
|
Bitumen Sprinkler system |
|
|
Asphalt pump
|
QGB680/0.6 |
|
Flow rate: 40m³/h |
|
|
High-viscosity insulation asphalt pump |
|
|
Asphalt sprinkler nozzle |
34 pcs (one manual button controling for one nozzle) |
|
Hand spray gun |
6 meters metal hose+spray gun, suitable for small area and corner construction conditions. |
|
Control System |
|
|
Control Method |
Controlled inside truck cabin and at rear working platform |
|
Temperature sensor |
WZP-230,Chinese brand from shanghai |
|
Speed Sensor |
GTS211B-N016 |
|
Heating System |
|
|
Heating method |
Thermal oil circulation eating |
|
Burner |
RIELLO G20/Italy brand |
|
Radiator |
RISEN brand |
|
Heat transfer oil pump |
RY40-25-160 from Hebei brand |
|
Gasoline generator |
10kw |
|
Low level automatic alarming system |
1pc |
Intelligent control, uniform spraying - built for the toughest roads.!

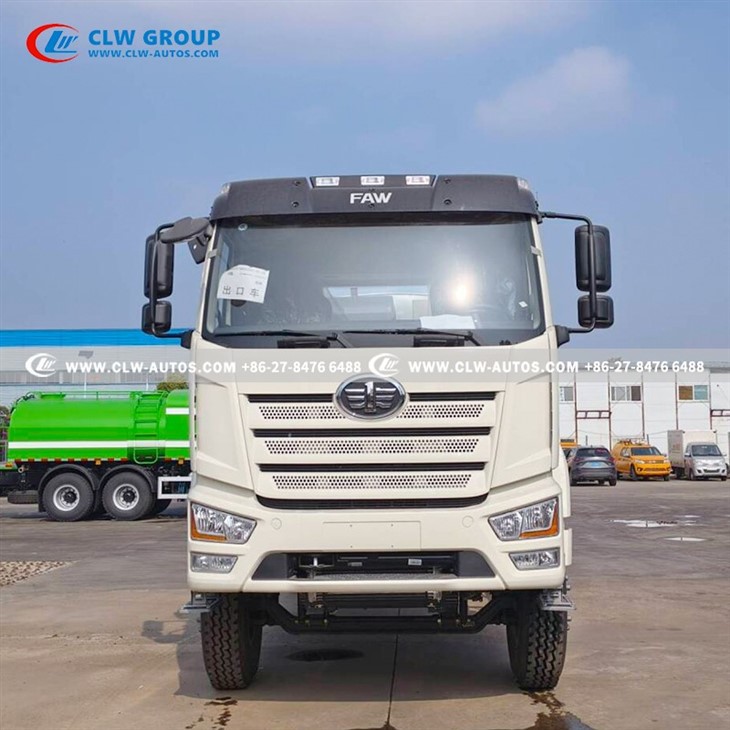

FAW J6L 4x2 cab
Integrated Control Terminal
2 Seat With One Sleeper
With Air Conditioner
Electric Window
Integrated Radio & MP3 System
Suspension Seat With Adjustable Height

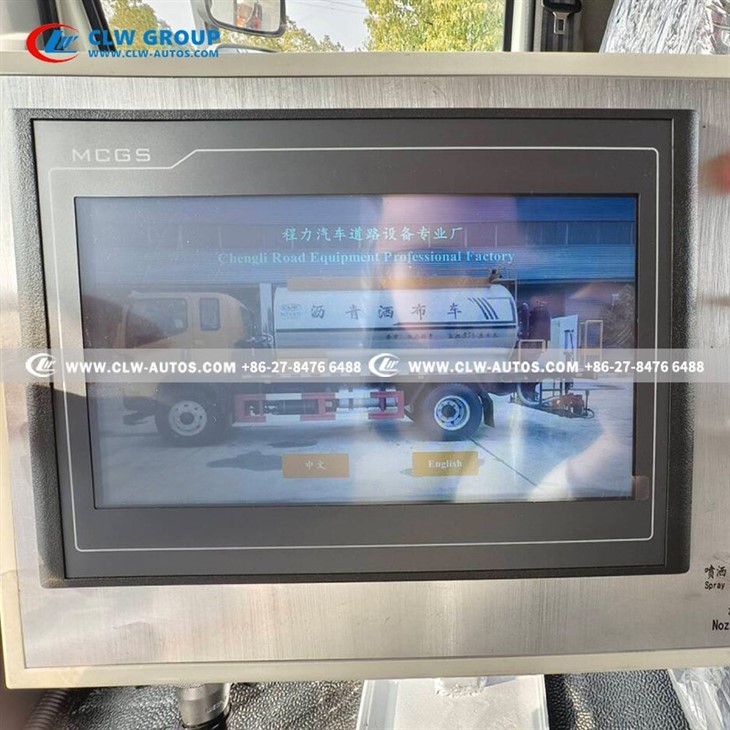

Intelligent control panel
PTO Indicators
Toggle Switches
Easy Operation
Ariable Spraying Rate Control
Auto and Manual Operation
Precise Nozzle Width Adjustment
PLC Manual Control Panel
Multi-Nozzle Individual Control
Dual Circulation Modes: Major & Minor
Integrated Hot Oil & Burner Controls
Streamlined Cleaning & Flushing System
Independent PTO Control
10kW gasoline generator
Supply power to the burner
Provide power for the control panel
Drive cleaning system
Provide power for the truck lights
Heating while driving
Precise temperature control
RIELLO G20 Burner
Italian brand
Complete combustion
High ignition success rate
Quickly heat the asphalt
Heat the thermal oil
Automatic temperature control
Hydraulic oil radiator
RISEN Brand
Model No.: AH-1012-T
Prevent the hydraulic oil from overheating
Protect the lifespan of the hydraulic system
Improve the overall vehicle operation endurance

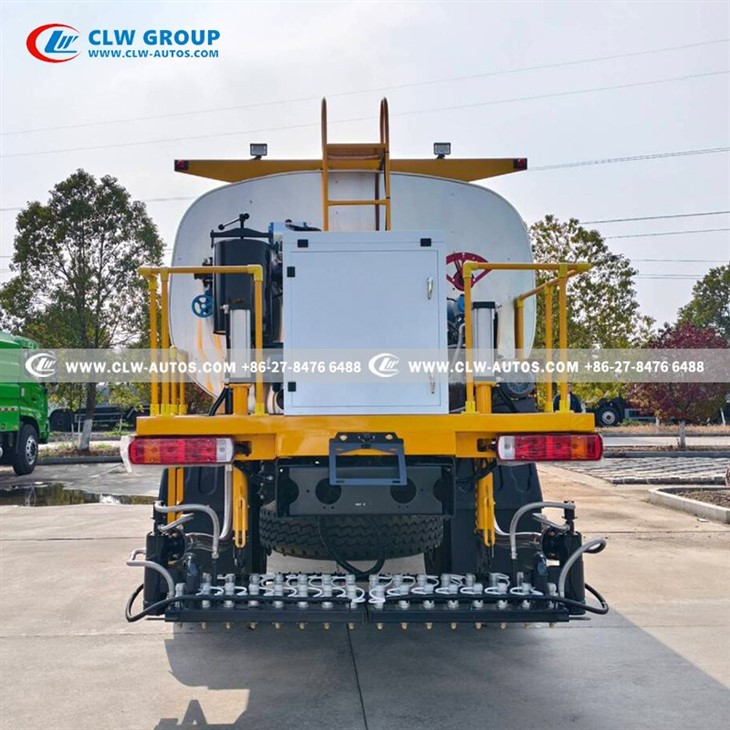

asphalt nozzle
Precise and uniform spraying
Three-section foldable spray bar
Expand the spraying area
Avoid obstacles along the roadside
Adaptable to Complex Road Conditions
Adjusted up and down and unfolded left and right

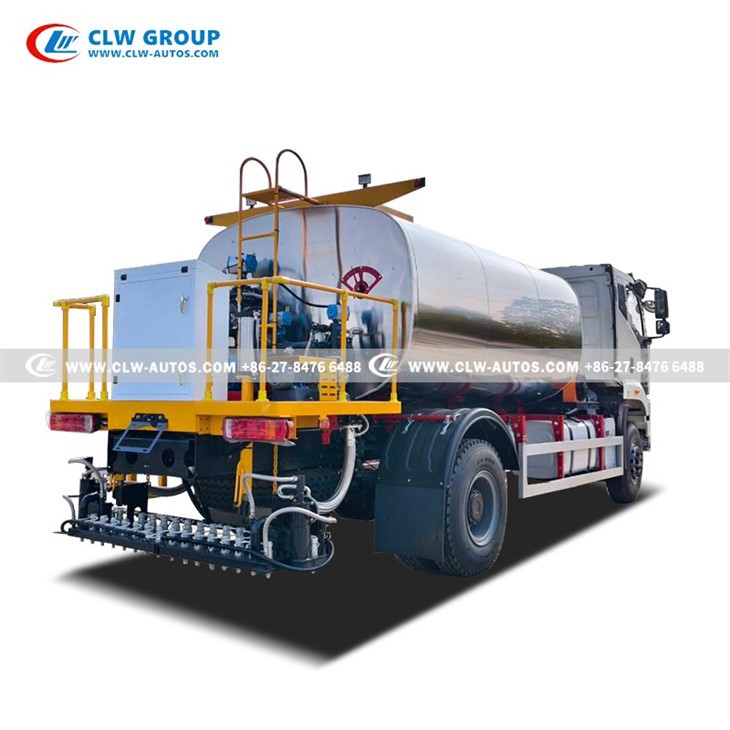

Rear working platform
Self-priming asphalt filling
Fan spray adjustment mechanism
Manual controls the spraying operation
Hand spray gun+6 meters metal hose
For small area and corner construction conditions
