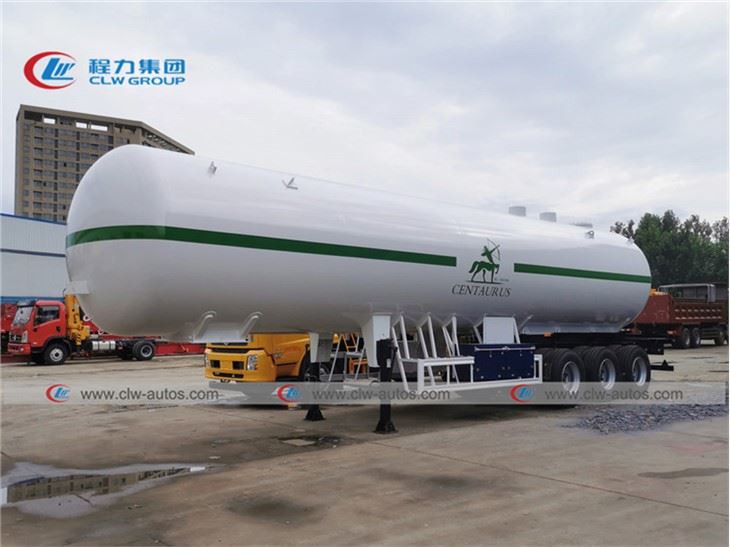

50000L 20Ton Propane Gas Transport Tank Semi Trailer
3 Axle Fuwa Brand
Mechanical or Air Suspension
Rochester Level Gauge
Emergency Brake,Cut-off Valve
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50000l 20ton propane gas transport tank semi trailer in China. If you're going to buy high quality 50000l 20ton propane gas transport tank semi trailer, welcome to get more information from our factory. For price consultation, contact us.
20Ton Propane Gas Tank Delivery Truck Trailer
3 Axle FUWA Mechanical Suspension Rocheser Mangnectic level Gauge
Description:
1. Tank Design Standard of 25tons lpg tanker trailer : Chinese GB Standard or American ASME Standard.
2. Factory direct exporting, with high quality and lower price.
3. We have the biggest LPG trailer and LPG truck in the world:
a. we have the biggest LPG trailer in the world, the max. volume is 61.9 cbm; low transport costs, more profit.
b. we have the biggest 8x4 LPG truck in China, the max volume is 37cbm;
c. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
d. we have mobile filling station from capacity 5cbm to 120cbm.
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 49.6 |
Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12354 |
Estimated Tare Weight (kg) | 15300 |
Payload(kg) | 20832 |
Total Weight(kg) | 36132 |
Wheelbase(mm) | 6800+1320+1320 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(ºC) | 50ºC |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate:Q345R,12mm | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
Flaw Detection | 100% Flaw detection |
Test Pressure(MPa) | 1.61 |
Hydraulic Test(MPa) | 2.1 |
Magnaflux Inspection | Aim at welding place that flaw detection can not cover |
Manhole (As Customer's Requirement) | |
Quantity | 1;on top |
Size | DN450 |
Safety Valve(As Customer's Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN80 |
Level Gauge | |
Type | Manuel Switch type |
Location | At the rear of the end dish |
Running System | |
Axles | 3*13T BPW |
Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |

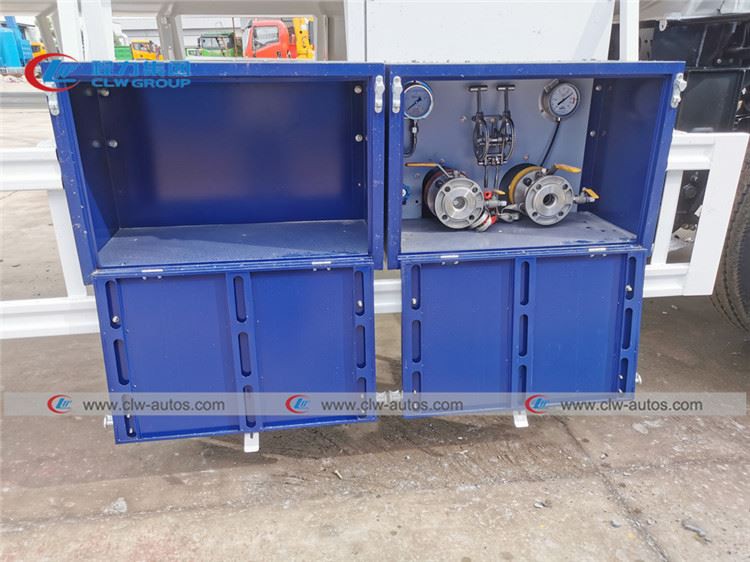

Control System | |
Emergency Cut-off Valves | 2 or 3 |
Ball Valve | 4 or 6 |
Liquid Gauge | 1 |
Pressure Indicating Thermometer | 1 |
Pressure Gage | 1 |

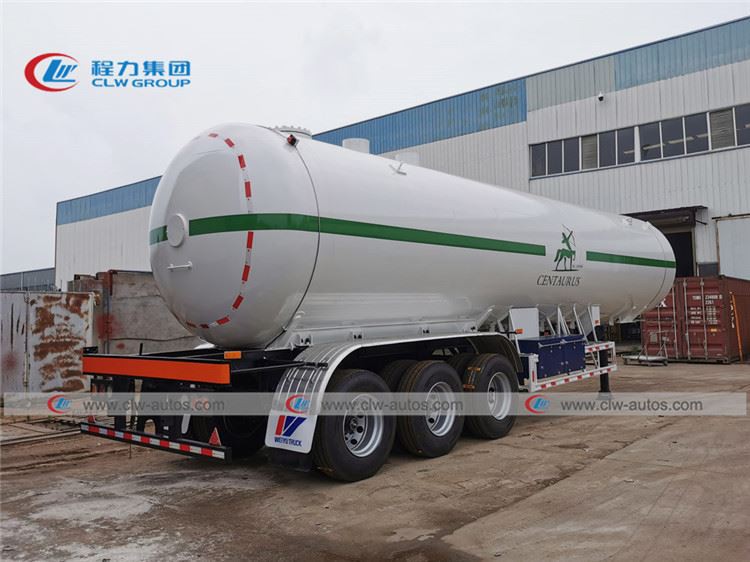

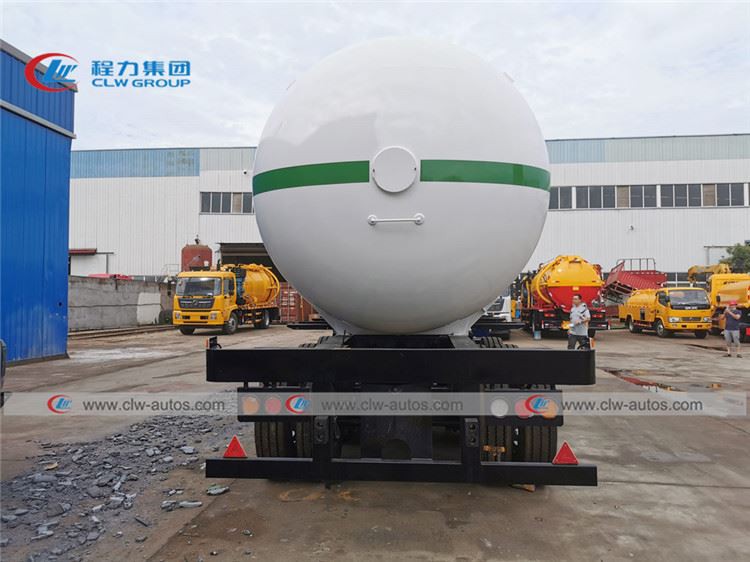

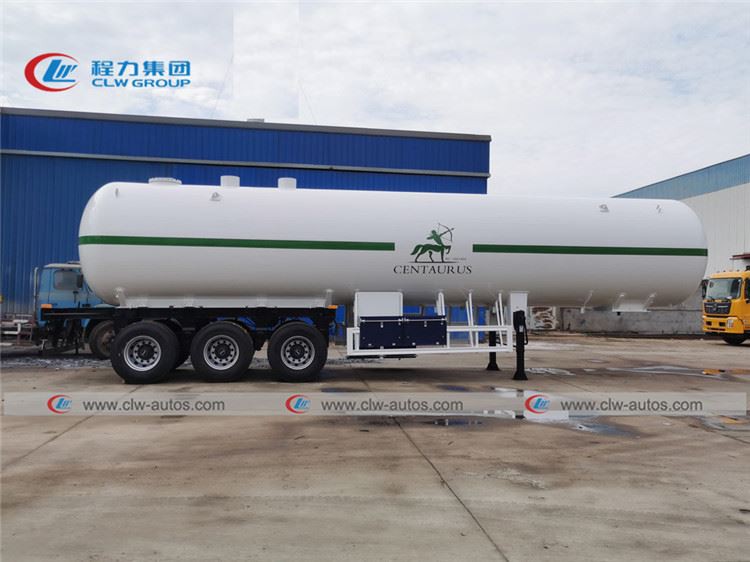

Trailer Photos
