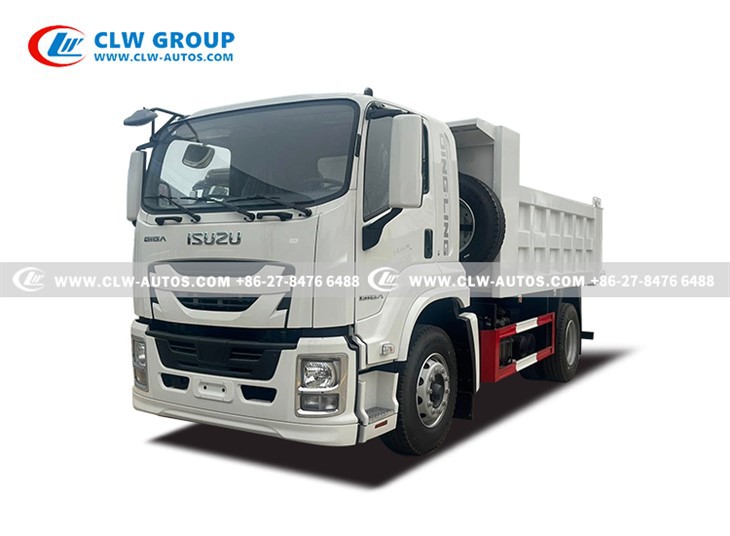

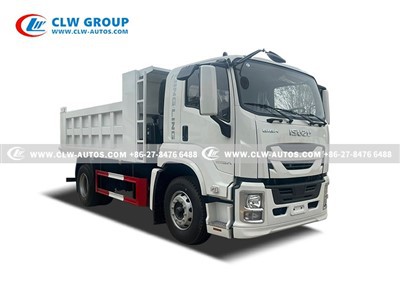

ISUZU 10Ton Front-top Dump Truck
Drive Type: 4x2
Engine Power: 205hp
Cargo Box Loading Capacity: 10Ton
3mm for the bottom and 4mm for the side
Hydraulic Lifting System: Front-top Tipping
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 10ton front-top dump truck in China. If you're going to buy high quality isuzu 10ton front-top dump truck, welcome to get more information from our factory. For price consultation, contact us.

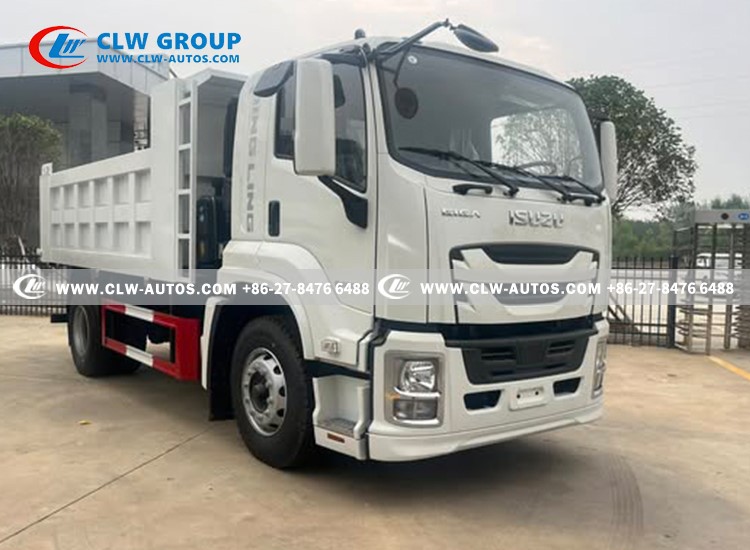

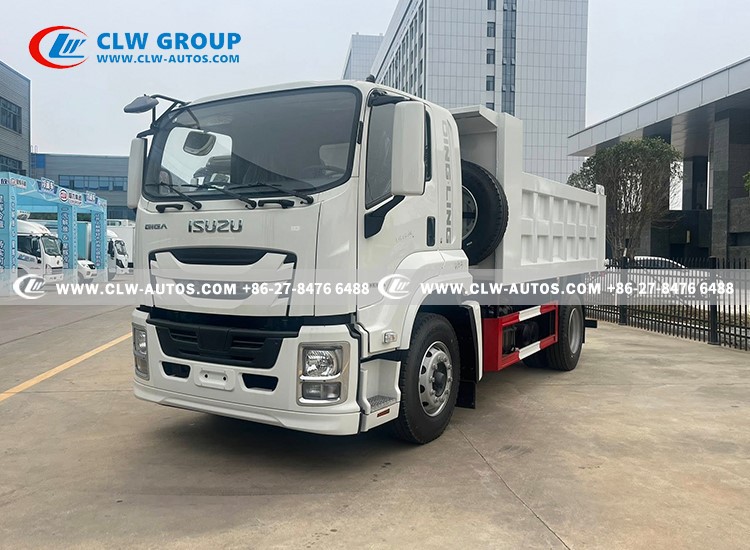

ISUZU FTR 10Ton Dump Truck 6 Wheels 4x2 / Front-top Lift / 4X VC61 Cabin
Products Introduction
Wheelbase Design (3900mm)
- The moderate wheelbase strikes a balance between maneuverability and load stability, making it suitable for Africa's complex road conditions (e.g., narrow roads, unpaved surfaces).
- The shorter wheelbase version features a smaller turning radius, ideal for urban construction sites or confined mining areas.
Front-top Dumping Structure
- Equipped with front-mounted hydraulic cylinders for lifting, offering strong lifting capacity (typically 8-12 tons payload) and fast unloading, ensuring efficient operations.
- The robust cargo bed is impact-resistant, suitable for heavy-duty scenarios like transporting ores and gravel.
Power and Reliability
- Powered by Isuzu's 4HK1 turbocharged diesel engines, with displacements ranging from 5.2L, delivering robust power (205 HP) and high torque at low RPM, ideal for climbing and off-road conditions.
- Features Isuzu's proven chassis technology, known for durability, ease of maintenance, and relatively accessible spare parts in African markets.
Adaptive Configurations
- Optional reinforced suspension, dust-proof cooling systems, and increased ground clearance to withstand high temperatures and dusty environments.
- Some models come with dual fuel tanks to extend range, making them suitable for remote areas.
Products Parameters
|
ISUZU FTR 4X2 Dump Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL118 |
|
Driving Model |
4x2 |
|
Dimension |
7000 x 2500 x 2900 mm |
|
Cab |
|
|
Wheelbase |
3900 mm |
|
Gross vehicle Weight |
18000 kg |
|
Loading Weight |
10000 kg |
|
Front Axle Loading Capacity |
6300 kg |
|
Rear Axle Loading Capacity |
13000 kg |
|
Axle Number |
2 |
|
Tire |
295/80R22.5 18PR |
|
6pcs with 1 spare tire |
|
|
Engine |
|
|
Model: 4HK1-TCG60 |
|
|
Horse power: 205 HP |
|
|
Displacement: 5193 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Braking System |
Air brake |
|
With ABS |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
4200 X 2300 X 800 mm |
|
Loading Capacity |
10 Tons |
|
Bottom Thickness |
4 mm |
|
Side Thickness |
3 mm |
|
Shape |
Tofu block |
|
Material |
High quality Q235 carbon steel |
|
Hydraulic Lifting System |
Front-top lift |
|
Inclination Angle |
>45° |
|
Color |
|
Products Detailed Pictures

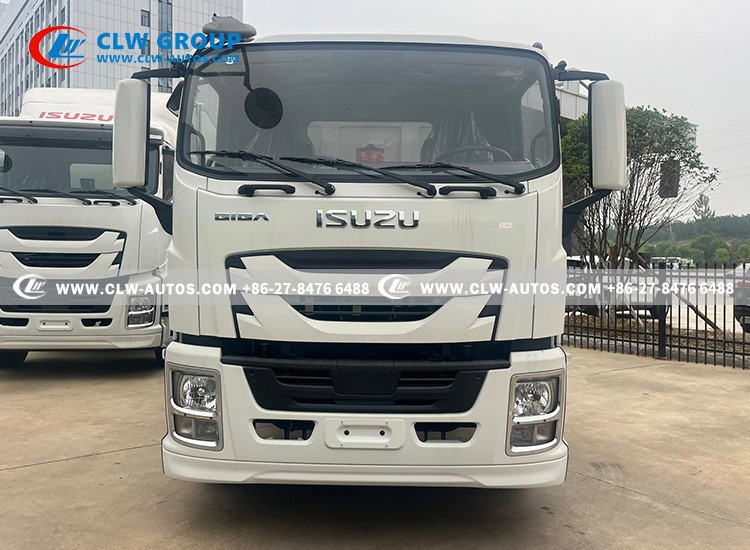

ISUZU FTR 4X VC61 Cabin

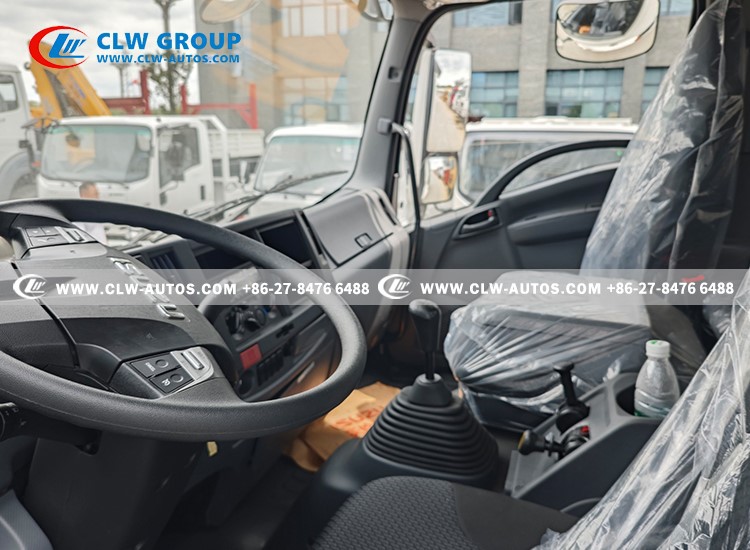

Multi-function Steering Wheel

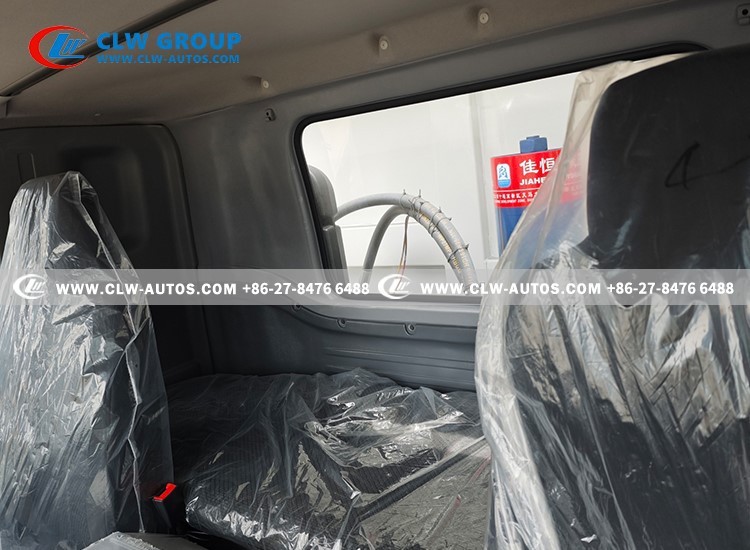

With One Sleeper

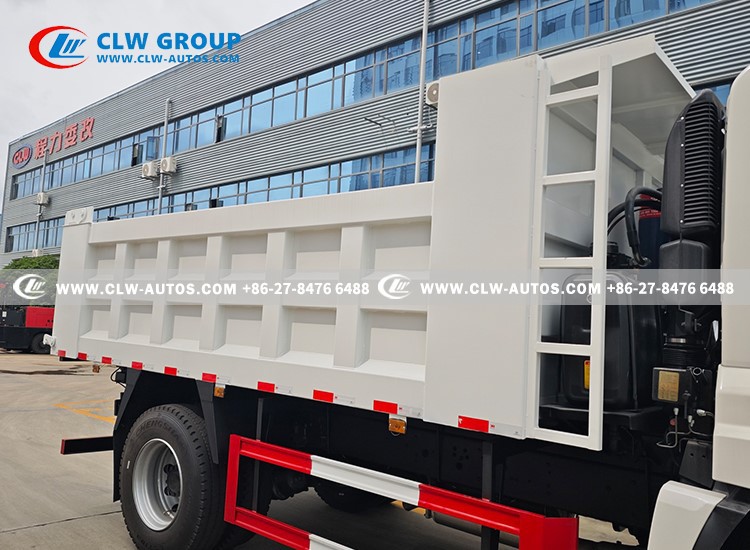

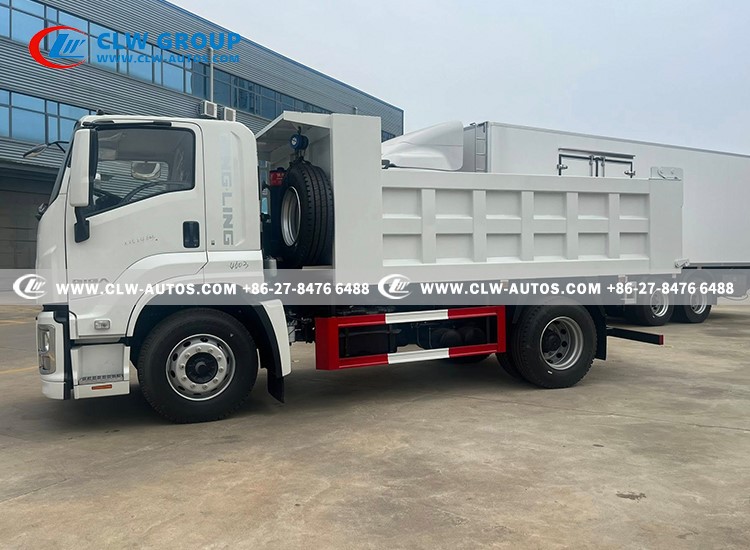

Tofu Block Cargo Box

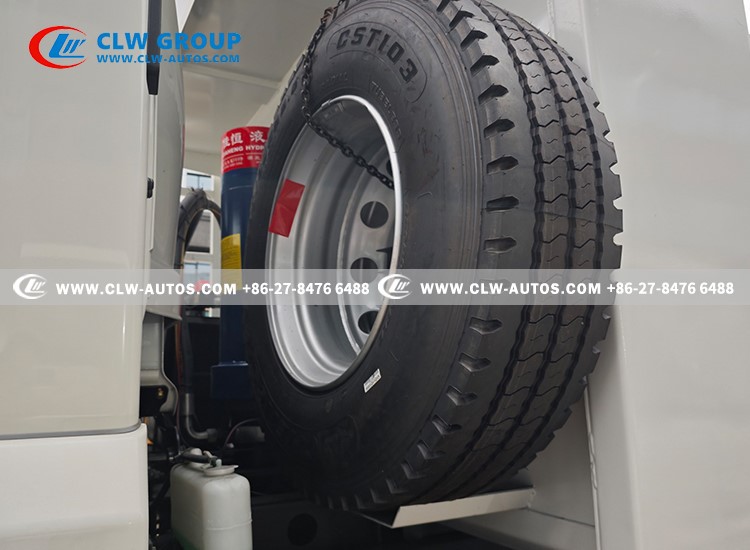

With One Spare Tire

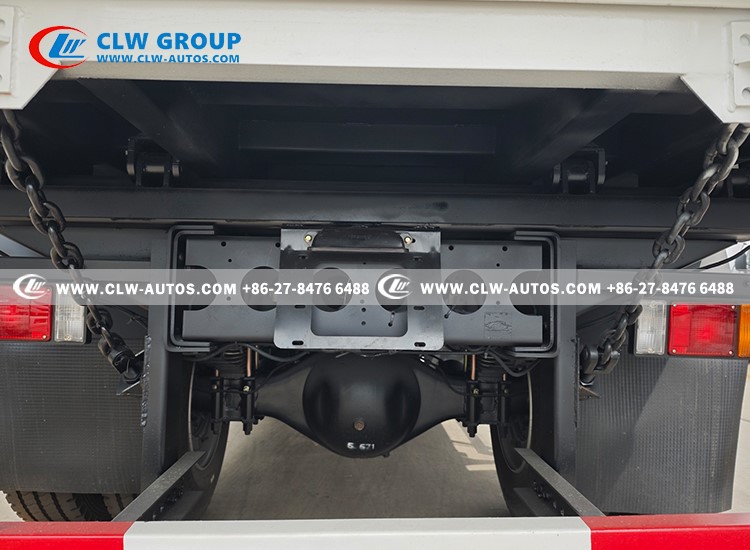

ISUZU Dump Truck Axle
