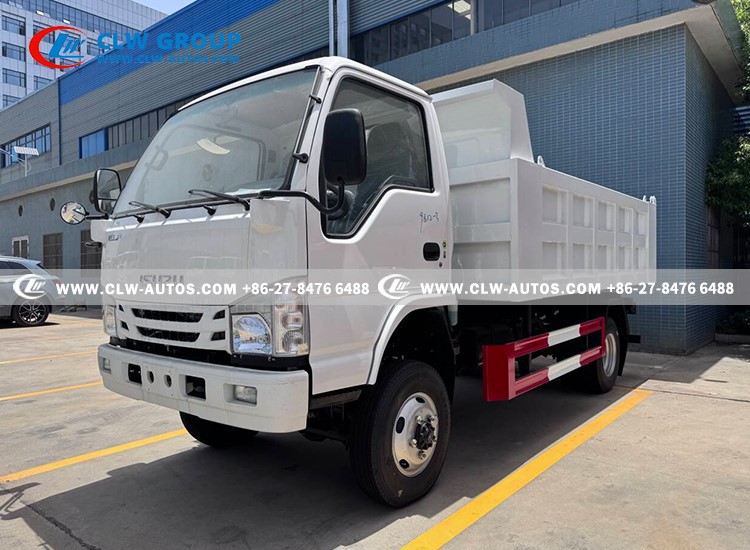

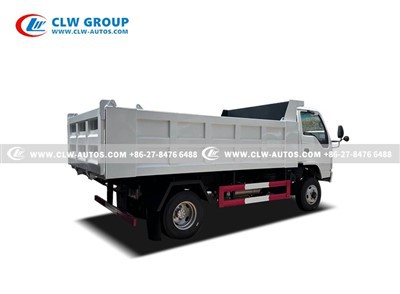

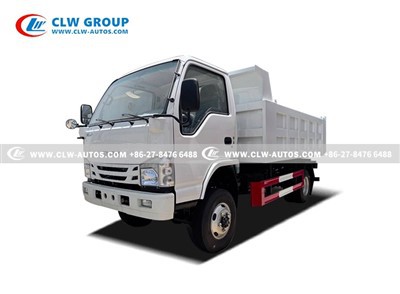

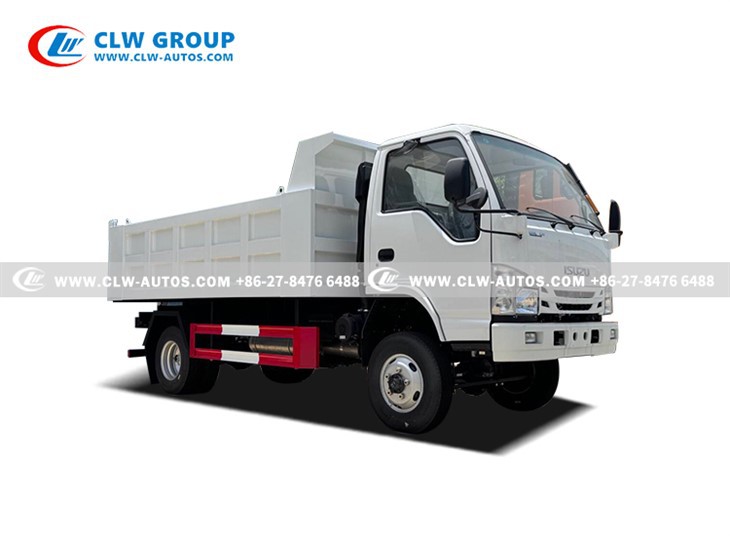

ISUZU 100P Off Road Dump Truck
Drive Type: 4x4
Engine Power: 120hp
Cargo Box Loading Capacity: 5Tons
Box Bottom Thickness: 4mm
Box Side Thickness: 3mm
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 100p off road dump truck in China. If you're going to buy high quality isuzu 100p off road dump truck, welcome to get more information from our factory. For price consultation, contact us.

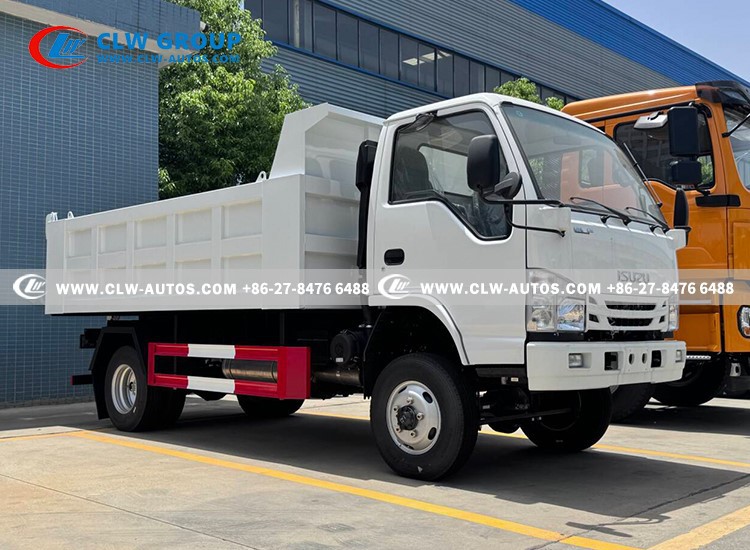

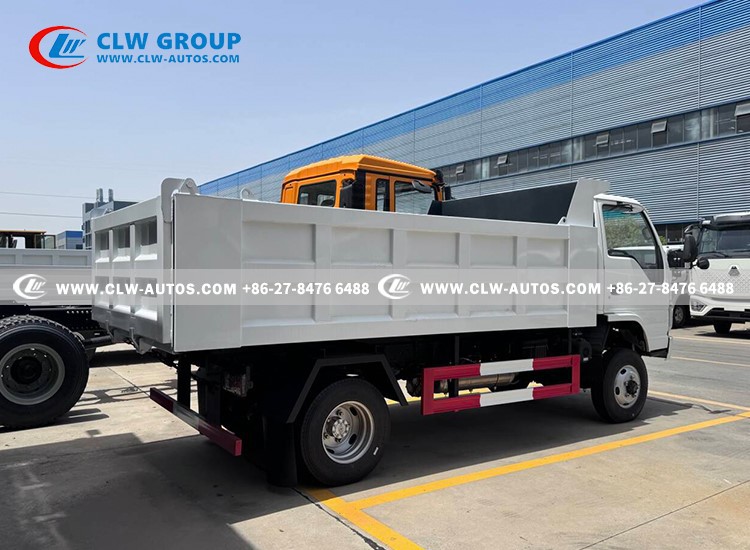

ISUZU 100P 4x4 Off Road Dump Truck
product Description
What is the dump truck?
Dump truck in civil engineering often work jointly with excavators, loaders, belt conveyors and other construction machinery to form a loading, transporting and unloading production line for loading and unloading and transportation of earth, sand and gravel, and bulk materials. It is a commonly used special vehicle for transportation.
Application Scenario
- Agricultural dump truck
- Mining dump truck
- Garbage dump truck
- Coal transportation dump truck
- Construction machinery dump truck
- Sludge dump truck
- Front-lift and side-rolling dump truck
- Two-way side-rolling dump truck
Advantages
As the loading compartment can be automatically tilted at a certain angle for discharging
- Greatly save the time and labor for discharging
- Shorten the transportation cycle
- Improve the production efficiency
- Reduce the transportation cost
Products Video
Products Parameters
|
ISUZU 100P 4X4 Dump Truck Parameters |
|
|
Chassis Specification |
|
|
Chassis Model |
QL104 |
|
Driving Model |
4x4 |
|
Dimension |
5900 x 1980 x 2200 mm |
|
Cab |
|
|
Wheelbase |
3360 mm |
|
Gross vehicle Weight |
4000 kg |
|
Curb Weight |
2050 kg |
|
Front Axle Loading Capacity |
2000 kg |
|
Rear Axle Loading Capacity |
4000 kg |
|
Axle Number |
2 |
|
Tire |
7.00R16 |
|
4 pcs with 1 spare tire |
|
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4KH1CN6LB |
|
|
Horse power: 120 HP, 88KW |
|
|
Displacement: 2500 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
5 Forwards & 1 Reverse |
|
|
Upper Parameters |
|
|
Cargo Box |
|
|
Size (L*W*H) |
3800 X 2300 X 800 mm |
|
Loading Capacity |
5 Tons |
|
Bottom Thickness |
4 mm |
|
Side Thickness |
3 mm |
|
Shape |
Tofu block, tailgate folio with locking level, center double top cylinder |
|
Material |
High quality Q235 carbon steel |

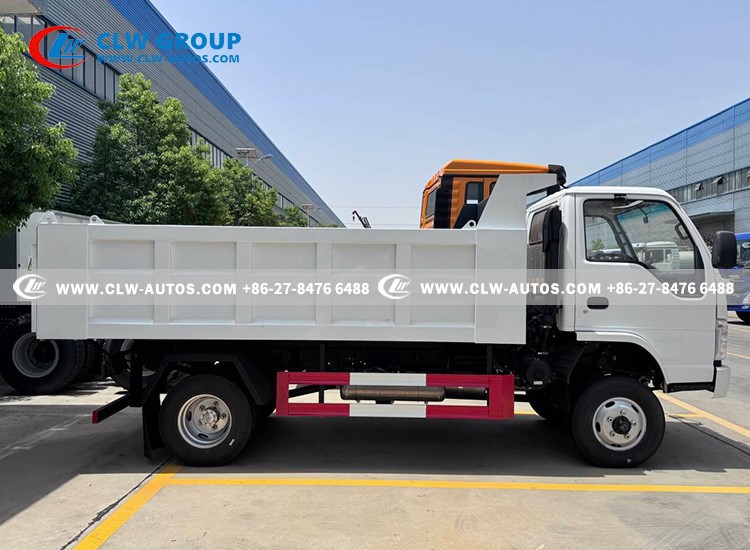

Products Photos
Cabin
- ISUZU 100P 1X cabin
- Right and Left hand drive
- Allowed 2 passengers
- With Air conditioner
Chassis
- Engine Power: ISUZU diesel engine 120hp
- 5 forwards Gear Box
- Front Axle Loading Capacity: 2000 kg
- Rear Axle Loading Capacity: 4000 kg
- 7.00R16 Tire
Cargo Box
- Length: 3800 mm / 3.8 meters
- Width: 2300 mm / 2.3 meters
- Height: 600 mm / 0.6 meters
- Material: High quality Q235 carbon steel
- Thickness: 4mm for the bottom and 3mm for the side
Hydraulic System
- Powerful lifting and free retracting
- Sealing plugs are installed to prevent the intrusion of dirt and air.
- Good hardness, strong pressure resistance, powerful lifting, free expansion and contraction, anti-corrosion and rust prevention.
- Easily realize the lifting, turning and lifting of goods.
Reference Products Photos

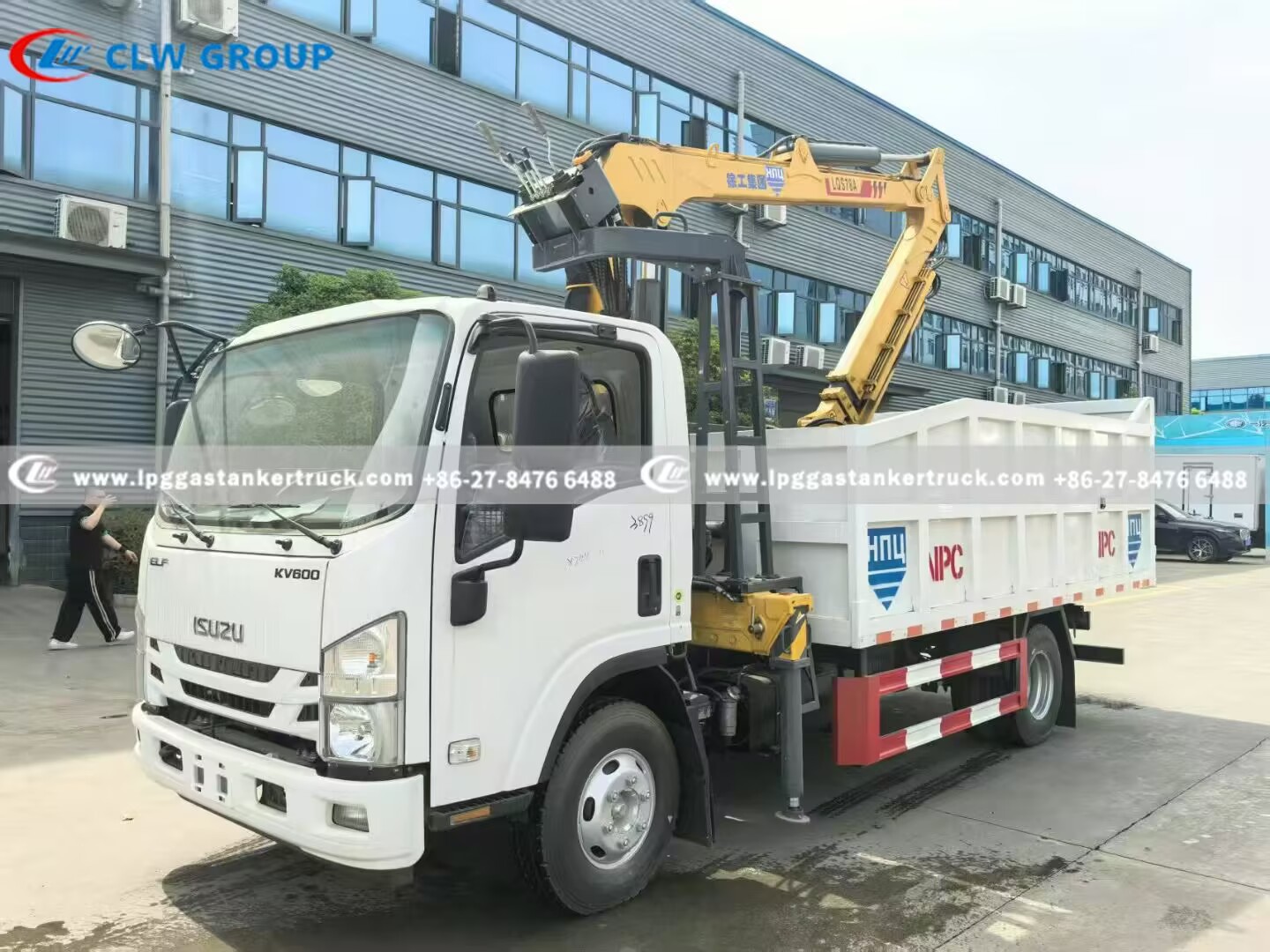

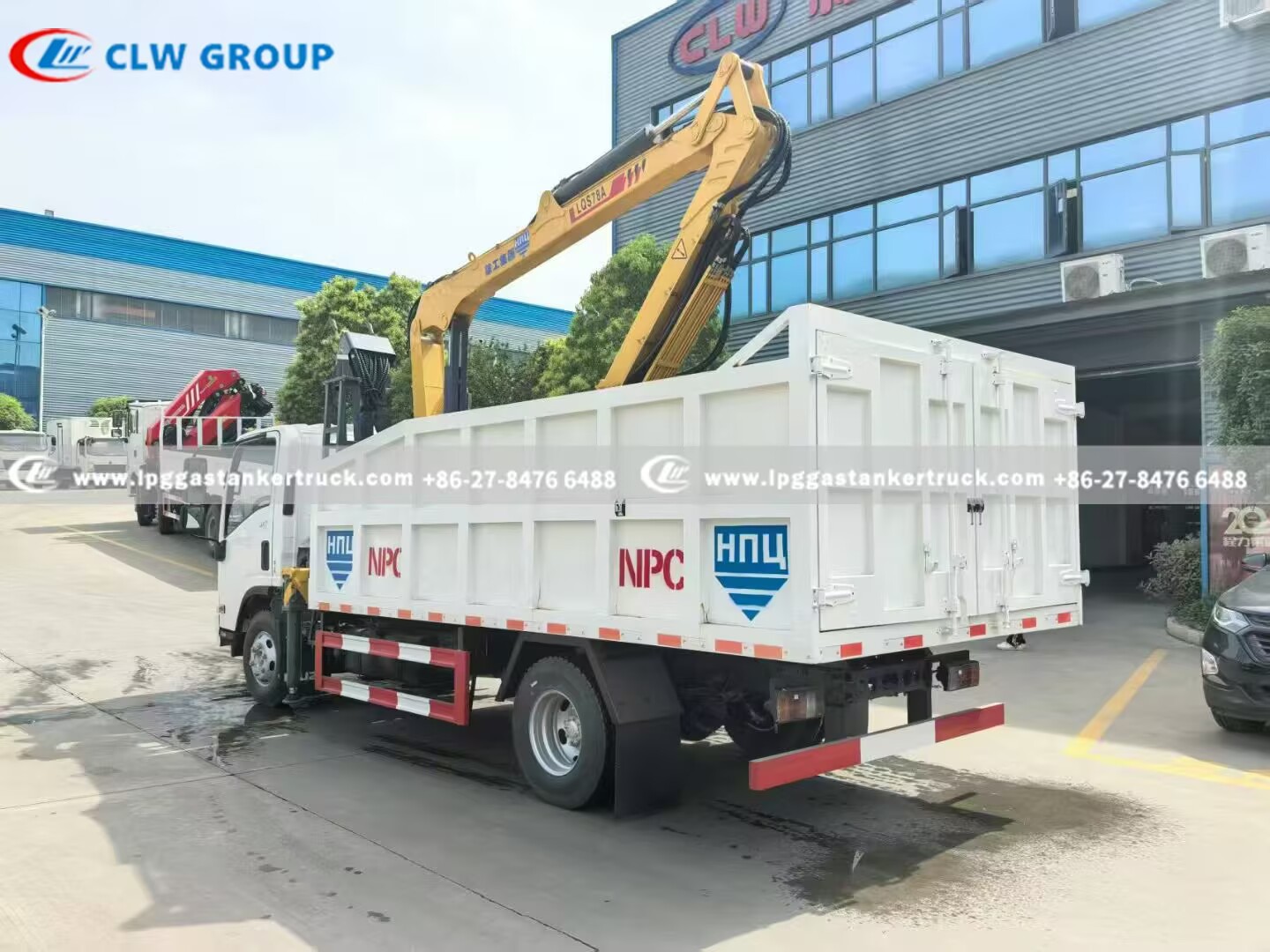

ISUZU 4x2 Dump Truck with Crane

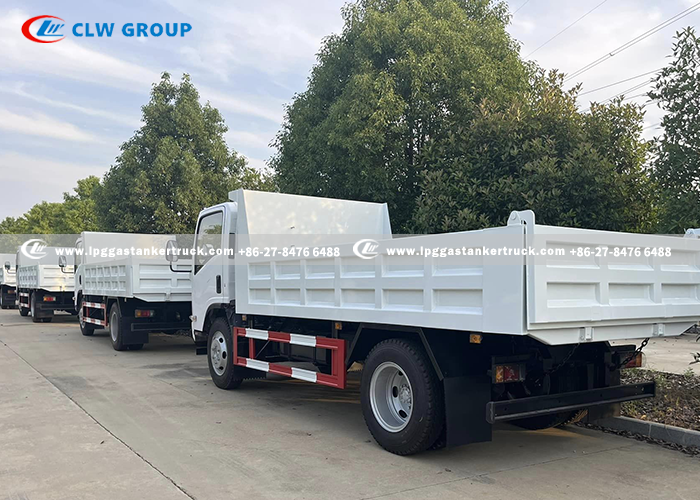

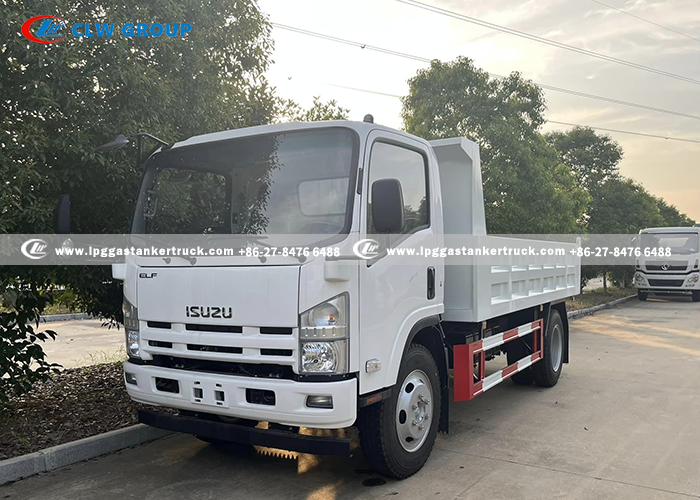

ISUZU KV100 5Tons Dump Truck
