Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman f3000 12 ton bitumen sprayer truck in China. If you're going to buy high quality shacman f3000 12 ton bitumen sprayer truck, welcome to get more information from our factory. For price consultation, contact us.

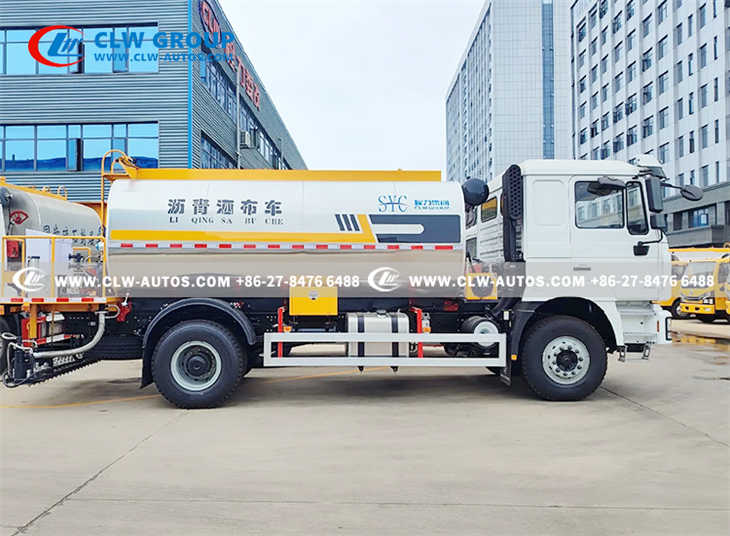

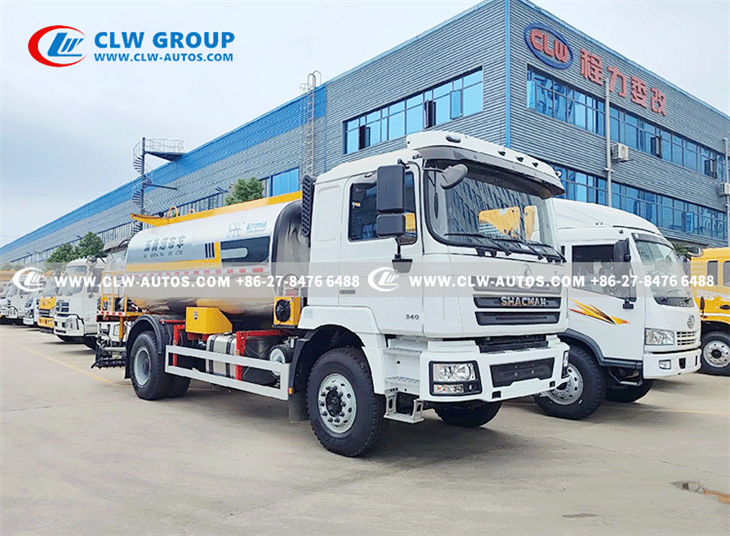

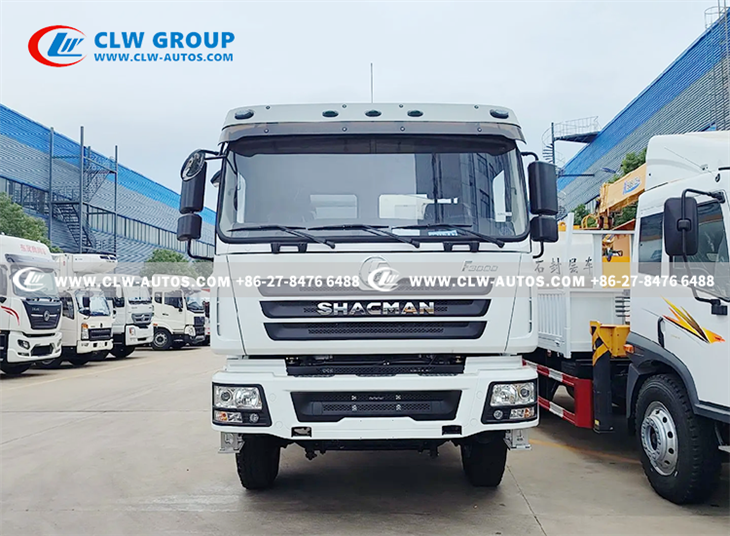

Shacman F3000 12 Ton Bitumen Sprayer Truck

Products Description

The Shacman bitumen sprayer truck, Asphalt distributor truck, road maintenance truck, road construction equipment, asphalt spraying truck

is a high-capacity, heavy-duty asphalt distributor engineered specifically for extensive road construction and highway maintenance operations. Built on a robust Shacman Delong F3000 4×2 chassis with a 4,600 mm wheelbase, this truck features a 12,000-liter bitumen tank, making it perfectly suited for long-range spraying on expressways, airports, and large municipal road networks.

At its core, the truck is powered by a 290 HP Weichai diesel engine, paired with a Fast 9-speed manual gearbox, delivering enhanced torque, fuel efficiency, and driving stability across diverse terrain-from smooth highways to more demanding job sites.

The upper equipment includes a 12 m³ asphalt tank, designed for extended, uninterrupted spraying performance. A QGB950 high-viscosity asphalt pump (flow rate: 950 L/min) ensures consistent and high-pressure delivery of various bitumen materials, including hot asphalt and polymer-modified bitumen.

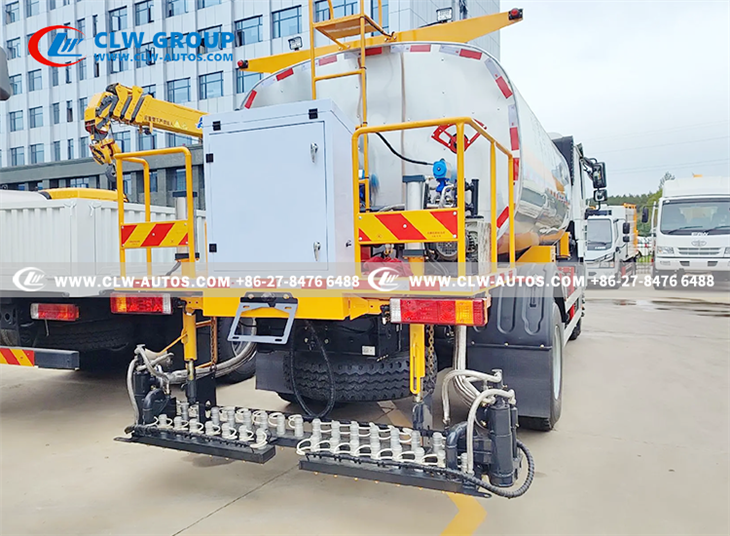

To guarantee operational precision, the system features a smart digital control panel with a German Infineon processor, located inside the driver's cabin. This system allows real-time control over spray width, flow volume, and heating parameters. Equipped with 36 pneumatic spray nozzles (individually operated), the sprayer achieves a standard spray width of up to 4.5 meters (optionally extendable to 6 meters), and an application rate ranging from 0.25 to 3 L/m², with an accuracy deviation of ±2%.

Efficient thermal management is provided by dual Riello G20 burners (Italian origin) working in combination with a thermal oil circulation system, delivering rapid and uniform heating. A hydraulic system with proportional control valves enhances operational stability while extending the lifespan of key components.

With its advanced systems, large tank capacity, and intelligent controls, the F3000 bitumen sprayer is an ideal choice for applications such as prime coat spraying, tack coat bonding, surface treatment, and large-scale asphalt pavement maintenance, offering high reliability, efficiency, and ease of operation.

Main Applications

Tack Coat Application – Creates a strong adhesive bond between the new asphalt layer and the existing road surface, helping prevent slippage, cracks, or delamination over time.
Prime Coating – Prepares the unpaved road base by sealing and stabilizing it, improving its strength and water resistance before asphalt is laid.
Surface Treatment – Applies a light coating of bitumen combined with aggregate chips to refresh aging pavements, improve surface grip, and extend the road's service life.
Highway and Airport Projects – Well-suited for large-scale, continuous spraying along long and wide surfaces such as expressways, runways, and major transport corridors.
Urban and Rural Road Work – A practical solution for municipalities or contractors carrying out upgrades or maintenance in both city streets and remote village roads, ensuring efficient and uniform asphalt distribution.

Key Features

Brand: Shacman
Model: Shacman Delong F3000 4x2 Asphalt Distributor Truck
Asphalt Tank: 12 cubic meters
Engine: 290 HP
Transmission: 9-speed manual
Wheelbase: 4,600 mm
Dimensions: 7,960 × 2,550 × 3,650 mm
Tyres: 12.00R20

Products Video

Products Parameter

Chassis Model	Shacman 4x2 290HP
Overall Dimensions	mm	7,960 × 2,550 × 3,650
Wheelbase		4600
Tank Capacity	m³	12m³
Curb Weight	kg	11,800 kg
Gross Vehicle Weight (GVW)		24,000 kg
Engine	Model	Weichai
	Power	213 kW / 290 HP
	Displacement	9,726 mL
	Max Torque	1160 N.m
Max speed	km/h	90 km/h
Tire specification	12.00R20, 6 tires with 1 spare
Steering Position	LHD / RHD
Transmission	FAST 9 Speed Manual
Color	Customized
Equipment
Tanker Interior		Carbon steel
Insulation Material		50 mm rock wool insulation
Tank Exterior		1 mm stainless steel
Hydraulic Motor		05-130-BD31
Hydraulic pump		CBQ550-L
Bitumen Pump		QGB950, Flow Rate: 950 L/min
Proportional Valve		EFBG-03-160-HF
Control System		PLC Control
Asphalt Nozzles		36 pcs
Burner		2 x Riello G20 (Italy), 100,000 kcal/h
Thermal Oil Pump		RY40-25-160
Spray Width		4.5 to 6 meters
Asphalt Spraying Rate		0.2 to 2.5 L/m²
Spraying Medium		Hot & emulsified asphalt (including SBS and rubber-modified types)
Optimum Construction Speed		3-6 km/h
