Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu 4m3 bitumen sprayer in China. If you're going to buy high quality isuzu 4m3 bitumen sprayer, welcome to get more information from our factory. For price consultation, contact us.

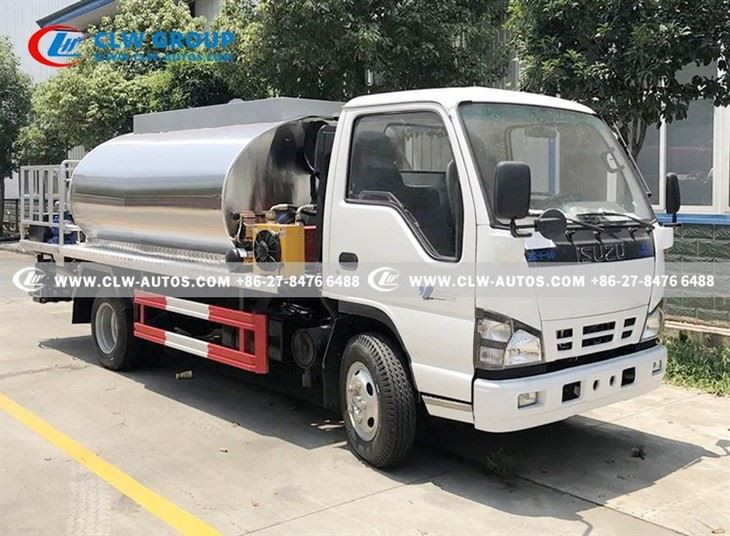

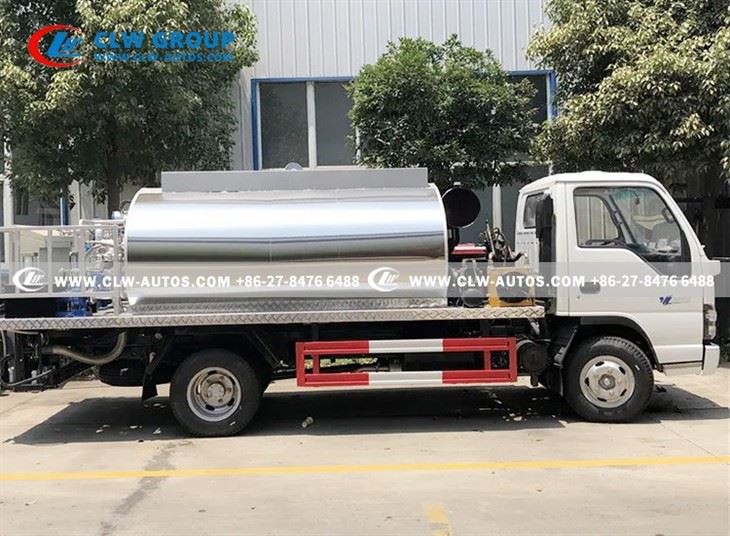

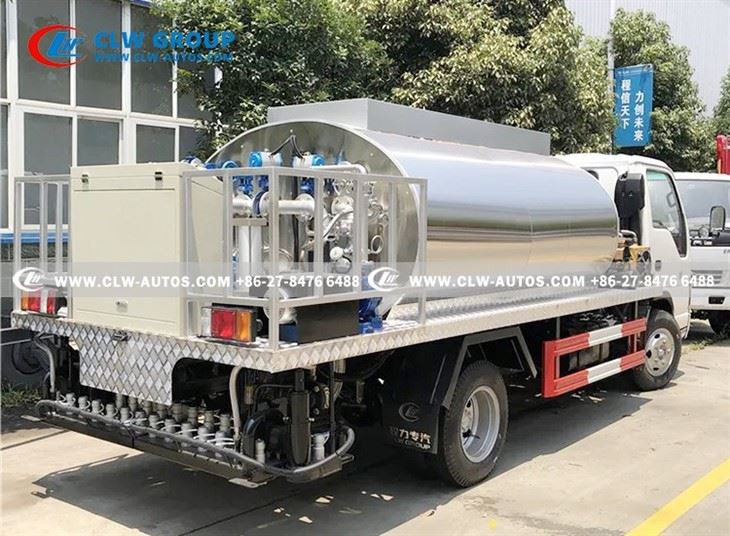

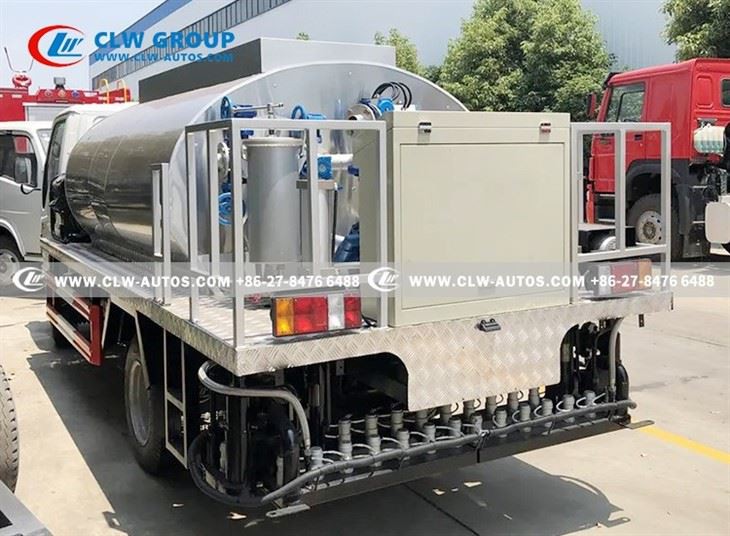

ISUZU 4m3 Bitumen Sprayer
Our Intelligent Bitumen Sprayer, also known as a Bitumen Distributor Truck, Asphalt Sprayer Truck, Binder Spreader, or Bitumen Sprayer Machine, is a high-performance solution designed for precise and uniform bitumen spraying in road construction and maintenance projects.
Powered by a German Infineon intelligent control system, and equipped with a fully integrated pipeline heating technology, this machine ensures a stable and continuous spray pattern-even under fluctuating vehicle speeds. It is compatible with a variety of bitumen materials, such as hot bitumen, emulsified asphalt, and modified bitumen, meeting the diverse needs of highway construction, municipal road maintenance, and large-scale infrastructure works across South Asia, the Middle East, and Africa.
Built on a reliable Isuzu truck chassis, the sprayer features:
This machine is an ideal choice for contractors and distributors seeking intelligent, efficient, and cost-effective equipment for modern asphalt paving and surface treatment projects.
| Chassis Model | ISUZU 4x2 120HP | ||||
| Overall Dimensions | mm | 6350*2280*2650 | |||
| Wheelbase | 3360 | ||||
| Track width | 1740/1610 | ||||
| Approach/departure angle |
° |
19/13 | |||
| Tank Capacity | m3 | 4m3 | |||
| Curb Weight | kg | 4,900 kg | |||
| Gross Vehicle Weight (GVW) | 8,000 kg | ||||
| Engine | Model |
ISUZU 4KH1CN6LB |
|||
| Power | 88 kW / 120 HP | ||||
| Displacement | 2,999 mL | ||||
| Max Torque | 290 N.m | ||||
| Max speed | km/h | 90 km/h | |||
| Tire specification | 7.00R16 6 tires with 1 spare | ||||
| Steering Position | LHD / RHD | ||||
| Transmission | ISUZU MSB, 5 Speed Manual | ||||
| Color | Customized | ||||
| Equipment | |||||
| Tanker Interior |
Carbon steel |
||||
| Insulation Material | 50 mm rock wool insulation | ||||
| Tank Exterior | 1 mm stainless steel | ||||
| Hydraulic Motor | 05-11-BD31 | ||||
| Hydraulic pump | CBQ550-L | ||||
| Bitumen Pump | QGB680, Flow Rate: 680 L/min | ||||
| Proportional Valve |
CL-BLTS120.00 |
||||
| Control System | PLC Control | ||||
| Asphalt Nozzles | 29 pcs | ||||
| Burner | Riello G10 (Italy), 100,000 kcal/h | ||||
|
Thermal Oil Pump |
RY40-25-160 |
||||
| Spray Width | 4.5 m | ||||
|
Asphalt Spraying Rate |
0.25 to 2.5 L/m2 | ||||
| Spraying Medium | Hot & emulsified asphalt (including SBS and rubber-modified types) | ||||
| Optimum Construction Speed | 3-6 km/h | ||||
| Speed Sensor |
GTS211B-N016 |
||||
| Temperature Controller | WZP-230 | ||||
Generator
PLC Control
Nozzles
Nozzles
With 20 years of expertise, Hubei Chengli Special Automobile Co., Ltd., based in Suizhou City, Hubei Province, is a leading manufacturer authorized by China's Ministry of Industry and Information Technology. We produce over 800 types of special-purpose vehicles and are an official export base for trucks and spare parts, designated by the Hubei Provincial Government.
Partnering with major brands like FAW, HOWO, FOTON, DONGFENG, JAC, JMC, SHACMAN, and ISUZU, we offer a one-year warranty and lifetime maintenance support. We respond to after-sales requests within 48 hours. Visit us for professional service!
