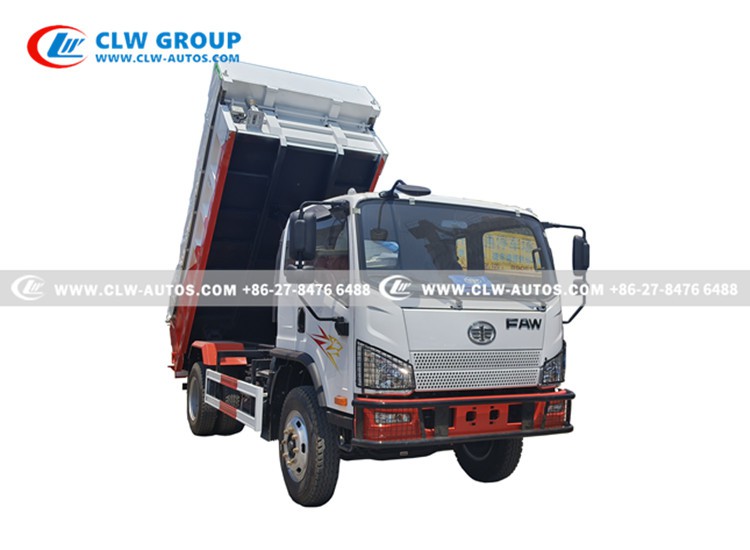

FAW Tiger VH 5T Dump Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw tiger vh 5t dump truck in China. If you're going to buy high quality faw tiger vh 5t dump truck, welcome to get more information from our factory. For price consultation, contact us.







FAW Tiger VH 4×2 Light Dump Truck – 3 to 5 Tons Payload



The FAW Tiger VH is a compact and efficient 4×2 dump truck designed for light to medium-duty transportation tasks. With a payload capacity of 3 to 5 tons, this versatile mini tipper truck is ideal for urban construction, agricultural logistics, and small-scale material handling operations.



Key Specifications:



Payload Capacity: 3–5 metric tons

Drive Configuration: 4×2 (rear-wheel drive)

Engine Options: YC4D130-33, 130HP, EURO-2, diesel engine, with optimized torque performance, ensuring strong hauling capability for heavy-duty applications.

Transmission: WLY6TS55, 6 Forward & 1 reverse. Manual control.

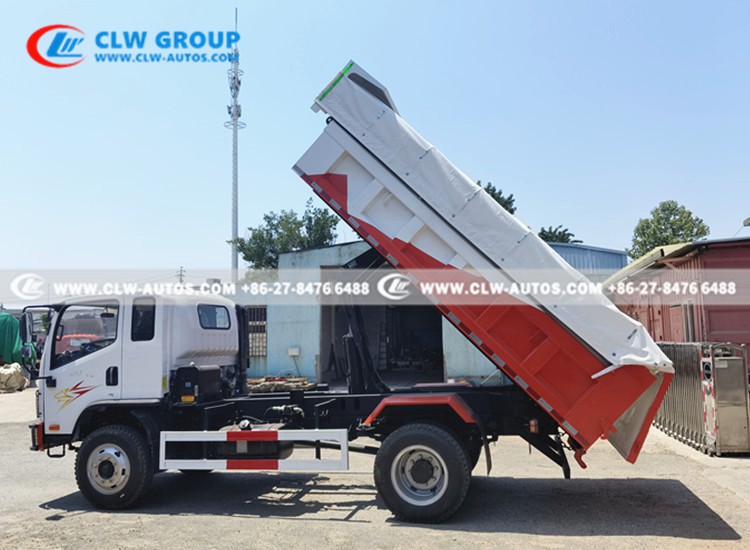

Dumping Mechanism: Hydraulic tipping system with reliable lifting capacity

Chassis: High-strength steel construction for durability from FAW Tiger VH.

Tipper Box: T700 high tensile strength steel , Box Size: 4200*2100*800mm.











Features & Benefits:



1. Compact & Maneuverable – Ideal for tight urban worksites and rural roads.
2. Fuel-Efficient – Optimized engine performance for lower operating costs. Advanced fuel injection technology and combustion design reduce fuel consumption, lowering operational costs.
3. Low Emissions Compliance, Meets Euro III (or equivalent) emission standards, balancing performance with environmental regulations.
4. Durable Design – Robust chassis and suspension for heavy-load handling.
5. Easy Maintenance – Simplified mechanical structure for cost-effective servicing.
6. Operator Comfort – Ergonomic cabin with essential controls for user-friendly operation.



Common Applications:



1. Construction material transport (sand, gravel, debris)
2. Agricultural and farm logistics
3. Municipal waste management
4. Small-scale mining and quarrying





4*2 6 Wheels Light /Mini/ Tipper/Dumper/Site Dumpers/Cargo/ Dump Lorry Trucks
Overall dimension	5950*2300*2500
Chassis brand	FAW
Emission	Euro II. (Also optional for Euro 3, Euro 4, Euro 5, Euro 6)
Driving type	4×2
Wheelbase	3300mm
Loading Capacity	5000kgs-10000kgs (Also optional for higher loading capacity)
Curb Weight	4250kgs
Front axle	3000kgs
Rear axle	8000kgs
Cabin	FAW Tiger VH single row cab, AC, Electrical Window lifter
Economical speed	43-58 KM/h
Engine	Yuchai Engine, YC4D160-33, Diesel, Euro II
Displacement	4214CC
Transmission	Manual, WLY6TS55, 6 forward and 1 reverse
Clutch	Reinforced diaphragm clutch
Fuel tank	100L
Tyres	8.25R16, 6+1PCS
Truck Box Material	Steel corrugated plate
Truck Box Size	4200*2100*8000mm
