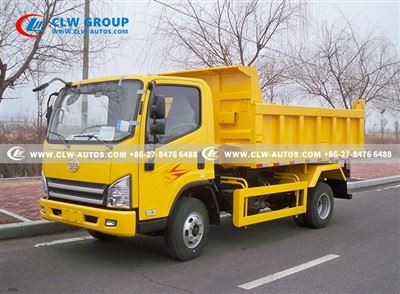

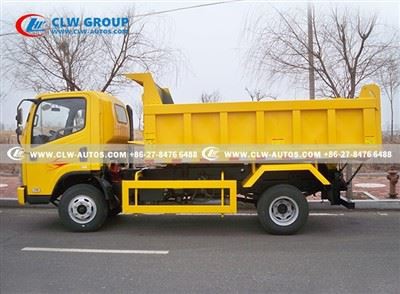

FAW 5Tons Small Rear Tipper Truck
Chassis brand:FAW Tiger V
Loading Capacity:5,000kgs
Engine:Yuchai diesel engine,130HP
Oil cylinder:Middle tipping
Product Details
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 5tons small rear tipper truck in China. If you're going to buy high quality faw 5tons small rear tipper truck, welcome to get more information from our factory. For price consultation, contact us.
FAW Tiger VH 4x2 5Tons Small Rear Tipper Truck
Brand New Truck, Factory Price For Sale.
Products Descriptions
- What is rear tipper truck?
Rear tipper trucks, also known as rear dump trucks or rear tipping trucks, are vehicles designed for transporting heavy loads. They feature a rear part that can be raised at one end to allow the contents to be emptied out. This type of dump truck, equipped with a hydraulic cylinder driven by the engine, is commonly used for urban waste disposal, construction projects, mineral transportation, and other similar tasks.
- Is FAW a Chinese brand?
Being a domestic truck manufacturer in China, FAW boasts a global user base of 7 million, with its heavy and medium-duty trucks consistently ranking as the top-selling single-brand vehicles worldwide in 2018, 2019, and 2020. The Tiger V stands out as FAW's flagship product among the new generation of wide-body light trucks.
- Key Product Features:
- FAW chassis: Leading commercial vehicle brand in China, top-tier globally.
- Made of Q235 carbon steel, with a thickness of 3mm on the sides and 4mm at the bottom.
- Equipped with China's renowned middle tipping hydraulic oil cylinder.
- Made of Q235 carbon steel, with a thickness of 3mm on the sides and 4mm at the bottom.
- Equipped with China's renowned middle tipping hydraulic oil cylinder.
- For quick inquiry, please contact Juniper:
Whatsapp/Wechat: +86 139 2570 3918
Email: juniper@clw-autos.com
Products Parameters
| Chassis brand | FAW |
| Driving type | 4x2 |
| Loading Capacity | 5,000kgs |
| Cabin | Tiger VH, LHD, single row, with AC |
| Engine | Yuchai Diesel Engine YC4D130-33, 130HP |
| Emission | Euro II |
| Displacement | 4.2L |
| Transmission | Manual, WLY 6TS55, 6 Forward & 1 Reverse |
| Clutch | Ф330 |
| Front axle load | 2,900kgs |
| Front suspension | Leaf spring |
| Rear axle load | 8,000kgs |
| Rear suspension | Leaf spring |
| Fuel Tank | 100L with locking fuel cap |
| Wheel base | 3300mm |
| Tyres | 8.25R16, 6 pcs with 1 spare tire |
| Dump Box Material | Q235 carbon steel |
| Dump Box Size | 4200*2300*410mm / 3.9m3 |
| Dump Box Thickness | Side 3mm, Bottom 4mm |
| Oil Cylinder | Middle Tipping |

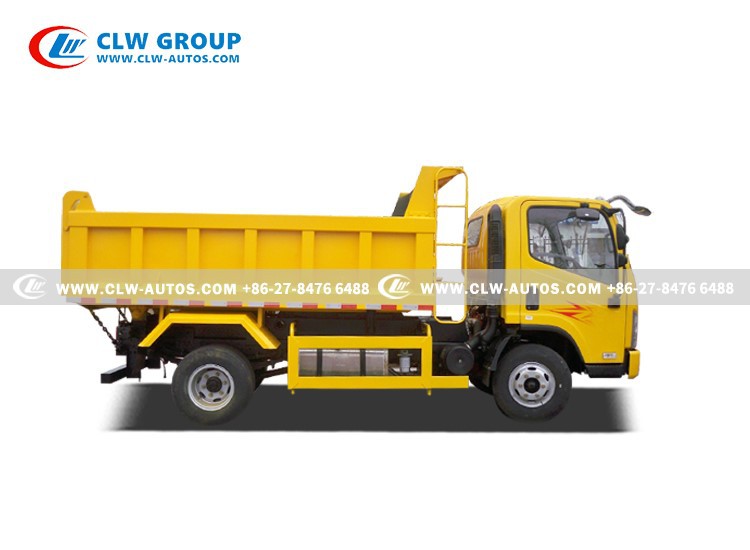

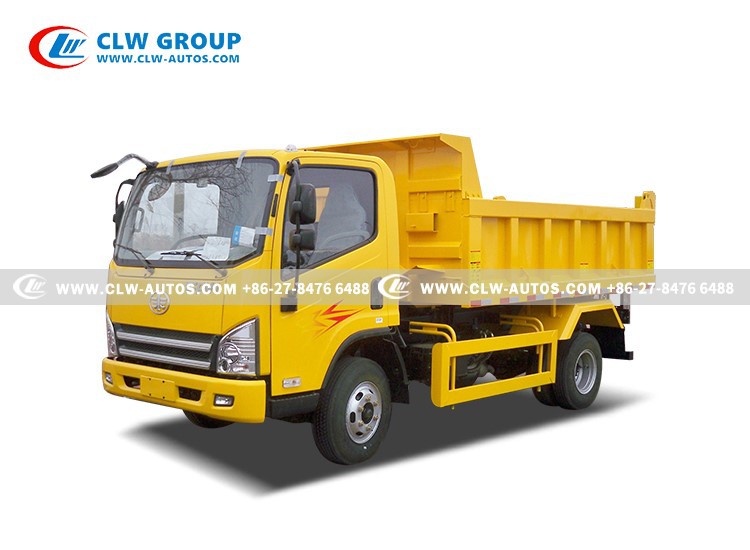

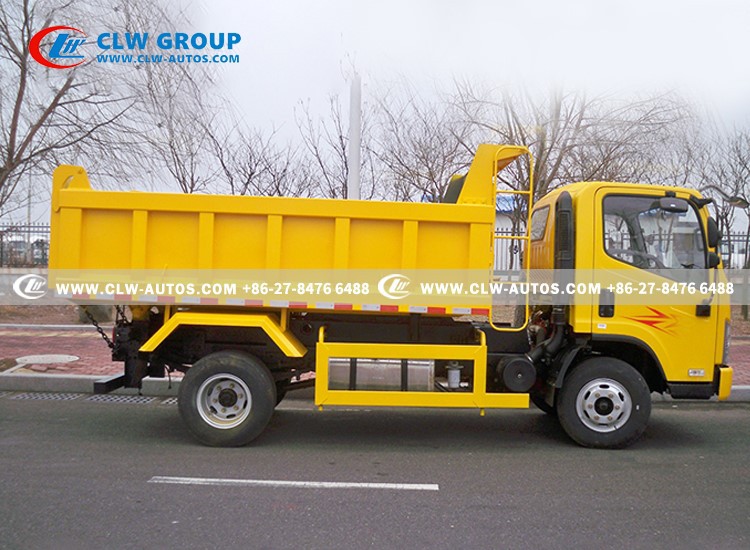

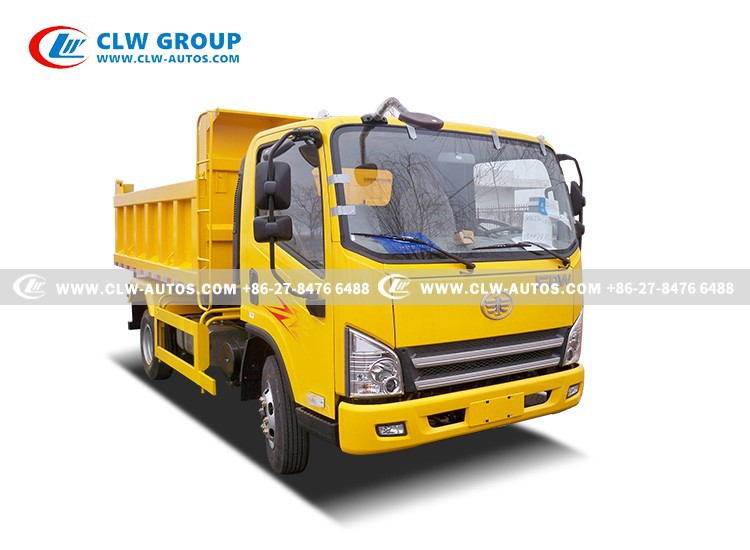

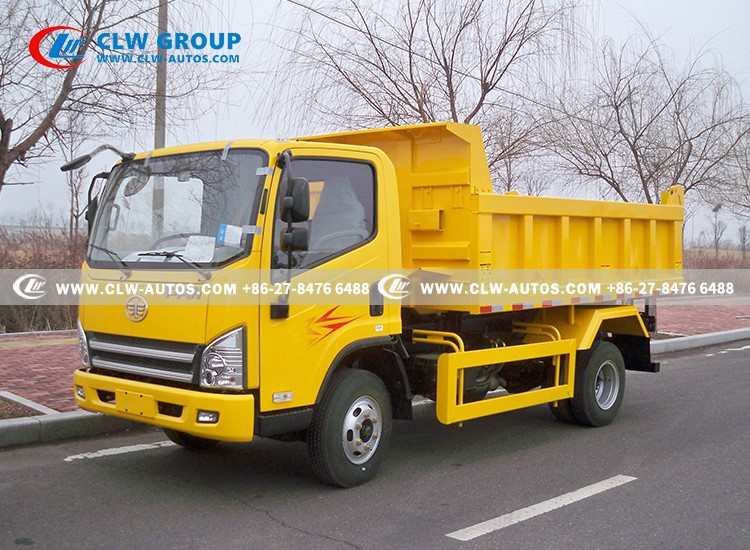

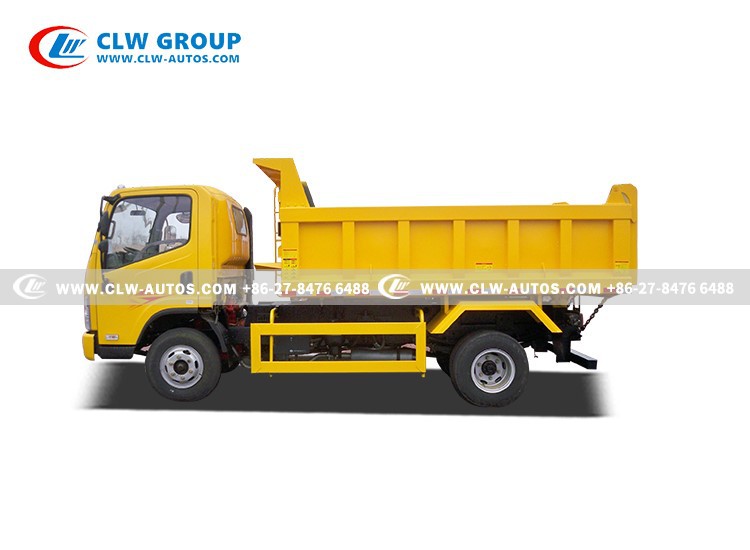

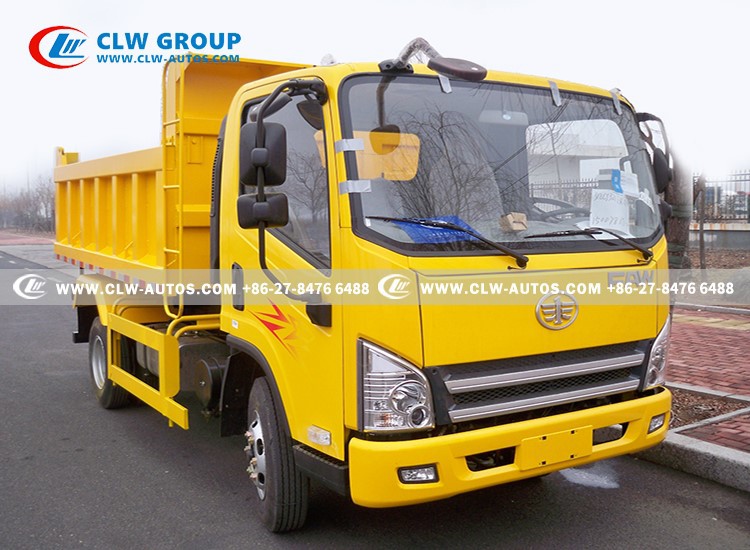

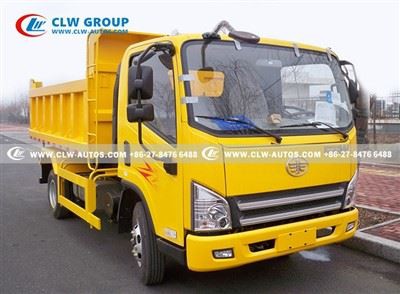

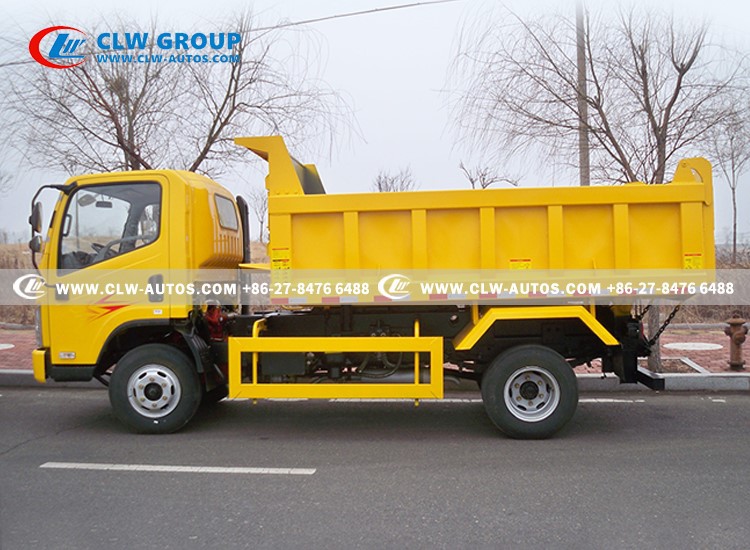

Products Pictures
After Sales Services
Engineer in Togo for service
Spare parts at factory price
One Year Warrenty for Engine, Transmission and Axles
Acceptable for third party inspection
